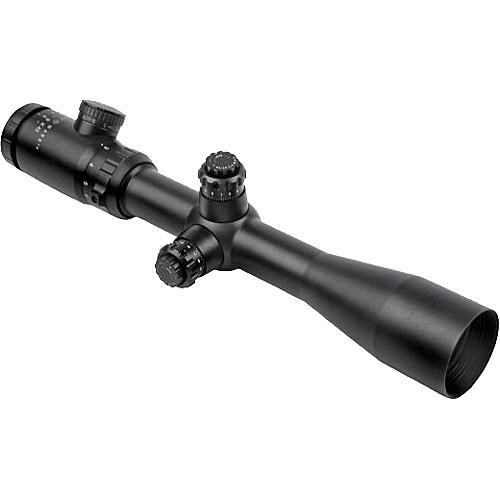

User Manual for Sightmark 3-9x42 Triple Duty Riflescope Click to enlarge the picture
Contents of the user manual for the Sightmark 3-9x42 Triple Duty Riflescope
- Product category: Riflescopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Riflescopes
|
User manual for the Sightmark 3-9x42 Triple Duty Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|
Product description The Sightmark 3-9x42 Triple Duty Riflescope (Duplex Reticle) is an ideal ally for any marksman. With a magnification range of 3x to 9x and an objective lens diameter of 42mm provided via a 30mm one piece tube, the riflescope offers optimum light transmission and an enhanced field-of-view.
Integrating phase-corrected and multi-coated optics, the 3-9x42 Triple Duty Riflescope offers a bright and clear view, allowing you to easily sight and shoot your targets. Large front diopter adjustment knobs along with tool-less windage and elevation locking turrets with 1/4" MOA clicks, enable you to precisely adjust your view for accurate long range shots.
A red / green-illuminated duplex reticle assists shooters in easily sighting and zooming onto their targets even in low-light conditions. With a nitrogen purged interior, the 3-9x42 Triple Duty Riflescope is waterproof and fogproof, enabling usage in challenging weather conditions. The riflescope easily endures rough usage owing to its shockproof design.
You are also provided with two 30mm mounting rings along with the riflescope. - Offers optimum light transmission and an enhanced field-of-view via a magnification range of 3x to 9x and an objective lens diameter of 42mm integrated into a 30mm one piece tube
- Offers a bright and clear view phase-corrected and multi-coated optics, allowing you to easily sight and shoot your targets
- Enables precise view adjustments for accurate long range shots via large front diopter adjustment knobs along with tool-less windage and elevation locking turrets with 1/4" MOA clicks
- Assists shooters in easily sighting and zooming onto their targets even in low-light conditions via a red / green-illuminated duplex reticle
- Can be used in challenging weather conditions owing to its waterproof and fogproof design accomplished via nitrogen purging
- Endures rough usage owing to its shockproof design
- Includes two 30mm mounting rings
In the Box Sightmark 3-9x42 Triple Duty Riflescope (Duplex Reticle) 2 x 30mm Mounting Rings Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 3-9x42 Triple Duty Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM13016DX Specs | | | Magnification | 3 to 9x | | Objective Lens Diameter | 42 mm | | Field of View | 3x: 45.9' @ 100 yd / 13 m @ 100 m
9x: 15.2' @ 100 yd / 4.6 m @ 100 m | | Exit Pupil Diameter | 3x: 14 mm
9x: 4.7 mm | | Eye Relief | 3.6 to 4.5" / 91 to 115.5 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | Duplex Reticle (Second Focal Plane) | | | | Windage Adjustment | 15 MOA | | Elevation Adjustment | 15 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.3" / 33.7 cm | | Weight | 1.8 lb / 0.8 kg |
