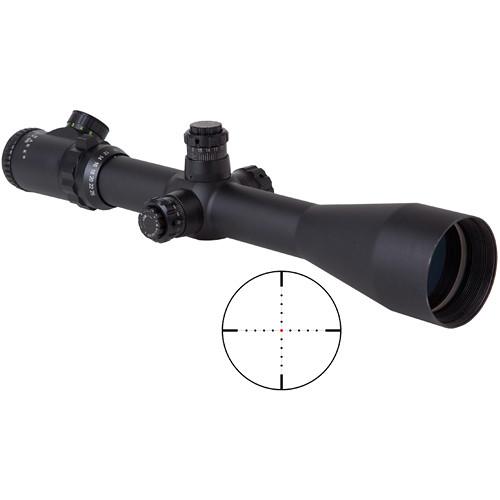

User Manual for Sightmark 6-25x56 Triple Duty Riflescope Click to enlarge the picture
Contents of the user manual for the Sightmark 6-25x56 Triple Duty Riflescope
- Product category: Riflescopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Riflescopes
|
User manual for the Sightmark 6-25x56 Triple Duty Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|
Product description The Sightmark 6-25x56 Triple Duty Riflescope (Mil-Dot Dot Reticle) is an ideal ally for any marksman. With a magnification range of 6x to 25x and an objective lens diameter of 56mm provided via a 35mm one-piece main-tube, the riflescope offers optimum light transmission and an enhanced field-of-view.Integrating phase-corrected and multicoated optics, the Triple Duty scope offers a bright and clear view, allowing you to easily sight and shoot your targets. Large parallax and front diopter adjustment knobs along with tool-free 1/8 MOA per click windage and elevation locking turrets enable you to precisely adjust your impact point for accurate long range shots.A red/green-illuminated mil-dot dot reticle assists shooters in easily sighting and zooming onto their targets even in low-light conditions. With a nitrogen purged interior, the scope is IP66-rated to be dust, waterproof and fogproof, enabling usage in challenging weather conditions. The riflescope easily endures rough usage owing to its shockproof design. - Optical Performance
-
- 6-25x zoom magnification
- 56mm objective lens diameter
- Anti-reflection fully multicoated optics
- Phase-corrected BAK prisms correct for chromatic aberration for higher contrast images with true color rendition
- 17-4.5' field of view at 100 yd
- Reticle Details
-
- Mil-Dot Dot Reticle
- Selectable red or green illumination with 5 adjustable brightness
- Reticle etched on glass and will not fade over time
- Situated on second (rear) focal plane
- Reticle size remains constant regardless of magnification selected
- Runs on one CR2032 battery with a maximum runtime of 150 hours
- Use and Handling
-
- 1/4 MOA per click impact point correction
- 100 MOA windage, 120 MOA elevation adjustment ranges
- Exposed locking tactical turrets
- Parallax-free to 10yd, with side correction turret
- 3.5" eye relief, 9.3-2.4mm exit pupil
- Construction Details
-
- 35mm one-piece main-tube
- 6061-T6 aluminum alloy housing
- Corrosion and scratch-resistant matte-black anodized finish
- Nitrogen-filled and sealed to IP66 rating. Fogproof and waterproof
- Maximum recoil rated to 1200 Gs
- Weaver rail mount with two rings
UPC: 810119016805 In the Box Sightmark 6-25x56 Triple Duty Riflescope (Mil-Dot Dot Reticle) 2 x 35mm Mounting Rings Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 6-25x56 Triple Duty Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM13019MDD Specs | | | Magnification | 6 to 25x | | Objective Lens Diameter | 56 mm | | Field of View | 6x: 17.3' @ 100 yd / 4.8 m @ 100 m
25x: 4.4' @ 100 yd / 1.2 m @ 100 m | | Exit Pupil Diameter | 6x: 9.3 mm
25x: 2.2 mm | | Eye Relief | 3.5" / 90 mm | | Diopter Correction | -3.0 to +2.0 | | | | Reticle Type | MIL Dot Reticle (Second Focal Plane) | | | | Mounting | Weaver | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m | | | | Water Resistance | IP66 | | Fogproof | Yes, Nitrogen Filled | | Operating Temperature | 41 to 95°F / 5 to 35°C | | Storage Temperature | -20 to 140°F / -20 to 60°C | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Battery Runtime | 150 Hours (Maximum) | | Dimensions | Length: 20.9" / 53 cm
Height: 5.1" / 13 cm
Width: 3.7" / 9.5 cm | | Weight | 25.4 oz / 720.1 g |
