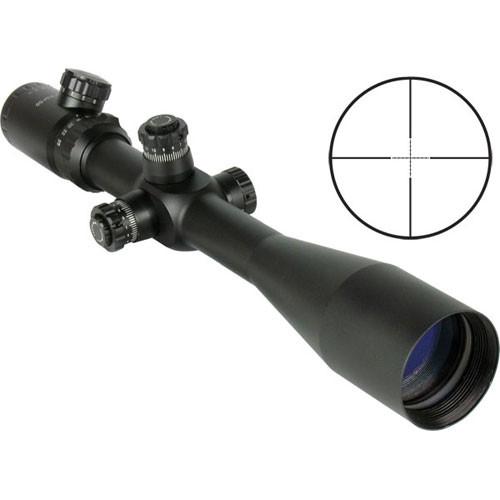

User Manual for Sightmark 8.5-25x50 Sightmark Tactical Riflescope with 30mm Tube and Illuminated Mil Dot Reticle Click to enlarge the picture
Contents of the user manual for the Sightmark 8.5-25x50 Sightmark Tactical Riflescope with
- Product category: Riflescopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Riflescopes
|
User manual for the Sightmark 8.5-25x50 Sightmark Tactical Riflescope with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|
Product description Sightmark, a world wide leader in the development and distribution of night vision and sporting optics, stay true to their one simple mission; to produce high quality optics at affordable prices. Their items are lightweight, compact, and quite durable. Extreme care is taken in the construction and design of each optic, and special attention is paid to the art and physics of optical science. This level of quality control ensures that each device is a joy to hold, use, and look through. Sightmark's 8.5-25x50 Tactical Riflescope features multicoated all-glass lens elements housed in an aluminum 30mm main-tube. This affordable riflescope has been nitrogen purged for water and fog proof performance so your sight picture will remain clear and unobstructed during dynamic weather conditions. The precision adjustments on this Sightmark offer 1/8 MOA corrections via audible and tactile click-stops. The turrets also feature a unique locking system to keep your settings where you put them during intense levels of activity. The reticle is a Mil-Dot type, for calculating distances to a target of a known size, and you can adjust the brightness levels to suit ambient lighting conditions. To use a riflescope with your firearm, you'll need a mounting base and mounting rings in addition to the scope itself. Bases attach to your firearm and rings attach to your scope. By affixing the scope mounted rings to the rifle mounted base you create a reliable accurate, and secure sighting system. Proper spacing of the rings, as well as the ring height should be considered to ensure a proper line of sight can be established. This will maximize the value of your investment, and enhance your shooting experience. It should be noted that in many mounting applications, a professional gunsmith's skills will be needed for proper installation. - 30mm One-piece aluminum main tube
- Parallax adjustable from 10 yd to infinity
- 1/8 MOA precision adjustments with locking turrets
- Nitrogen purged for water and fog proof performance
- Wide band AR multicoating for a clear view in difficult lighting
- Illuminated Mil-Dot Reticle
- The Mil-Dot reticle assists the shooter in determining the distance to a target of a known size. Accurate bullet drop corrections can be calculated by employing the Mil-Dot ranging system.
The illumination feature is user-adjustable with 11 brightness levels. UPC: 810119010179 In the Box Sightmark 8.5-25x50 Sightmark Tactical Riflescope with 30mm Tube and Illuminated Mil Dot Reticle (Matte Black) Cleaning Cloth 3.0V CR2332 Lithium Battery Set of Protective Lens Covers 30mm Aluminum Mounting Rings
(weaver rail compatible) Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark 8.5-25x50 Sightmark Tactical Riflescope with 30mm Tube and Illuminated Mil Dot Reticle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM13011 Specs | | | Magnification | 8.5 to 25x | | Objective Lens Diameter | 50 mm | | Field of View | 8.5x: 14.7' @ 100 yd / 4.8 m @ 100 m
25x: 5' @ 100 yd / 1.6 m @ 100 m | | Exit Pupil Diameter | 8.5x: 5.8 mm
25x: 2 mm | | Eye Relief | 3.5 to 3.9" / 88 to 99 mm | | Diopter Correction | -3.0 to +2.0 | | | | Impact Point Correction | 1/8 MOA per Click | | Windage Adjustment | 15 MIL | | Elevation Adjustment | 15 MIL | | | | Water Resistance | Waterproof | | Fogproof | Yes | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 16.2" / 412 mm | | Weight | 1.8 lb / 822 g | | | | Package Weight | 3.05 lb | | Box Dimensions (LxWxH) | 20.0 x 4.1 x 3.4" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
