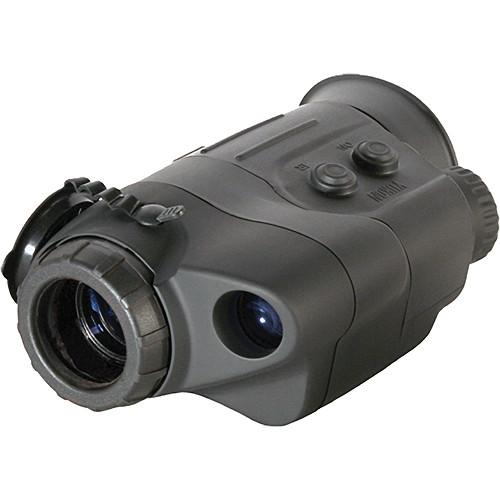

User Manual for Sightmark Eclipse 2x24 Night Vision Monocular Click to enlarge the picture
Contents of the user manual for the Sightmark Eclipse 2x24 Night Vision Monocular
- Product category: NV Monoculars & Multi-Systems Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark NV Monoculars & Multi-Systems
|
User manual for the Sightmark Eclipse 2x24 Night Vision Monocular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|
Product description The Eclipse 2x24 Night Vision Monocular from Sightmark is a multifunction optic device inspired by military and law enforcement applications, and is ideally suited for observing mobile targets at varying distances..
A magnification of 2x and a 24mm diameter objective lens integrated into a 1st generation intensifier tube, offer a 23° angular field-of-view. An integrated IR illuminator discreetly illuminates your target up to a distance of 100yd in low light conditions and can be easily switched on and off via a button. You can use the Eclipse 2x24 Night Vision Monocular for extended durations owing to its advanced internal circuitry that enhances the battery life up to 72hrs.
A diopter adjustment feature is also integrated into the monocular and provides adjustments up to ±5. You can easily mount the monocular onto a tripod via an integrated 1/4"-20 tripod adaptor. With a durable rubber body, the Eclipse 2x24 Night Vision Monocular sustains rough usage..
You are provided with lens covers, a carry case, and a cleaning cloth along with the monocular. The Eclipse 2x24 Night Vision Monocular provides augmented portability owing to its compact size (5.6 x 3.4 x 2.3") and lightweight (11.8oz) design. - Multifunction optic device inspired by military and law enforcement applications
- Ideally suited for observing mobile targets at varying distances
- Integrates a magnification of 2x and a 24mm diameter objective lens into a generation 1 intensifier tube
- Offers a 23° angular field-of-view
- Illuminates your target up to a distance of 100yd in low light conditions via an integrated IR illuminator
- IR illuminator can be switched on or off via an IR on/off button
- Can be used for extended durations owing to its advanced internal circuitry that enhances the battery life up to 72hrs
- Integrates a diopter adjustment feature that provides adjustment up to ±5
- Allows tripod mounting via an integrated 1/4"-20 tripod adaptor
- Sustains rough usage owing to a durable rubber body
- Includes lens covers, a carry case, and a cleaning cloth
- Provides augmented portability owing to its compact size (5.6 x 3.4 x 2.3") and lightweight (11.8oz) design
In the Box Sightmark Eclipse 2x24 Night Vision Monocular 2 x Lens Covers Carry Case Cleaning Cloth Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Eclipse 2x24 Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM14061 Specs | Generation | 1st Generation Intensifier Tube | | Magnification | 2x | | Objective Lens Diameter | 24mm | | Angular Field of View (AFOV) | 23° | | Resolution | 36mm (Typical) | | Focus Range | 5yd to Infinity | | Adjustable Diopter | ±5 | | IR Illuminator | Effective Distance - 100yd (91.44m) | | Power Supply | 2 AAA Batteries | | Estimated Battery Life | Up to 72hrs (Without IR) / 20hrs (With IR) | | Operating Temperature | -22°F to +104°F (-30°C to +40°C) | | Tripod Mount | 1/4" | | Dimensions | 5.6 x 3.4 x 2.3" (14.2 x 21.8 x 15.2 cm) | | Weight | 11.8 oz (335.7 g) |
