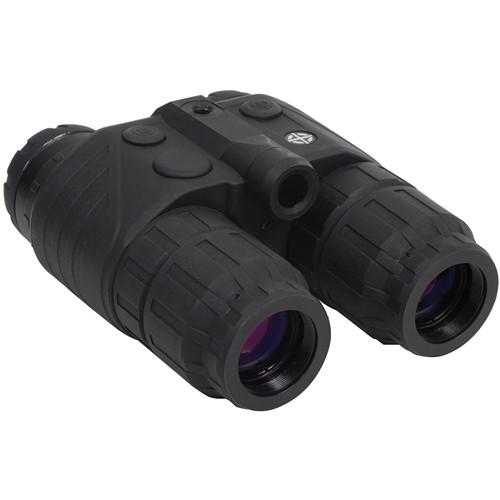

User Manual for Sightmark Ghost Hunter 1x24 1st Generation Night Vision Binocular & Headmount Kit Click to enlarge the picture
Contents of the user manual for the Sightmark Ghost Hunter 1x24 1st Generation
- Product category: Night Vision Binoculars Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Night Vision Binoculars
|
User manual for the Sightmark Ghost Hunter 1x24 1st Generation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|
Product description Conduct your night operations using Sightmark's Ghost Hunter 1x24 1st Generation Night Vision Binocular & Headmount Kit. The kit includes a 1st generation night vision binocular and a headmount for hands-free operation. To provide you with night vision capabilities, the binocular features two intensifier tubes with 30 lp/mm resolution and bright light protection and a 75mW infrared illuminator for improving visibility in total darkness. The binocular configuration of the optical system offers two optical paths that deliver better perception of depth while viewing. Other highlights include all-glass optics, a wide 30° angular field of view, and a close focus distance of 0.9'.
To produce a robust and durable device, the housing is made of glass-filled nylon composite polymer. It is ergonomic, compact, and weather-resistant. For a comfortable grip and slip-free adjustments, the body has a contoured shape and knurling on all rings and adjusters. - Night Vision Sensor & IR Illuminator
-
- 1st generation tubes
- 30 lp/mm resolution
- Bright light protection
- Built-in 75mW IR LED illuminator
- Optical Performance
-
- 1x magnification
- 24mm objective lenses
- All-glass optical elements
- 30° angular field of view
- 0.9' minimum focusing distance
- Use and Handling
-
- Can be used as a handheld device
- Mountable on the included headmount for hands-free operation
- Individual focusing
- 65mm interpupillary distance
- +5 to -5 diopter adjustment
- 0.5" eye relief
- Construction Details
-
- Glass-filled nylon housing
- Durable and lightweight
- Contoured ergonomic design
- Knurled objective and eyepiece rings
- Weather-resistant
UPC: 810119017093 In the Box Sightmark Ghost Hunter 1x24 1st Generation Night Vision Binocular & Headmount Kit (Matte Black) - Headmount
- Lens Covers
- Carry Case
- Lens Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Ghost Hunter 1x24 1st Generation Night Vision Binocular & Headmount Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM15070 Specs | Intensifier Tube | 1st generation EP33-U intensifier tubes
S25 multi-alkaline photocathode | | Resolution | 30 lp/mm | | Sensitivity | 200 µA/lm | | Magnification | 1x | | Objective Lens Diameter | 24mm | | IR Illuminator | Yes, LED
Power: 75 mW
Wavelength: 805 nm | | Field of View | 30° | | Close Focus Distance | 0.9' / 0.3 m | | Eye Relief | 0.47" / 12.0 mm | | Interpupillary Distance | 2.5" / 63 mm | | Diopter Adjustment | +5 to -5 | | Battery | 2 x AAA batteries / IR Off: 72 hours, IR On: 20 hours | | Weatherproof | Rated IPX3: Weather-resistant | | Operating Temperature | -4 to 104°F / -20 to 40°C | | Construction | Optics: Glass
Housing: Glass-filled nylon composite | | Dimensions | 5.4 x 4.4 x 2.4" / 136.0 x 113.0 x 60.0 mm | | Weight | 13.8 oz / 391.2 g | | | | Package Weight | 2.48 lb | | Box Dimensions (LxWxH) | 13.4 x 9.8 x 3.75" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
Discussion
Ask our technicians if you have a problem with your settings,
or if anything is unclear in the user manual you have downloaded.
You can make use of our moderated discussion.
The discussion is public and helps other users of our website who may be encountering similar problems.
Post new comment to Sightmark Ghost Hunter 1x24 1st Generation Night Vision Binocular & Headmount Kit
| Subject: NOt seeing clearly also not showing up addition ir luminator | | Date: 02.02.2021 21:08:36 | Name: Ameer | hello hope all is well. I have an sightmark monocular 1×24. Recently I realize that it doesn't show as well as before. I bought a ir luminator to assist but still not show as bright etc. Plzzz assist. The ir luminator is 940
nm | | Post reply |
