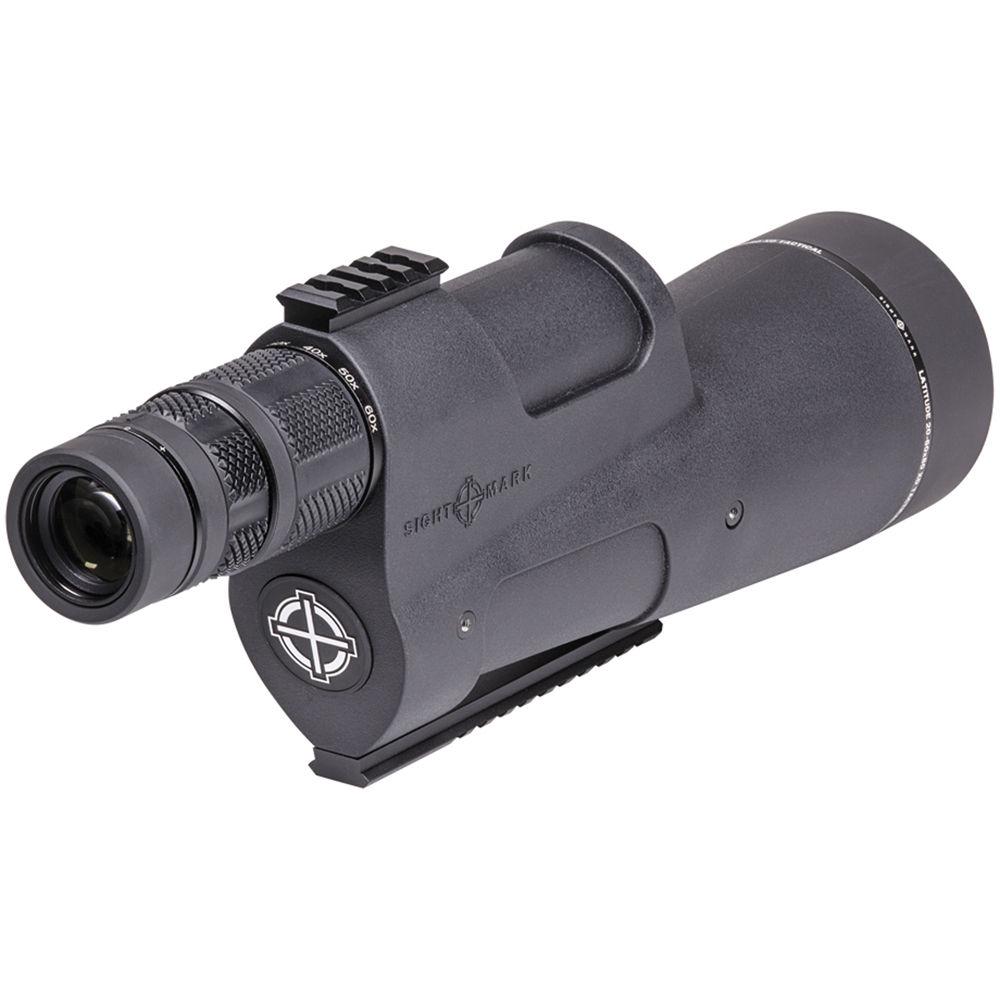

User Manual for Sightmark Latitude XD 20-60x80 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Sightmark Latitude XD 20-60x80 Spotting Scope
- Product category: Spotting Scopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Spotting Scopes
 |
User manual for the Sightmark Latitude XD 20-60x80 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|

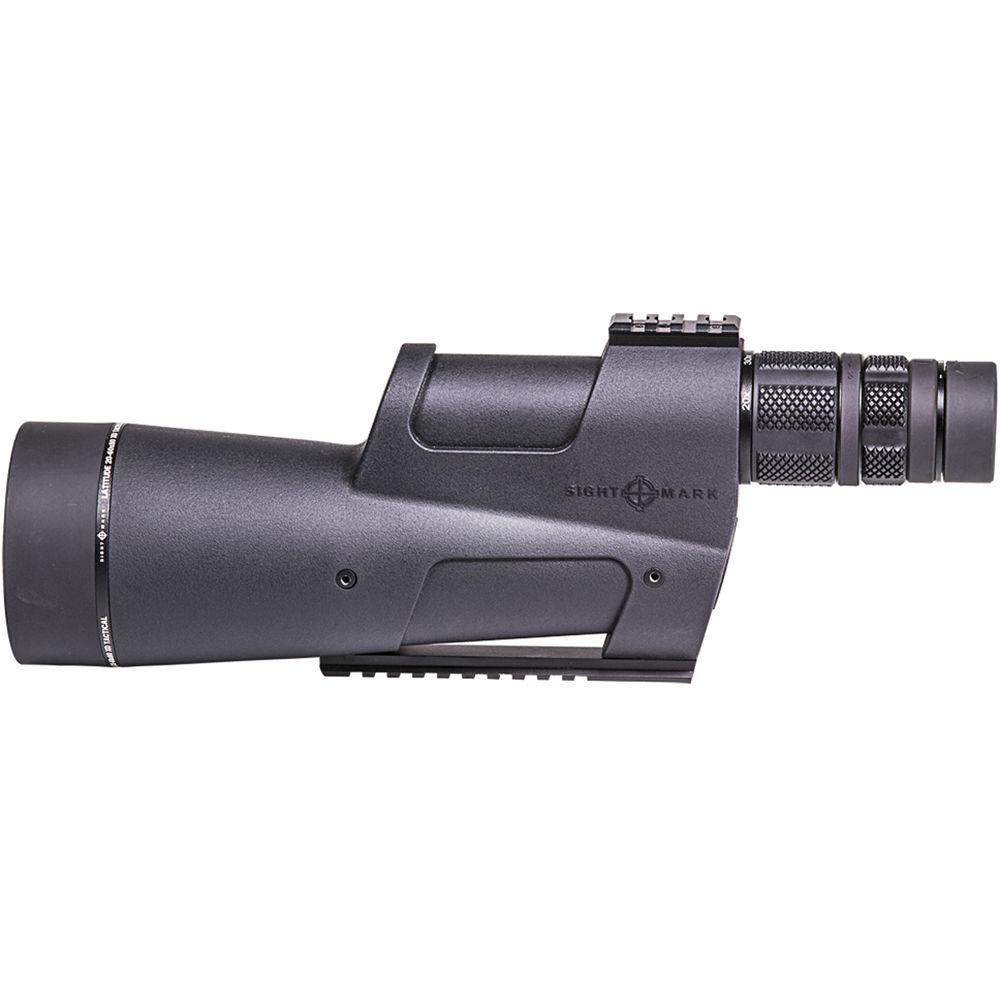

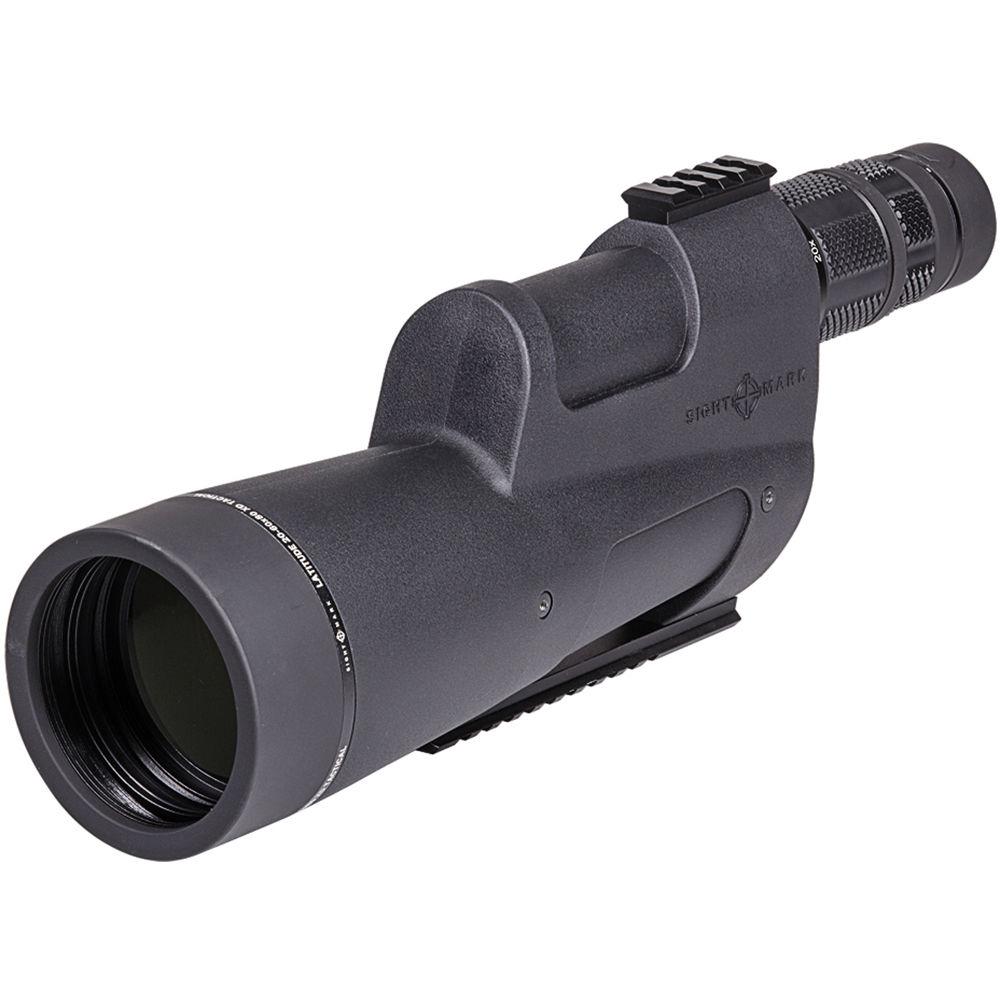

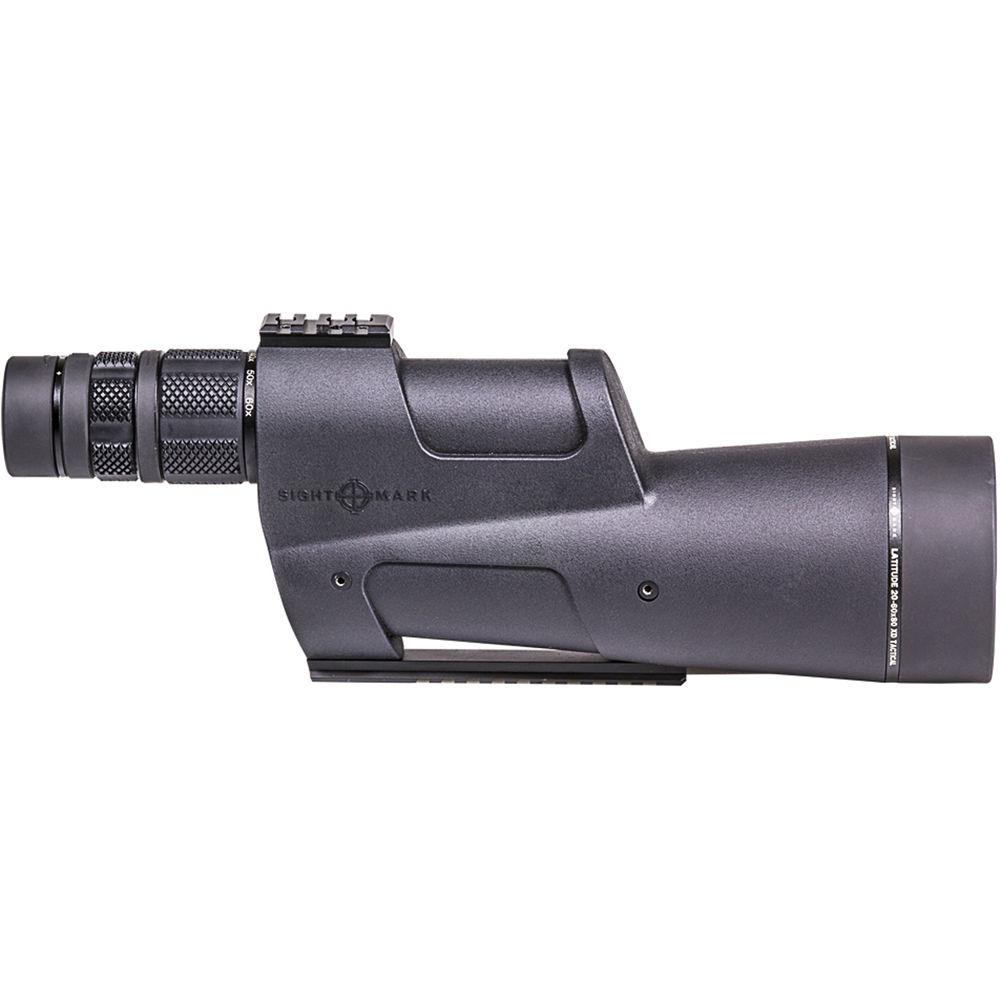

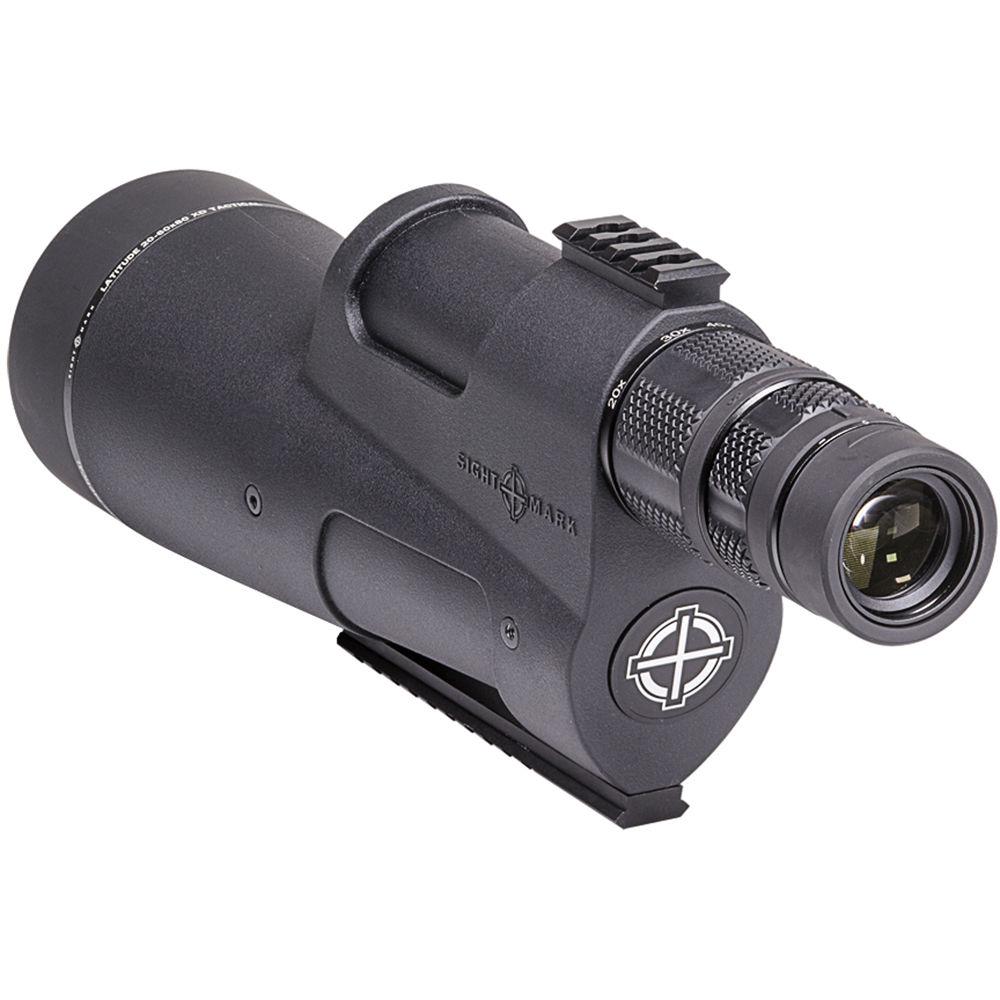

Product description A Guide to Birding with Spotting Scopes Read More Outfitted with a powerful zoom and an oversized objective, the straight-through viewing Sightmark Latitude 20-60x80 Spotting Scope is an ideal addition to your long-range shooting or observation kit—whether you're a hunter, birder, outdoor enthusiast, or tactical professional.It utilizes a mirror system to fold the light path and correct the image orientation, and the mirrors are dielectric coated to boost reflectivity to over 99%, which limits internal diffraction, ensures images maintain their brightness, and improves contrast and clarity. Complementing the mirror coatings is the use of extra-low dispersion glass elements on the lenses and anti-reflection fully multi-coated optics, which maximize light transmission while ensuring accurate color fidelity and further boosting contrast and clarity. The large 80mm objective draws in copious amounts of light to make it especially useful in challenging conditions such as at dawn or dusk, or when trying to pick out game from under heavily canopied forests. Its impressive 20-60x zoom range enables you to maximize the field of view at its lowest power, and with a simple twist of the zoom collar make detailed observations of distant subjects.The scope housing is wrapped in a protective rubber armor, and the optical tube is nitrogen filled and O-ring sealed to an IP67-rating, making it dust and waterproof, as well as resistant to internal fogging in extreme conditions. A standard 1/4"-20 mounting thread is provided for fast attachment onto various support systems. Two removable Picatinny/Weaver accessory rails—a short one on the top and longer one on the bottom—enable dot or reflex sights to be mounted to make acquiring targets faster and allow illumination devices like lights or illuminators to be mounted and increase its usability. The bottom rail also has a 1/4"-20 socket that allows the lower rail to be installed and still have the scope attached to a support system. - Optical Performance
-
- Powerful 20-60x zoom range enables observations of distant subjects at all magnifications, with maximum field of view at lowest power and detailed views at highest
- Large 80mm objective lens helps to produce bright images during the day and enables viewing in low-light conditions such as at dawn and dusk
- Folded light path uses mirrors to direct light and correct image
- Highly reflective dielectric coatings transmit more than 99% of light to reduce internal diffraction and improve contrast and clarity
- Extra-low dispersion glass corrects chromatic aberration to produce accurate colors without fringing
- Anti-reflection fully multi-coated optics improve light transmission, clarity, contrast, and color rendition
- 131- to 43.5-foot field of view at 1000 yards
- Use and Handling
-
- Eyepiece set in straight line with body to make finding subjects fast and tracking moving targets easy
- Textured zoom and focus collars set directly in front of the eyepiece for sure handling, even in cold or wet conditions, and easy use without taking the user's eye away from the eyecup
- Standard 1/4"-20 tripod mount for use with many photo/video/field tripods
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Exceptional 27-26mm eye relief provides comfortable viewing with reduced eye fatigue, especially during long observation periods, at all magnifications
- 4.1-1.3mm exit pupil
- Construction Details
-
- Compact and highly portable design is less than one foot long
- Rubber-armored body protects housing while providing a slip-resistant grip
- IP67-rated dustproof and waterproof to 3.3 feet (1m) for up to one hour
- Nitrogen filled to resist internal fogging when moving through extreme temperature or environmental conditions
- Small upper Picatinny/Weaver accessory rail allows the mounting of accessories such as dot or reflex sights
- Lower long Picatinny/Weaver rail enables accessories such as lasers or flashlights to be mounted and has 1/4"-20 socket to enable scope to be mounted while accessories are installed
- Broad -4 to 122°F (-20 to 50°C) operating temperature range

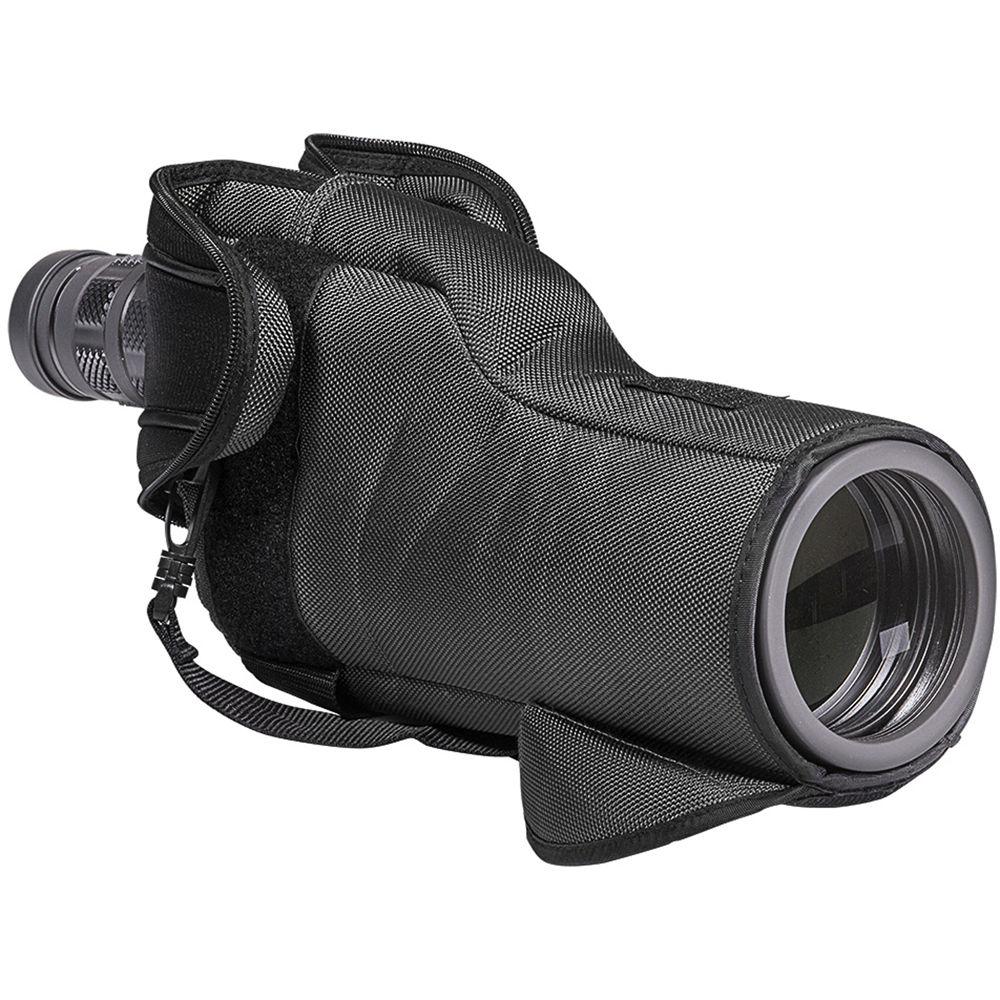

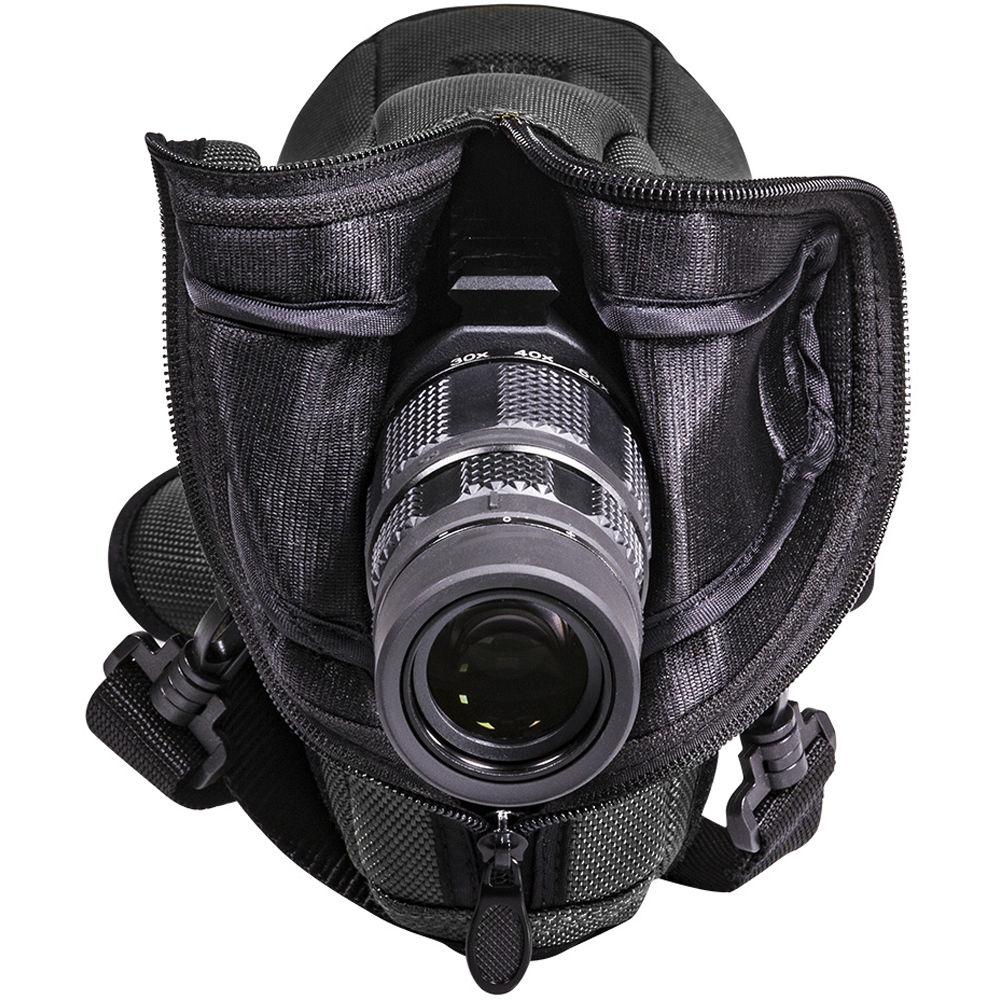

- Stay-on/view-through nylon carry case protects housing, even while in use, and makes moving and changing positions quick
- Weight: 68 ounces

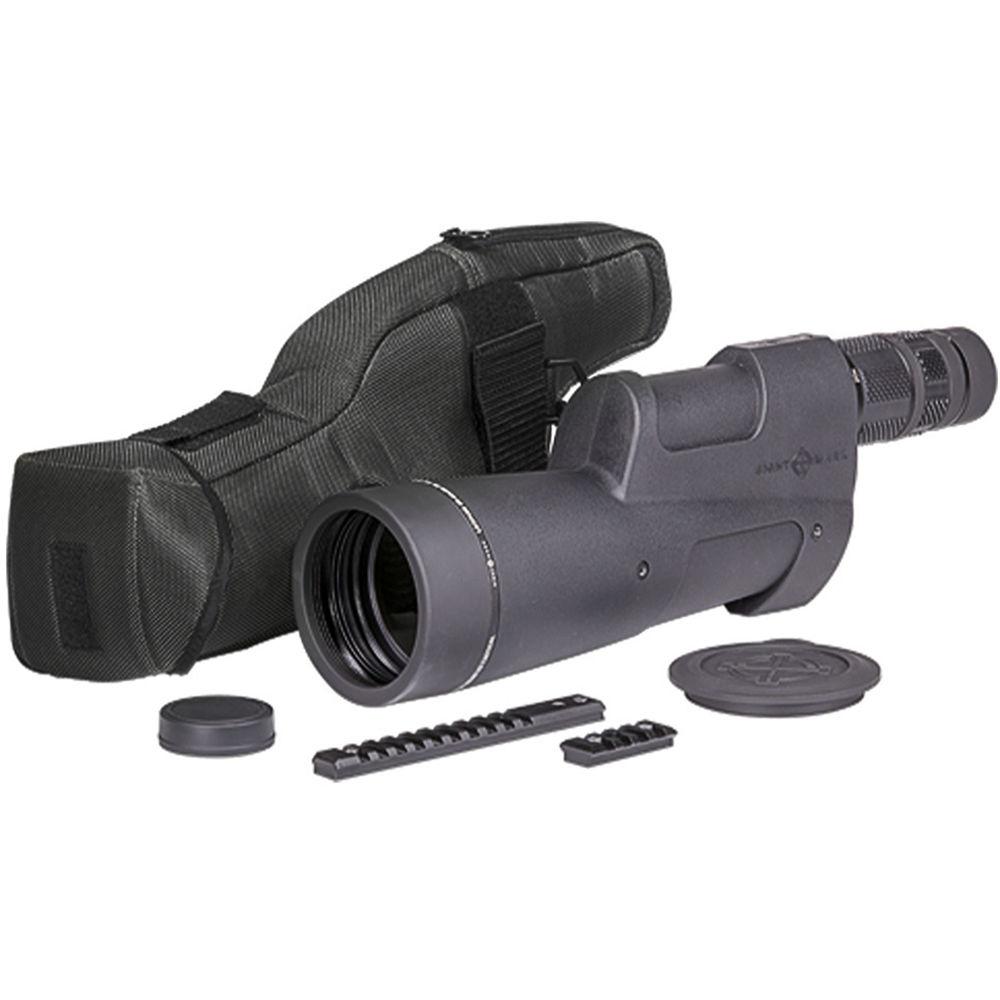

UPC: 812495021633 In the Box Sightmark Latitude XD 20-60x80 Spotting Scope (Straight Viewing) Nylon Stay-On/View-Through Case Eyepiece Cover Objective Lens Cap 2 x Picatinny/Weaver Accessory Rails Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Latitude XD 20-60x80 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark Latitude Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 80 mm | | Angle of View | 20x: 2.5° (Actual)
60x: 0.84° (Actual) | | Field of View | 20x: 131.1' @ 1000 yd / 43.7 m @ 1000 m
60x: 43.5' @ 1000 yd / 14.5 m @ 1000 m | | Minimum Focus Distance | 39.0' / 12.0 m | | Exit Pupil Diameter | 20x: 4.1 mm
60x: 1.3 mm | | Eye Relief | 27.0 to 26.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Water Resistant, IP67 | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 15.5 x H: 5.8 x W: 3.8" / L: 39.4 x H: 14.6 x W: 9.5 cm | | Weight | 67.7 oz / 1919.3 g |
