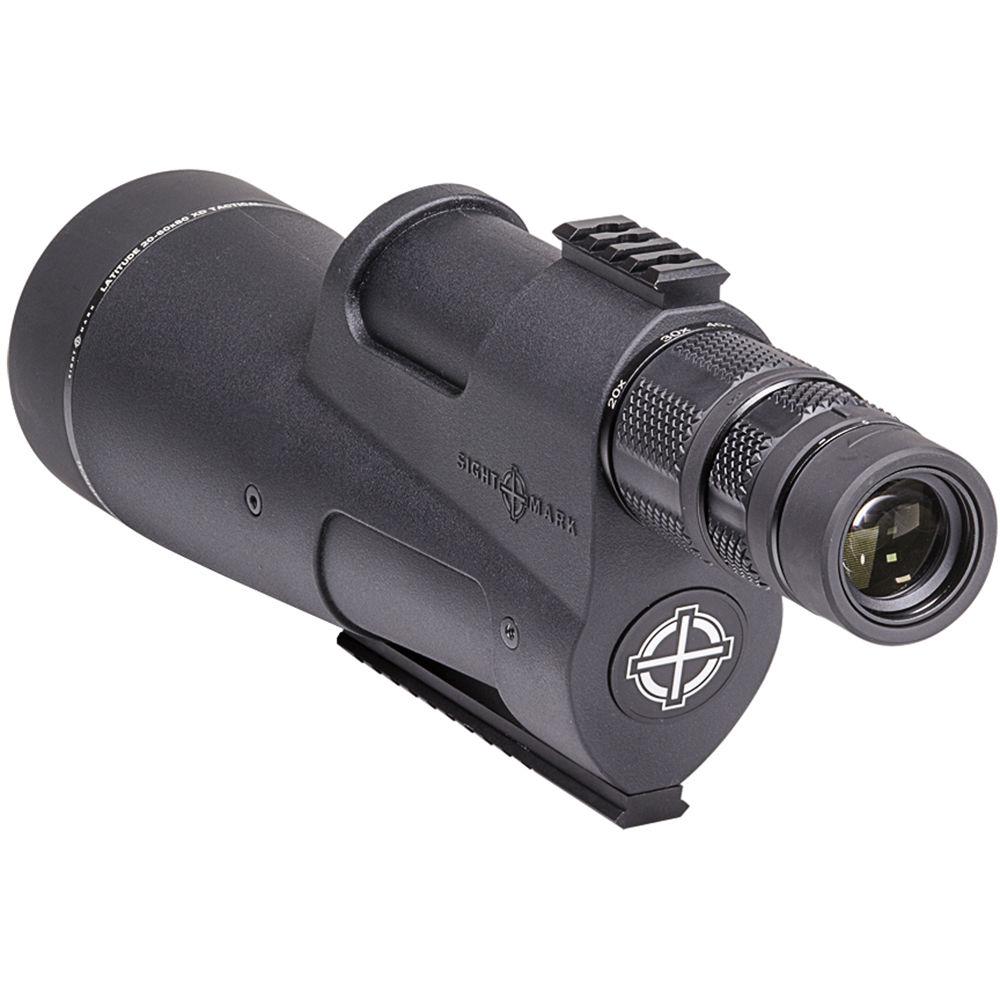

Sightmark Latitude XD 20-60x80 Tactical Spotting

User Manual for Sightmark Latitude XD 20-60x80 Tactical Spotting Scope

• Product category: Spotting Scopes Sightmark
• Brand: Sightmark
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sightmark Spotting Scopes

Product description

Optical Performance
• • Powerful 20-60x zoom range enables observations of distant subjects at all magnifications, with maximum field of view at the lowest power and detailed views at the highest
  • Large 80mm objective lens helps to produce bright images during the day and enables viewing in low-light conditions such as at dawn and dusk
  • Folded light path uses mirrors to direct light and correct image
  • Highly reflective dielectric coatings transmit more than 99% of light to reduce internal diffraction and improve contrast and clarity
  • Extra-low dispersion glass corrects chromatic aberration to produce accurate colors without fringing
  • Anti-reflection fully multi-coated optics improve light transmission, clarity, contrast, and color rendition
  • 131 to 43.5-foot field of view at 1000 yards

Mil-Rad Ranging Crosshair Reticle
• • Modified crosshair design
  • Placed on the first focal plane so subtensions of the reticle will be true at any magnification
  • Use to calculate ballistic drop to improve shot accuracy, determine range to target, and estimate the size of the target
  • Top vertical and left horizontal scales are scaled in 1-mil increments
  • Bottom and right scales are scaled in 0.5-mil increments; after 11 mils the scale is marked in 5-mil increments
  • Below the horizontal scale, between the 10-mil and 20-mil increments, is a series of horizontal lines that can be used for ranging shoulder width of IPSC or similar silhouette targets

Use and Handling
• • Eyepiece set in straight line with body to make finding subjects fast and tracking moving targets easy
  • Textured zoom and focus collars set directly in front of the eyepiece for sure handling, even in cold or wet conditions, and easy use without taking the user's eye away from the eyecup
  • Standard 1/4"-20 tripod mount for use with many photo/video/field tripods
  • Twist-up rubber eyecup for comfortable use with or without eyewear
  • Exceptional 27-26mm eye relief provides comfortable viewing with reduced eye fatigue, especially during long observation periods, at all magnifications
  • 4.1-1.3mm exit pupil

Construction Details
• • Compact and highly portable design is less than one foot long
  • Rubber-armored body protects housing while providing a slip-resistant grip
  • IP67-rated dustproof and waterproof to 3.3 feet (1m) for up to one hour
  • Nitrogen filled to resist internal fogging when moving through extreme temperature or environmental conditions

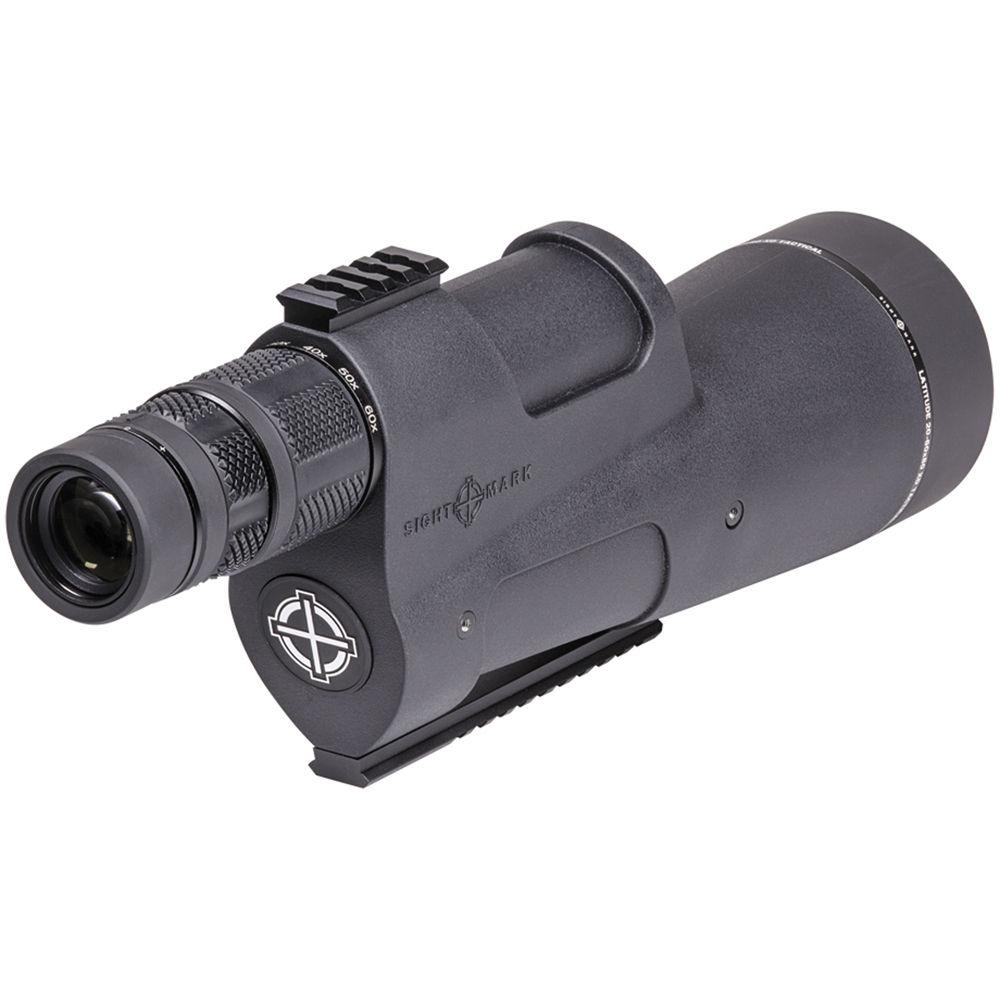

  • Small upper Picatinny/Weaver accessory rail allows the mounting of accessories such as dot or reflex sights
  • Lower long Picatinny/Weaver rail enables accessories such as lasers or flashlights to be mounted and has 1/4"-20 socket to enable scope to be mounted while accessories are installed
  • Broad -4 to 122°F (-20 to 50°C) operating temperature range

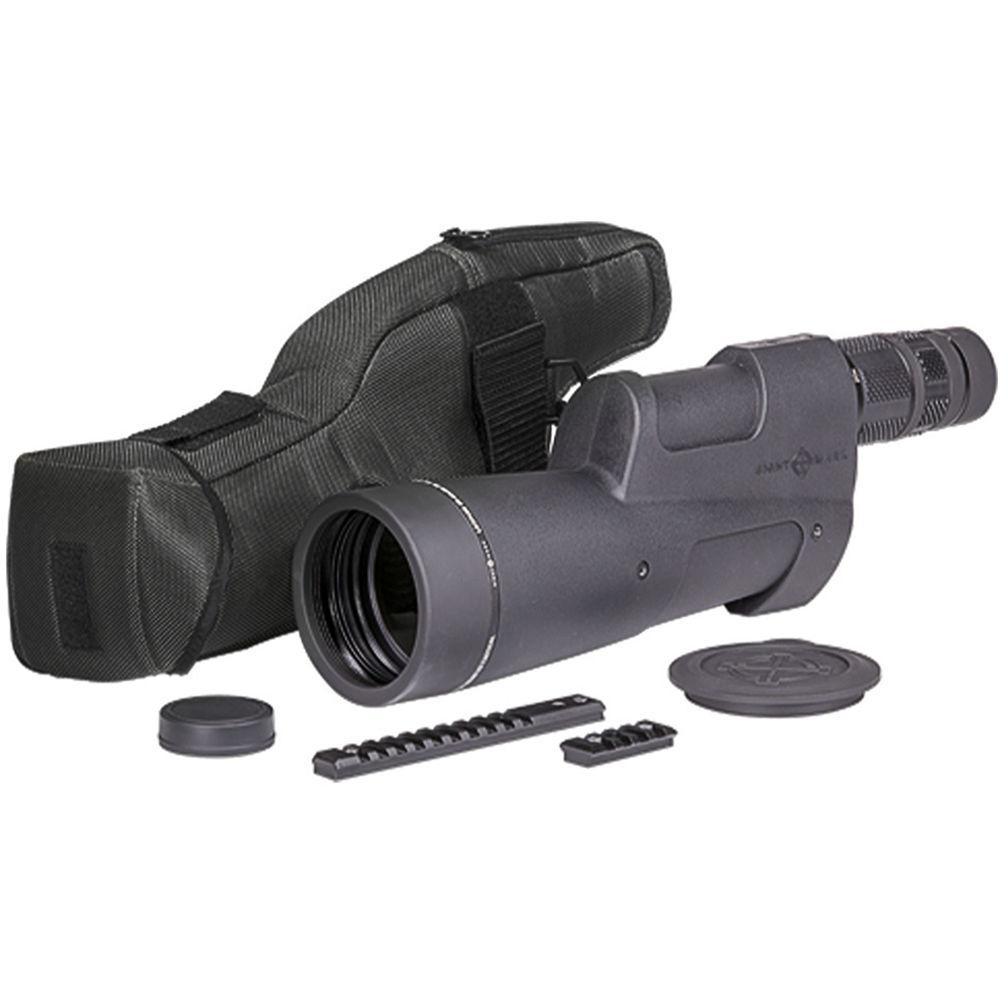

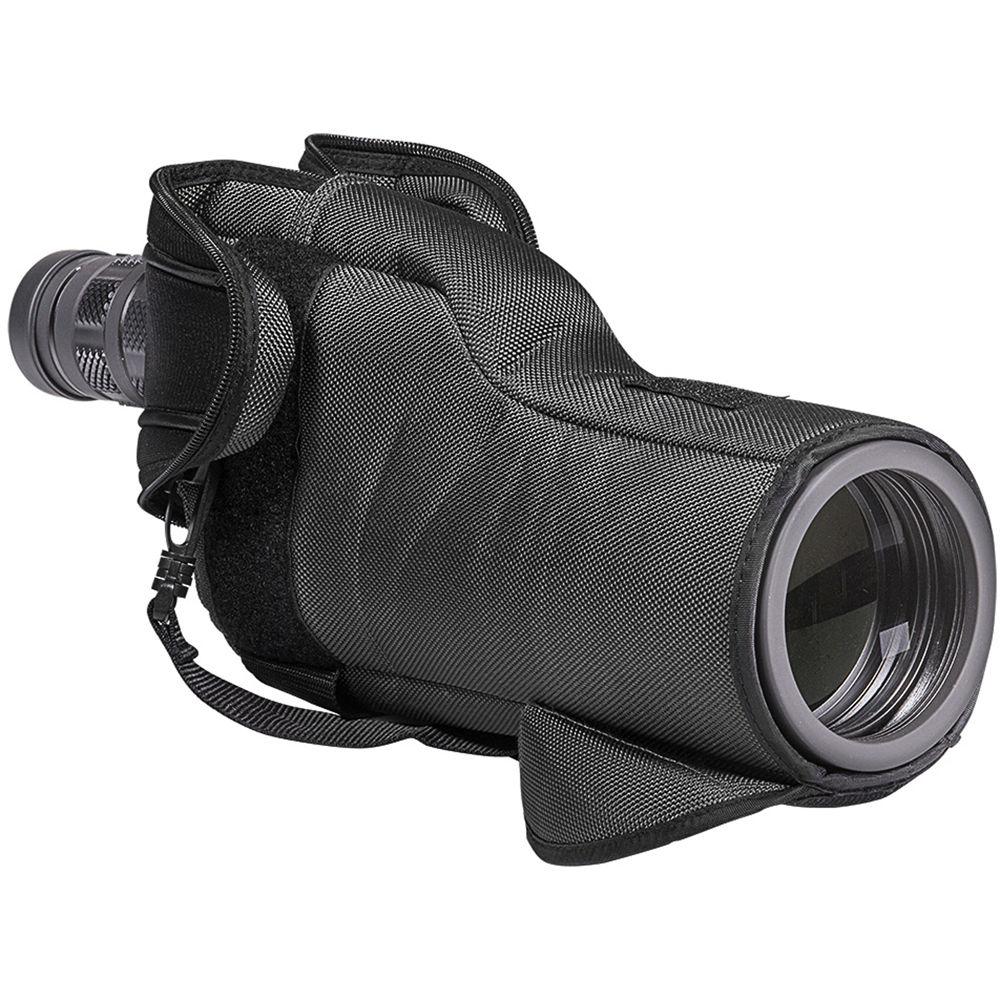

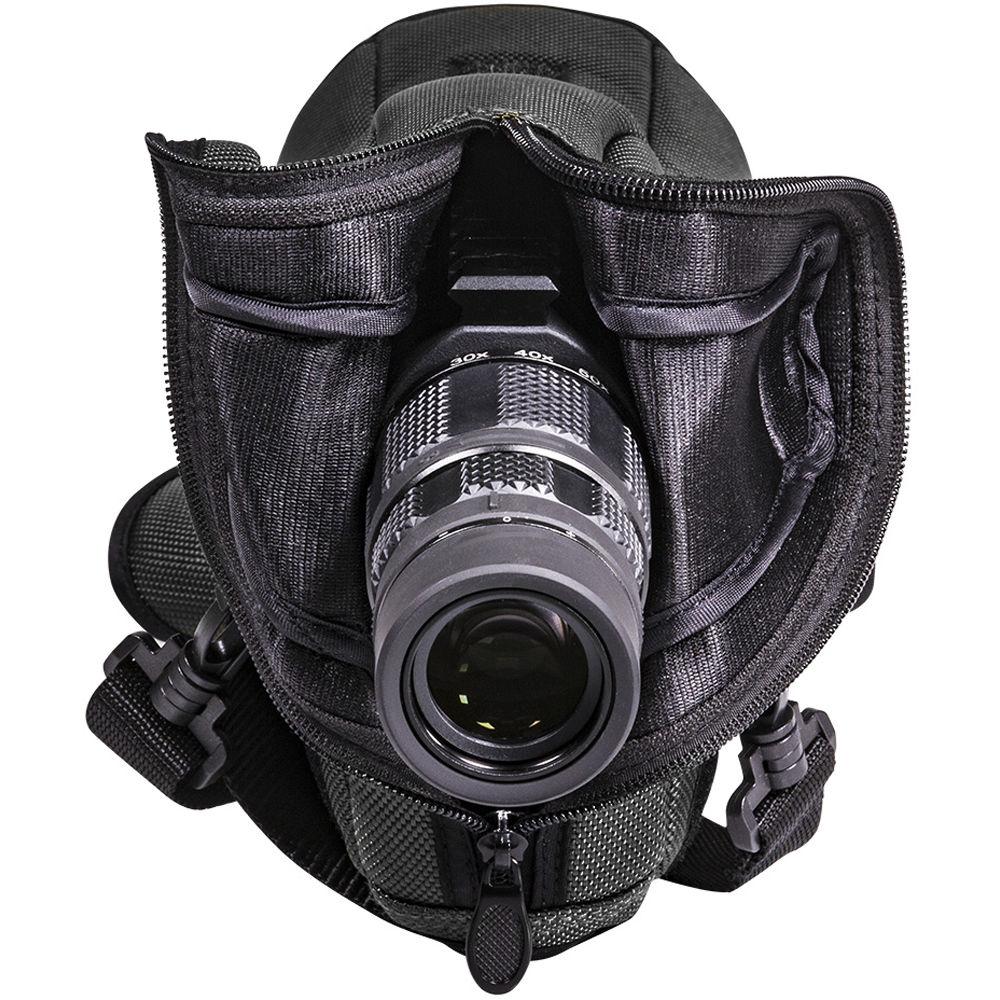

  • Stay-on/view-through nylon carry case protects housing, even while in use, and makes moving and changing positions quick
  • Weight: 68 ounces
