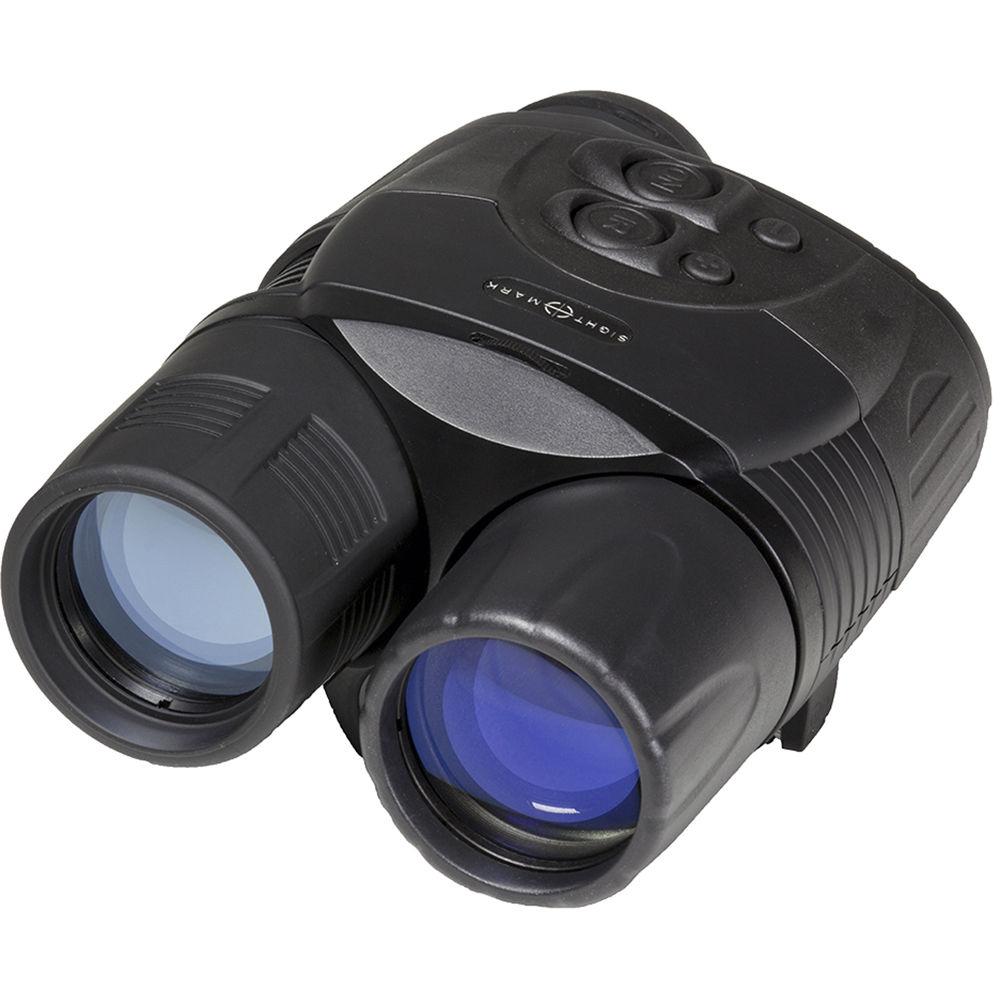

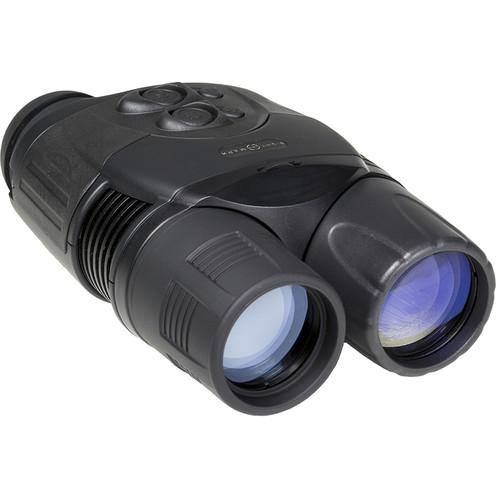

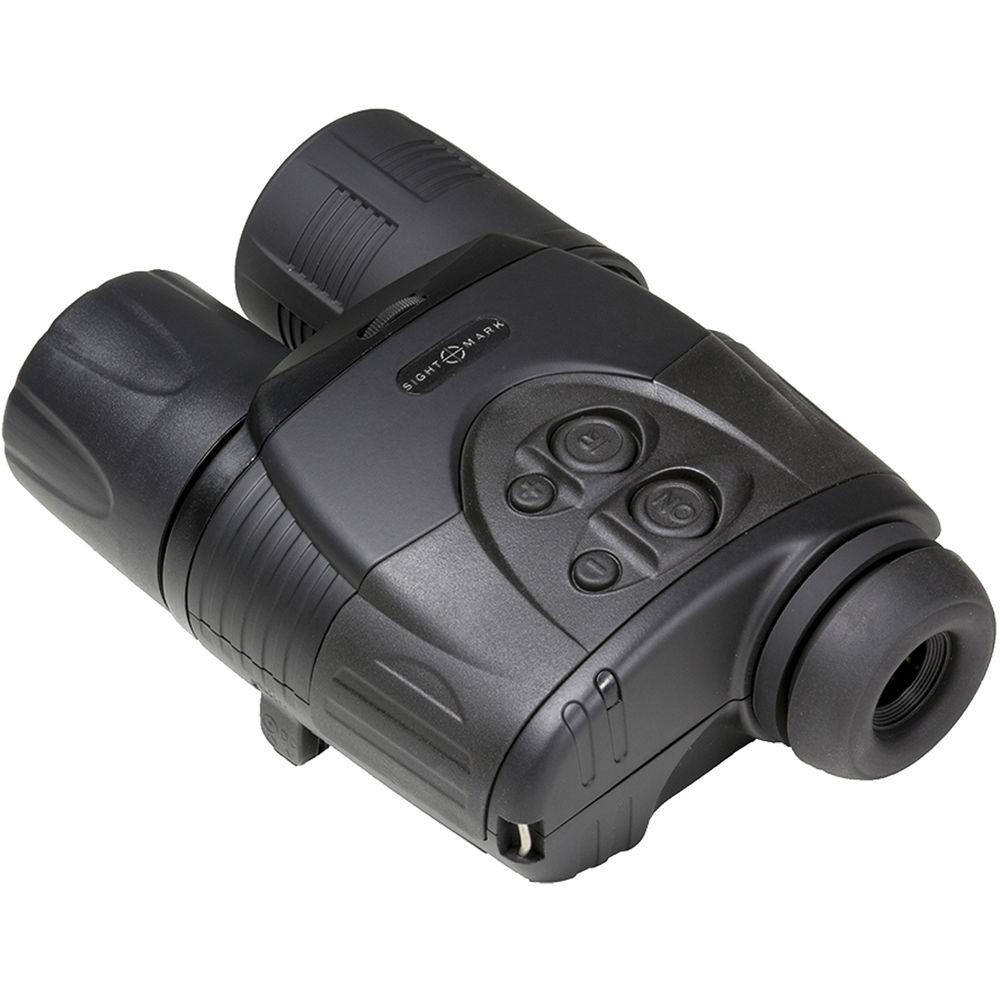

Product description Explore the night with Nitecore's Ranger XR 6.5x42 Digital Night Vision Monocular. At the core of this optic is a bright-light-resistant, digital 640x480 CMOS imaging sensor that allows observers to view night or day scenes magnified through an eyepiece with a built-in LCD display, or relay them to an external monitor or recorder via a built-in RCA video-out port. Enabling you to see imagery in complete darkness, the device also provides a powerful infrared LED illuminator, situated in the left tube of the housing. It also has a second low-power infrared illuminator to assist you with short-range observations. Located on top, within reach of your fingertips, the four-button menu provides easy access to all the functions: power On, IR On, and the two LCD display brightness controls. Also on the top, near the menu pad, you will find a focusing wheel. To enable you to get close-ups, the optical system features a 16' close focus, and to accommodate anyone with eye-wear it offers a 14mm eye relief and a diopter adjustment.

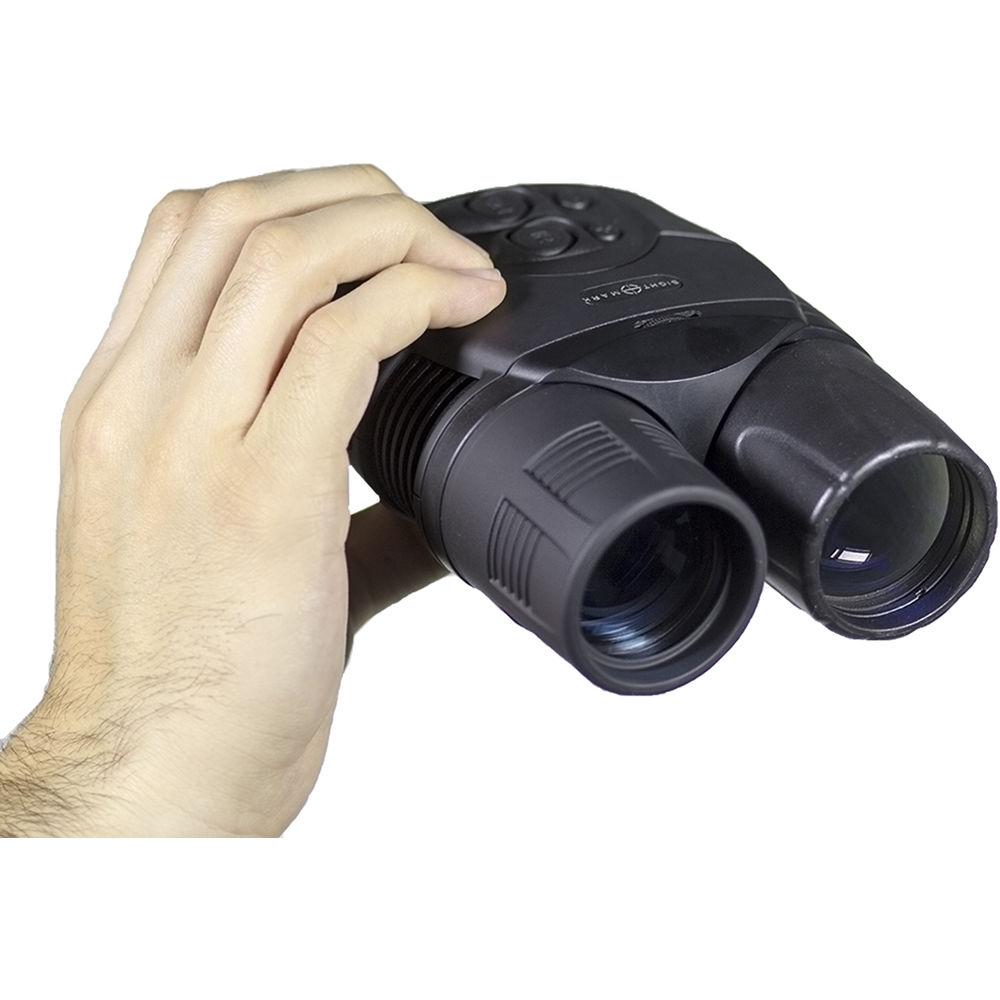

The housing is made of lightweight, durable ABS plastic and features a water-resistant IPX4 rating. It has a contoured and ergonomic design, fitting for one-handed and slip-free operation, a lanyard or strap attachment point, and a rubberized twist-out eyecup. - Digital NV Sensor and Video Performance
-
- 640x480 CMOS imaging sensor
- 40 lp/mm sensor resolution
- Intrinsic bright-light resistance
- Built-in 640x480 LCD display
- Allows night or day observations or recording
- RCA video-out port for external video devices
- Video cable included
- Infrared Illumination
-
- Two built-in illuminators
- Short-range IR illuminator delivers 18mW
- Long-range IR illuminator has adjustable power: 13 - 118mW
- 940nm infrared illuminator wavelength
- Optical Performance
-
- 42mm objective diameter
- 6.5x magnification
- 5° angular field of view
- 16' minimum focus distance
- ±5 diopter correction
- 14mm eye relief
- Construction
-
- ABS plastic housing
- Ergonomic and contoured design
- Knurled adjustment rings
- Rubberized twist-out eyecup
- 1/4"-20 tripod socket
- Water-resistant
UPC: 812495021510 In the Box Sightmark Ranger XR 6.5x42 Digital Night Vision Monocular (Black) - Carrying Case
- Neck Strap
- Lens Cloth
- Car Power Adapter
- Video Cable
- Extra Battery Container
- Limited Lifetime Warranty
- Limited 3-Year Warranty on Night Vision Sensor & IR LED
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Ranger XR 6.5x42 Digital Night Vision Monocular in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark SM18010 Specs | Sensor | 640 x 480 CMOS digital sensor
Resolution: 40 lp/mm | | Infrared Illuminator | Short-Range LED: 18 mW
Long-Range LED: 13 - 118 mW
Wavelength: 940 nm | | Display | 640x480 black/white LCD | | Video Out | RCA port | | Magnification | 6.5x | | Objective Diameter | 42mm | | Angle of View | 5° | | Linear Field of View | 241' @ 1000 yd / 80 m @ 1000 m | | Minimum Focus Distance | 16' / 5 m | | Eye Relief | 14 mm | | Diopter Adjustment | ±5 | | Power Source | 6 x AA (1.5 V) batteries
6 - 9 V power supply | | Runtime | IR On: 5 h
IR Off: 12 h | | Operating Temperature | 5 to 122 °F / -15 to 50°C | | Waterproofing | Water-resistant, rated IPX4 | | Dimensions | 6.7 x 4.5 x 3" / 170 x 116 x 76 mm | | Weight | 23 oz / 652 g | | | | Package Weight | 2.585 lb | | Box Dimensions (LxWxH) | 12.0 x 7.0 x 4.1" |
