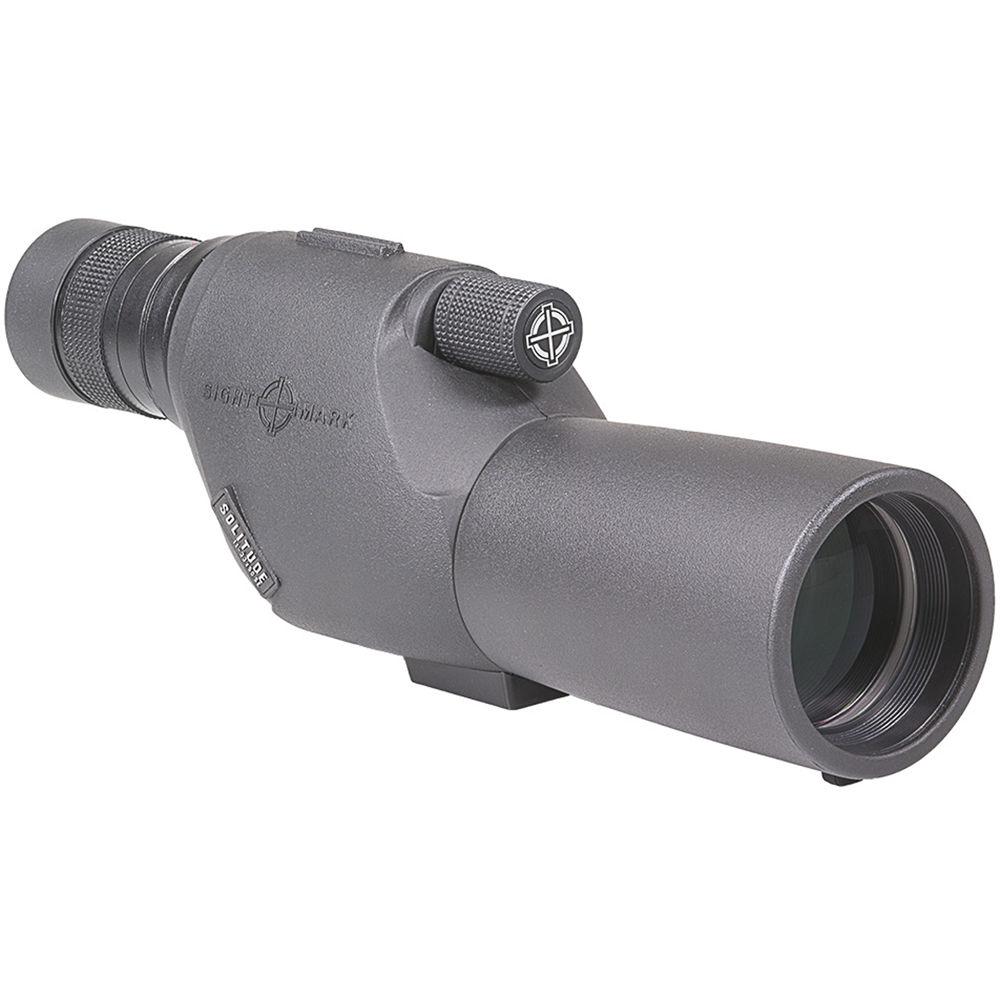

User Manual for Sightmark Solitude SE 11-33x50 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Sightmark Solitude SE 11-33x50 Spotting Scope
- Product category: Spotting Scopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Spotting Scopes
 |
User manual for the Sightmark Solitude SE 11-33x50 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|

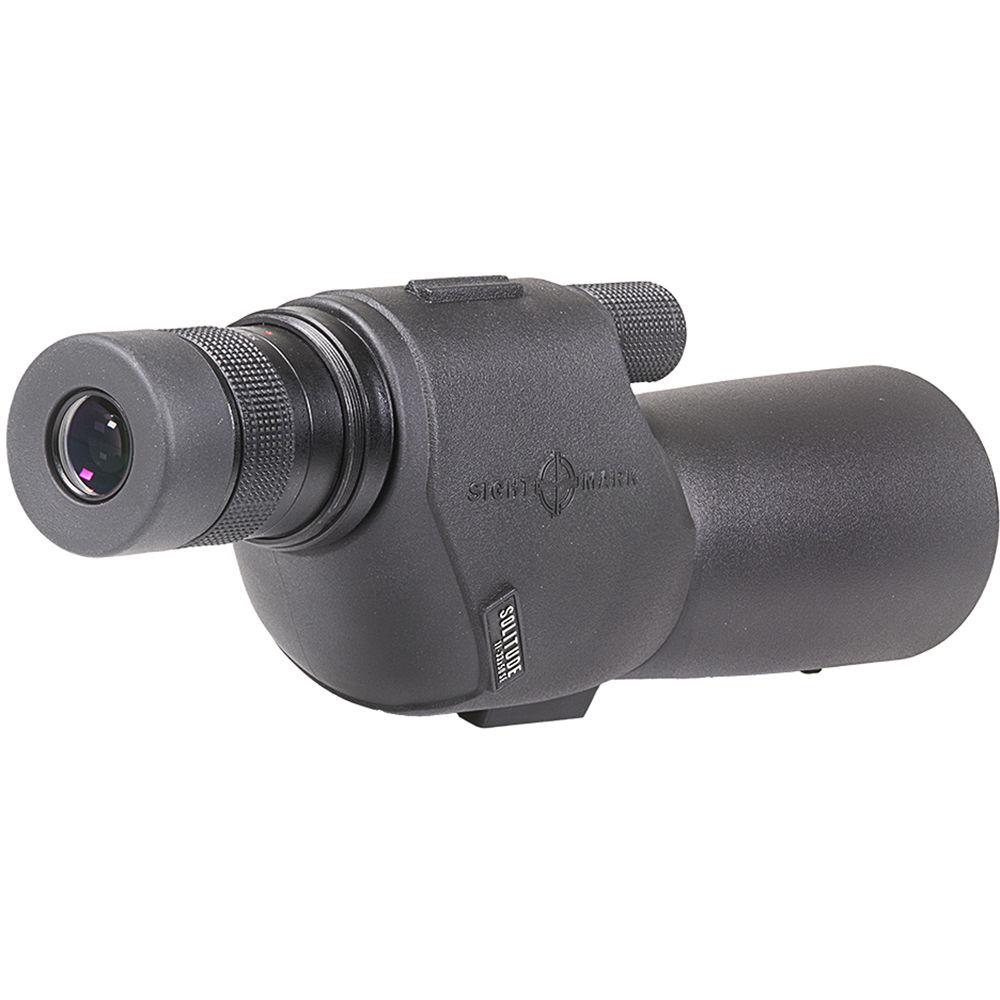

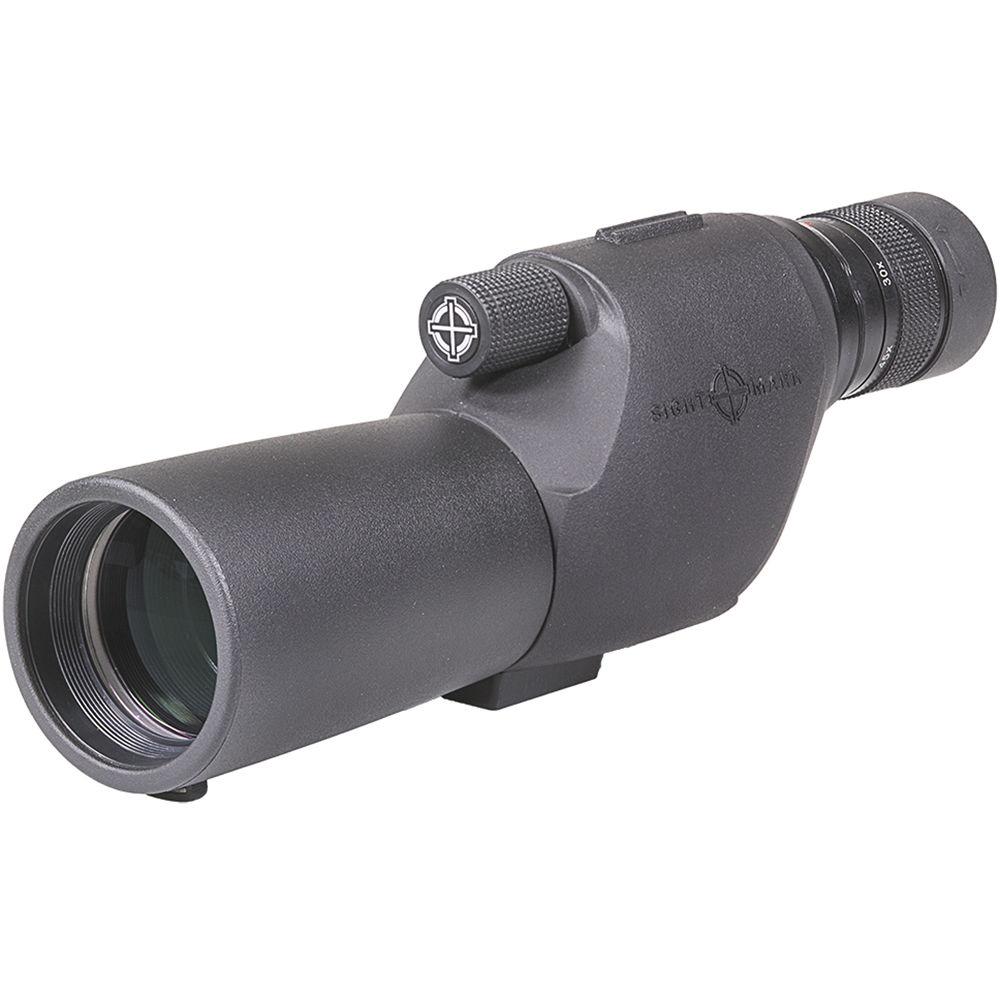

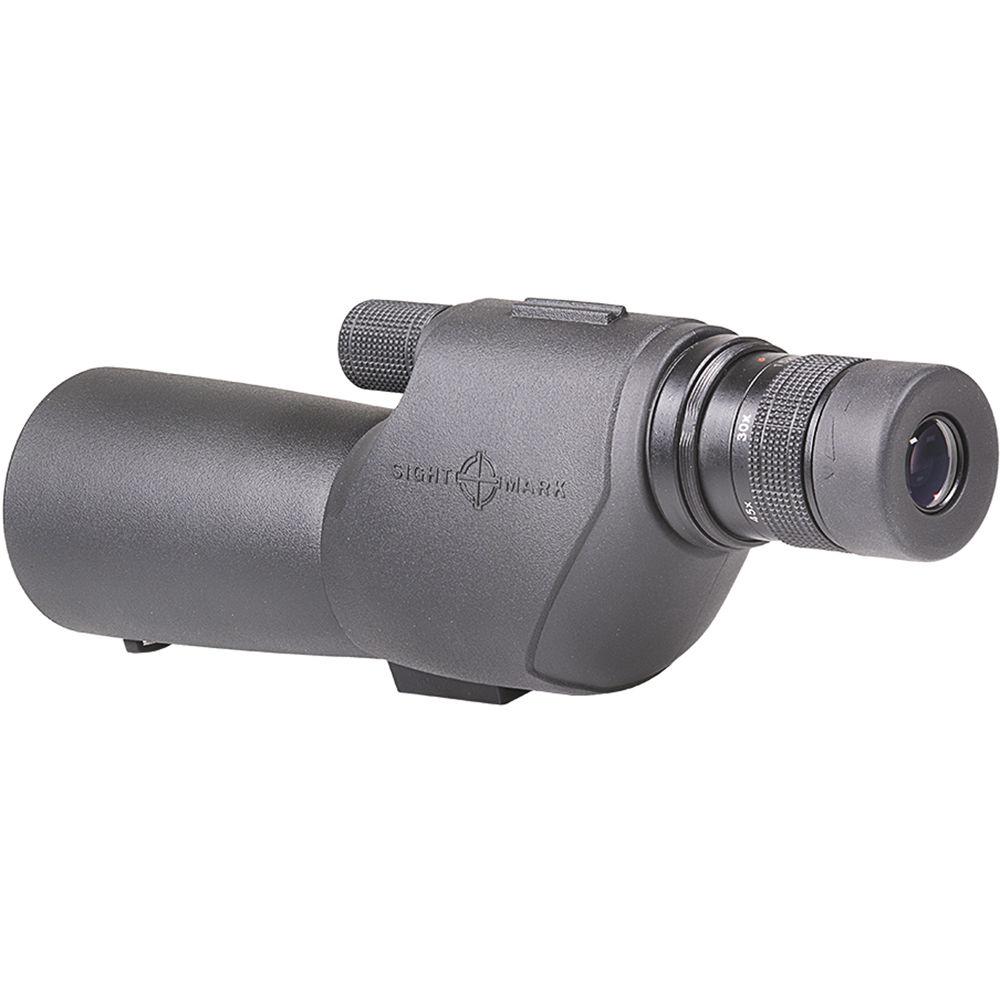

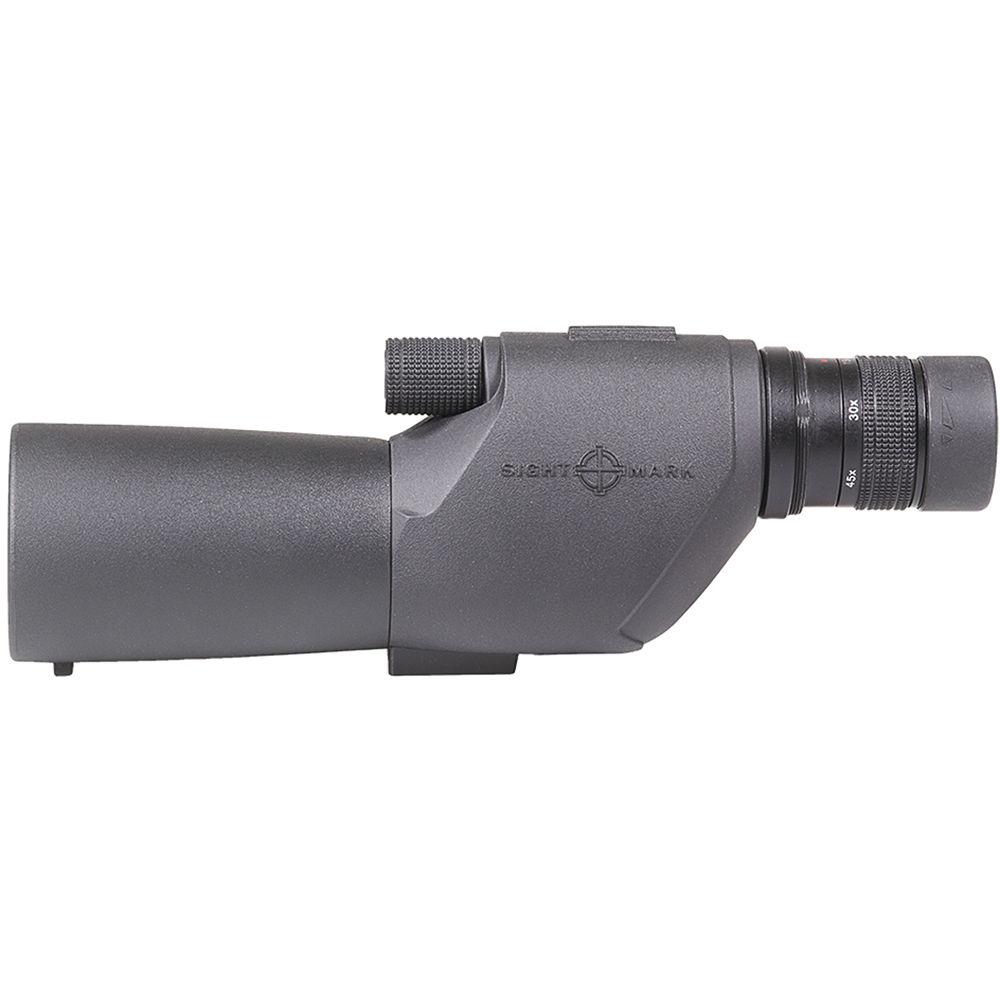

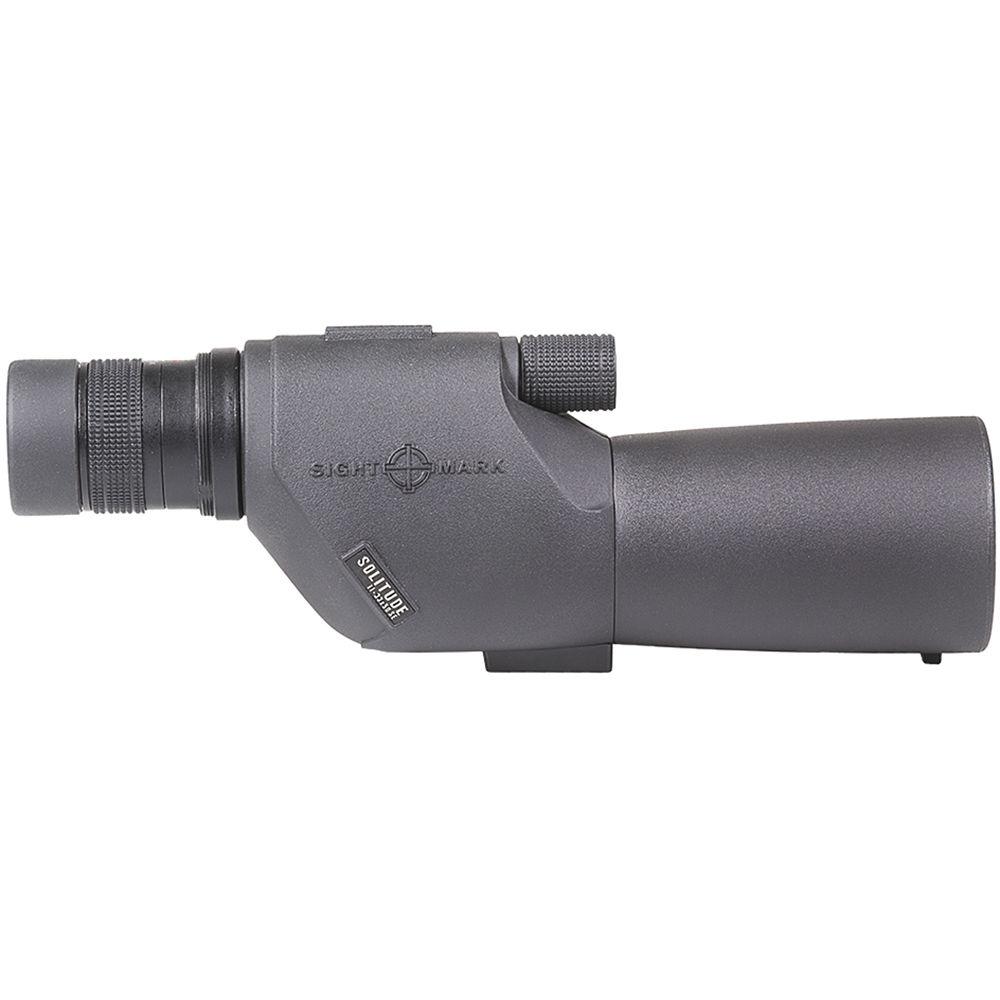

Product description A Guide to Birding with Spotting Scopes Read More Ideally suited for use in the field, on the trail, or at the range, the straight-through viewing Sightmark Solitude SE 11-33x50 Spotting Scope is outfitted with a moderate 50mm objective that draws in generous amounts of light while being small enough that the scope is still portable. Its objective, when combined with fully multi-coated optics and an aluminum-coated BK7 Porro prism system, gives the Solitude competent low-light performance such as at dawn or dusk, or when trying to pick out game from under heavily canopied forests. Complementing the optical coatings is a broad zoom range that enables users to take in sweeping wide-field views and with a simple twist of the zoom collar perform detailed observations of distant subjects.The scope housing is wrapped in a protective rubber armor, and the optical tube is nitrogen filled and O-ring sealed to an IP67-rating, making it dust and waterproof, as well as resistant to internal fogging in extreme conditions. It is further equipped with a standard 1/4"-20 mounting thread for fast attachment onto various support systems, and to get you viewing faster Sightmark includes a highly portable yet stable tabletop tripod complete with a pan/tilt head. A simple control handle helps you find and track subjects and locks the head into position with a simple twist. For maximum protection and portability, a tethered objective lens cap and a stay-on/view-through nylon carrying case are included. - Optical Performance
-
- Broad 11-33x zoom magnification range allows for wide-field viewing at low power and detailed observations at high
- Moderate 50x objective lens helps to produce bright images during the day and enables viewing in low-light conditions such as at dawn and dusk
- BK7 Porro prism optical path
- Highly reflective aluminum prism coatings reduce internal light loss and increase overall image contrast and clarity
- Anti-reflection fully multi-coated optics improve light transmission, clarity, contrast, and color rendition
- 157- to 77-foot field of view at 1000 yards
- Use and Handling
-
- Eyepiece set in straight line with body to make finding subjects fast and tracking moving targets easy
- Integrated aiming sight helps to locate subjects before looking though the eyepiece
- Textured zoom collar allows for precise magnification setting
- Large single-speed focusing knob is easy to manipulate in cold and wet weather or while wearing gloves
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Standard 1/4"-20 tripod mount for use with many photo/video/field tripods, as well as the included tabletop tripod
- 15-13mm eye relief provides comfortable viewing with reduced eye fatigue—especially during long observation periods
- 4.5-1.5mm exit pupil
- Construction Details
-
- Rubber-armored body protects housing while providing a slip-resistant grip
- IP67 rated dustproof and waterproof to 3.3 feet (1m) for up to one hour
- Nitrogen filled to resist internal fogging when moving through extreme temperature or environmental conditions
- Broad 0 to 120°F (-17 to 49°C) operating temperature range
- Retractable sunshade helps to reduce lens flare, which can affect views, and keeps rain and snow off objective in inclement weather

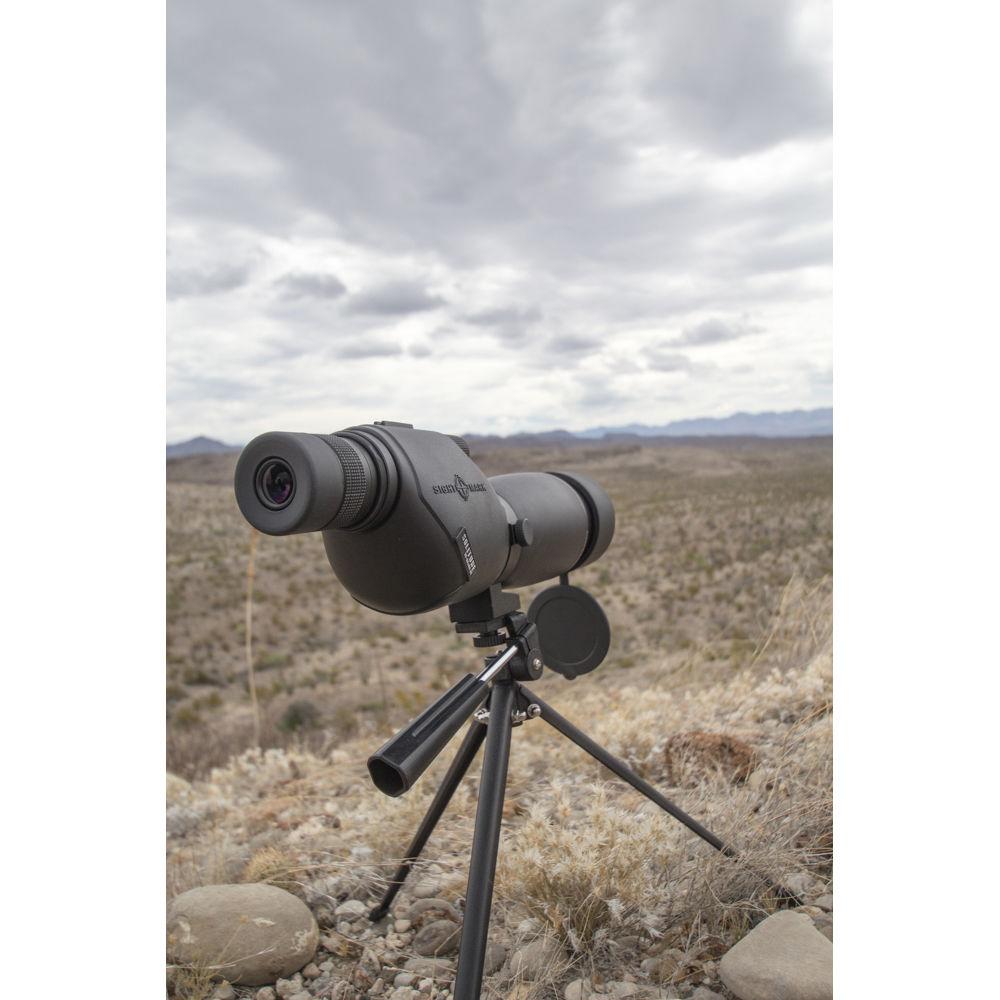

- Tabletop tripod with pan/tilt head
- Tethered flip-down objective lens cap

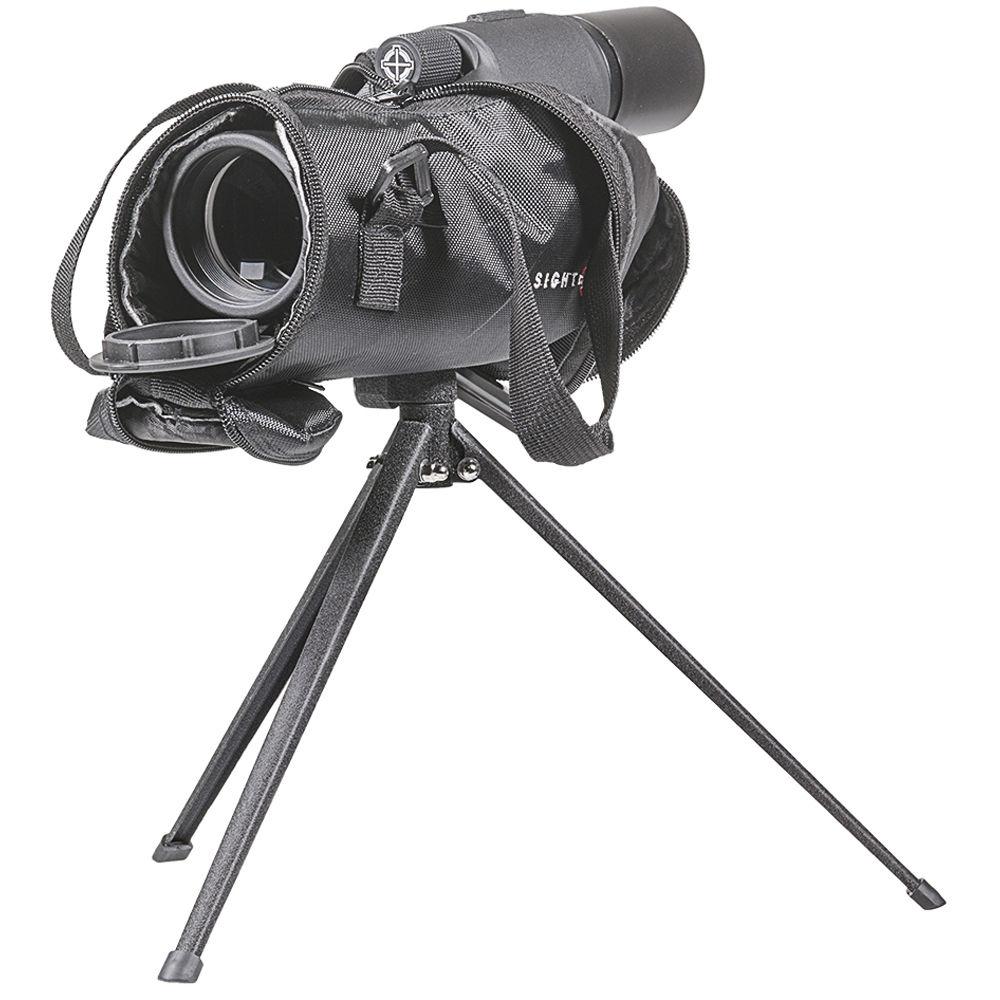

- Stay-on/view-through nylon carry case protects housing, even while in use, and makes moving and changing positions fast
- Weight: 22.5 oz
UPC: 812495021473 In the Box Sightmark Solitude SE 11-33x50 Spotting Scope (Straight Viewing) Tethered Objective Lens Cap Nylon Stay-On/View-Through Case Tabletop Tripod with Head Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Solitude SE 11-33x50 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark Solitude Specs | | | Magnification | 11 to 33x | | Objective Lens Diameter | 50 mm | | Angle of View | 11x: 3.0° (Actual)
33x: 1.5° (Actual) | | Field of View | 11x: 157.2' @ 1000 yd / 52.4 m @ 1000 m
33x: 77.1' @ 1000 yd / 25.7 m @ 1000 m | | Minimum Focus Distance | 7.5' / 2.3 m | | Exit Pupil Diameter | 11x: 4.5 mm
33x: 1.5 mm | | Eye Relief | 15.0 to 13.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Water Resistant, IP67 | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 11.2 x H: 4.7 x W: 3.2" / L: 28.6 x H: 12.0 x W: 8.1 cm | | Weight | 22.5 oz / 637.9 g |
