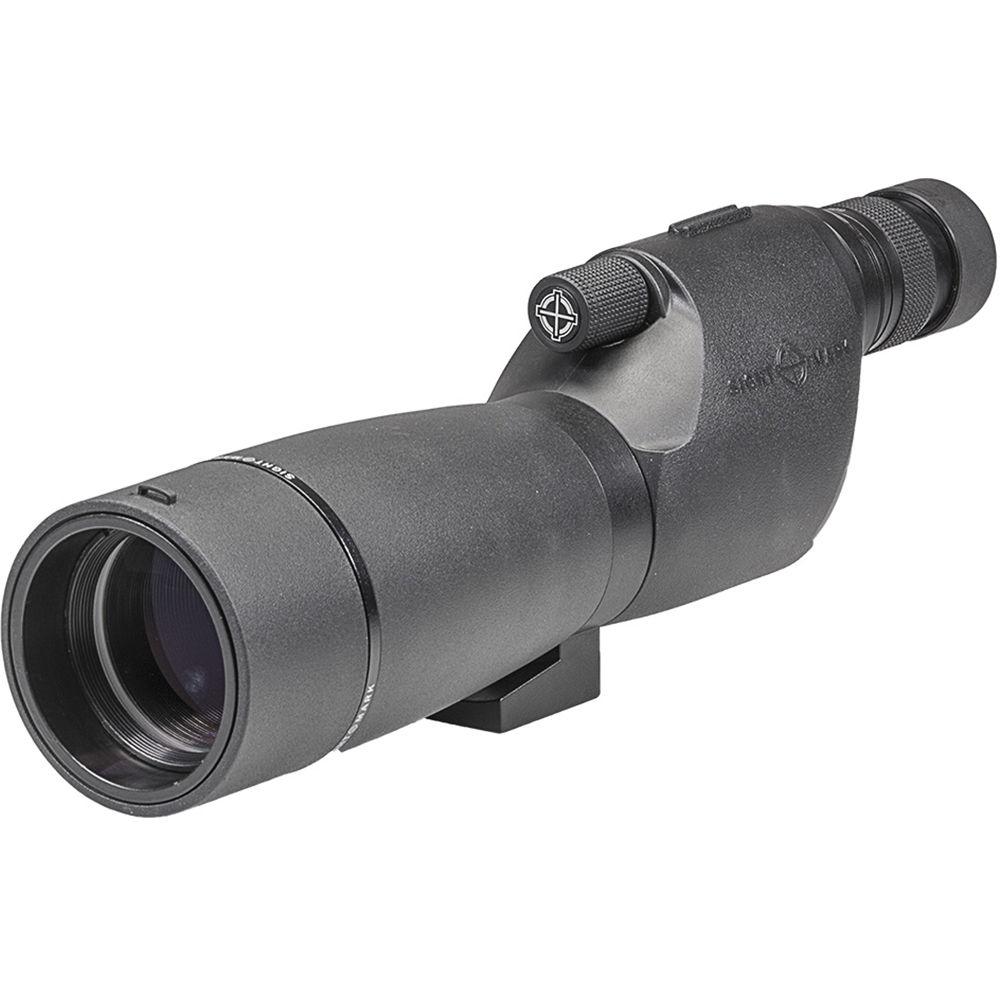

User Manual for Sightmark Solitude SE 20-60x60 Spotting Scope Click to enlarge the picture
Contents of the user manual for the Sightmark Solitude SE 20-60x60 Spotting Scope
- Product category: Spotting Scopes Sightmark
- Brand: Sightmark
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sightmark Spotting Scopes
 |
User manual for the Sightmark Solitude SE 20-60x60 Spotting Scope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sightmark product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sightmark user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sightmark product will considerably shorten its lifespan!
|

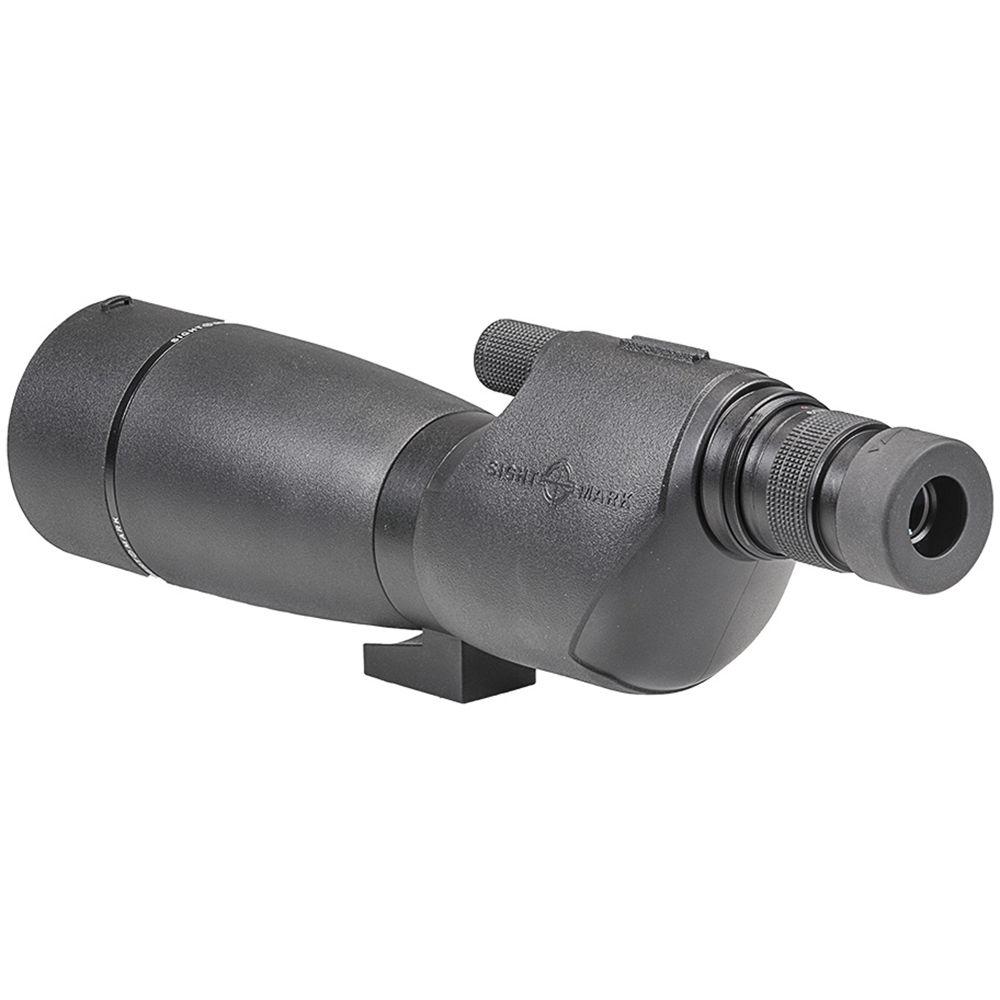

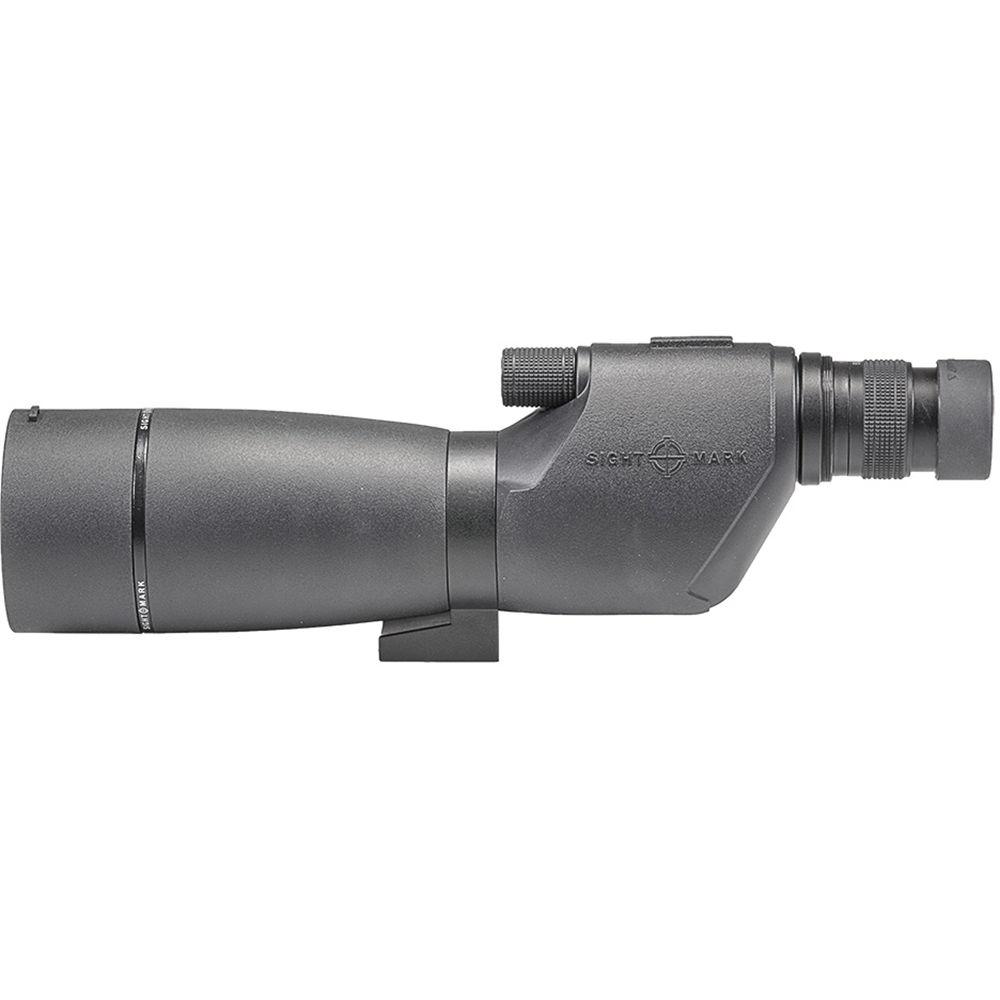

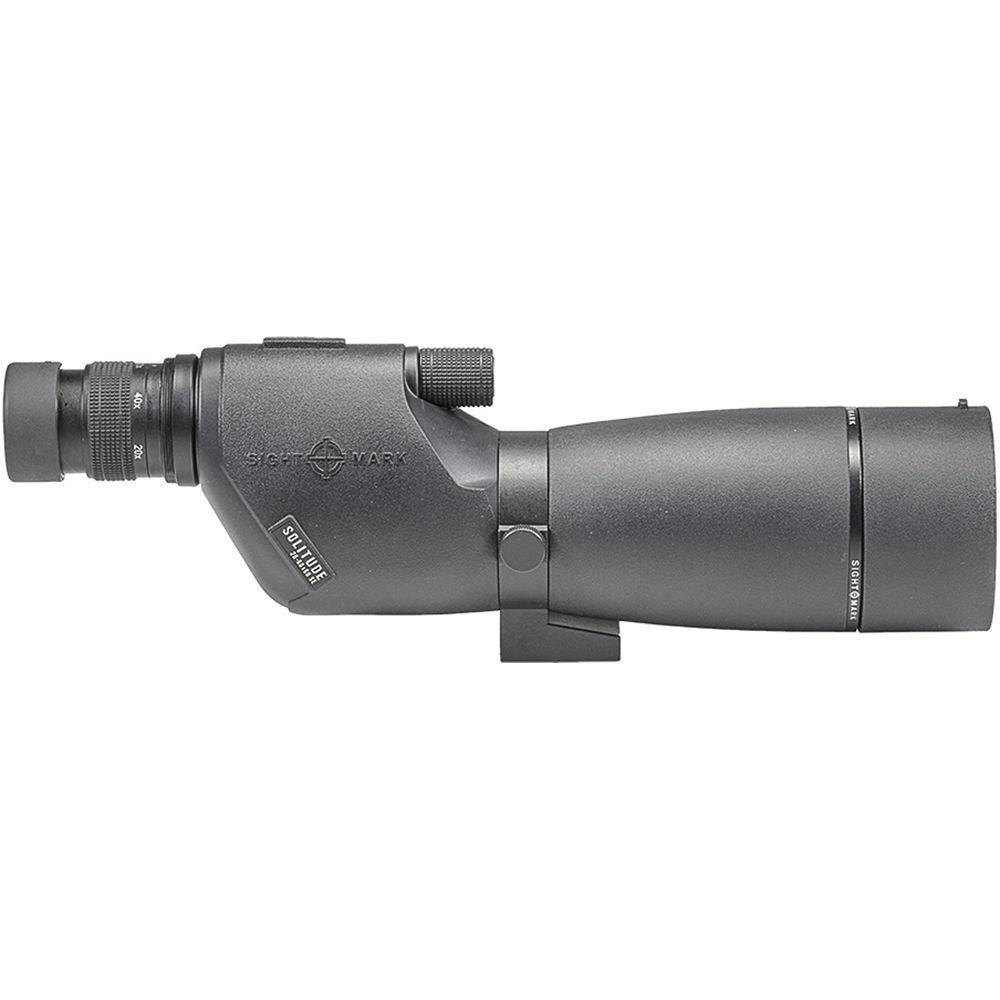

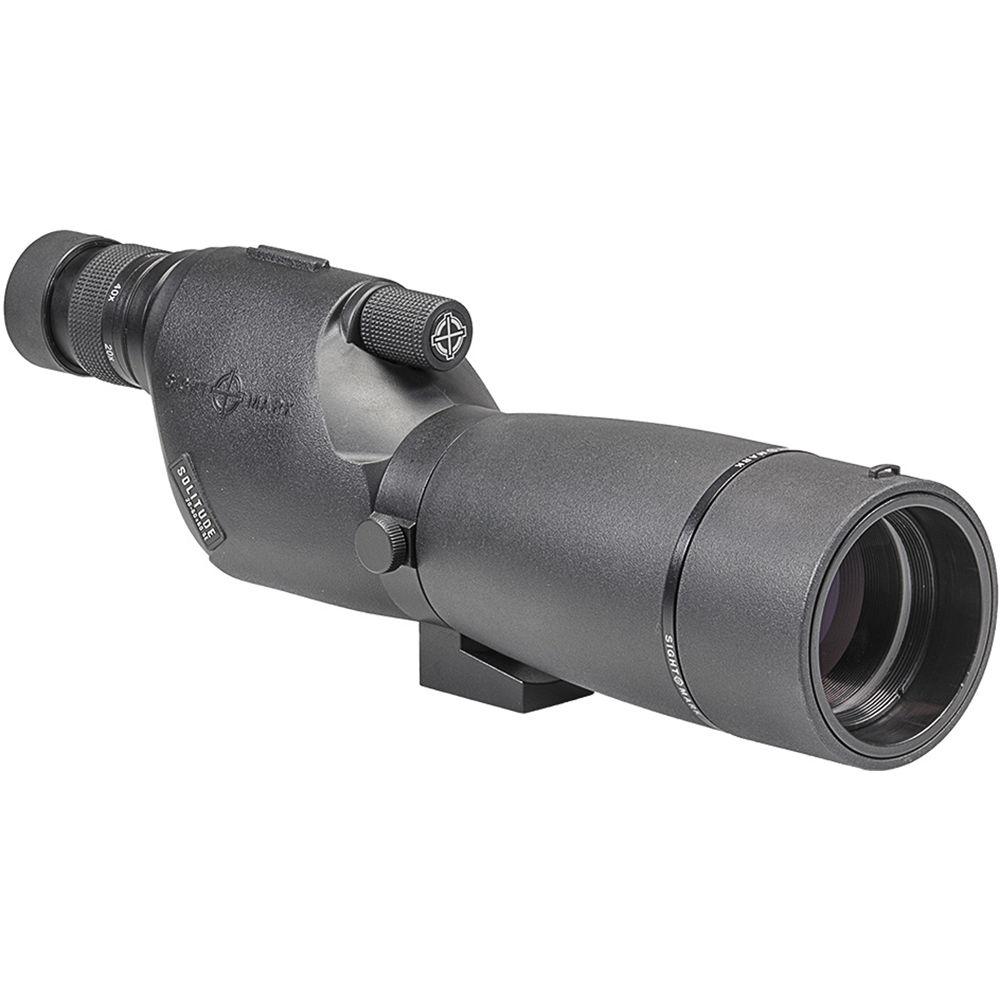

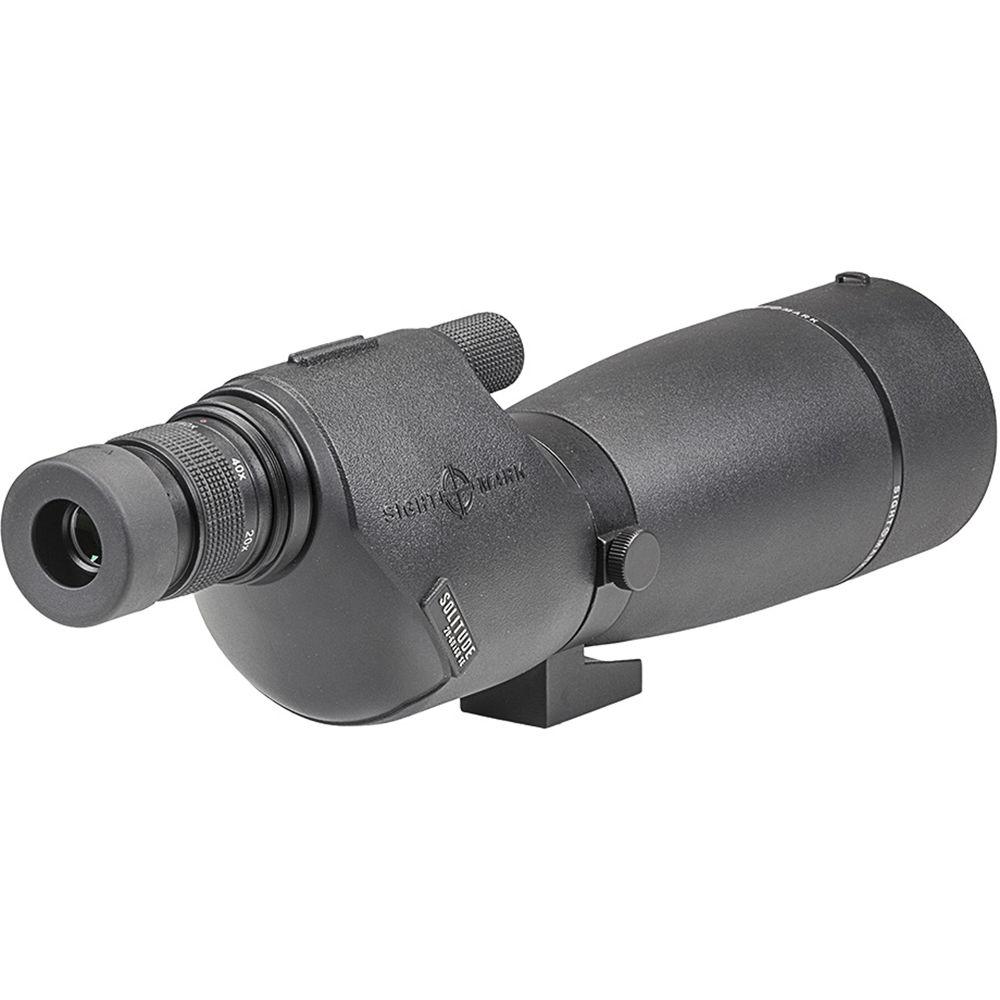

Product description A Guide to Birding with Spotting Scopes Read More Ideally suited for use in the field, on the trail, or at the range, the powerful straight-through viewing Sightmark Solitude SE 20-60x60 Spotting Scope is outfitted with a large 60mm objective, fully multi-coated optics, and an aluminum-coated BK7 Porro prism system that draws in generous amounts of light to make it especially useful in challenging light such as at dawn or dusk, or when trying to pick out game from under heavily canopied forests. Complementing the optical coatings is a broad zoom range that enables users to maximize the field of view at its lowest power, and with a simple twist of the zoom collar perform detailed observations of distant subjects.The scope housing is wrapped in a protective rubber armor, and the optical tube is nitrogen filled and O-ring sealed to an IP67-rating, making it dust and waterproof, as well as resistant to internal fogging in extreme conditions. It is further equipped with a rotating tripod collar to allow users to precisely place the eyepiece for maximum comfort, and a standard 1/4"-20 mounting thread for fast attachment onto various support systems. To get users viewing faster, Sightmark includes a highly portable yet stable tabletop tripod complete with a pan/tilt head. For maximum protection and portability, a tethered objective lens cap and a stay-on/view-through nylon carrying case are included. - Optical Performance
-
- Powerful 20-60x zoom magnification range enables maximum field of view at lowest power, and detailed observations at highest
- Large 60mm objective lens helps to produce bright images during the day and enables viewing in low-light conditions such as at dawn and dusk
- BK7 Porro prism optical path
- Highly reflective aluminum prism coatings reduce internal light loss and increase overall image contrast and clarity
- Anti-reflection fully multi-coated optics improve light transmission, clarity, contrast, and color rendition
- 107- to 53-foot field of view at 1000 yards
- Use and Handling
-
- Eyepiece set in straight line with body to make finding subjects fast and tracking moving targets easy
- Integrated aiming sight helps to locate subjects before looking though the eyepiece
- Textured zoom collar allows for precise magnification setting
- Large single-speed focusing knob is easy to manipulate in cold and wet weather or while wearing gloves
- Twist-up rubber eyecup for comfortable use with or without eyewear
- Rotating tripod collar allows the orientation of the eyepiece to be precisely set for optimal comfort during viewing
- Standard 1/4"-20 tripod mount for use with many photo/video/field tripods, as well as the included tabletop tripod
- 15.3-14 mm eye relief provides comfortable viewing with reduced eye fatigue, especially during long observation periods, at all magnifications
- 3-1mm exit pupil
- Construction Details
-
- Rubber-armored body protects housing while providing a slip-resistant grip
- IP67-rated dustproof and waterproof to 3.3 feet (1m) for up to one hour
- Nitrogen filled to resist internal fogging when moving through extreme temperature or environmental conditions
- Broad 0 to 120°F (-17 to 49°C) operating temperature range

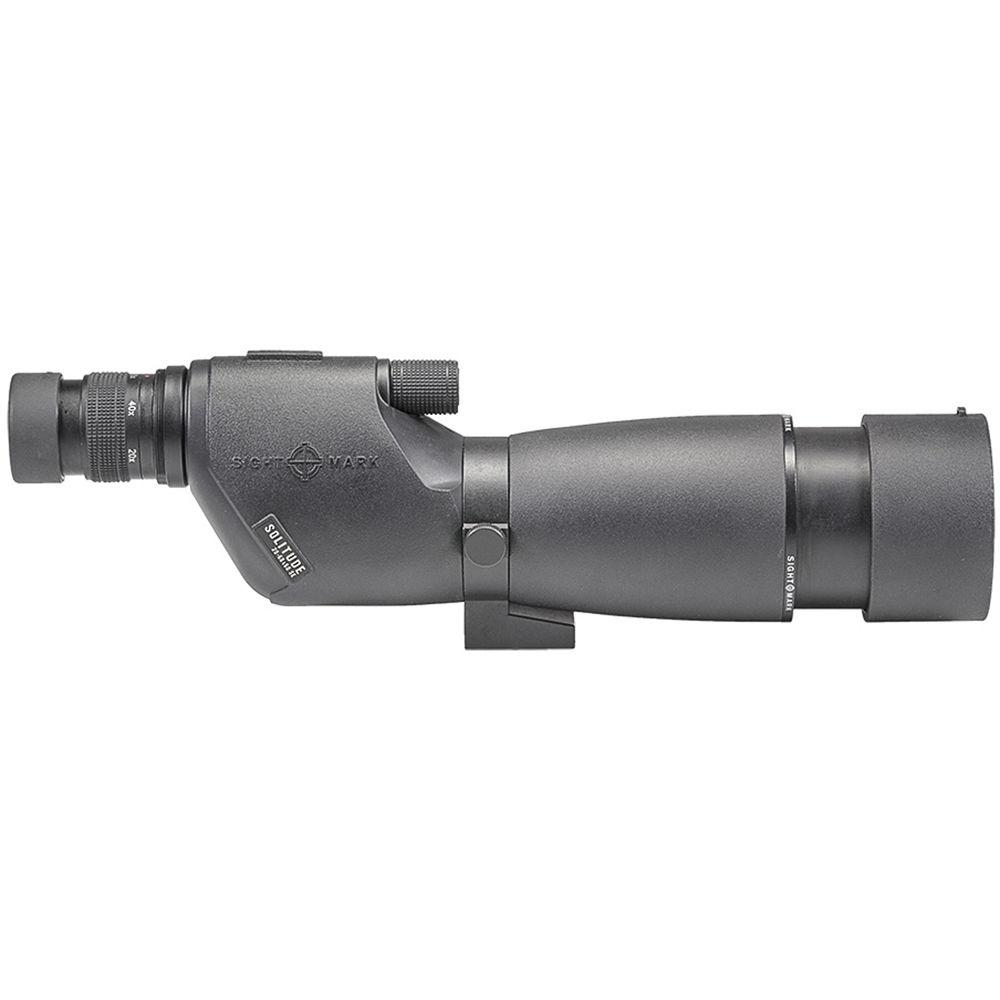

- Retractable sunshade helps to reduce lens flare, which can affect views, and keeps rain and snow off objective in inclement weather
- Tabletop tripod with pan/tilt head
- Tethered flip-down objective lens cap

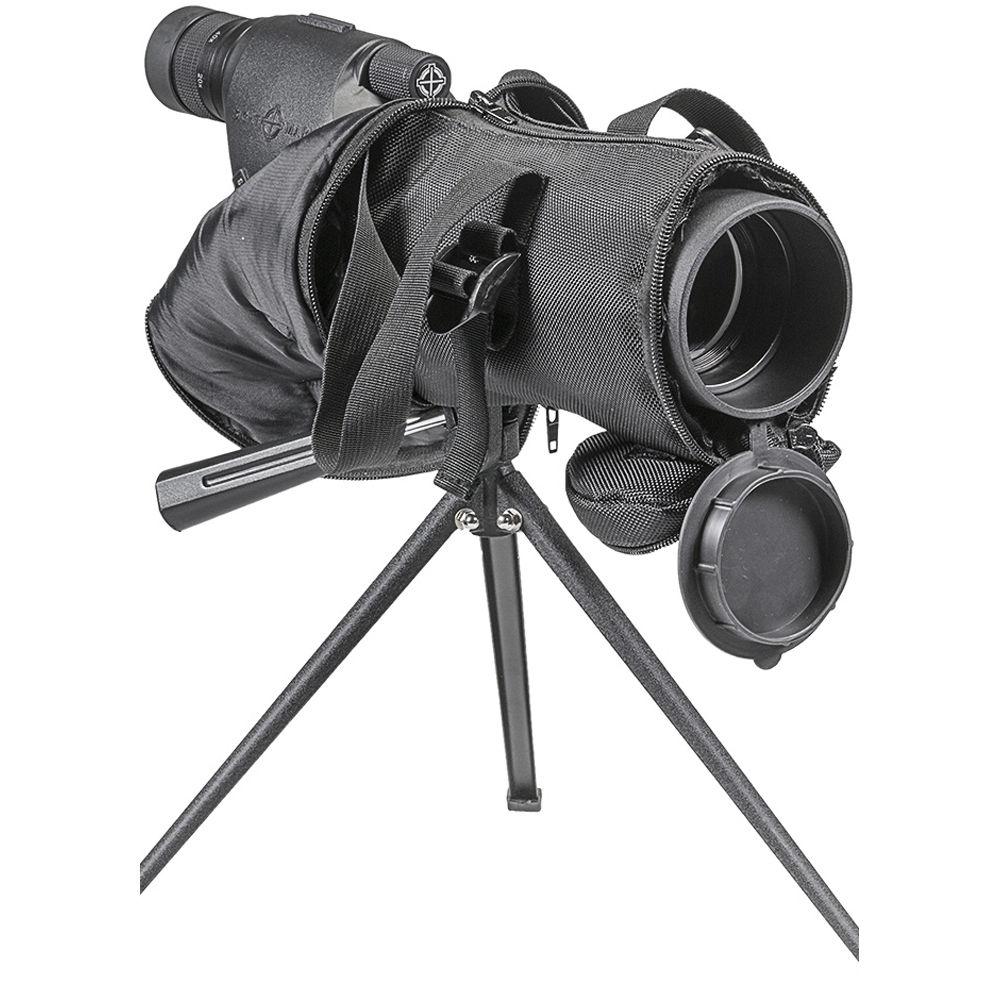

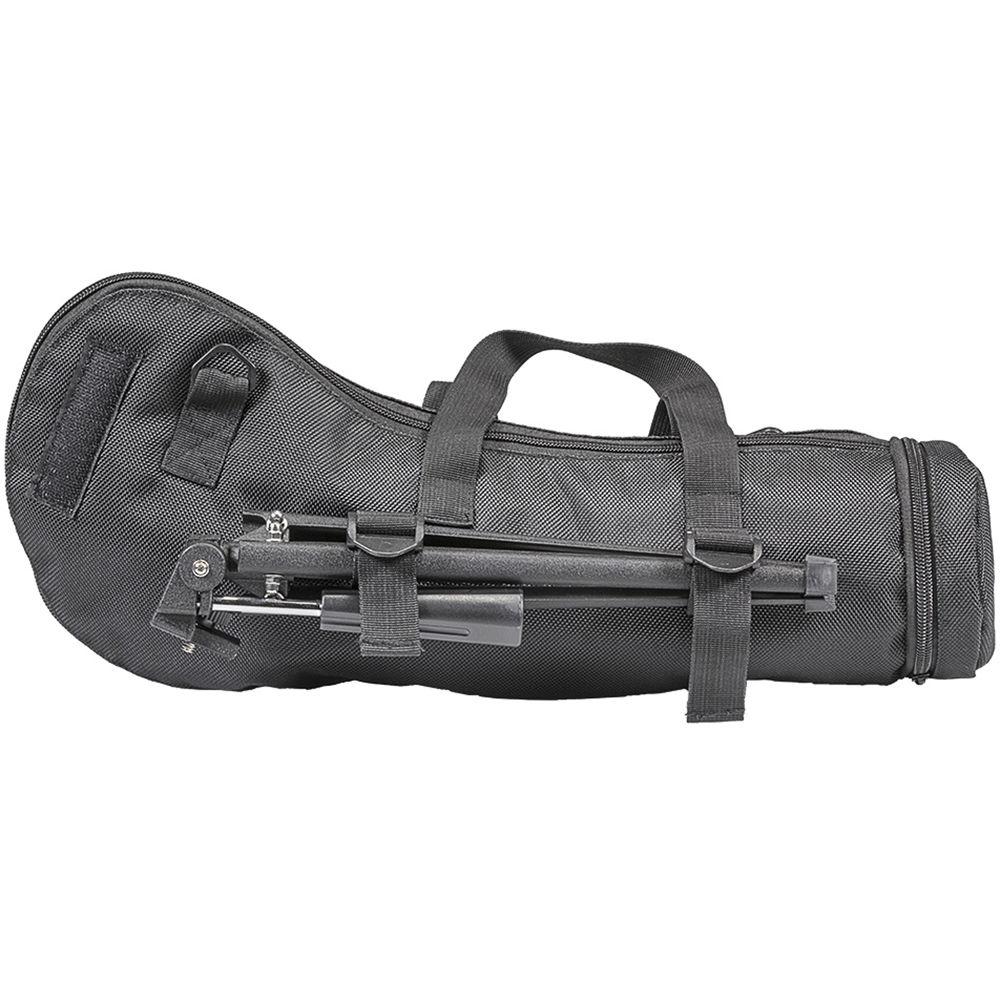

- Stay-on/view-through nylon carry case protects housing, even while in use, and makes moving and changing positions quick
- Weight: 36.6 oz
UPC: 812495021480 In the Box Sightmark Solitude SE 20-60x60 Spotting Scope (Straight Viewing) Tethered Objective Lens Cap Nylon Stay-On/View-Through Case Tabletop Tripod with Head Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sightmark Solitude SE 20-60x60 Spotting Scope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSightmark Solitude Specs | | | Magnification | 20 to 60x | | Objective Lens Diameter | 60 mm | | Angle of View | 20x: 2.0° (Actual)
60x: 1.0° (Actual) | | Field of View | 20x: 107.4' @ 1000 yd / 35.8 m @ 1000 m
60x: 52.5' @ 1000 yd / 17.5 m @ 1000 m | | Minimum Focus Distance | 14.0' / 4.2 m | | Exit Pupil Diameter | 20x: 3 mm
60x: 1 mm | | Eye Relief | 15.3 to 14.0 mm | | | | Fogproof | Yes, Nitrogen Filled | | Water Resistance | Water Resistant, IP67 | | | | Tripod Mounting Thread | 1/4"-20 | | Dimensions | L: 13.9 x H: 4.7 x W: 3.2" / L: 35.3 x H: 12.0 x W: 8.1 cm | | Weight | 36.6 oz / 1037.6 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 02 owners. Add your rating and experience with the product.
