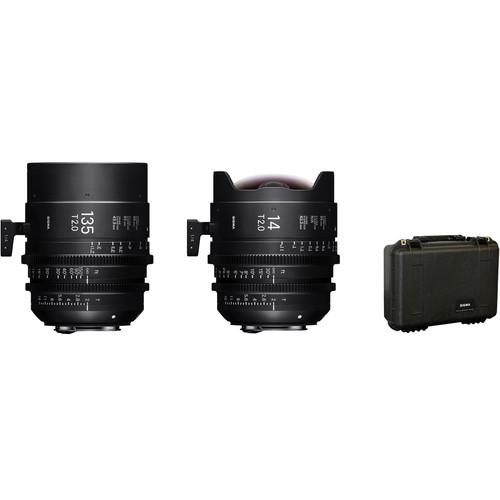

Product description Cinema Lens Care and Maintenance Read More xxdwvbexvsedrfex The Sigma 14 & 135mm T2 FF High-Speed Cine Prime Set includes two full-frame PL mount cinema lenses, the 14mm T2 and 135mm T2, and a hard case customized to specifically fit these two lenses.
Both lenses offer full frame coverage, support for up to 8K image capture, and T2 aperture. Both have a 9-blade iris, clickless iris ring, 95mm front diameter, 180° of focus barrel rotation, a support foot, dust- and water-resistant metal body, and other consistent attributes.

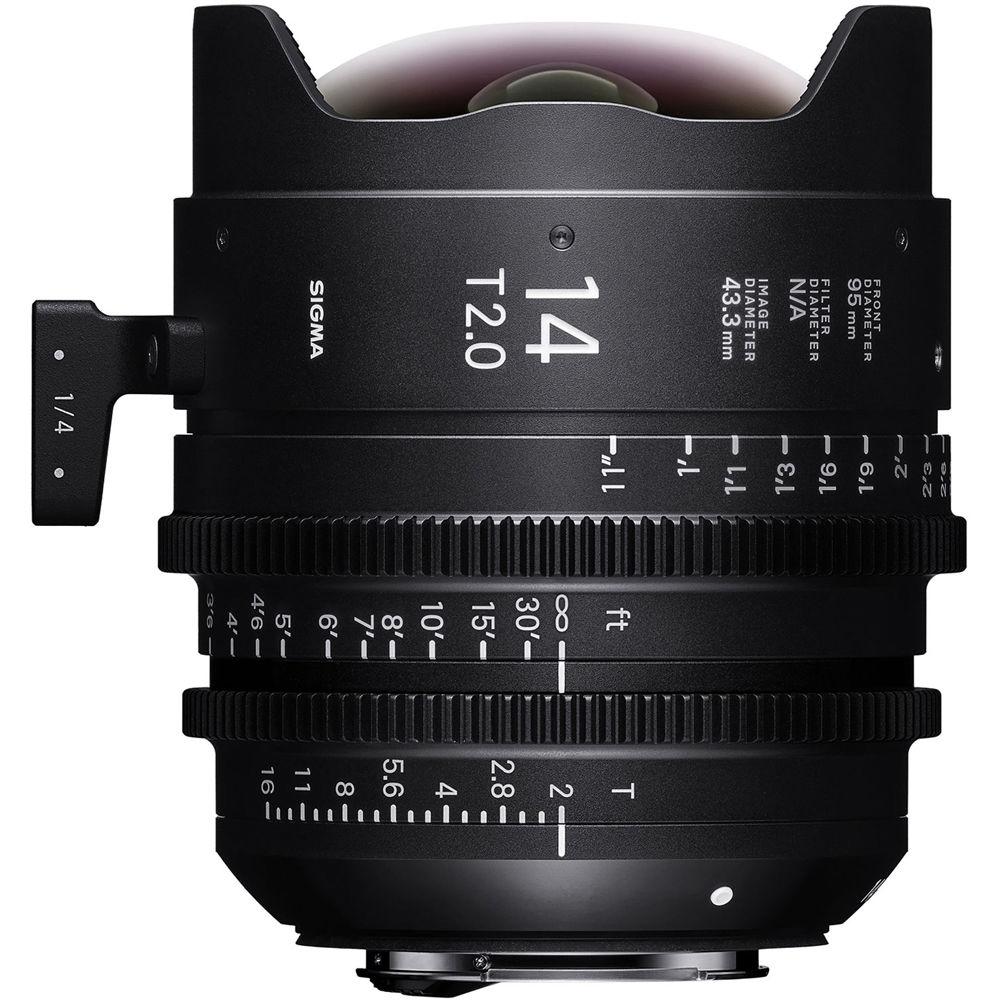

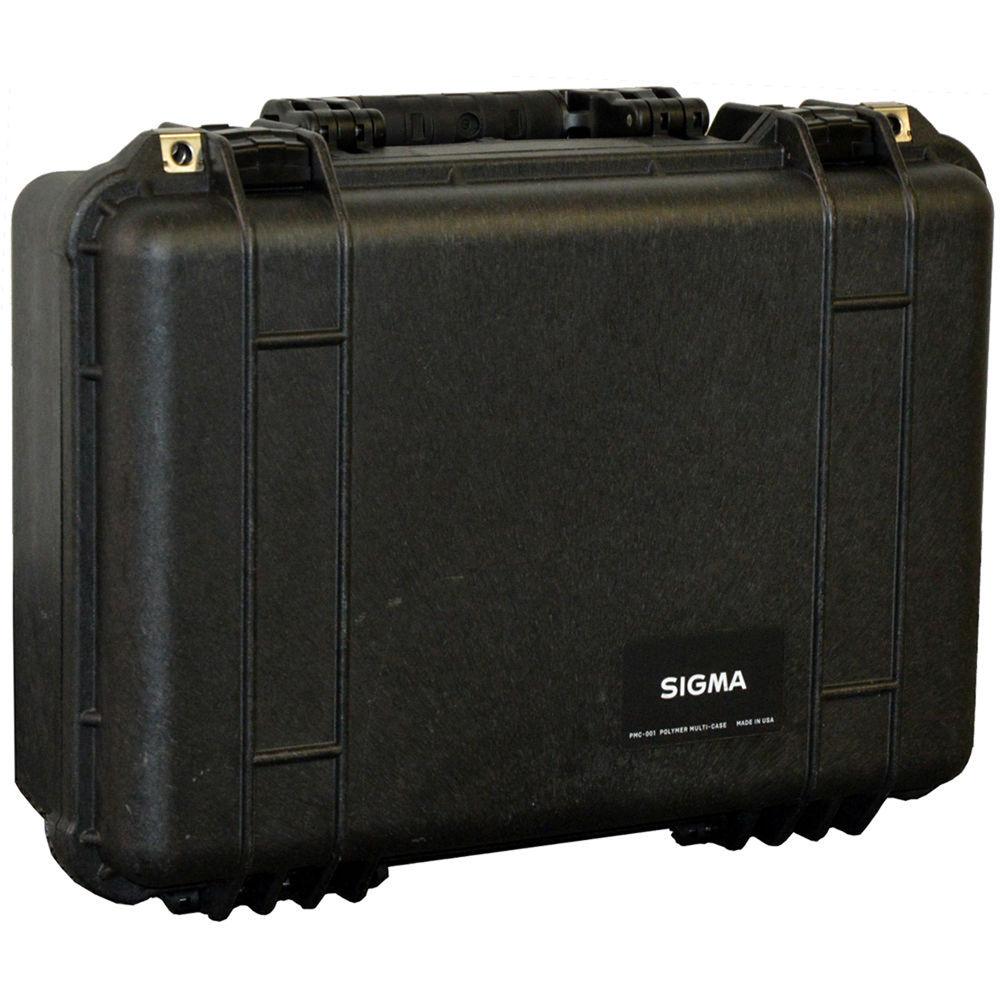

The case measures 18 x 14 x 6.5" and weighs approximately 7.5 lb (on its own). - 14mm T2 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 14mm PL Mount prime is the widest focal length of the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 aperture in a relatively lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Select markings are done in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a 1/4"-20 support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - High image performance covering full frame sensors; suitable for 8K capture
- Fast T2 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

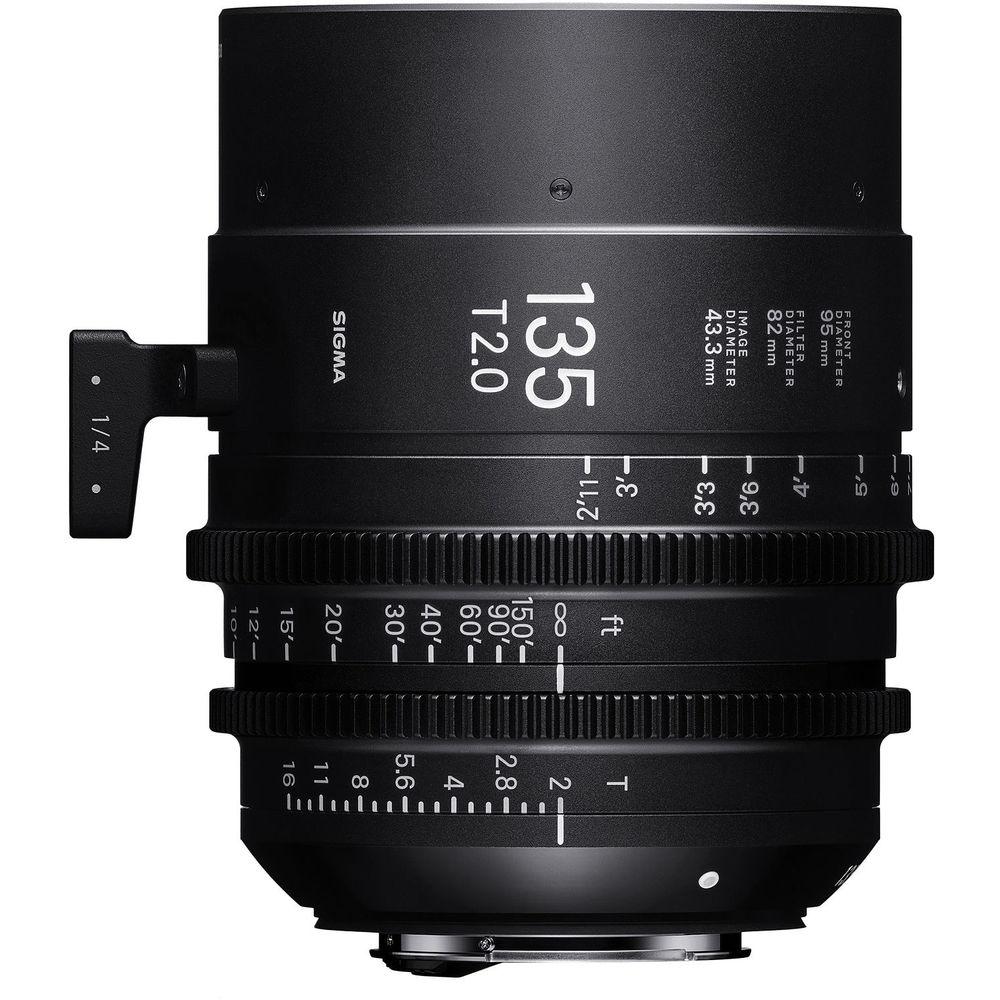

UPC: 085126450687 - 135mm T2 FF High-Speed Prime (PL, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 135mm PL mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 maximum aperture in a compact, lightweight form; it is also available in Canon and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).

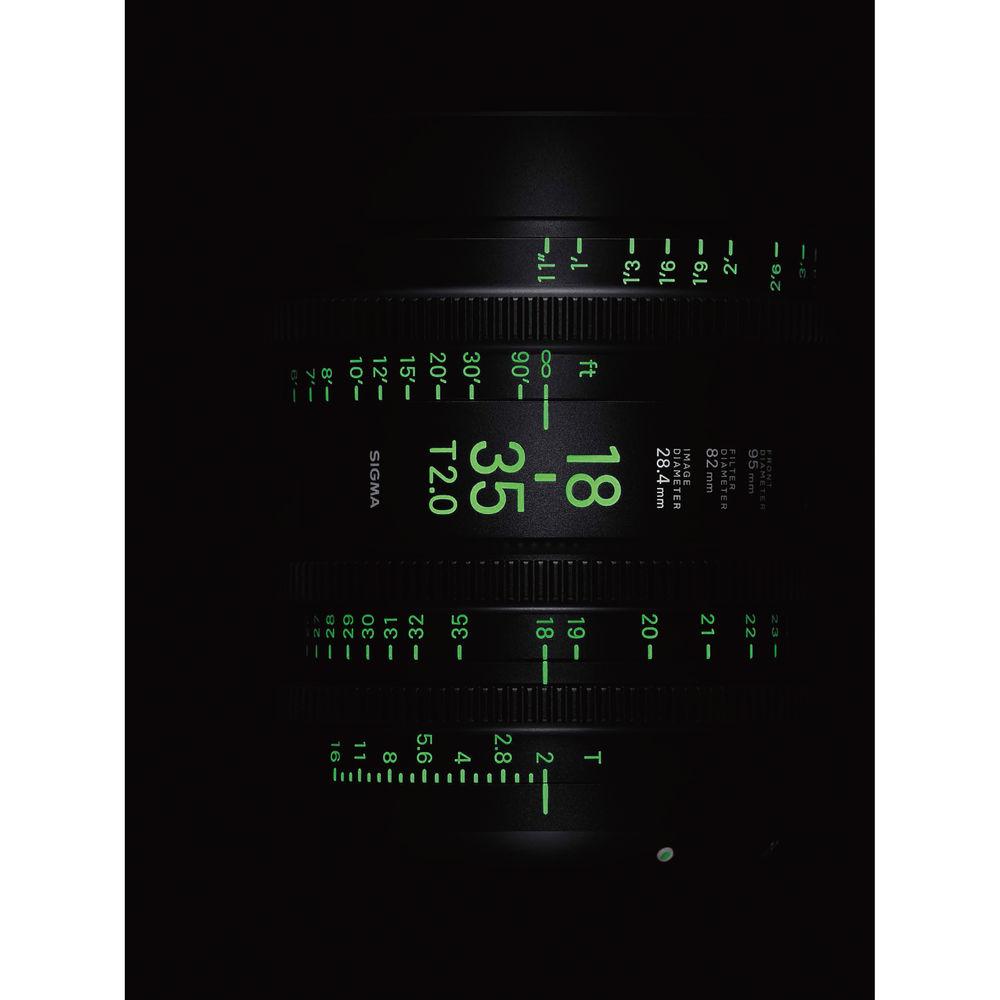

Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126240684 - Hard Case for Cine Lens Kits (14 & 135mm)
In the Box Bundle Items 14mm T2 FF High-Speed Prime (PL Mount, Feet) xxdwvbexvsedrfex 135mm T2 FF High-Speed Prime (PL, Feet) Hard Case for Cine Lens Kits (14 & 135mm) Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 14 135mm FF High Speed Prime Lens Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 14mm T2 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 14mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 104.3°
Super35: 82.6°
APS-C (1.5x): 80.5° | | Minimum Focus Distance from Image Plane | 10.63" / 0.27 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | None | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 4.39" / 111.5 mm | | Weight | 3 lb / 1340 g | | | | Box Dimensions (LxWxH) | 9.6 x 7.1 x 6.8" | - 135mm T2 FF High-Speed Prime (PL, Feet)
| Focal Length | 135mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 15.2°
Super35: 10.4°
APS-C (1.5x): 10.0° | | Minimum Focus Distance from Image Plane | 2.87' / 0.875 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 4.21" / 106.9 mm | | Weight | 3.1 lb / 1425 g | | | | Box Dimensions (LxWxH) | 9.9 x 7.0 x 6.8" | - Hard Case for Cine Lens Kits (14 & 135mm)
