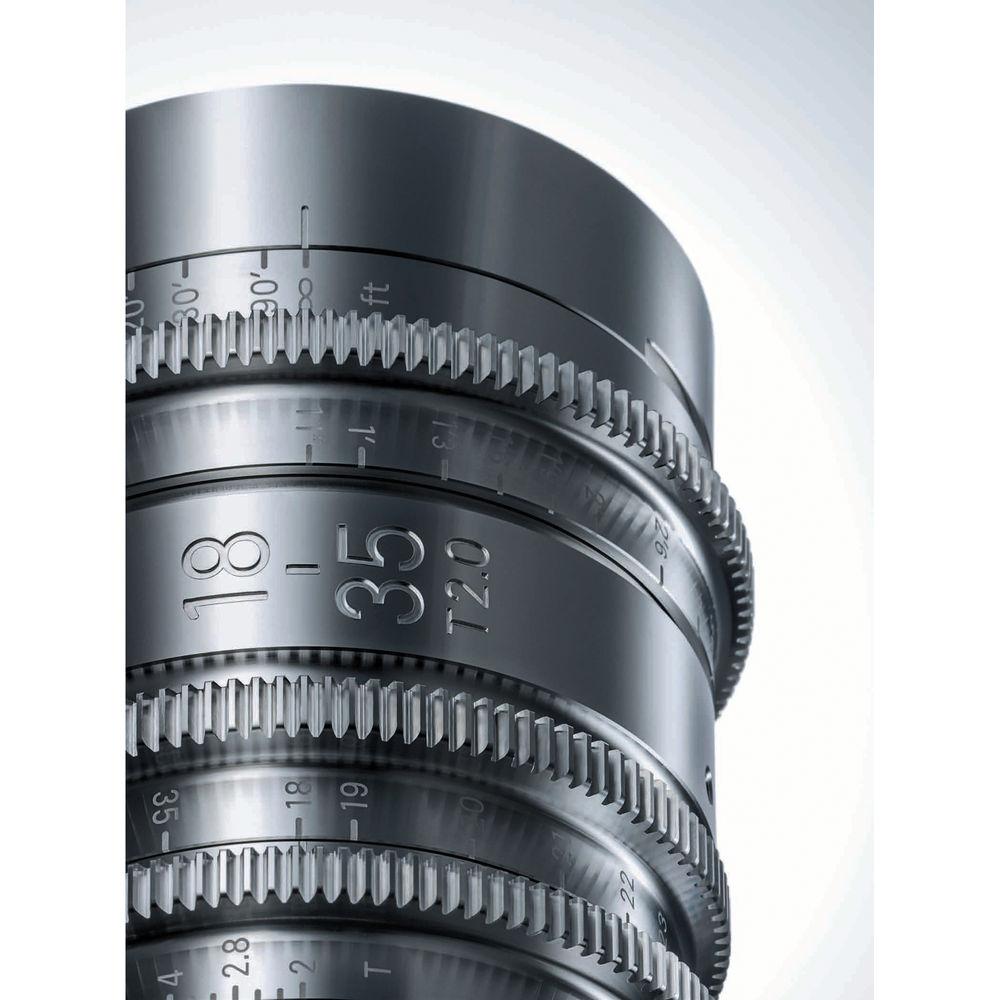

User Manual for Sigma 14 135mm Fully Luminous FF High Speed Prime Lens Kit with Case Click to enlarge the picture
Contents of the user manual for the Sigma 14 135mm Fully Luminous FF
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
 |
User manual for the Sigma 14 135mm Fully Luminous FF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|

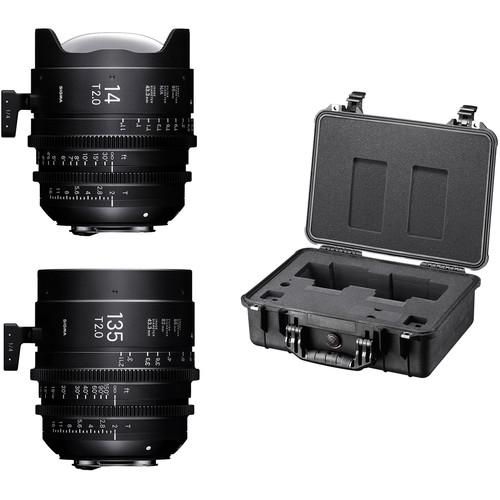

Product description Cinema Lens Care and Maintenance Read More The Sigma 14 & 135mm T2 FF High-Speed Cine Prime Set includes two full-frame EF mount cinema lenses, the 14mm T2 and 135mm T2, and a hard case customized to specifically fit these two lenses.

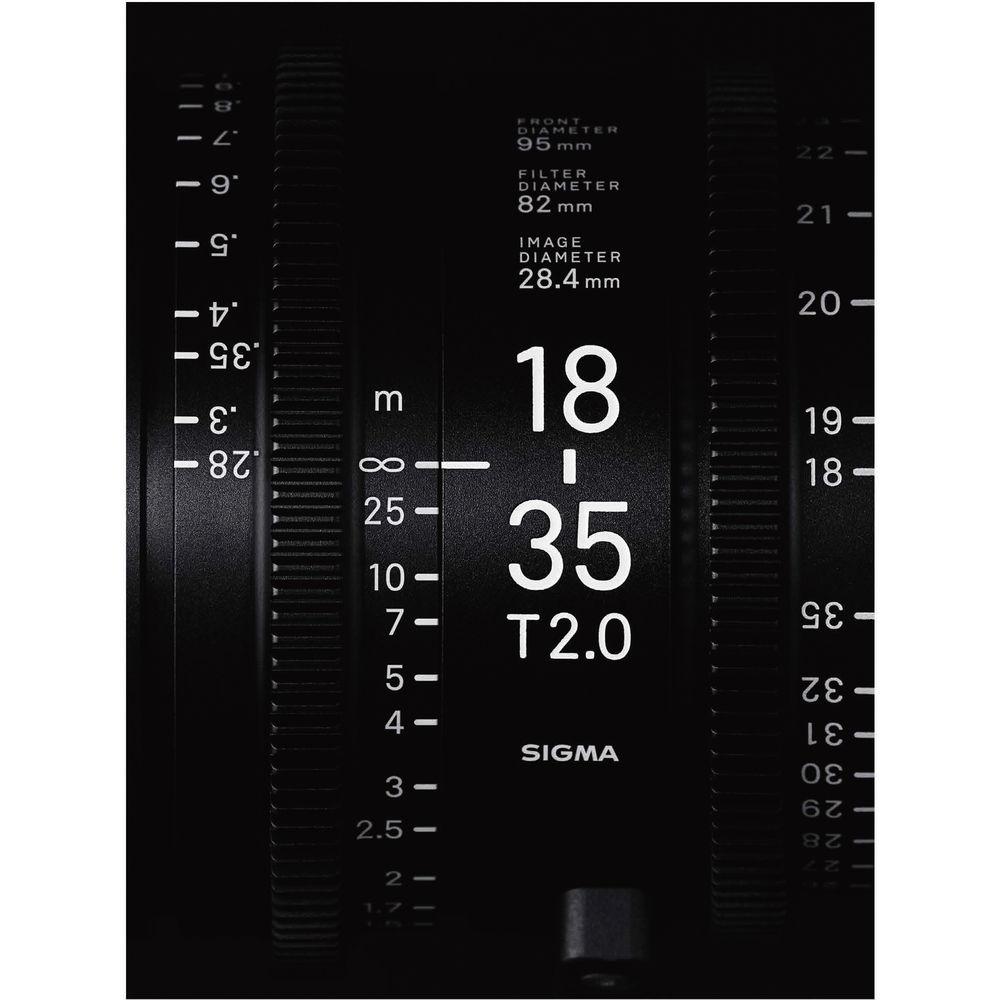

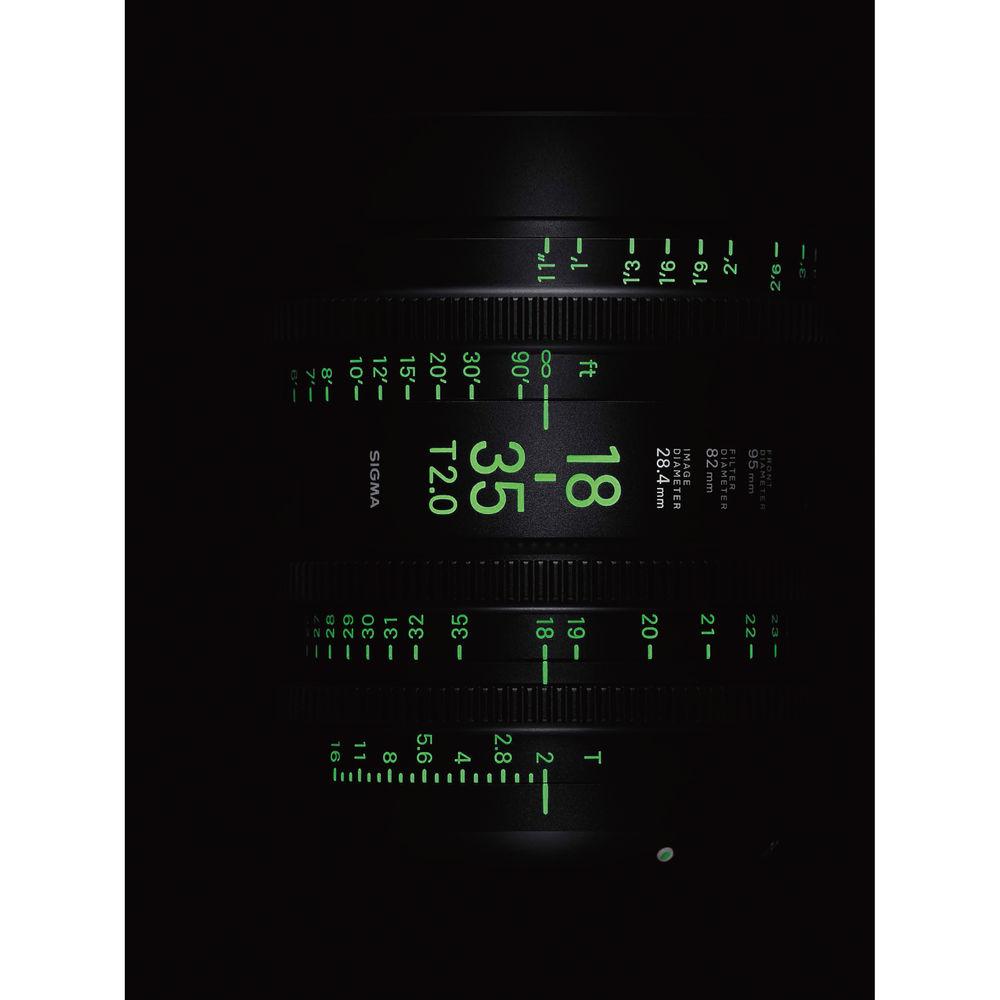

Both lenses offer full frame coverage, support for up to 8K image capture, and T2 aperture. Both have a 9-blade iris, clickless iris ring, 95mm front diameter, 180° of focus barrel rotation, a support foot, dust- and water-resistant metal body, and other consistent attributes. The lenses in this kit have fully luminescent lens markings for identifying focus and iris position in dim or dark conditions.

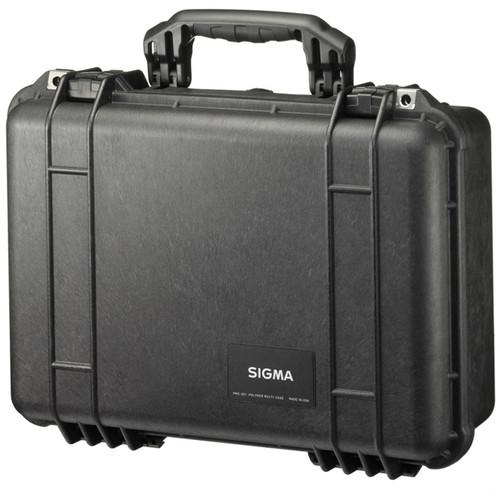

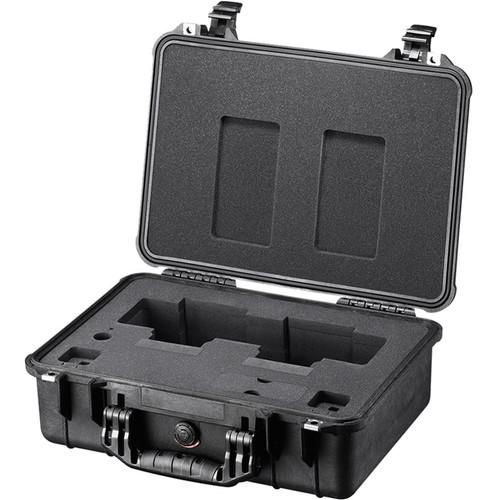

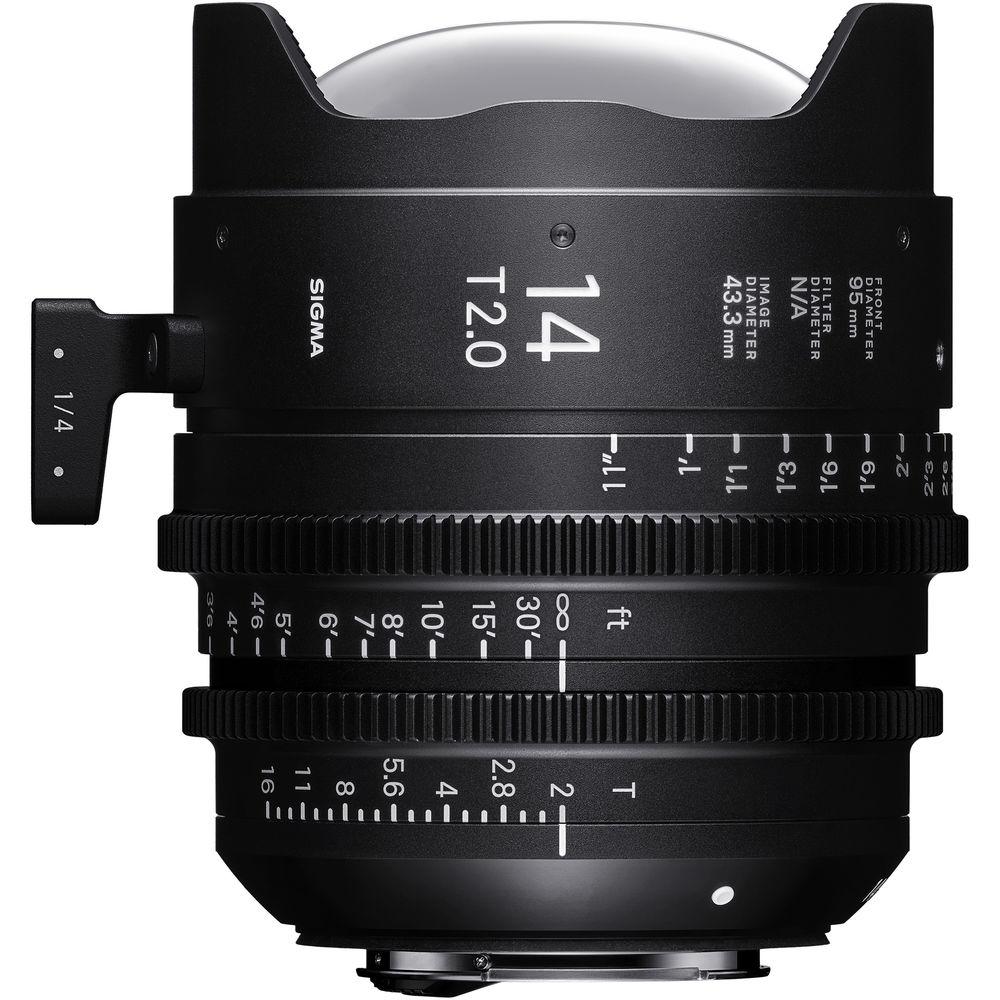

The case measures 18 x 14 x 6.5" and weighs approximately 7.5 lb (on its own). - 14mm T2 Fully Luminous FF High-Speed Prime (Canon EF Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 14mm Canon EF Mount prime is the widest focal length of the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 aperture in a relatively lightweight form; it is also available in PL and Sony E-mounts. What sets these lenses apart from the standard Sigma High Speed Primes is fully luminescent markings. When shooting in dim or dark environments, focus pullers and camera operators will be able to easily discern lens markings without the use of a possibly distracting lens light. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Select markings are done in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a 1/4"-20 support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet and are fully luminous
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T2 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

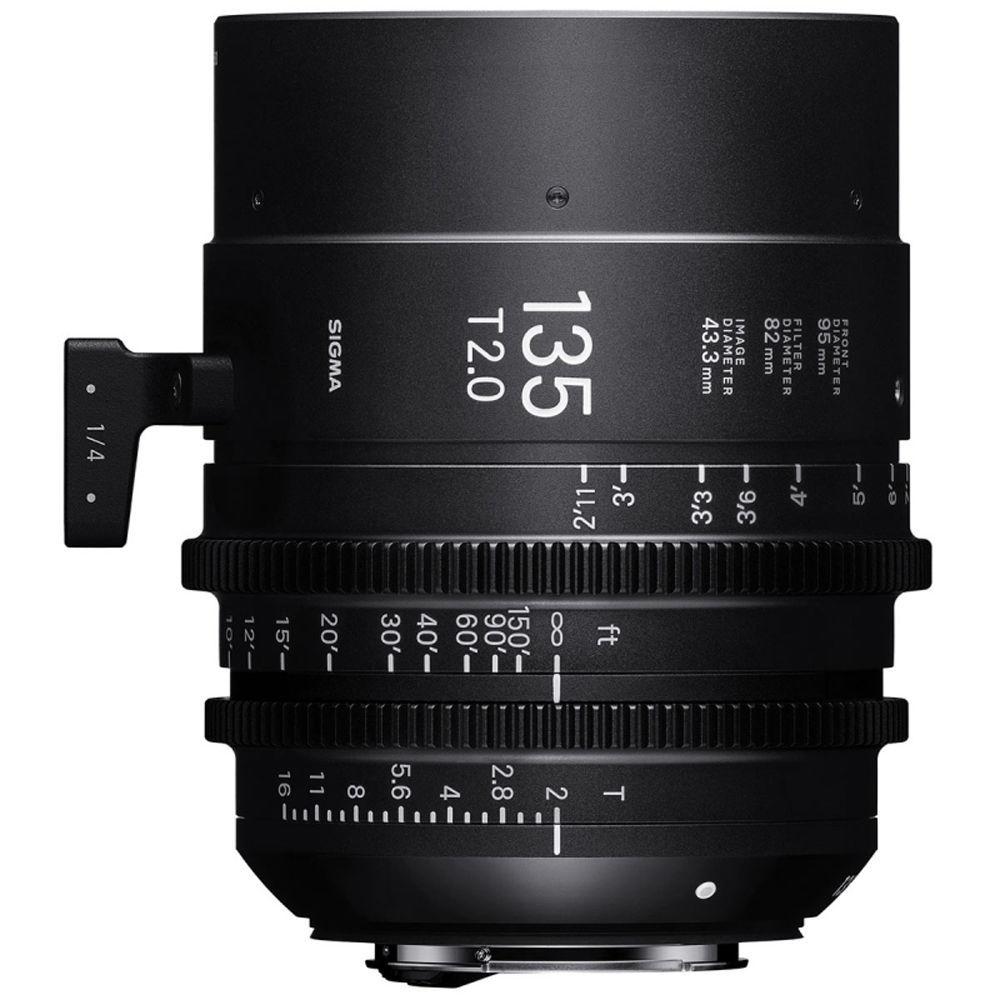

- 135mm T2 Fully Luminous FF High-Speed Prime (EF, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 135mm EF mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 maximum aperture in a compact, lightweight form; it is also available in PL and Sony E-mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet and are fully luminous for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet and are fully luminous
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126934408 - Hard Case for Cine Lens Kits (14 & 135mm)
In the Box Bundle Items 14mm T2 Fully Luminous FF High-Speed Prime (Canon EF Mount, Feet) rffaexdrwqryrubqau 135mm T2 Fully Luminous FF High-Speed Prime (EF, Feet) rffaexdrwqryrubqau Hard Case for Cine Lens Kits (14 & 135mm) rffaexdrwqryrubqau Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 14 135mm Fully Luminous FF High Speed Prime Lens Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 14mm T2 Fully Luminous FF High-Speed Prime (Canon EF Mount, Feet)
| Focal Length | 14mm | | Lens Mount | Canon EF | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 104.3°
Super35: 82.6°
APS-C (1.5x): 80.5° | | Minimum Focus Distance from Image Plane | 10.63" / 0.27 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | None | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 4.70" / 119.5 mm | | Weight | 3.1 lb / 1430 g | - 135mm T2 Fully Luminous FF High-Speed Prime (EF, Feet)
| Focal Length | 135mm | | Lens Mount | Canon EF | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 15.2°
Super35: 10.4°
APS-C (1.5x): 10.0° | | Minimum Focus Distance from Image Plane | 2.87' / 0.875 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 4.52" / 114.9 mm | | Weight | 3.3 lb / 1505 g | - Hard Case for Cine Lens Kits (14 & 135mm)
