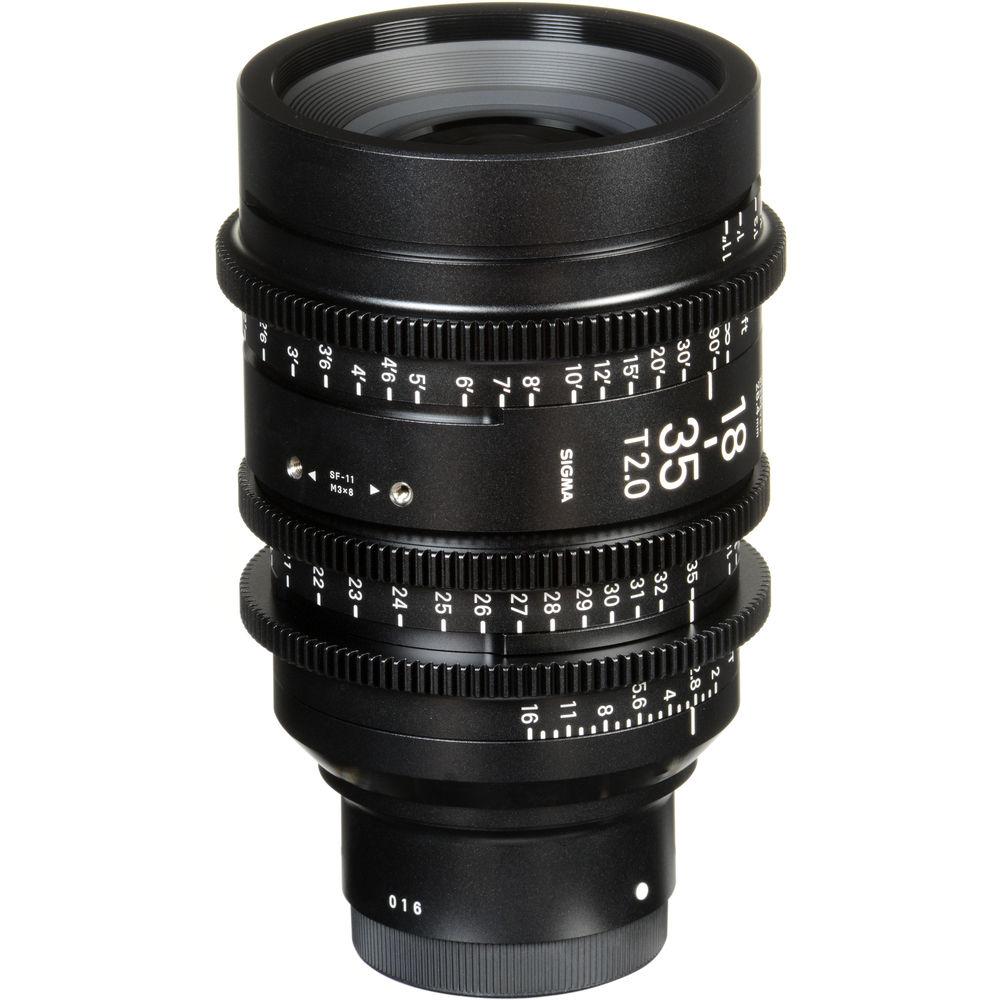

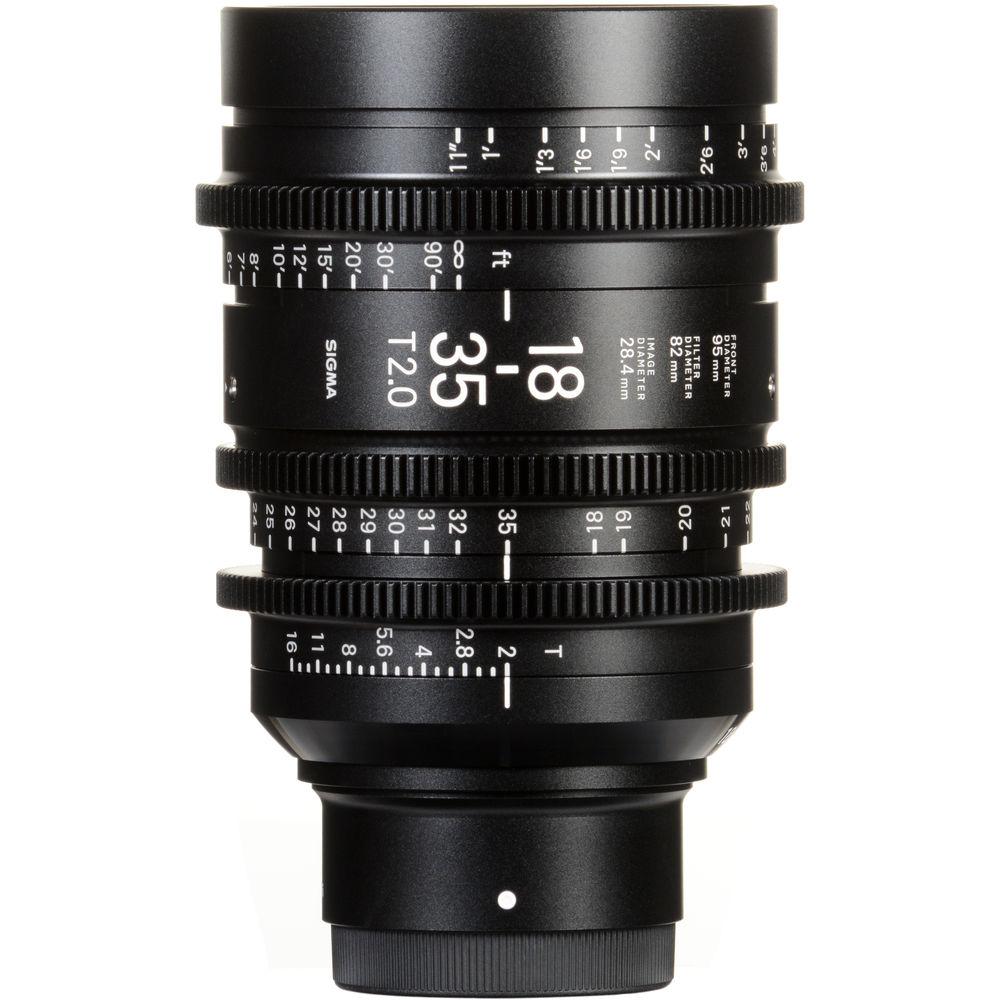

User Manual for Sigma 18-35mm T2 Fully Luminous High-Speed Zoom Lens Click to enlarge the picture
Contents of the user manual for the Sigma 18-35mm T2 Fully Luminous High-Speed
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
 |
User manual for the Sigma 18-35mm T2 Fully Luminous High-Speed contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|

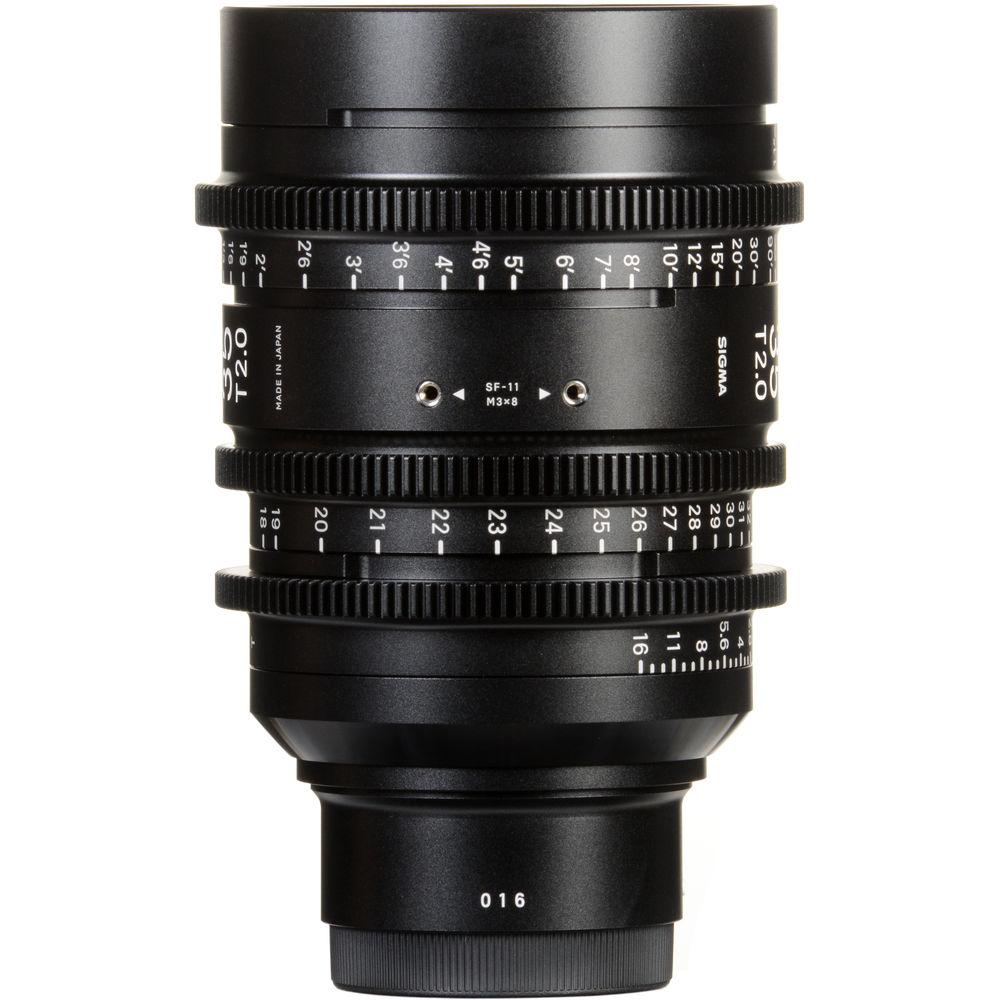

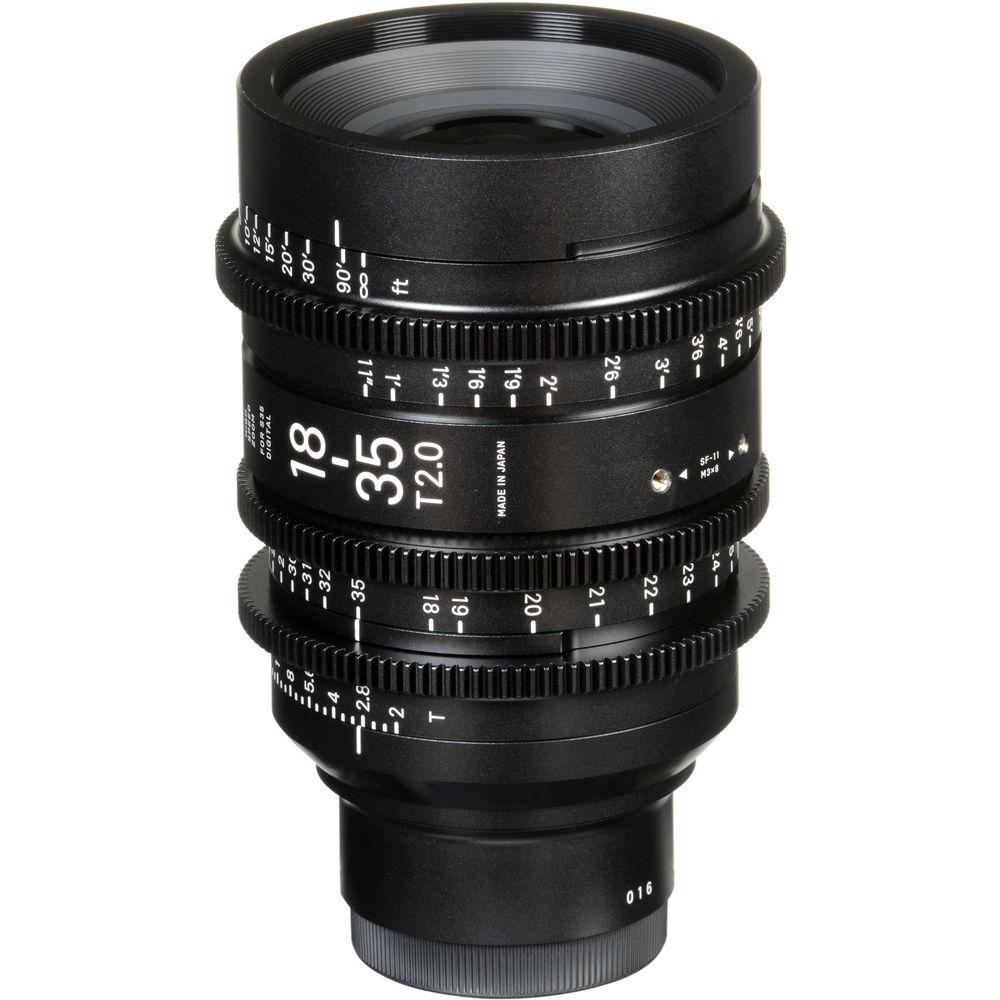

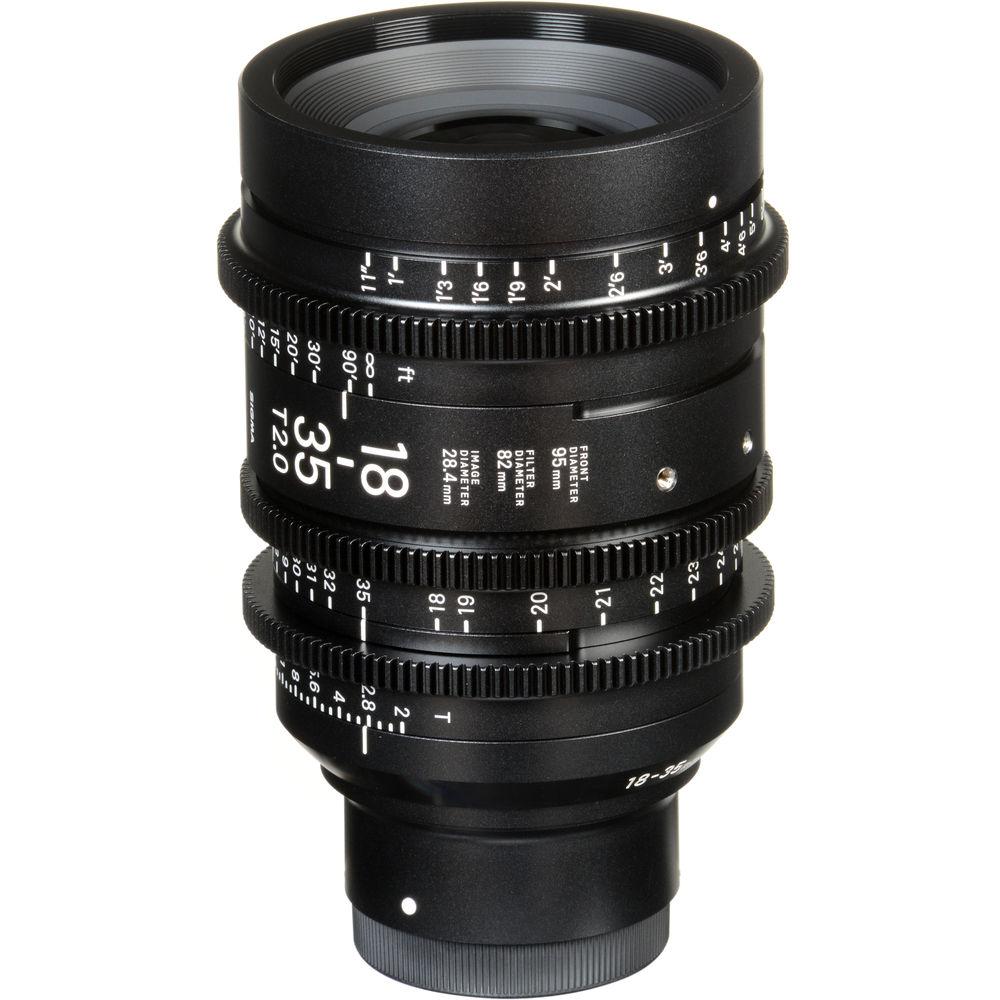

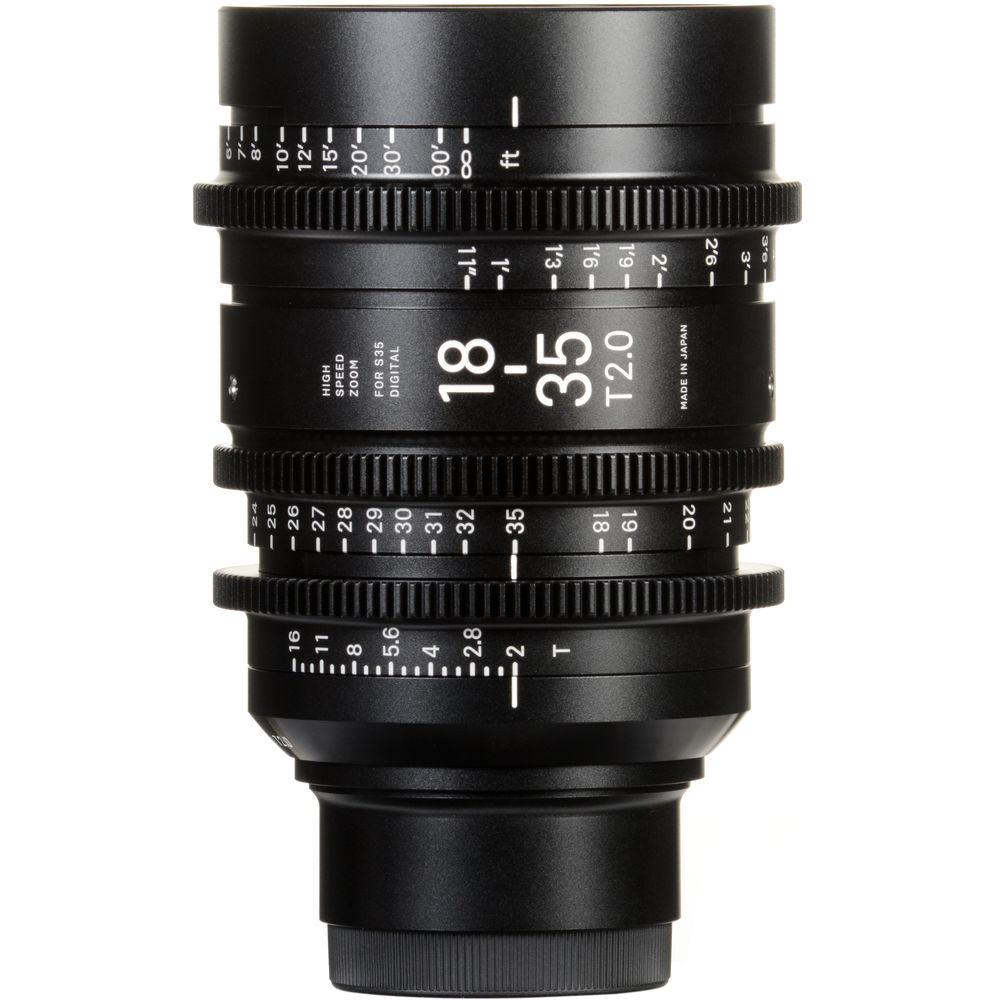

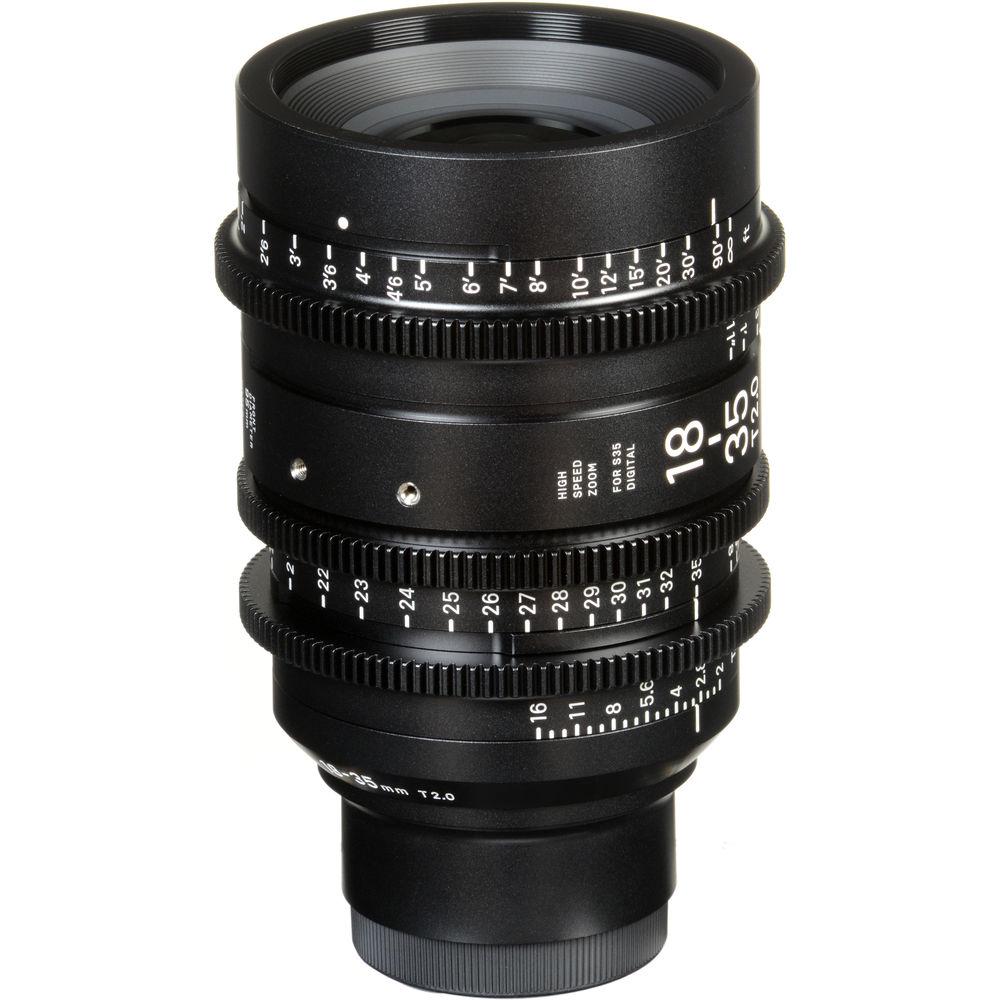

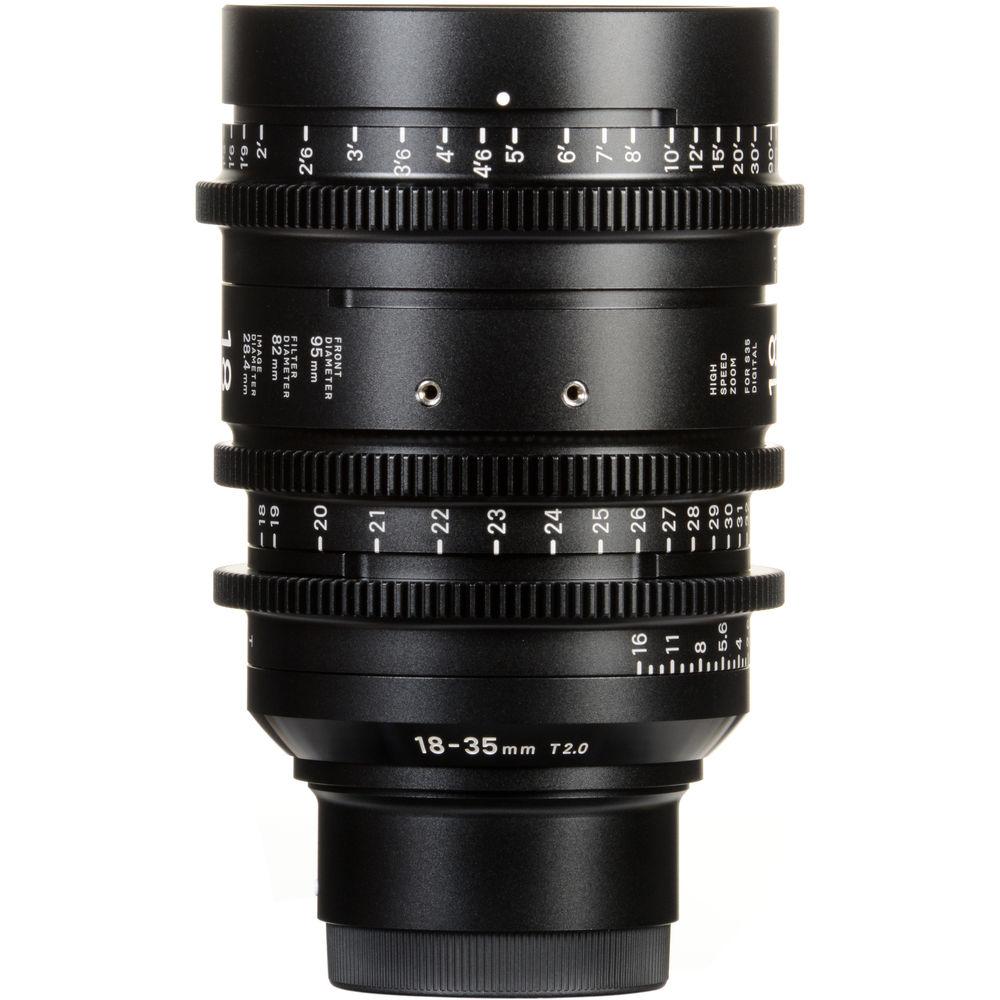

Product description Cinema Lens Care and Maintenance Read More The Sigma 18-35mm T2 Cine High-Speed Zoom Lens with a Canon EF mount and with focus scales marked in feet provides an image circle that covers Super 35mm-sized sensors. It features a maximum T-stop of 2, and the aperture does not ramp over the zoom range. It shares common lens gear positions with the other lens in the Sigma High-Speed Zoom lineup, which makes for rapid lens changes. What sets these lenses apart from the standard Sigma High Speed Zooms is fully luminescent markings. When shooting in dim or dark environments, focus pullers and camera operators will be able to easily discern lens markings without resorting to distracting lamps or other disruptive light sources.
The 9-bladed iris provides round out-of-focus highlights for a natural-looking bokeh. The lens barrel features 180° of rotation from close focus to infinity, the zoom barrel rotates 160°, and the clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears, and the focus scale is marked in feet. The front of the lens is 95mm in diameter with a removable 1/4"-20 support foot that helps support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included). - Color Balance
- All the lenses in the lineup are designed to comply with SIGMA's CCI standard simplifying when intercutting between lenses.
- Dustproof and Splashproof Design
- Sharing the same dustproof and splashproof construction as the SIGMA 150-600mm F5-6.3 DG OS HSM｜Sports, each ring and mount is sealed to prevent water and dust from entering.
- All-Metal Body Construction
- The lens body is made completely of metal to stand up to the rigors of the production day.
- Lens Markings
- The main lens markings are in luminous paint for easy visibility in low light situations. The intermediate markings are laser-engraved for durability. The focus and zoom markings are readable from either side of the lens.
- Lens Front

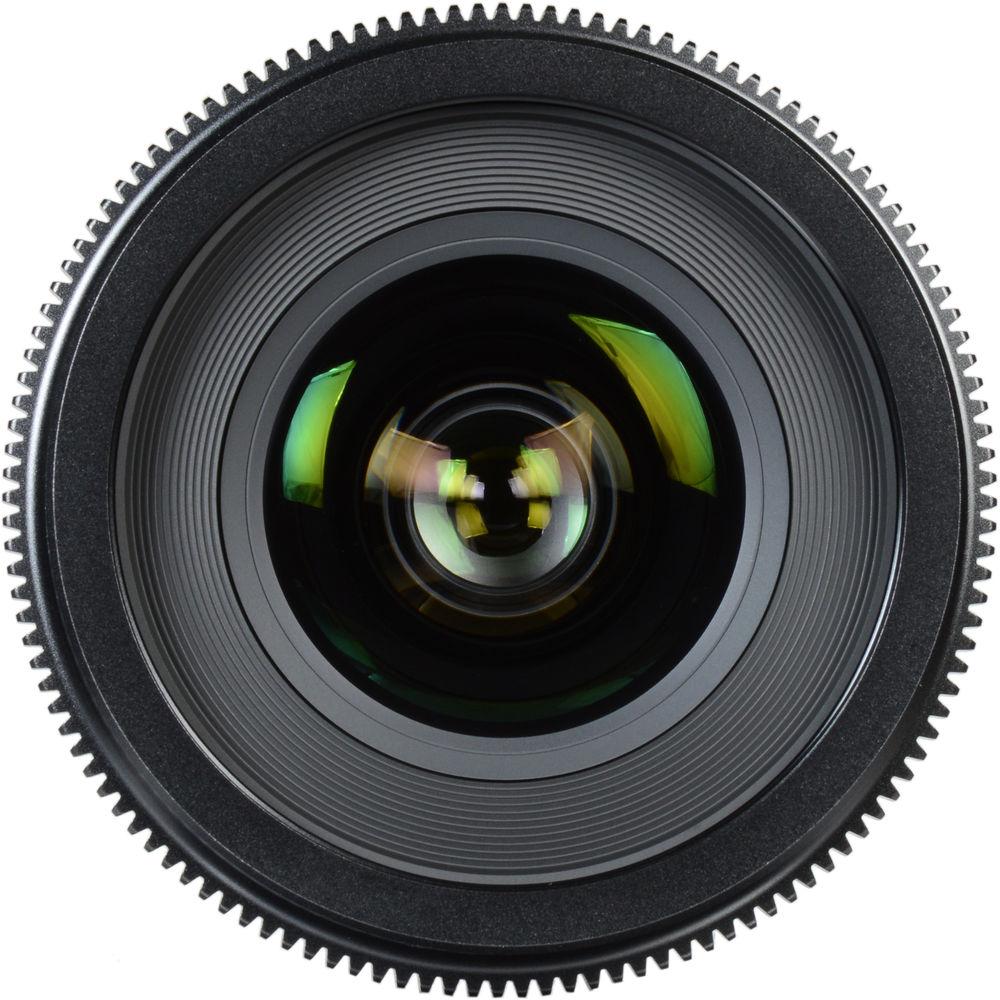

- The lens features a 95mm front diameter for compatibility with a wide variety of matte boxes and incorporates an 82mm front filter thread.
- Lens Gears
- All three lens gears are standard 0.8 Mod and feature a damper that eliminates metallic sounds when you reach the end of the lens travel.

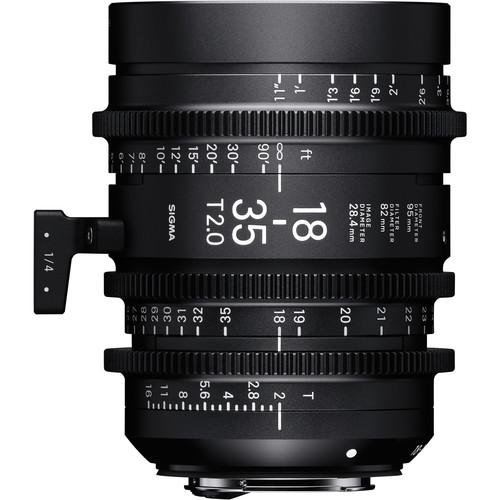

- Support Foot
- The lens includes a removable support foot.
UPC: 085126933531 In the Box Sigma 18-35mm T2 Fully Luminous High-Speed Zoom Lens (Canon EF) Support Foot Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 18-35mm T2 Fully Luminous High-Speed Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSigma 18-35mm T2.0 (ft) Specs | Focal Length | 18 to 35mm | | Lens Mount | Canon EF | | Format | Super35/APS-C | | Image Circle | 28.4 mm | | Maximum T-Stop | T2 | | Maximum F-Stop | f/1.8 | | Minimum T-Stop | T16 | | Minimum Focus Distance from Image Plane | 11" / 27.94 cm | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Zoom Rotation | 160° | | Zoom Ratio | 1.94x | | Electronic Communication | Yes | | Tripod Mounting Thread | 1/4"-20 | | Length | 5.1" / 12.95 cm | | Weight | 3.2 lb / 1.5 kg |
