User Manual for Sigma 24-35mm T2.2 FF Zoom Lens Click to enlarge the picture
Contents of the user manual for the Sigma 24-35mm T2.2 FF Zoom Lens
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
|
User manual for the Sigma 24-35mm T2.2 FF Zoom Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|

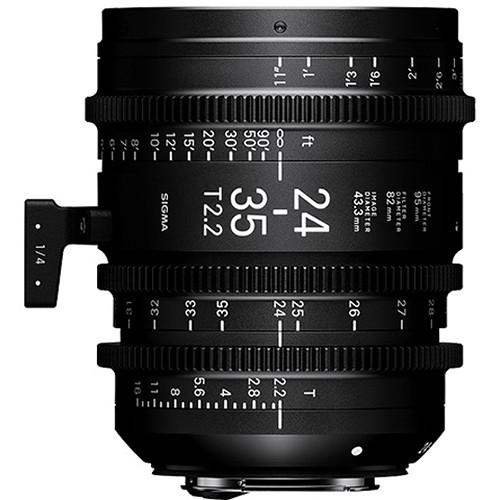

Product description Cinema Lens Care and Maintenance Read More The Sigma 24-35mm T2.2 FF Zoom Lens (Canon EF, Meters) combines high-quality optics and a compact form factor in a cine-oriented design. This zoom provides an image circle that covers full frame-sized sensors and produces an image quality suitable for 6K-8K capture. It features a maximum T-stop of 2.2, without any aperture ramping over the zoom range. The 24-35mm T2.2 Cine FF Zoom shares common lens gear positions with the lenses in the Sigma High-Speed Zoom lineup, which makes for rapid lens changes. The 9-bladed iris provides round out-of-focus highlights for a natural-looking bokeh. The 24-35mm T2.2 Cine FF Zoom's lens barrel features 180° of rotation from close focus to infinity, its zoom barrel rotates 160°, and its clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears, and the focus scale is marked in meters. The front of the lens barrel is 95mm in diameter and the lens has select markings done in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body, helping support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included). If you wish to fit your Cine FF Zoom lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center. Features - High image performance covering full frame sensors; suitable for 8K capture
- Fast T2.2 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the Sigma Cine lens line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
- All three lens gears are industry-standard 0.8 Mod and feature a damper to eliminate any sound when you reach the end of the lens travel
UPC: 085126934170 In the Box Sigma 24-35mm T2.2 FF Zoom Lens (Canon EF, Meters) Support Foot Front Lens Cap Rear Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 24-35mm T2.2 FF Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSigma 24-35mm T2.2 FF (m) Specs | Focal Length | 24 to 35mm | | Lens Mount | Canon EF | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2.2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 73.7 to 54.4°
Super35: 54.3 to 38.7°
APS-C (1.5x): 52.6 to 37.4° | | Minimum Focus Distance from Image Plane | 11" / 0.28 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Zoom Rotation | 160° | | Electronic Communication | Yes | | Tripod Mounting Thread | 1/4"-20 | | Length | 4.84" / 123 mm | | Weight | 3.2 lb / 1440.0 g | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 9.5 x 6.7 x 6.7" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 86 owners. Add your rating and experience with the product.
