User Manual for Sigma 40mm T1.5 FF PL Mount High-Speed Prime Lens Click to enlarge the picture
Contents of the user manual for the Sigma 40mm T1.5 FF PL Mount
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
|
User manual for the Sigma 40mm T1.5 FF PL Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More rarvywxdwaasczbfztzbutbcewbfcudt - How Good are Sigma's New Cine Lenses?

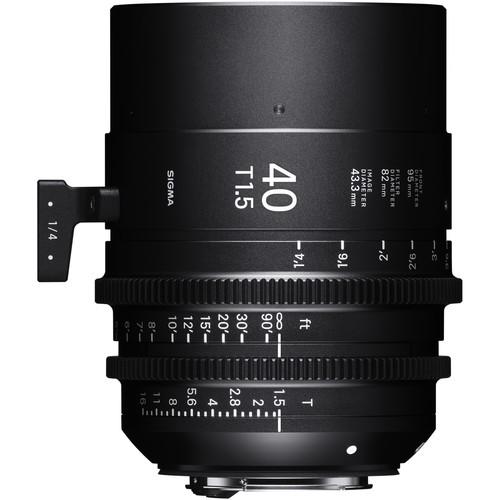

Sigma's 40mm T1.5 FF PL Mount High-Speed Prime Lens combines the same high-quality optics and mechanics of the Global Vision still line in a cine-oriented design. This 40mm PL-mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors.
The 9-bladed iris produces pleasing out-of-focus bokeh effects, and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, an industry-standard 0.8 module gear pitch, and engraved markings for durability. Select markings are done in luminous paint for easy visibility in low light.
To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts). Features - High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low-light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across most the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mounts)
- Select markings are done in luminous paint for easy visibility in low light
UPC: 085126332686 In the Box Sigma 40mm T1.5 FF PL Mount High-Speed Prime Lens (Feet) Rear Lens Cap Front Lens Cap Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 40mm T1.5 FF PL Mount High-Speed Prime Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSigma 40mm T1.5 FF (ft) Specs | Focal Length | 40mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 48.5°
Super35: 34.2°
APS-C (1.5x): 33° | | Minimum Focus Distance from Image Plane | 15.7" / 0.40 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 6.18" / 157 mm | | Weight | 3.6 lb / 1620 g | | | | Package Weight | 4.22 lb | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 6.8" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 09 owners. Add your rating and experience with the product.
