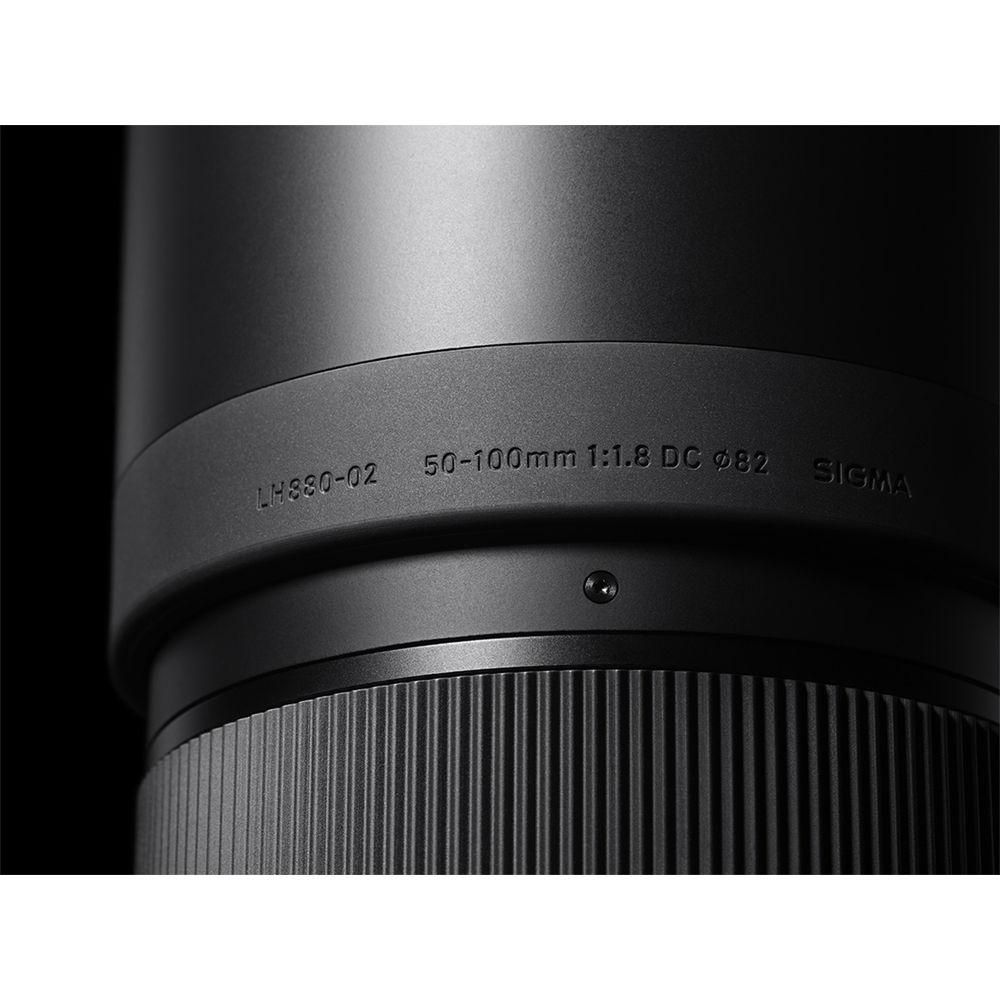

User Manual for Sigma 50-100mm f 1.8 DC HSM Art Lens for Sigma SA Click to enlarge the picture
Contents of the user manual for the Sigma 50-100mm f 1.8 DC HSM
- Product category: SLR Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma SLR Lenses
 |
User manual for the Sigma 50-100mm f 1.8 DC HSM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|

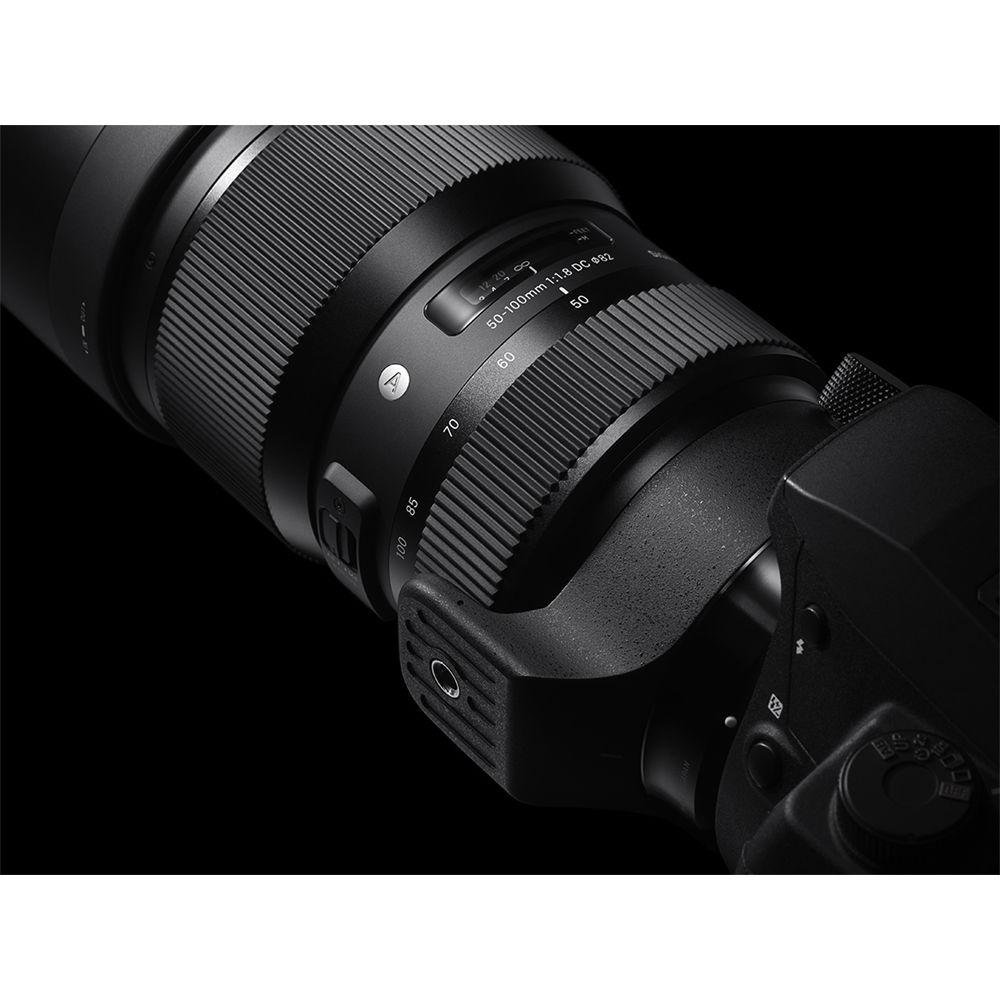

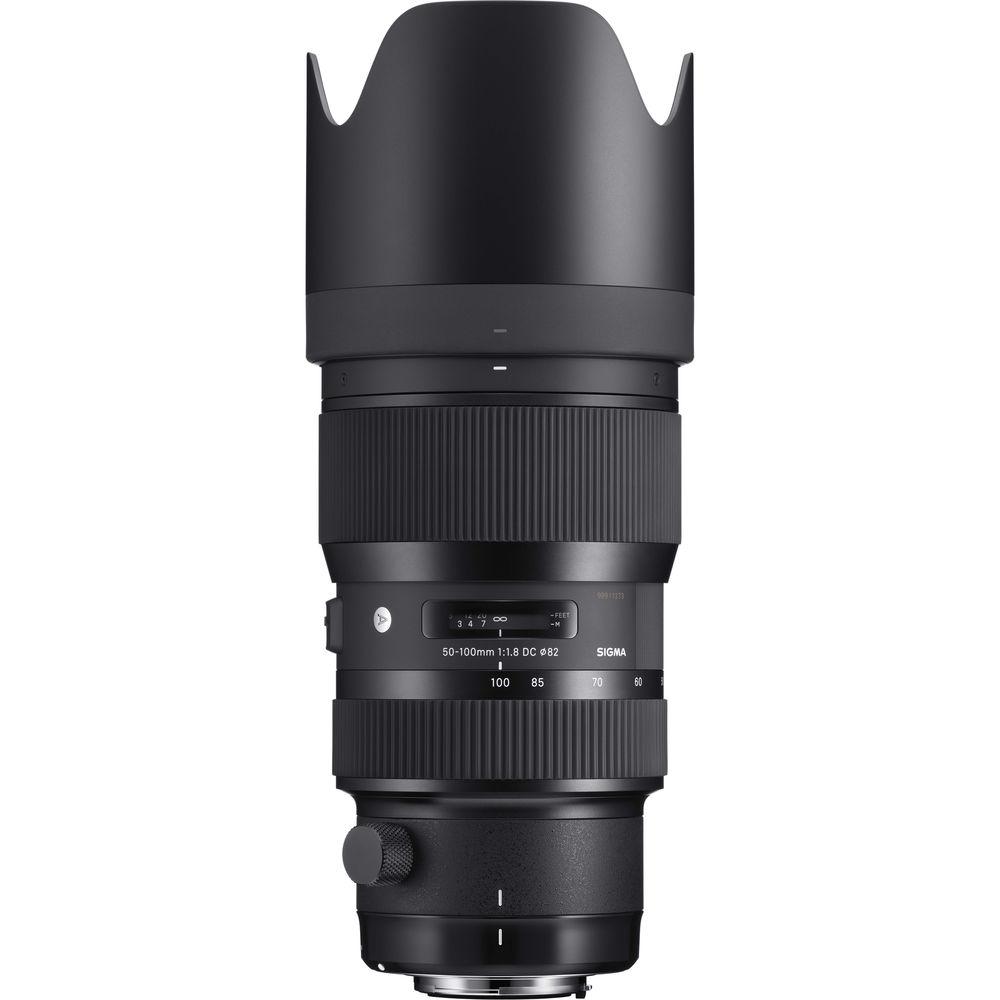

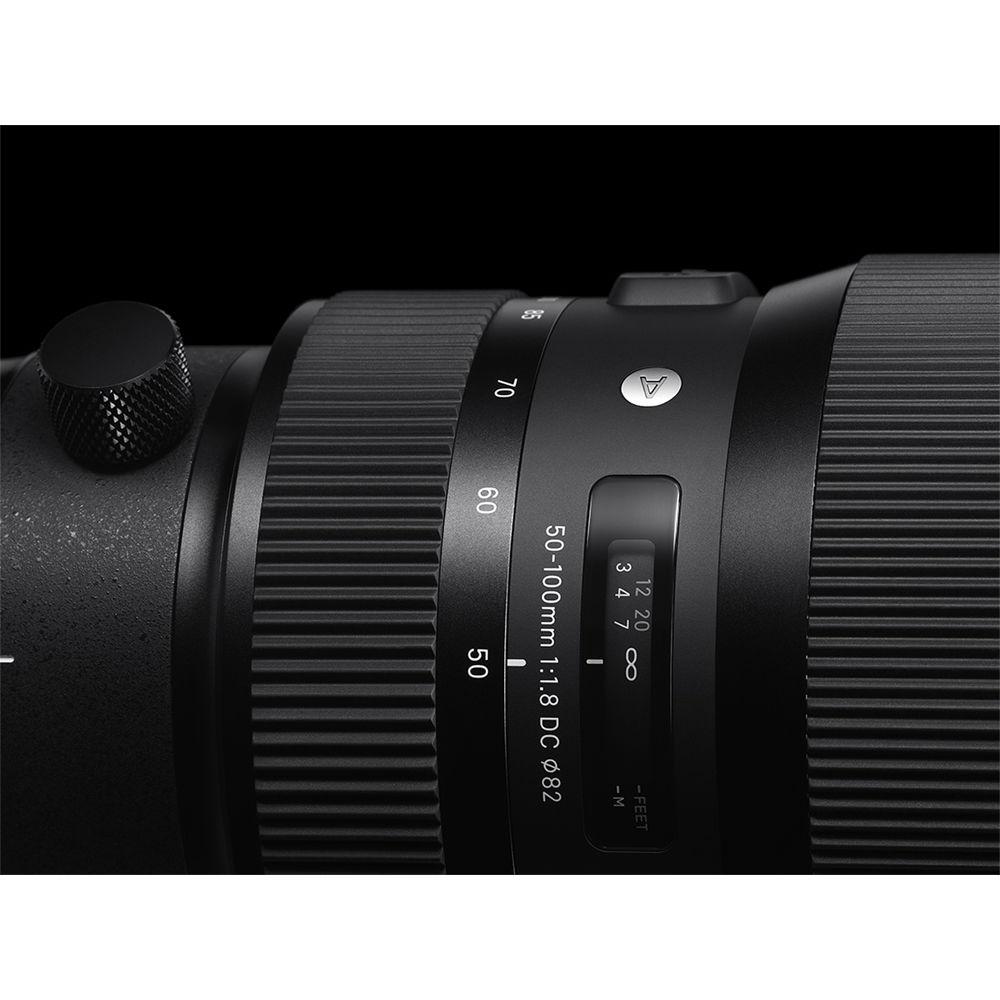

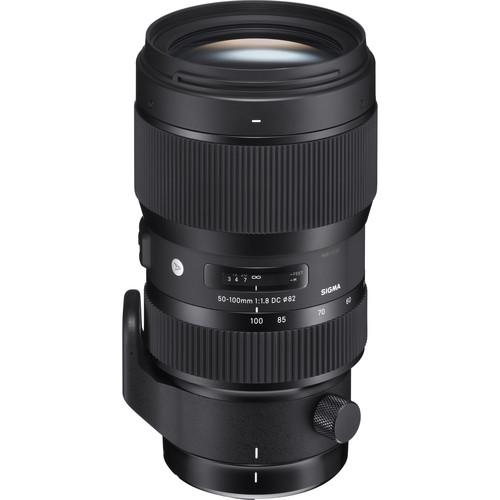

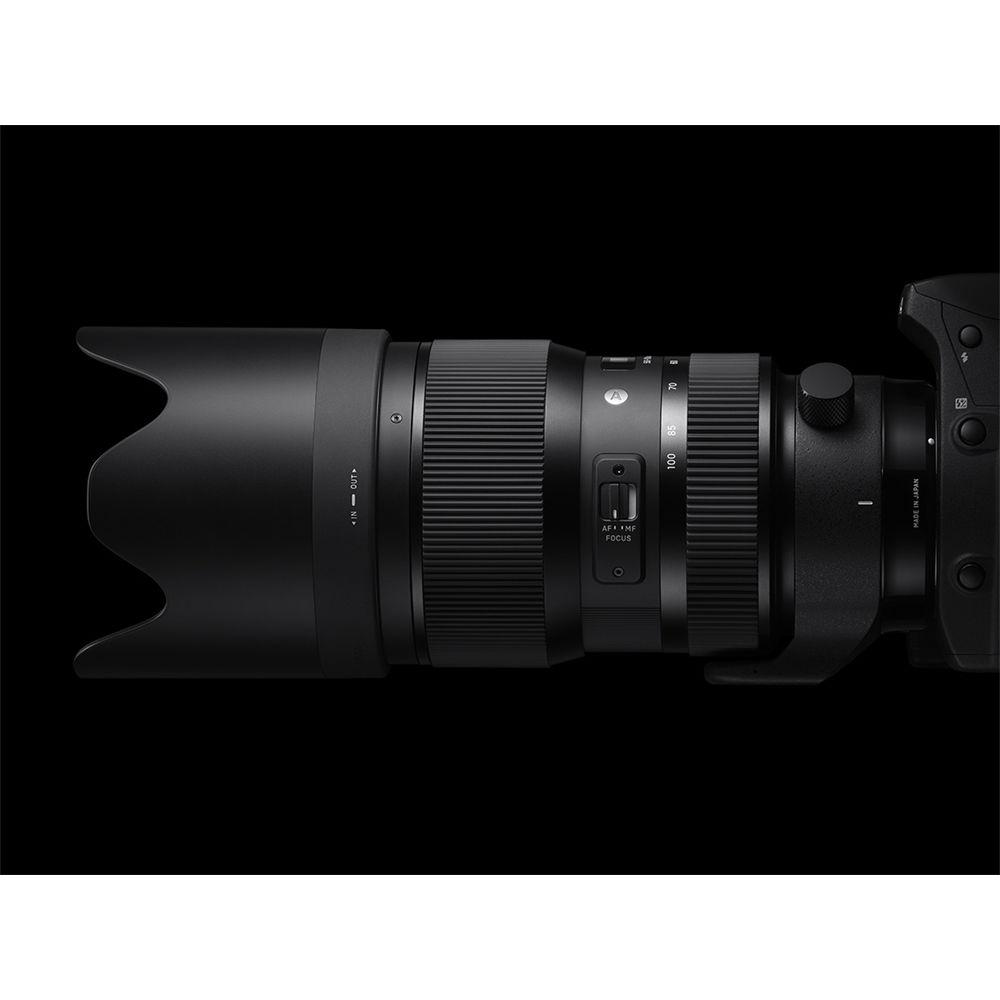

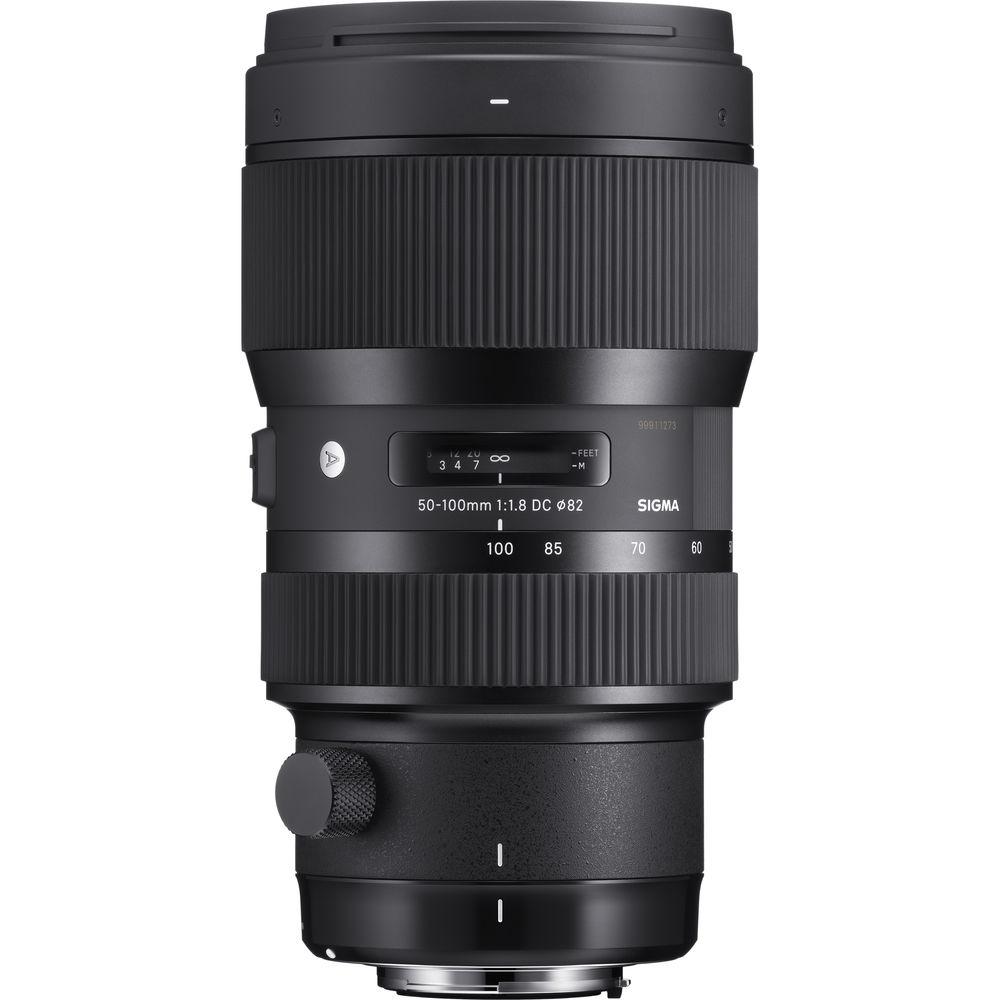

Product description Hands-On Review: Sigma 50-100mm f/1.8 DC HSM Art Lens Read More Pairing a versatile range of telephoto focal lengths with a fast constant maximum aperture, this 50-100mm f/1.8 DC HSM Art Lens from Sigma is designed for APS-C-format Sigma SA-mount cameras, and provides a 75-150mm equivalent focal length range. The bright constant maximum aperture offers consistent low-light performance throughout the zoom range and also affords greater control over focus placement for shallow depth of field and selective focus applications. Complementing the versatile telephoto range is a sophisticated optical design that incorporates three F Low Dispersion elements, one Special Low Dispersion element, and one high-refractive index, high-dispersion glass element. This combination of low dispersion designs works to noticeably reduce chromatic aberrations and color fringing throughout the zoom range, as well as deliver a high degree of contrast and clarity. Additionally, a Super Multi-Layer Coating has been applied to lens elements to reduce lens flare and ghosting to benefit working in strong lighting conditions. An unprecedented combination of focal length and speed, this 50-100mm f/1.8 lens offers a variety of favored telephoto perspectives in combination with a flexible maximum aperture.
Complementing the imaging capabilities is a refined physical construction with internal focus and zoom mechanisms to limit the overall length of the lens during use. A Hyper Sonic AF motor affords quick focusing speeds and quiet performance as well as the ability to manually override focus at any time for greater control. Also suiting quick shooting applications, the nine-blade diaphragm has been constructed from fluorine-coated polycarbonate, along with a carbon feather film for exceptionally smooth, controlled performance when photographing at high shooting speeds. Contrasting this, a tripod collar is integrated into the design, too, for greater stability when working atop a tripod or monopod. - As part of the Art line within Sigma's Global Vision series, this lens' is designed to achieve truly notable optical performance and is ideally suited for creative and artistic applications.
- Spanning a range of short telephoto focal lengths, this 50-100mm lens is designed for Sigma SA-mount APS-C-format cameras, where it provides a 75-150mm equivalent focal length range.
- Impressively fast f/1.8 constant maximum aperture benefits working in difficult lighting conditions throughout the zoom range and also offers increased control over focus when working with selective focus techniques.
- Three F Low Dispersion elements and one Special Low Dispersion element markedly reduce chromatic aberrations and color fringing throughout the zoom range. Additionally, one high-refractive index, high-dispersion glass element controls spherical aberrations for increased clarity and sharpness.
- A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.
- The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time.
- An inner zoom and inner focus design limits the overall length of the lens during operation for more intuitive, controlled handling as well as faster performance.
- The rounded nine-blade diaphragm is constructed from durable, fluorine-coated polycarbonate and also features a carbon feather film for smooth performance when working with fast continuous shooting rates.
- The lens is constructed using a Thermally Stable Composite (TSC) material, along with traditional metals, for greater precision and use in wide temperature variations. The outside of the lens barrel is also engraved with the year of production.
- The bayonet mount is constructed from brass for ensured accuracy and durability.

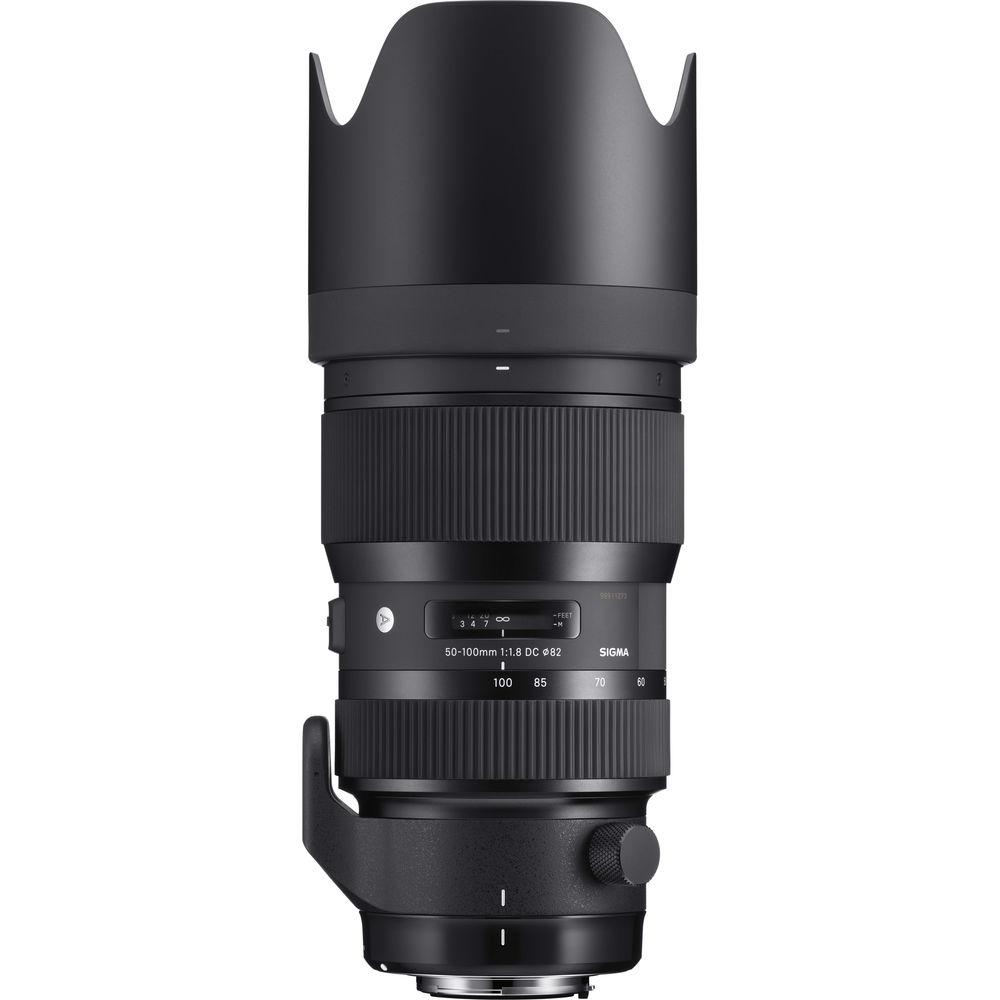

- A fixed, rotating tripod collar offers increased stability when working from a tripod and integrates 90° click stops for intuitive switching between horizontal and vertical shooting orientations.
- This lens is compatible with the optional Sigma USB Dock for fine-tuning different lens characteristics and updating its firmware.

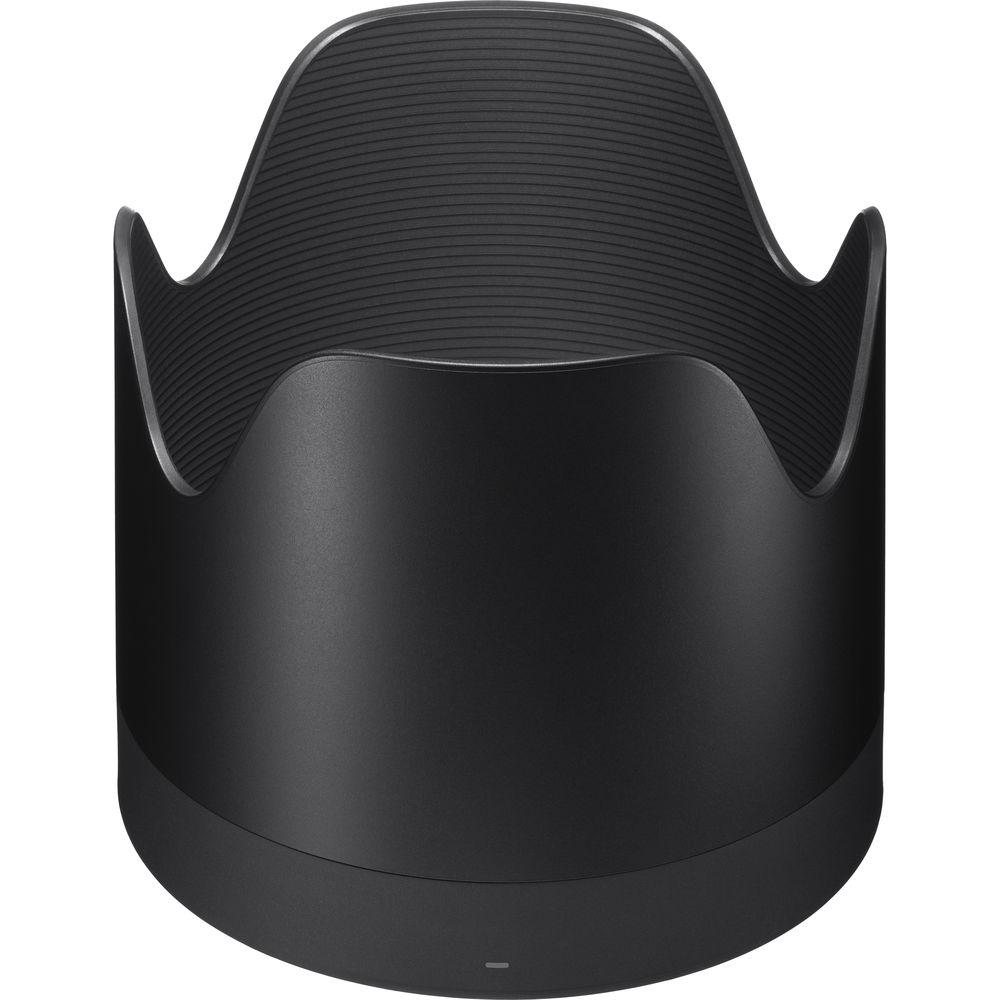

UPC: 085126693565 In the Box Sigma 50-100mm f/1.8 DC HSM Art Lens for Sigma SA LCF-82 III 82mm Lens Cap Rear Cap LCR II for Sigma Mount Lenses Lens Hood for 50-100mm f/1.8 DC HSM Art Lens Lens Case for 50-100mm f/1.8 DC HSM Art Lens eyvbuwxutxydsfbvas Limited 1-Year Warranty Limited 3-Year U.S.A. Warranty Extension Unveiled: Sigma 50-100mm f/1.8 Art & 30mm f/1.4 Ultra-Fast APS-C Lenses & MC-11 Adapter Shawn C. Steiner 02/23/2016 eyvbuwxutxydsfbvas Best SLR Lenses of 2017 Bjorn Petersen 12/04/2017 eyvbuwxutxydsfbvas Macro Lens Buying Guide Todd Vorenkamp 11/27/2018 Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 50-100mm f 1.8 DC HSM Art Lens for Sigma SA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSigma 50-100mm f/1.8 DC HSM Art Specs | Focal Length | 50 to 100mm (35mm Equivalent Focal Length: 75 to 150mm) | | Maximum Aperture | f/1.8 | | Minimum Aperture | f/16 | | Lens Mount | Sigma SA | | Format Compatibility | APS-C | | Angle of View | 31.7
