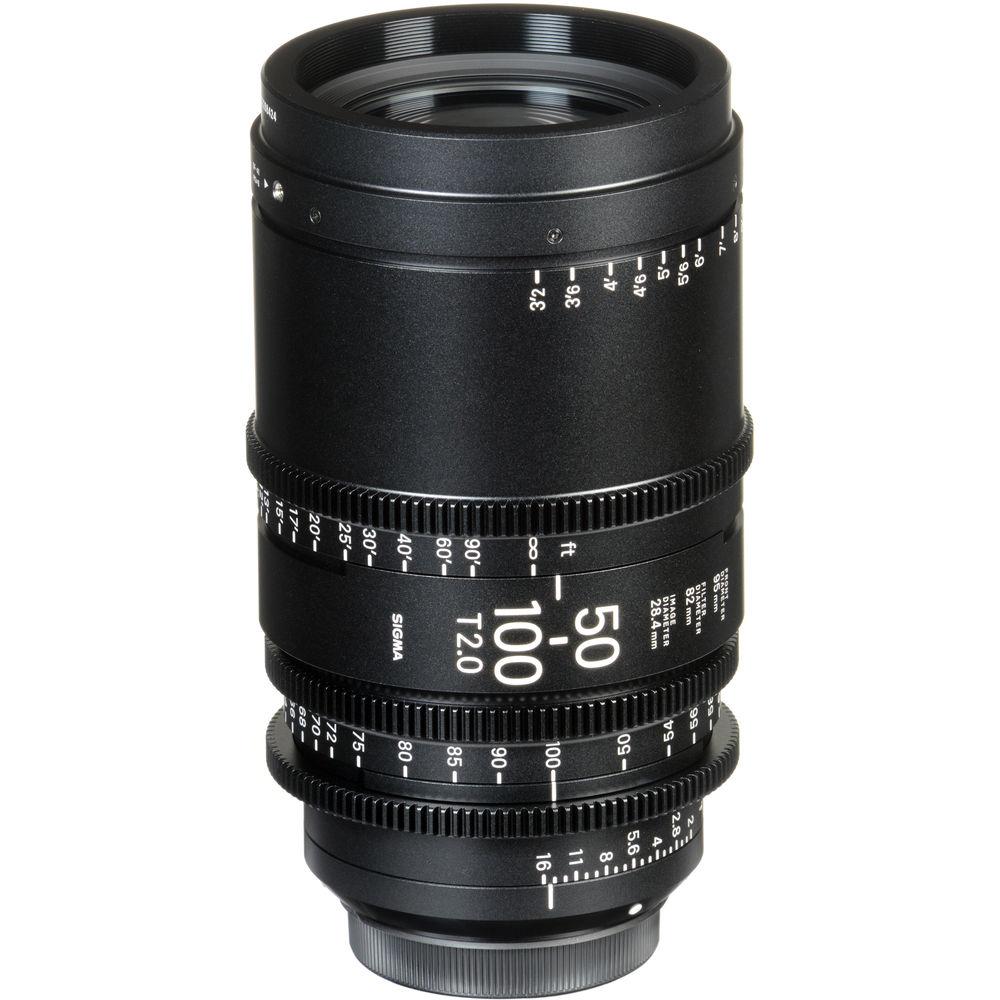

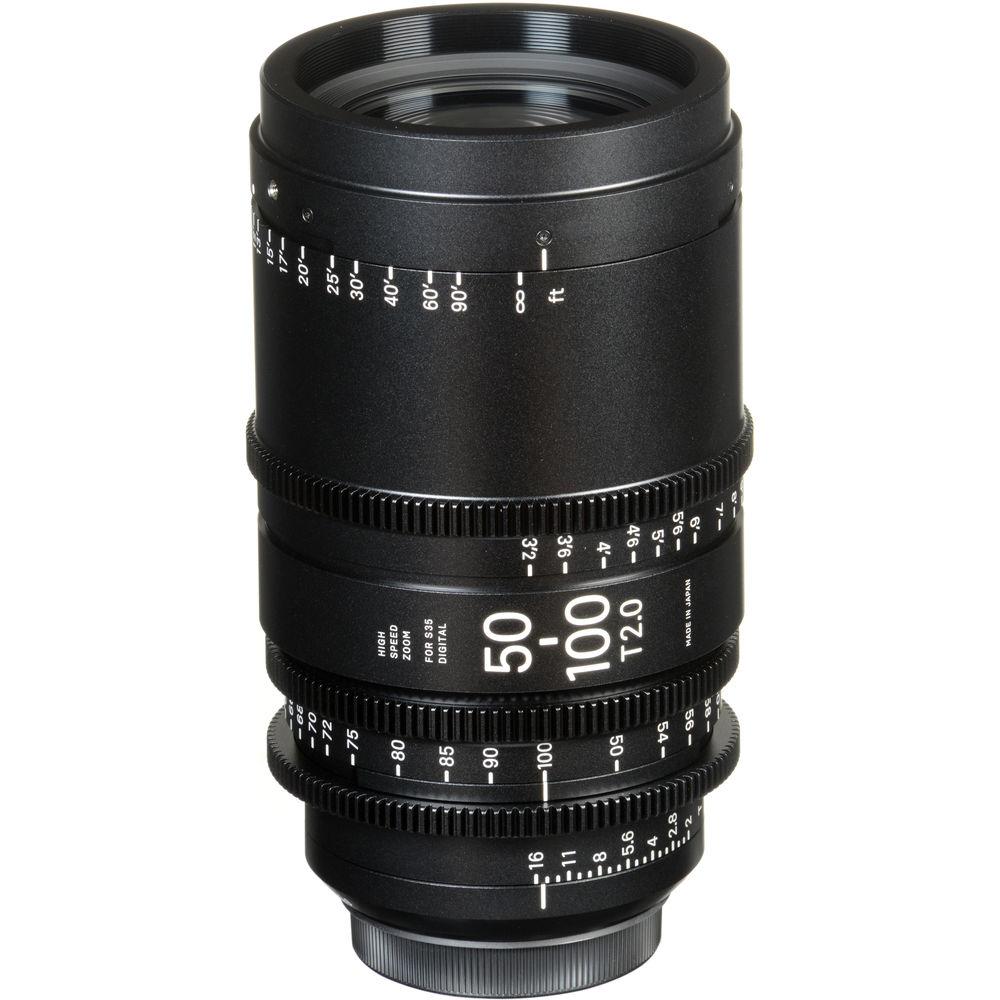

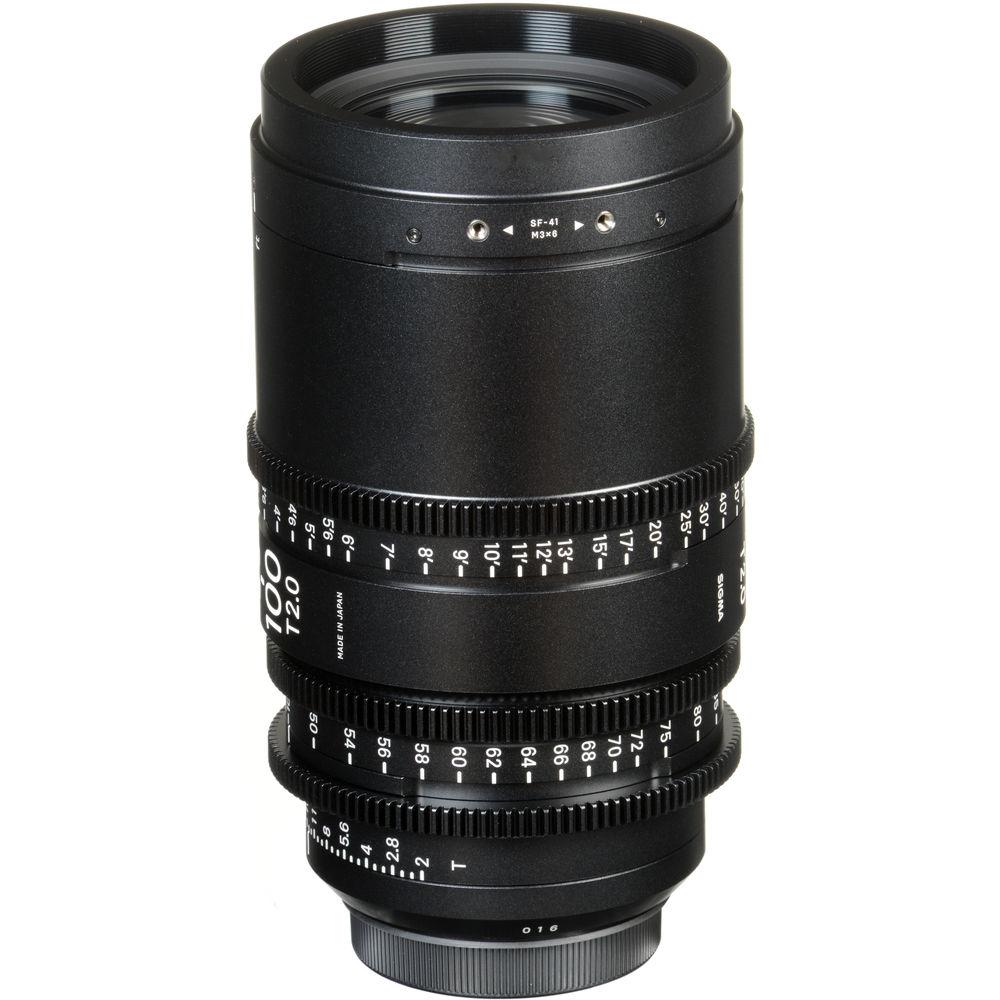

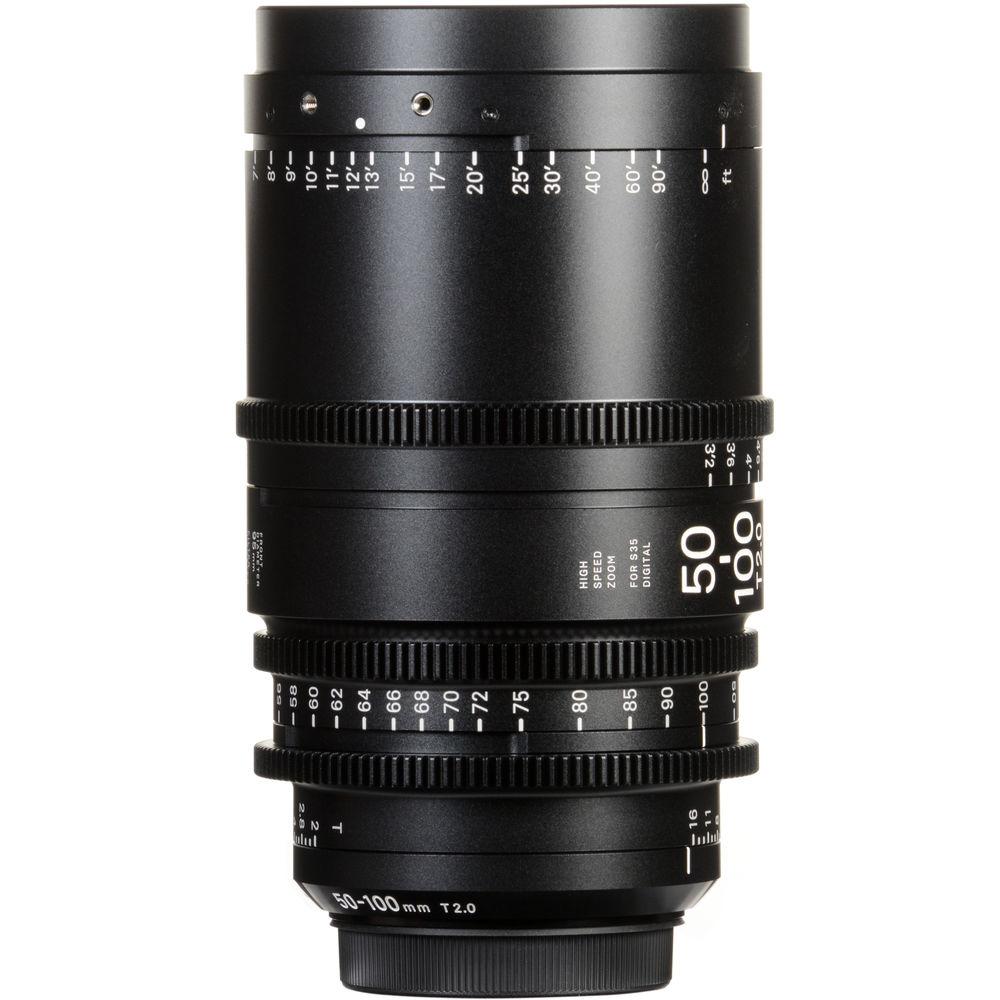

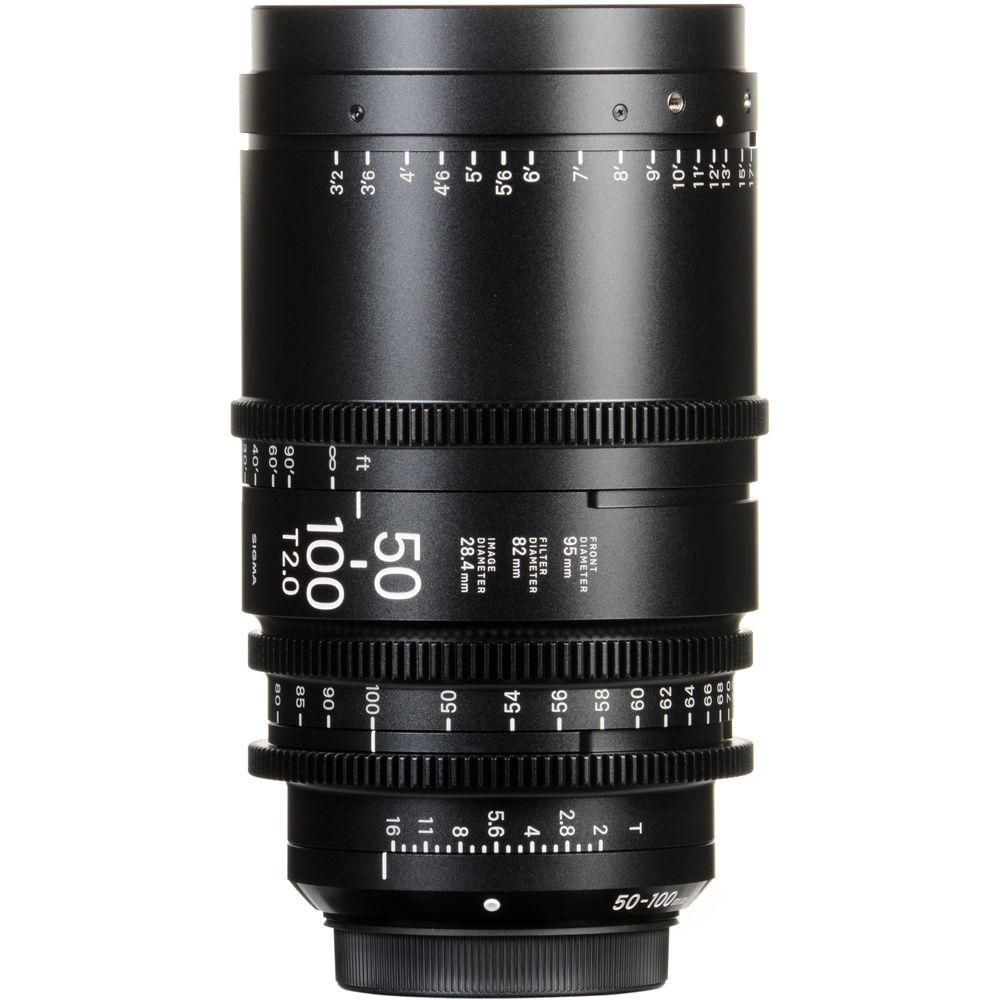

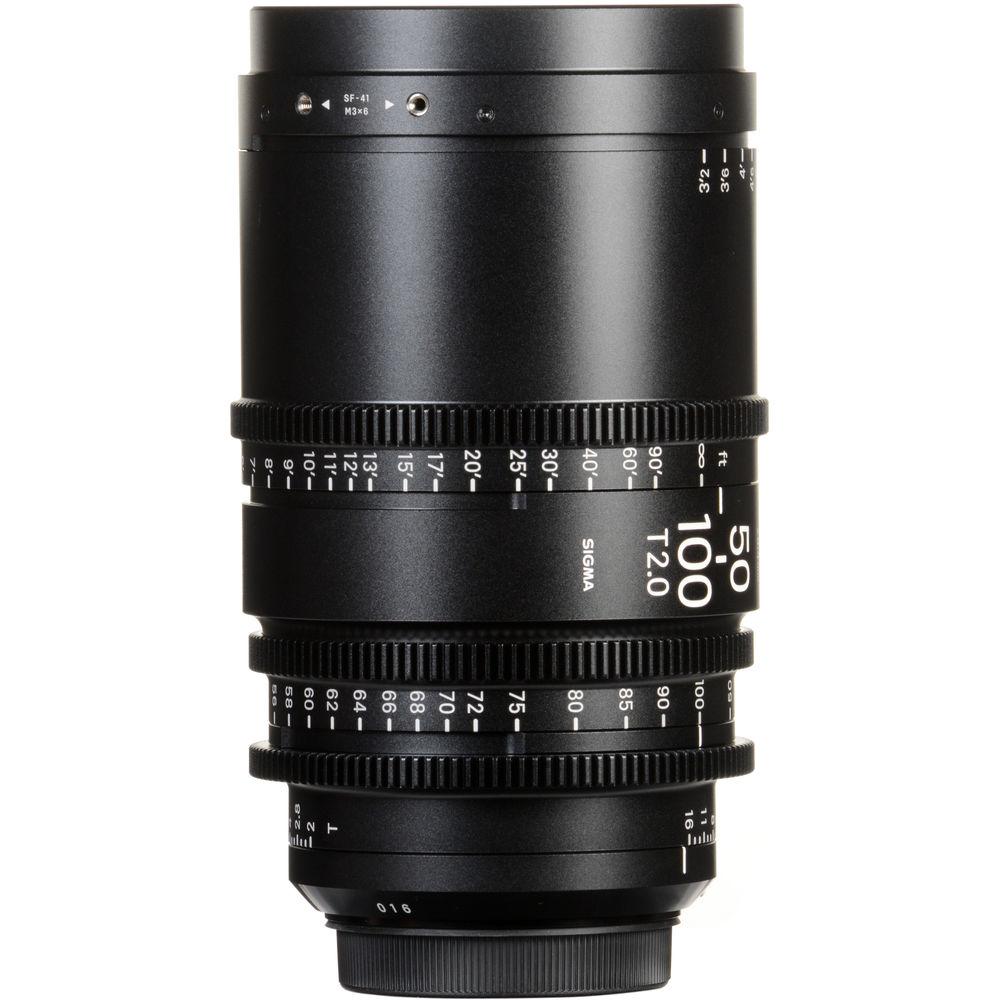

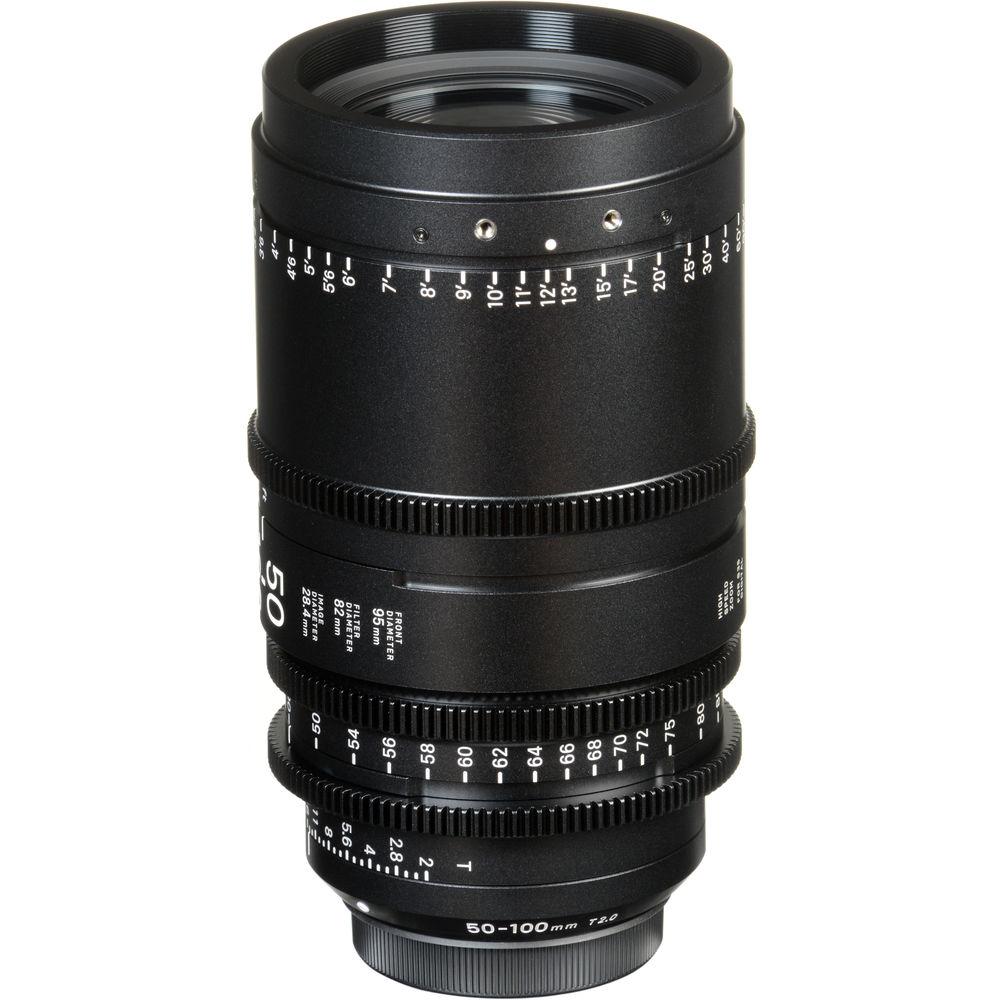

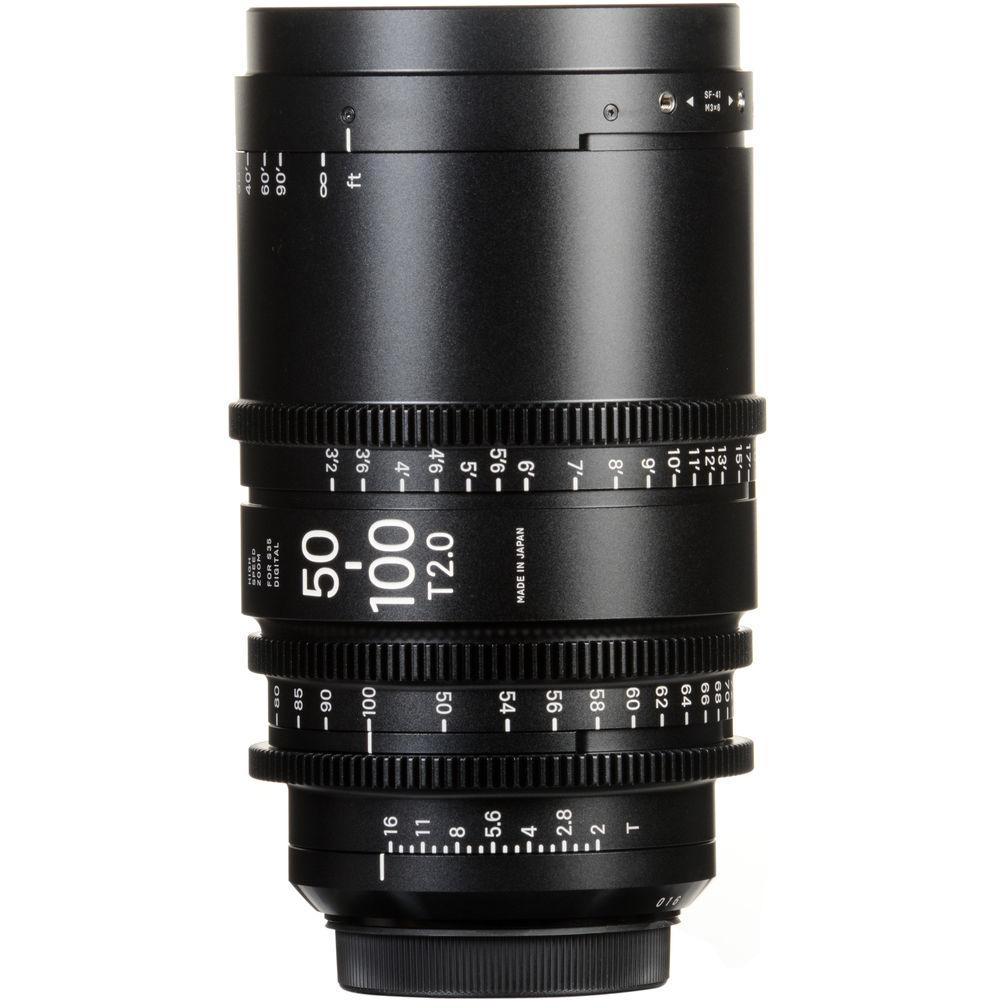

Product description Cinema Lens Care and Maintenance Read More The Sigma 50-100mm T2 Cine High-Speed Zoom Lens (Meters) with a Canon EF mount provides an image circle that covers Super 35mm-sized sensors. It features a maximum T-stop of 2, and the aperture does not ramp over the zoom range. It shares common lens gear positions with the other lens in the Sigma High Speed Zoom lineup, which makes for rapid lens changes.
The 9-bladed iris provides round out of focus highlights for a natural-looking bokeh. The lens barrel features 180° of rotation from close focus to infinity, and the zoom barrel rotates 160°, and the clickless iris ring features 60° of rotation. All three lens control rings are geared with cine-standard 0.8 Mod gears and the focus scale is marked in meters. The front of the lens is 95mm in diameter with a removable 1/4"-20 support foot that helps support the lens with the aid of a 1/4"-20 rod-mounted lens support (not included). - Color Balance
- All the lenses in the lineup are designed to comply with SIGMA's CCI standard simplifying when intercutting between lenses.
- Dust-Proof and Splash-Proof Design
- Sharing the same dust-proof and splash-proof construction as the SIGMA 150-600mm F5-6.3 DG OS HSM｜Sports, each ring and mount is sealed to prevent water and dust from entering.
- All Metal Body Construction
- The lens body is made completely of metal to stand up to the rigors of the production day.
- Lens Markings
- The main lens markings are in luminous paint for easy visibility in low light situations. The intermediate markings are laser-engraved for durability. The focus and zoom markings are readable from either side of the lens.

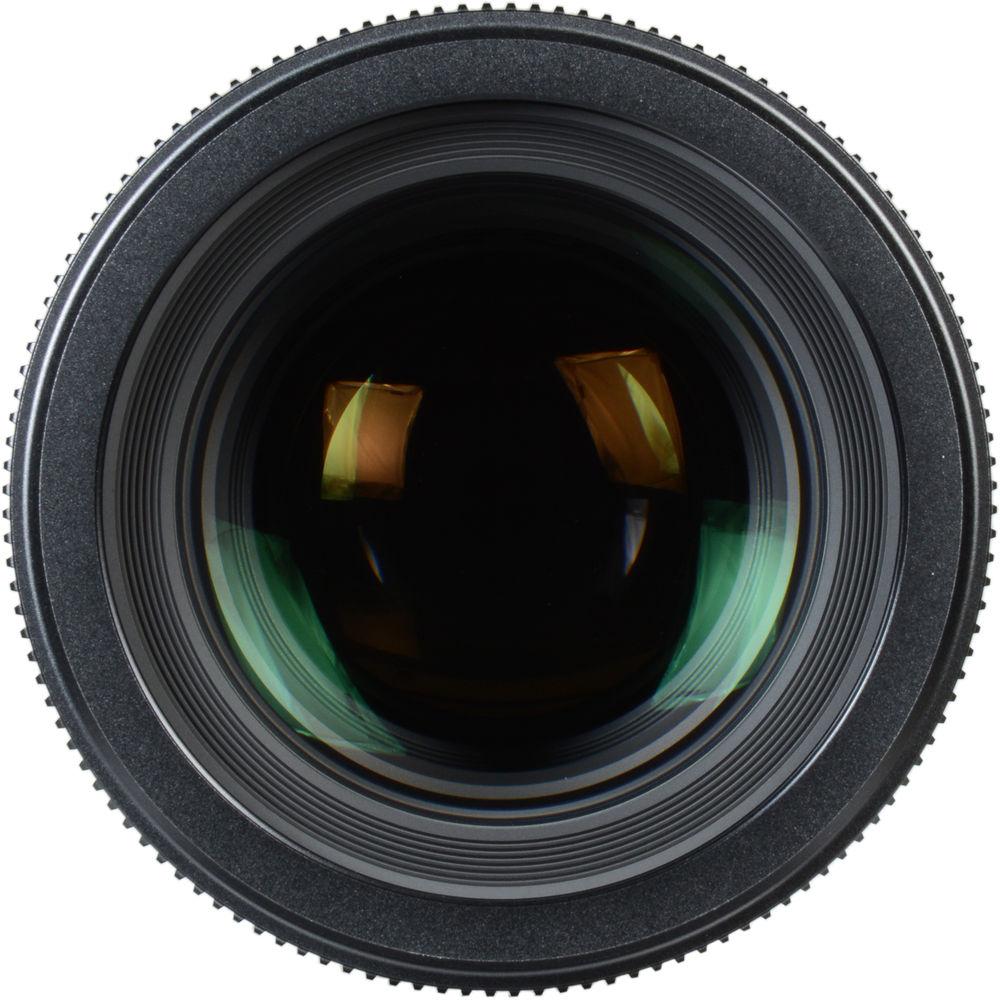

- Lens Front
- The lens features a 95mm front diameter for compatibility with a wide variety of matte boxes and incorporates an 82mm front filter thread.
- Lens Gears
- All three lens gears are standard 0.8 MOD and feature a damper that eliminates metallic sounds when you reach the end of the lens travel.

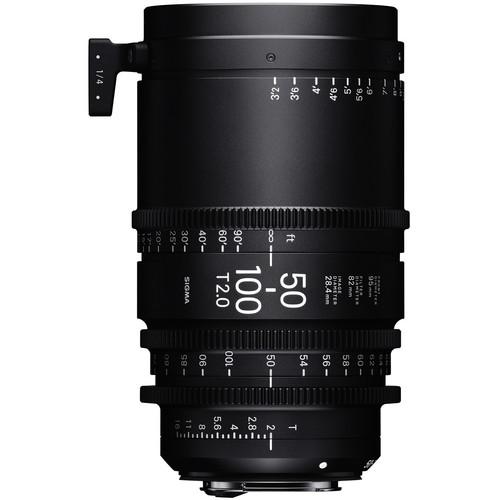

- Support Foot
- The lens includes a removable support foot.
UPC: 085126933623 In the Box Sigma 50-100mm T2 High-Speed Zoom Lens (Canon EF, Meters) Cap Support Foot Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma 50-100mm T2 High-Speed Zoom Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSigma 50-100mm T2.0 (m) Specs | Focal Length | 50 to 100mm | | Lens Mount | Canon EF | | Format | Super35/APS-C | | Image Circle | 28.4 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Super35: 27.6 to 14.0°
APS-C (1.5x): 26.7 to 13.5° | | Minimum Focus Distance from Image Plane | 3.17' / 96.5 cm | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch
Zoom: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Zoom Rotation | 160° | | Zoom Ratio | 1.94x | | Electronic Communication | Yes | | Tripod Mounting Thread | 1/4"-20 | | Length | 6.90" / 175.2 mm | | Weight | 4.1 lb / 1885.0 g |
