Sigma 500mm f 4 DG OS

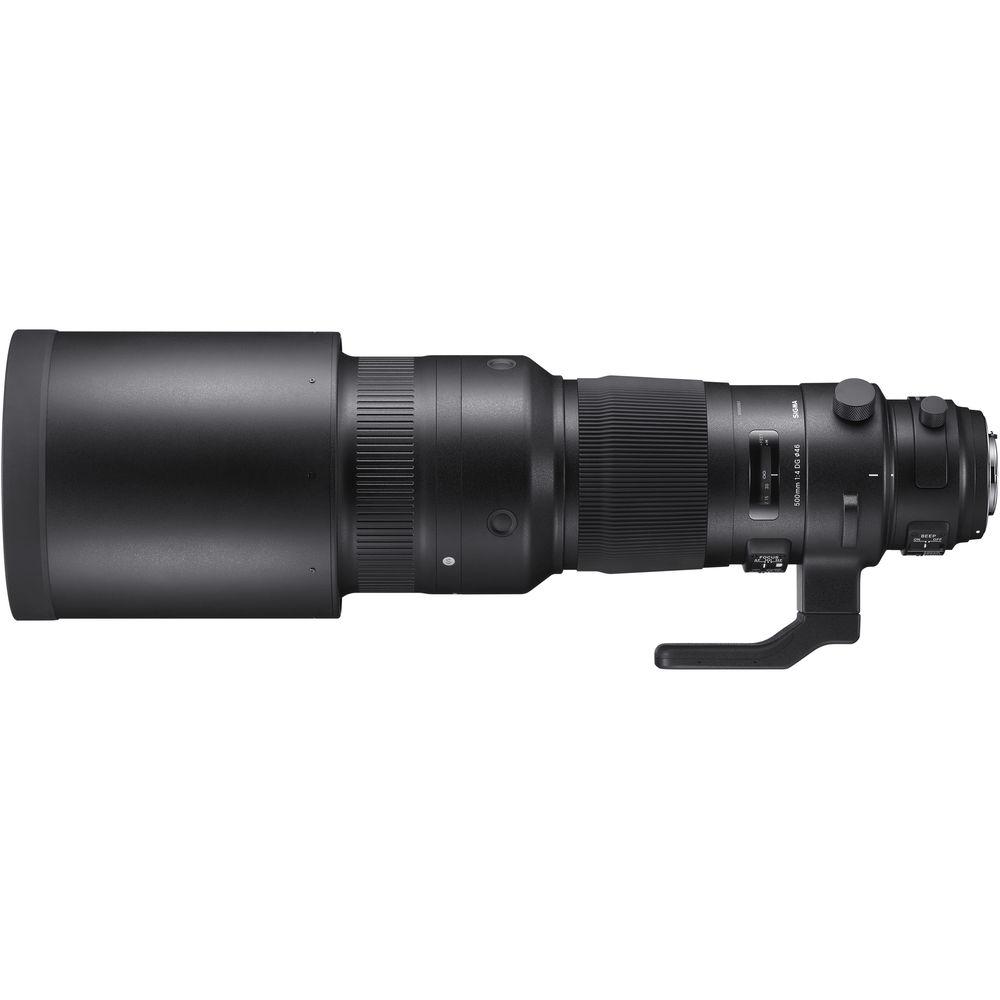

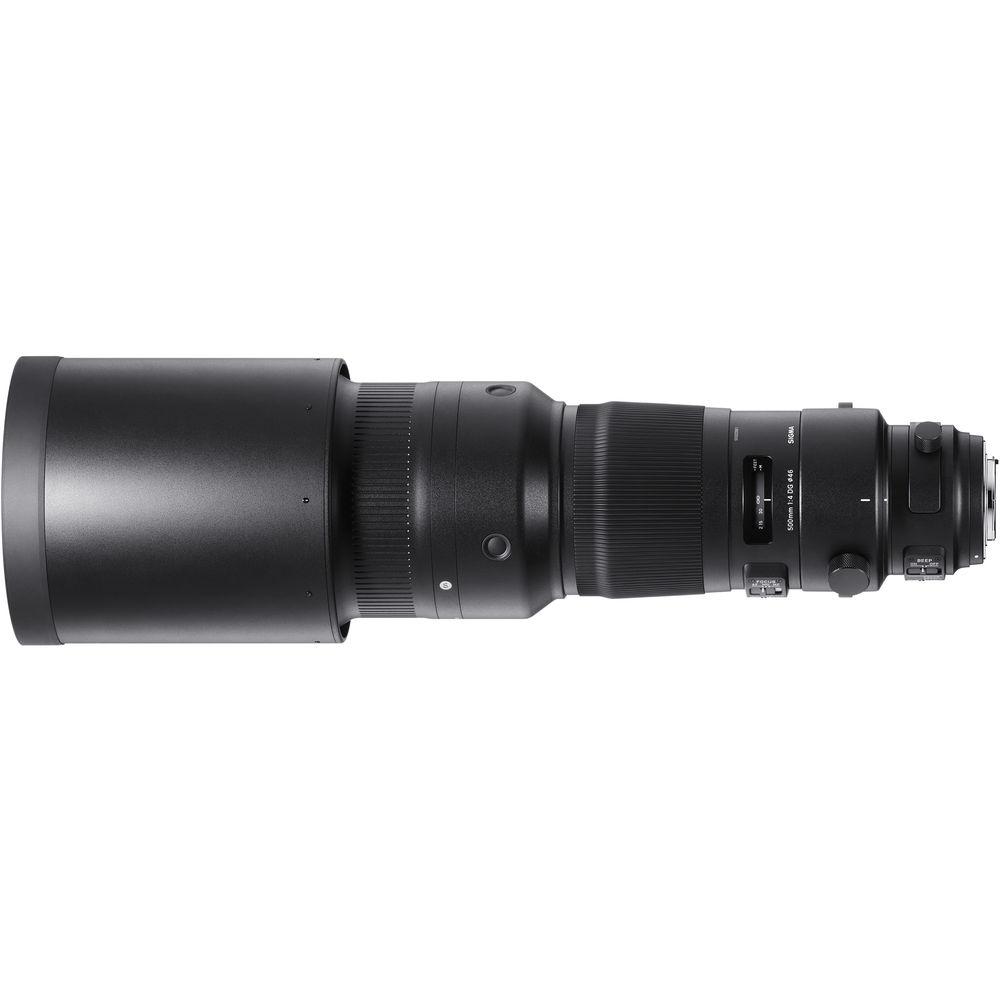

User Manual for Sigma 500mm f 4 DG OS HSM Sports Lens for Sigma SA

• Product category: SLR Lenses Sigma
• Brand: Sigma
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sigma SLR Lenses

Product description

• As part of the Sports line within Sigma's Global Vision series, this lens' is designed to offer excellent optical performance, speed, and other customizable features that make it an ideal choice for wildlife, sports, action, and other fast-moving subjects.

• This super telephoto 500mm f/4 prime lens is designed for full-frame format Sigma SA-mount cameras, and can also be used with APS-C models where it will provide a 750mm equivalent focal length.

• A relatively fast f/4 maximum aperture provides excellent illumination for a lens of this focal length.

• One SLD and two FLD elements have been incorporated within the lens design to correct for chromatic aberrations throughout the entire focusing range and help to ensure high image sharpness, clarity, and contrast regardless of focus point or aperture setting. This optical design also helps to control distortion and limit vignetting.

• A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.

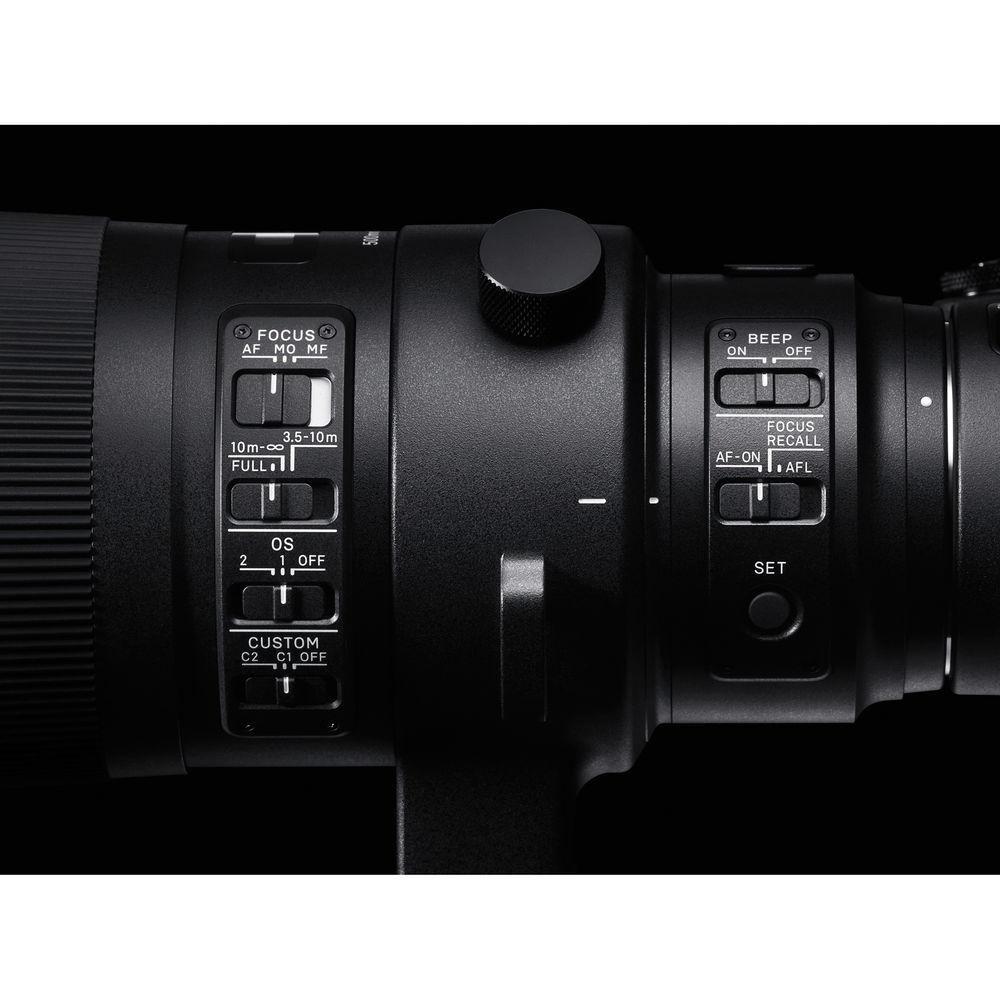

• The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. A dedicated switch on the barrel of the lens provides multiple AF modes, including a focus recall setting and AF off. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time. Two manual focus modes are available, the standard AF/MF option and an MO setting that switches the lens into manual even during continuous AF.

• Optical Stabilizer system can compensate for approximately 4 stops of shutter speed for sharper images. Two modes are available, one for general use and one for panning, which uses Intelligent OS for more effective panning in any direction.

• Compatible with Sigma Global Vision Teleconverters, this lens can be extended into a 700mm f/5.6 lens with the 1.4x teleconverter or a 1000mm f/8 lens with the 2x teleconverter.

• A rounded nine-blade diaphragm helps to produce an attractive out-of-focus quality.

• Drop-in filter system works with 46mm filters. An optional RCP-11 Circular Polarizer filter is designed specifically for the lens and can be rotated while it is inserted.

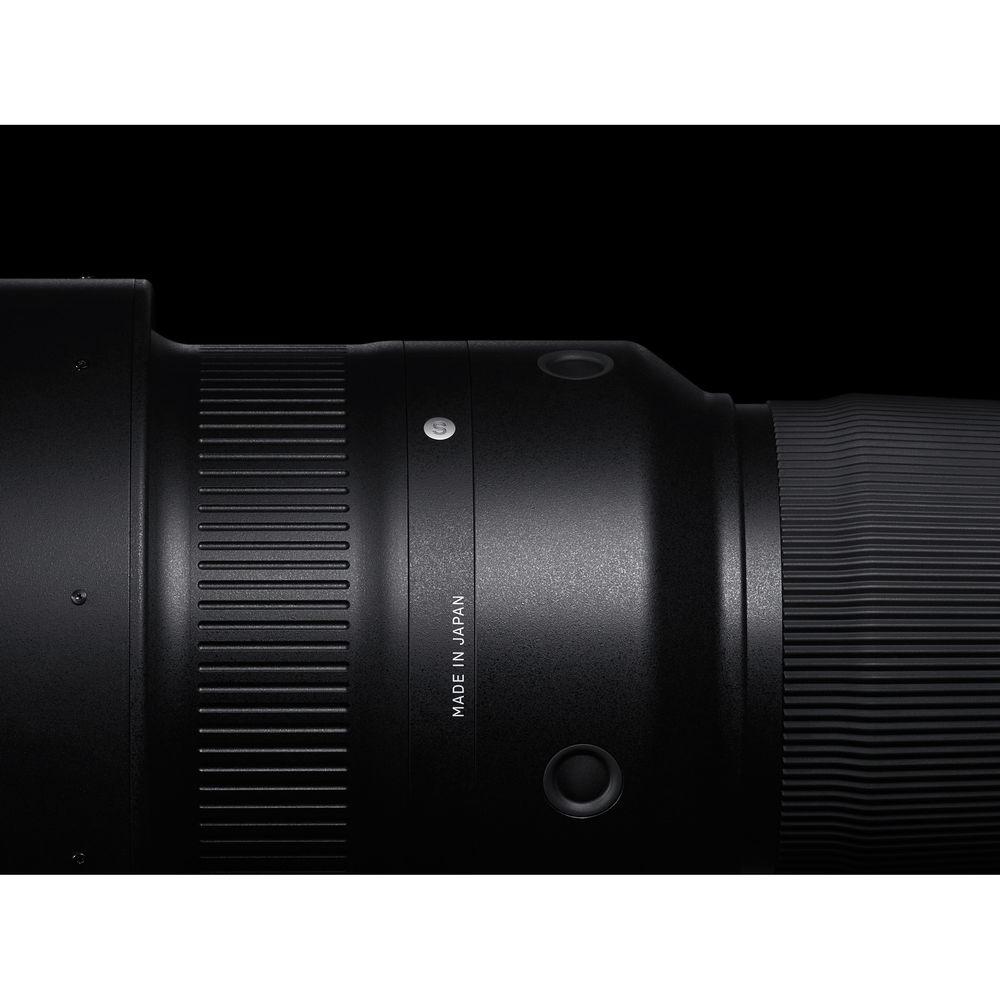

• The lens barrel is constructed using a magnesium alloy that is lightweight and durable, which allows this lens to perform in a wide range of situations.

• The bayonet mount is constructed from brass for ensured accuracy and durability.

• The lens hood is made of carbon fiber, a lightweight but strong material that will perform in tough conditions.

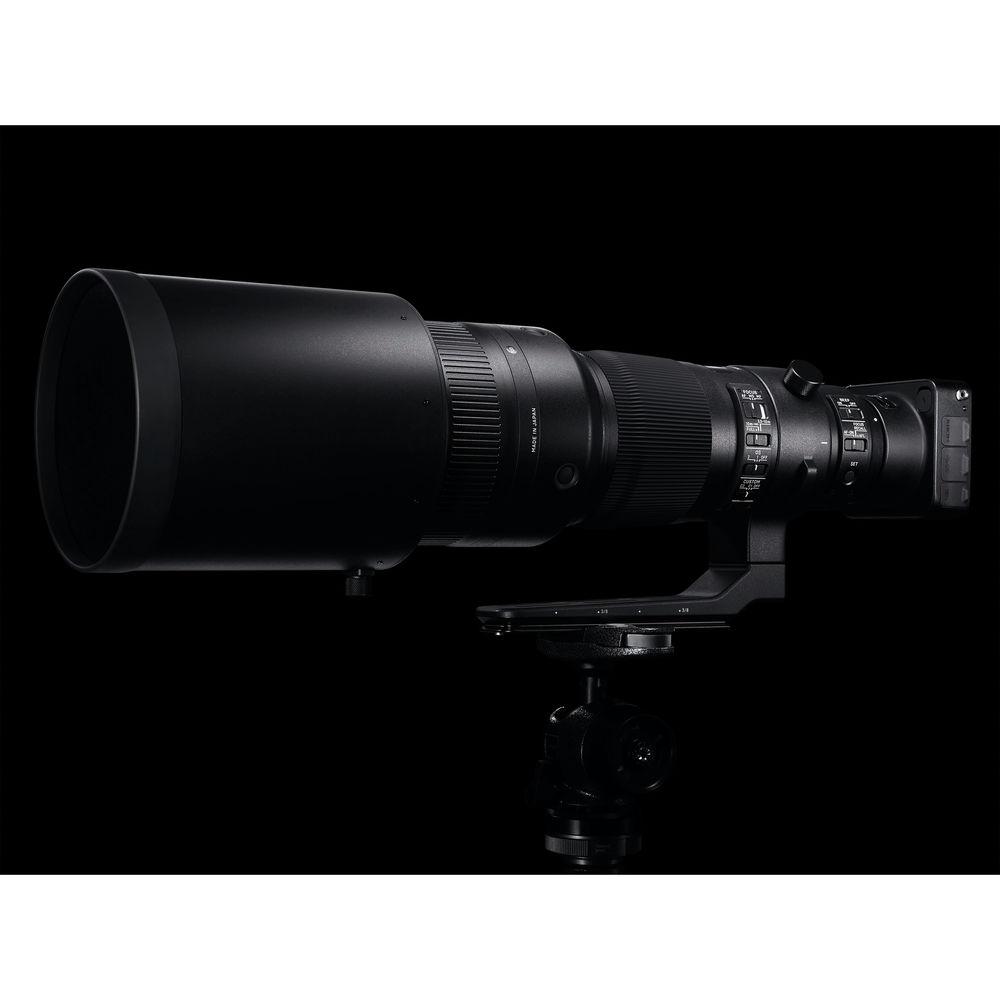

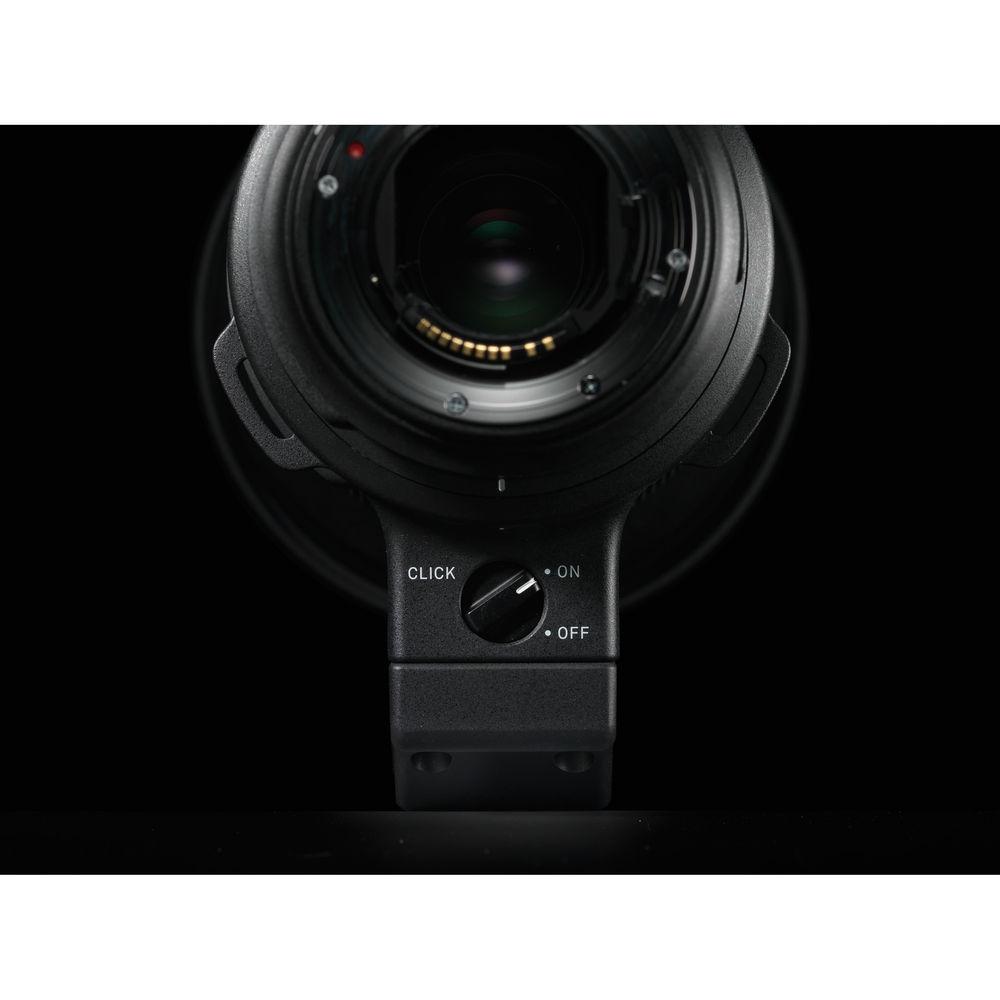

• A rotating tripod foot helps keep this lens secure during shoots and features antistatic nickel plating to improve durability. It features click stops every 90° and can be turned off with a de-clicking switch for smooth movement. The lens also comes with a dedicated strap for the tripod foot which limits strain on the camera mount.

• Dust- and splash-proof construction with rubber sealing to protect the mount and a water- and oil-repellent coating on the front and rear elements.

• This lens is compatible with the optional Sigma USB Dock for fine-tuning different lens characteristics and updating its firmware.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sigma 500mm f/4 DG OS HSM Sports Specs

Focal Length	500mm
Maximum Aperture	f/4
Minimum Aperture	f/32
Lens Mount	Sigma SA
Format Compatibility	Full-Frame
Angle of View	5 Rating 100% users recommend this product to others. And what about you? This product has already been rated by 76 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
