Sigma 50mm f 1.4 DG HSM

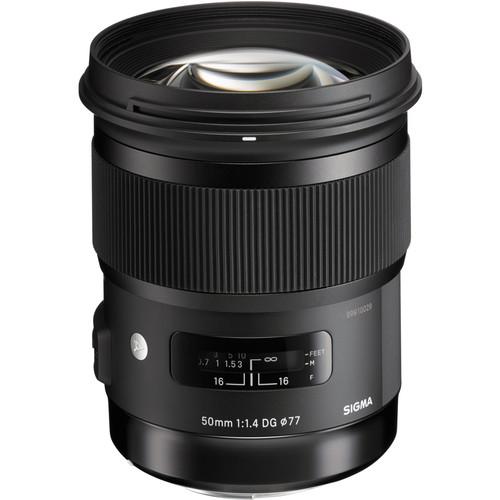

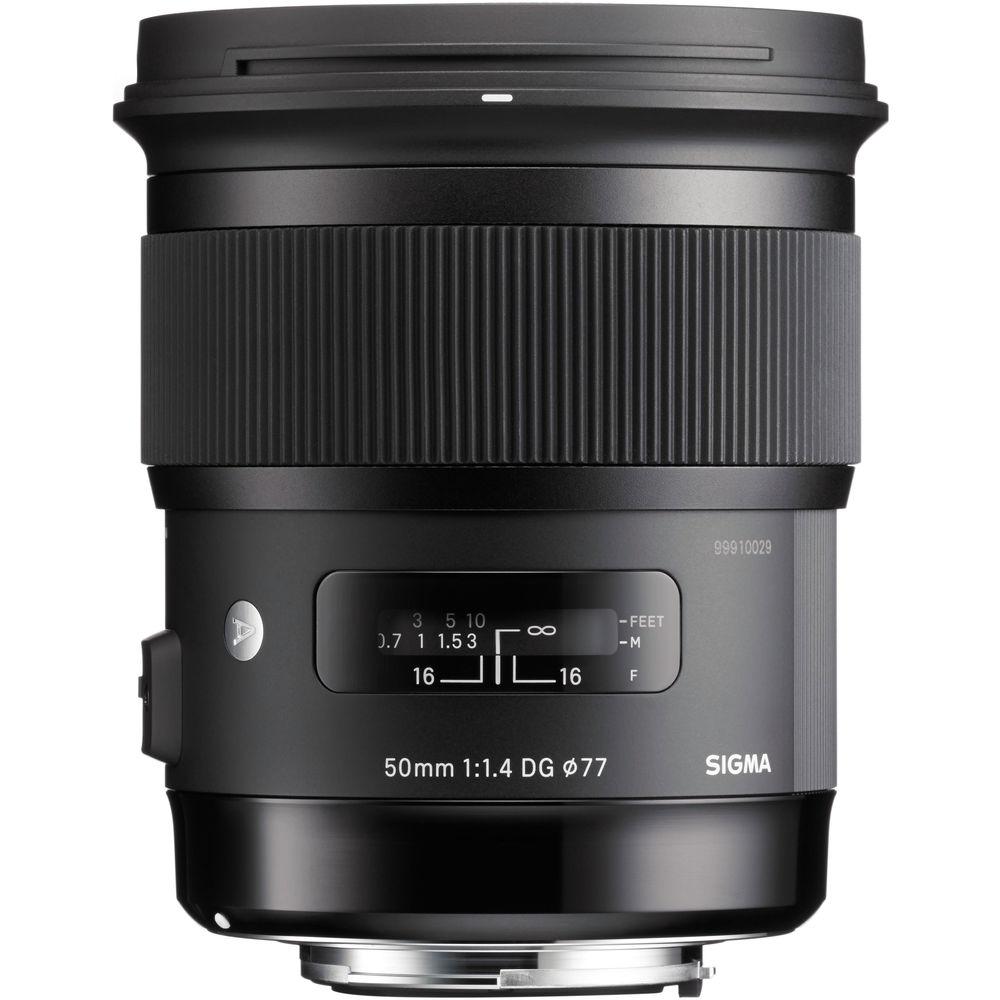

User Manual for Sigma 50mm f 1.4 DG HSM Art Lens for Nikon F

• Product category: SLR Lenses Sigma
• Brand: Sigma
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sigma SLR Lenses

Product description

Sigma Global Vision - Art
• As part of the Art line within Sigma's Global Vision series, this lens' is designed to achieve truly notable optical performance and is ideally suited for creative and artistic applications.

Molded Glass Aspherical Element
• This lens has been designed using an advanced optical structure to achieve both high resolution and sharpness along with an aesthetic out-of-focus quality for greater subject separation. A molded glass aspherical element corrects for sagittal coma flare and enables full use of the fast f/1.4 maximum aperture with maintained sharpness and clarity. This design also works to minimize vignetting, color blur, and other distortions help to produce natural and pleasing bokeh for selective focus and shallow depth of field techniques. By reducing these aberrations, this lens is also well-suited to astrophotography or other situations with point-light sources due to its ability to suppress blur near the edges of the frame.

Special Low Dispersion Glass Elements
• Three SLD (Special Low Dispersion) glass elements have been incorporated within the lens design to correct for axial chromatic aberration throughout the entire focusing range. This helps to ensure maintained image sharpness, clarity, and contrast regardless of focus point or aperture setting.

Large Diameter Lens
• In designing the lens with a large 85.4mm diameter, and placing the widest elements within the front group, greater peripheral brightness is more easily attained when working with larger apertures. This design also lends itself to minimizing vignetting throughout the aperture range for greater clarity and detail across the image frame.

Super Multi-Layer Coating
• A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.

Floating System
• By employing a floating system, the distance between glass elements is adjusted during focusing in order to limit the amount of lens movement required when shooting. This floating system helps to realize a minimum focusing distance of 1.3' with a maximum magnification of 1:5.6. Additionally, this design also contributes to high detail rendering capabilities throughout the entire focusing range.

Hyper Sonic AF Motor
• The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time.

Other Lens Features
• • A rounded nine-blade diaphragm helps to produce an attractive out-of-focus quality.
  • The lens is constructed using a Thermally Stable Composite (TSC) material, along with traditional metals, for greater precision and use in wide temperature variations. The outside of the lens barrel is also engraved with the year of production.
  • The bayonet mount is constructed from brass for ensured accuracy and durability.

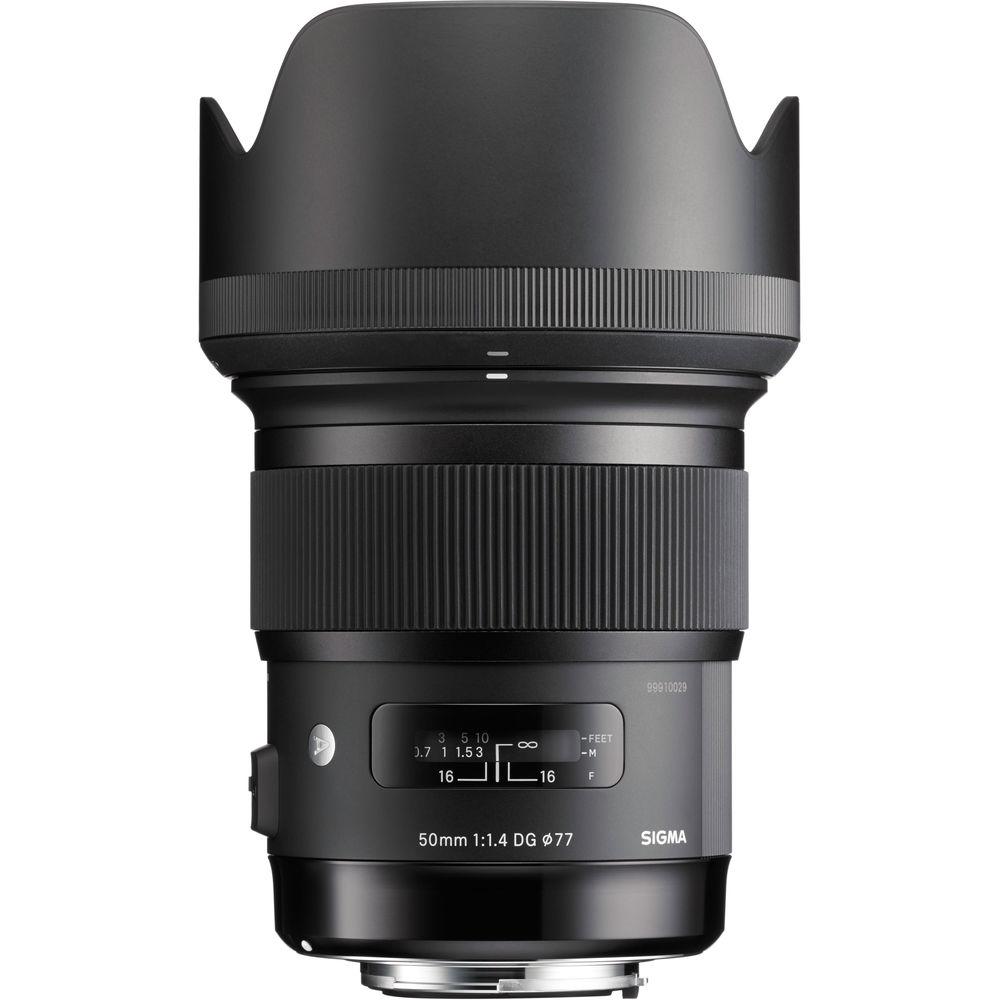

  • The included lens hood is fitted with a rubber connection for a secure fit.
  • This lens is compatible with the optional Sigma USB Dock for fine-tuning different lens characteristics and updating its firmware.

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

Sigma 50mm f/1.4 DG HSM Art Specs

Focal Length	50mm
Maximum Aperture	f/1.4
Minimum Aperture	f/16
Lens Mount	Nikon F
Format Compatibility	Full-Frame
Angle of View	46.8 Rating 94% users recommend this product to others. And what about you? This product has already been rated by 63 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
