Product description

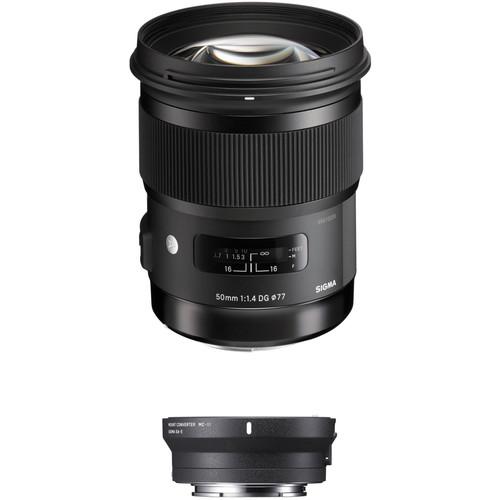

• Sigma 50mm f/1.4 DG HSM Art Lens for Sigma SA The Sigma SA mount Sigma 50mm f/1.4 DG HSM Lens is a fast standard-length prime designed to achieve high optical performance through the incorporation of both three Special Low Dispersion glass elements and one molded glass aspherical element. These elements, coupled with an advanced optical design, work to minimize sagittal coma flare and chromatic aberrations in order to provide high image sharpness and clarity. The lens' large diameter and floating system also help to correct for vignetting to ensure maintained peripheral brightness. A Super Multi Coating has been applied to lens elements, too, to reduce flare and ghosting for higher contrast and color fidelity.

  A Hyper Sonic AF Motor, along with an optimized AF algorithm, produces quiet, smooth, and fast autofocus performance that benefits this lens' use in a wide variety of situations. This AF motor also permits full-time manual focusing control for refined precision by simply turning the focus ring at any time.
  Sigma Global Vision - Art
  • As part of the Art line within Sigma's Global Vision series, this lens' is designed to achieve truly notable optical performance and is ideally suited for creative and artistic applications.
  Molded Glass Aspherical Element
  • This lens has been designed using an advanced optical structure to achieve both high resolution and sharpness along with an aesthetic out-of-focus quality for greater subject separation. A molded glass aspherical element corrects for sagittal coma flare and enables full use of the fast f/1.4 maximum aperture with maintained sharpness and clarity. This design also works to minimize vignetting, color blur, and other distortions help to produce natural and pleasing bokeh for selective focus and shallow depth of field techniques. By reducing these aberrations, this lens is also well-suited to astrophotography or other situations with point-light sources due to its ability to suppress blur near the edges of the frame.
  Special Low Dispersion Glass Elements
  • Three SLD (Special Low Dispersion) glass elements have been incorporated within the lens design to correct for axial chromatic aberration throughout the entire focusing range. This helps to ensure maintained image sharpness, clarity, and contrast regardless of focus point or aperture setting.
  Large Diameter Lens
  • In designing the lens with a large 85.4mm diameter, and placing the widest elements within the front group, greater peripheral brightness is more easily attained when working with larger apertures. This design also lends itself to minimizing vignetting throughout the aperture range for greater clarity and detail across the image frame.
  Super Multi-Layer Coating
  • A Super Multi-Layer Coating has been applied to lens elements in order to minimize lens flare and ghosting and contribute to producing contrast-rich and color-neutral imagery, even in backlit conditions.
  Floating System
  • By employing a floating system, the distance between glass elements is adjusted during focusing in order to limit the amount of lens movement required when shooting. This floating system helps to realize a minimum focusing distance of 1.3' with a maximum magnification of 1:5.6. Additionally, this design also contributes to high detail rendering capabilities throughout the entire focusing range.
  Hyper Sonic AF Motor
  • The integrated HSM (Hyper Sonic Motor) realizes quick and quiet autofocusing, which is further complemented by an optimized AF algorithm to produce smoother focusing performance. The HSM also permits full-time manual focus control simply by rotating the focus ring at any time.
  Other Lens Features
  • • A rounded nine-blade diaphragm helps to produce an attractive out-of-focus quality.
    • The lens is constructed using a Thermally Stable Composite (TSC) material, along with traditional metals, for greater precision and use in wide temperature variations. The outside of the lens barrel is also engraved with the year of production.
    • The bayonet mount is constructed from brass for ensured accuracy and durability.
    • The included lens hood is fitted with a rubber connection for a secure fit.
    • This lens is compatible with the optional Sigma USB Dock for fine-tuning different lens characteristics and updating its firmware.
  UPC: 085126311568
• Sigma MC-11 Mount Converter/Lens Adapter (Sigma SA-Mount Lenses to Sony E) The MC-11 Mount Converter enables the use of Sigma SA-mount lenses on Sony E-mount mirrorless camera bodies, and maintains full lens performance, including autofocus and auto-exposure, as well as in-camera correction technologies. An integrated LED can be used to display select Sigma lens compatibility with the adapted camera body, and the adapter also supports in-camera image stabilization. In order to maintain a high degree of image quality, the interior of the adapter is flocked to reduce reflections, and it also retains full EXIF data to benefit post-production and file management.
  Compatibility
  • Sony Cameras
    a9 series
    a7 series
    a6000 series
    a5000 series
    NEX series

    Lenses
    12-24mm f/4 DG HSM Art
    24-35mm f/2 DG HSM Art
    24-70mm f/2.8 DG OS HSM Art
    24-105mm f/4 DG OS HSM Art
    100-400mm f/5-6.3 DG OS HSM Contemporary
    120-300mm f/2.8 DG OS HSM Sports
    150-600mm f/5-6.3 DG OS HSM Sports
    150-600mm f/5-6.3 DG OS HSM Contemporary
    14mm f/1.8 DG HSM Art
    20mm f/1.4 DG HSM Art
    24mm f/1.4 DG HSM Art
    35mm f/1.4 DG HSM Art
    50mm f/1.4 DG HSM Art
    85mm f/1.4 DG HSM Art
    135mm f/1.8 DG HSM Art
    500mm f/4 DG OS HSM Sports
    17-70mm f/2.8-4 DC Macro OS HSM Contemporary
    18-35mm f/1.8 DC HSM Art
    18-200mm f/3.5-6.3 DC Macro OS HSM Contemporary
    18-300mm f/3.5-6.3 DC Macro OS HSM Contemporary
    50-100mm f/1.8 DC HSM Art
    19mm f/2.8 DN Art
    30mm f/1.4 DC HSM Art
    60mm f/2.8 DN Art
    30mm f/1.4 DC DN Contemporary
  UPC: 085126932510

• 50mm f/1.4 DG HSM Art Lens for Sigma SA
• LCF III 77mm Front Lens Cap
• LCR II Rear Lens Cap for Sigma SA
• LH830-02 Lens Hood
• Lens Case
• Limited 1-Year Warranty
• Limited 3-Year U.S.A. Extended Warranty Extension Against Manufacturing and Workmanship Defects

• MC-11 Mount Converter/Lens Adapter (Sigma SA-Mount Lenses to Sony E)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sigma 50mm f/1.4 DG HSM Art Lens for Sigma SA

  Focal Length	50mm
  Maximum Aperture	f/1.4
  Minimum Aperture	f/16
  Lens Mount	Sigma SA
  Format Compatibility	Full-Frame
  Angle of View	46.8 Rating 80% users recommend this product to others. And what about you? This product has already been rated by 47 owners. Add your rating and experience with the product. Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems. The discussion is empty - enter the first post Post a new topic / query / comment: Items marked with * are required. Your name *: E-mail : Subject *: Message *: Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution. Processing of personal data in accordance with GDPR
