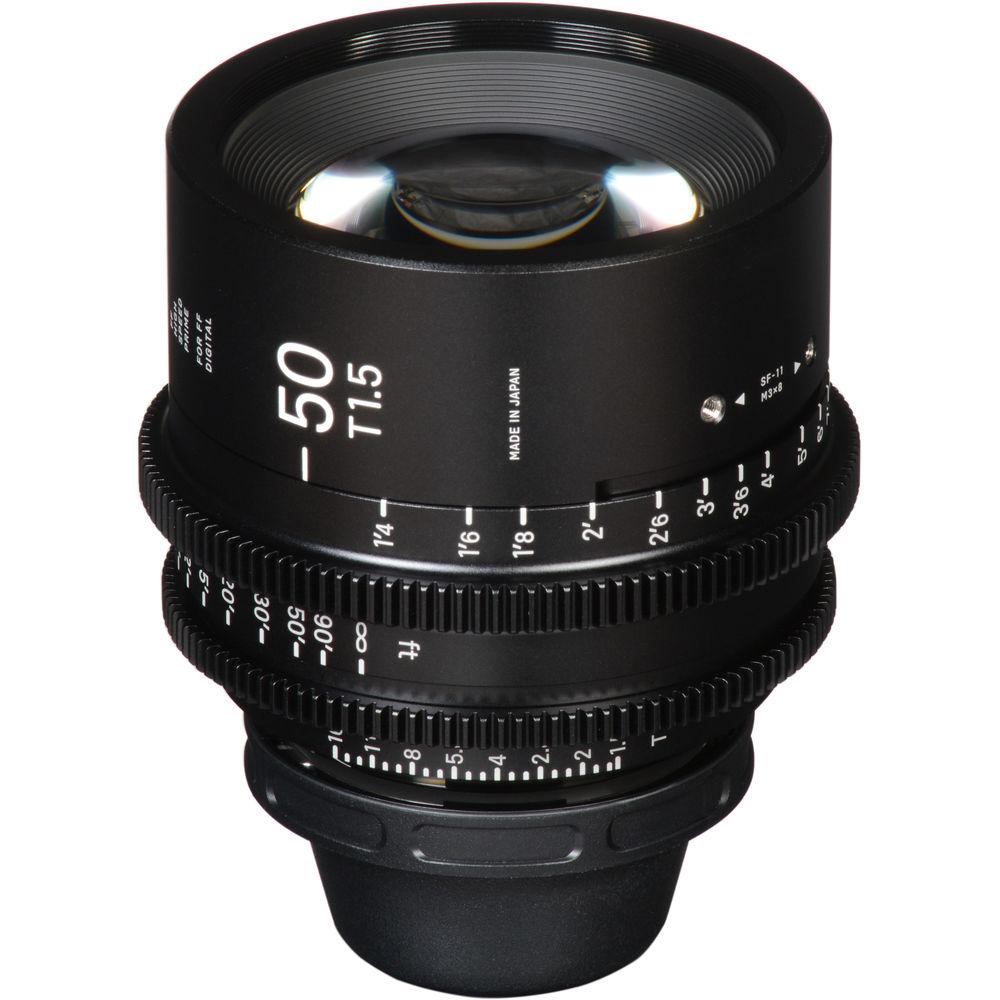

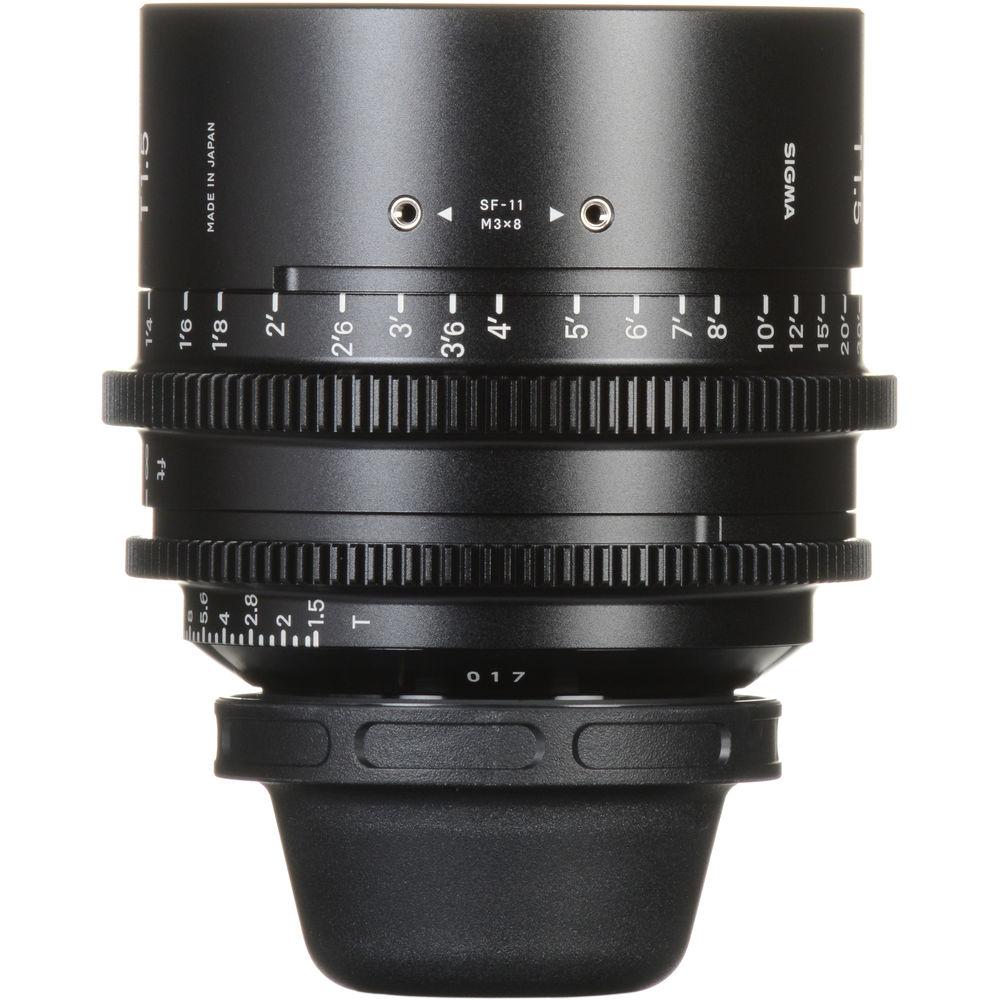

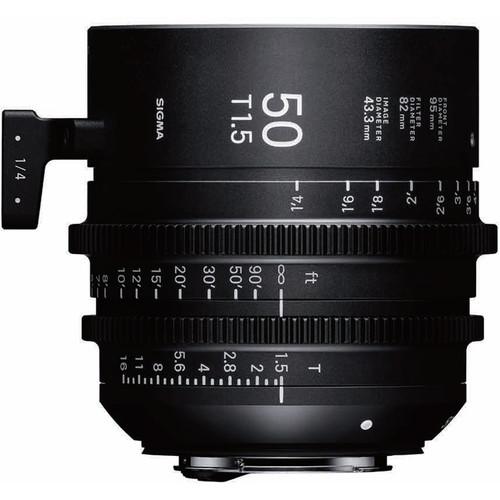

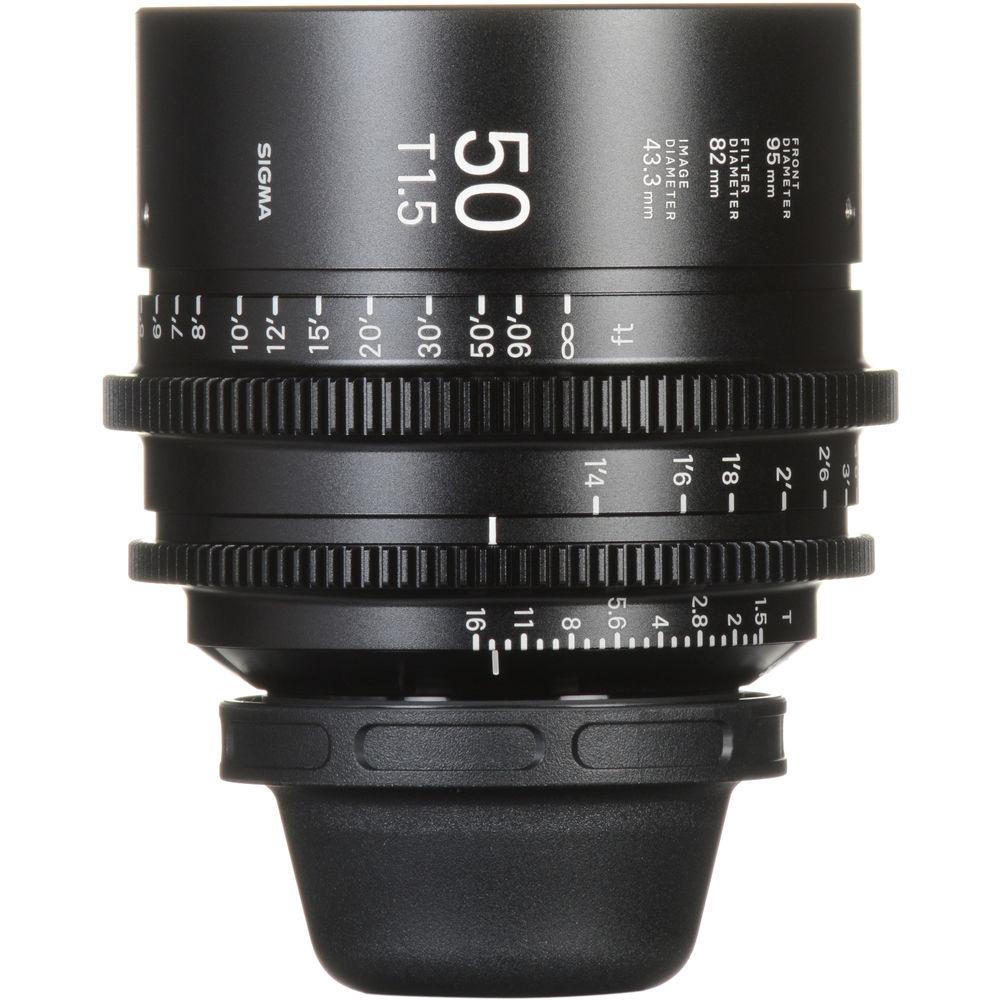

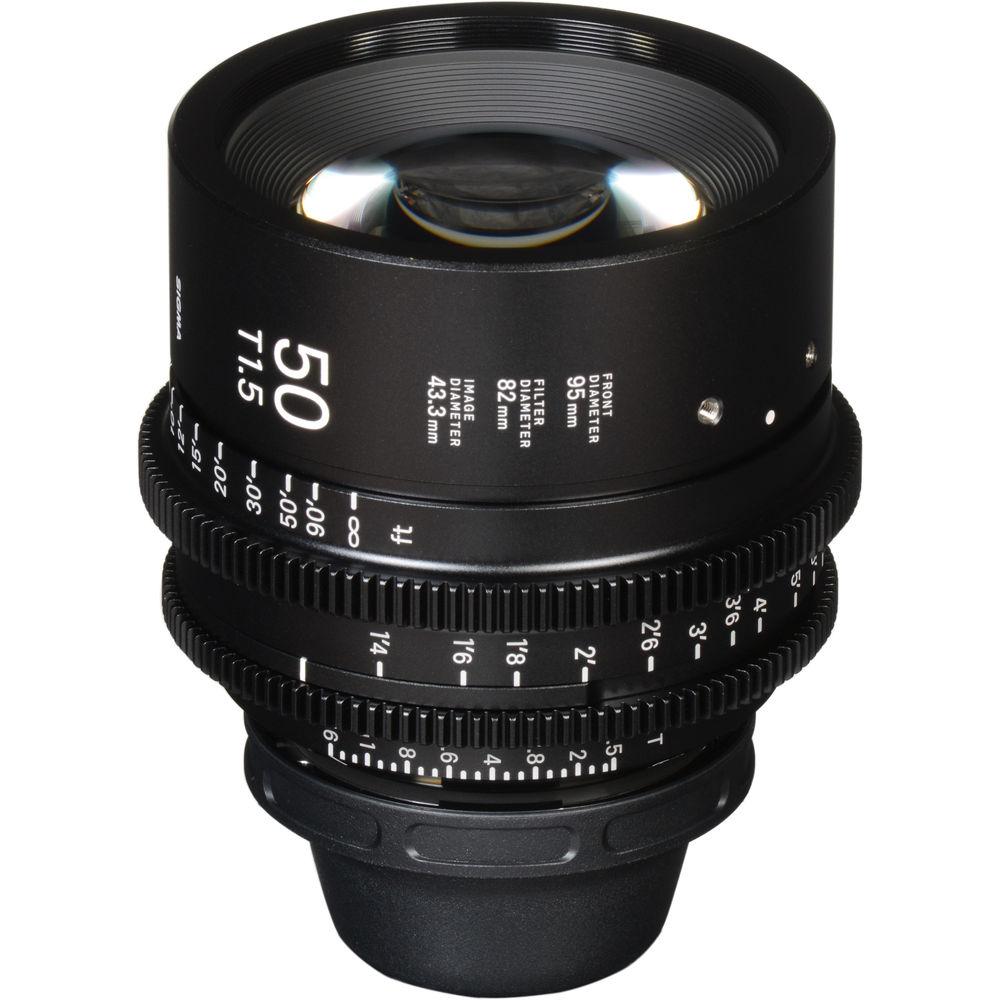

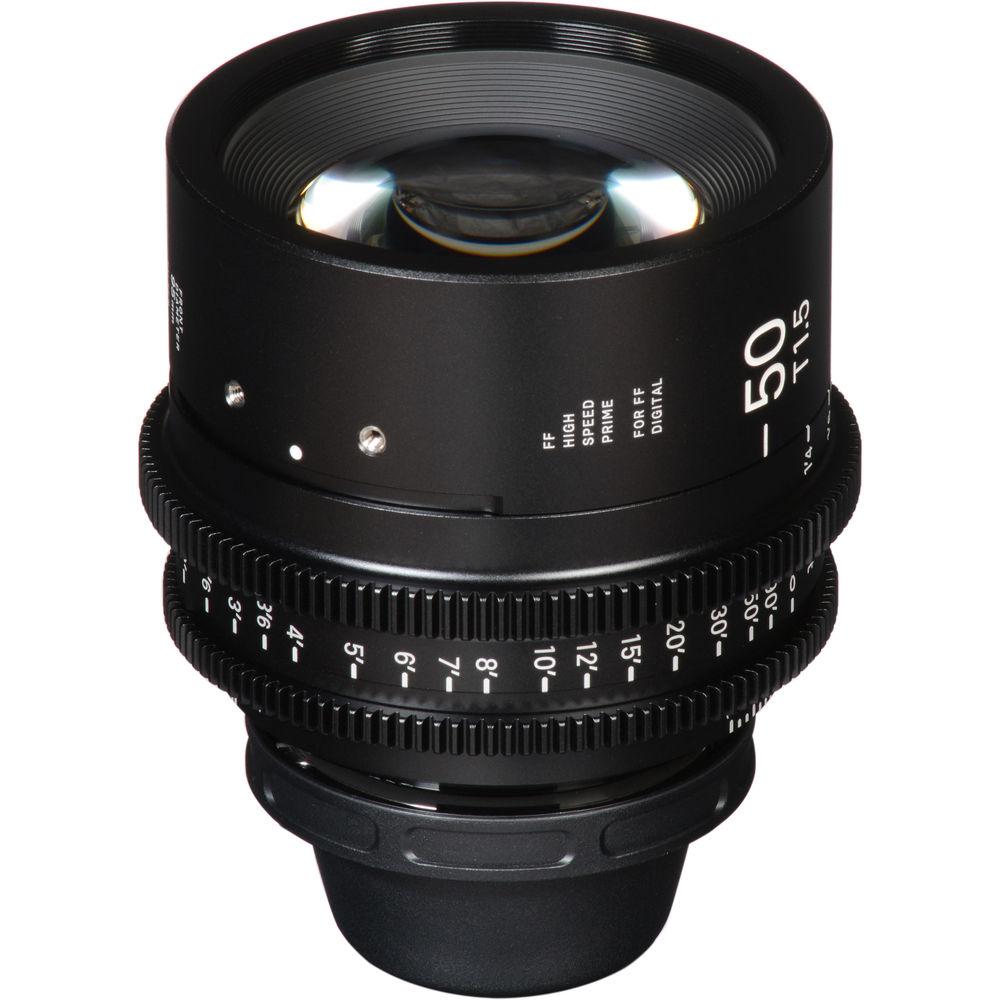

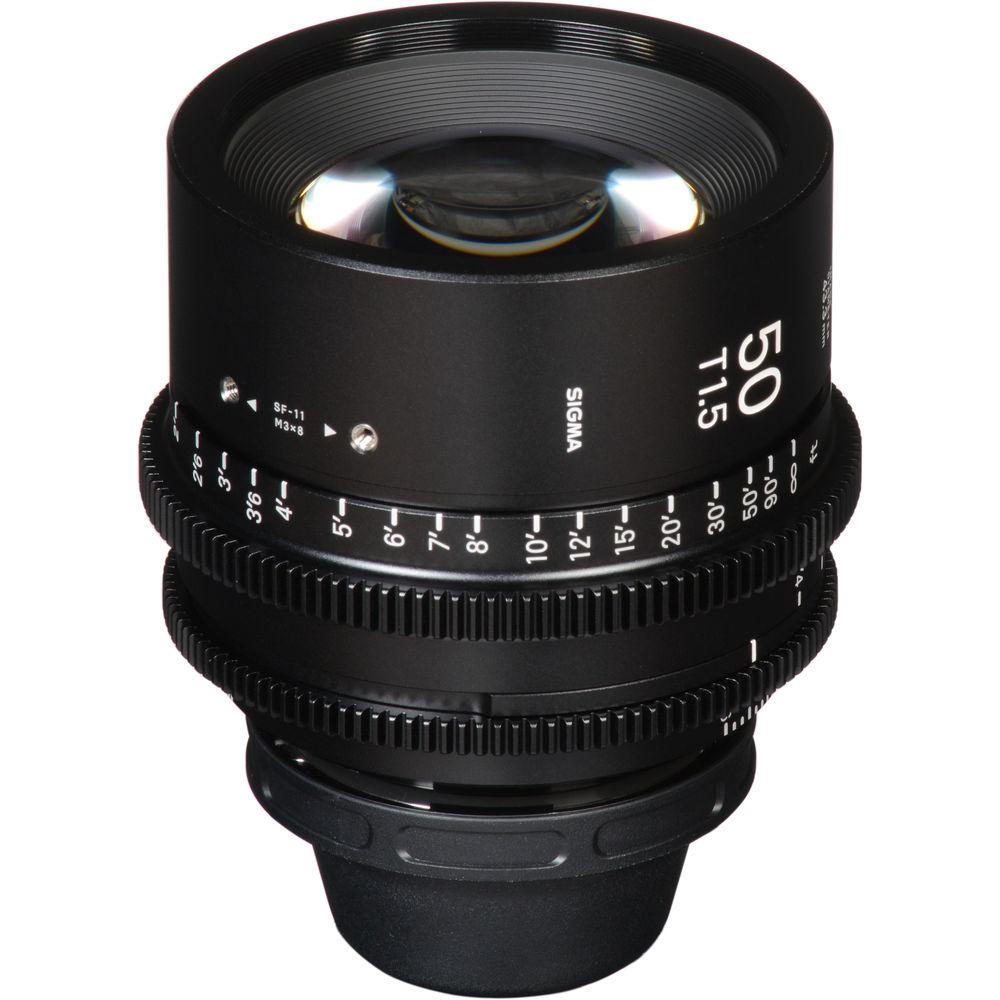

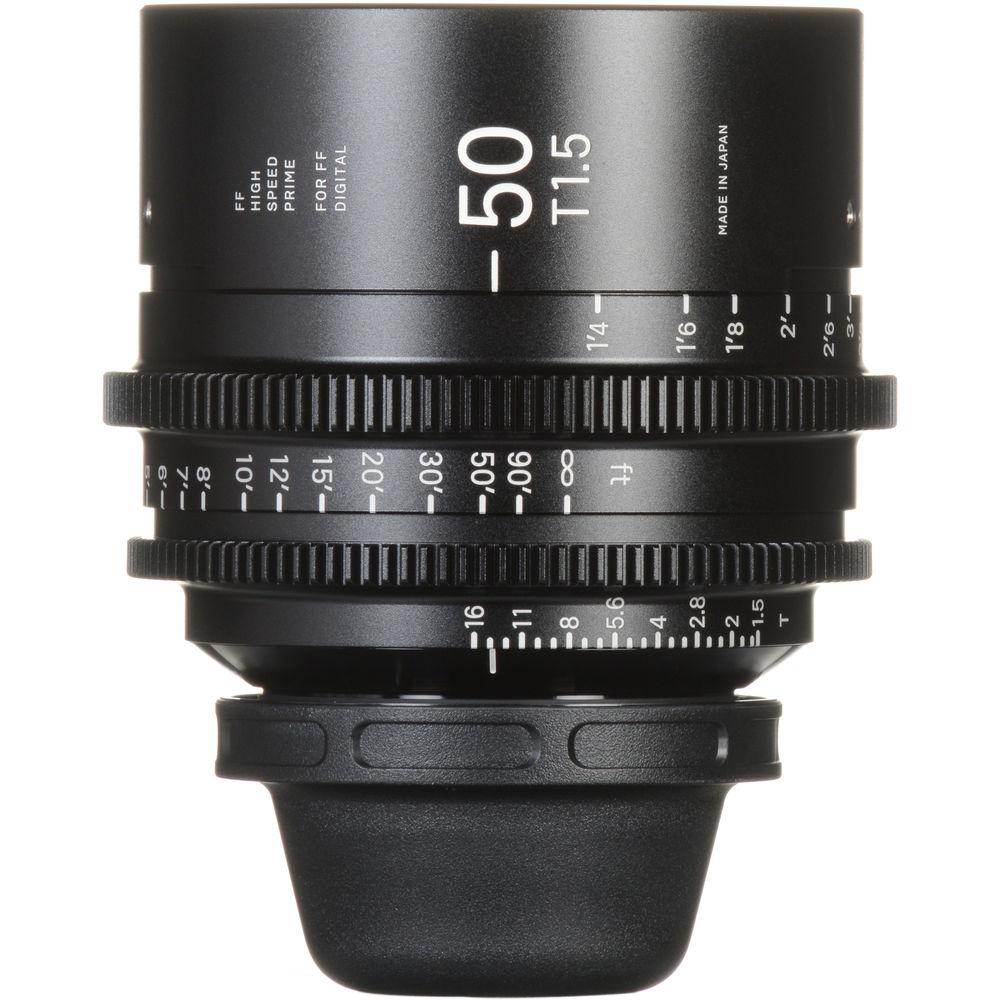

Sigma 50mm T1.5 FF High-Speed Prime

Search your instruction manual in PDF to download

User Manual for Sigma 50mm T1.5 FF High-Speed Prime

Click to enlarge the picture
Sigma 50mm T1.5 FF High-Speed Prime Contents of the user manual for the Sigma 50mm T1.5 FF High-Speed Prime
  • Product category: Digital Cine Lenses Sigma
  • Brand: Sigma
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Sigma Digital Cine Lenses

Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime Sigma 50mm T1.5 FF High-Speed Prime
User manual for the Sigma 50mm T1.5 FF High-Speed Prime contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Sigma product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!



Product description

NAB 2017: New Cinema Prime Lenses from Sigma Read More Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 50mm Sony E-mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).

Features

  • Focus marks are in feet with select marks in luminous paint
  • High image performance covering full frame sensors; suitable for 8K capture
  • Fast T1.5 maximum aperture aids in shooting with low light levels
  • Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
  • Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126311674 In the Box Sigma 50mm T1.5 FF High-Speed Prime (Sony E-Mount, Feet)
  • Lens Support Foot
  • Front Lens Cap
  • Limited 1-Year Warranty
  • Cinema Lens Care and Maintenance Mary Latvis 03/29/2017 Brochure PDF 4.9mb Table of Contents




    Upload User Manual

    Have you got an user manual for the Sigma 50mm T1.5 FF High-Speed Prime in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Sigma 50mm T1.5 FF (ft) Specs

    Focal Length 50mm
    Lens Mount Sony E
    Format Full Frame
    Image Circle 43.3 mm
    Maximum T-Stop T1.5
    Minimum T-Stop T16
    Horizontal Angle of View Full Frame: 39.6°
    Super35: 27.6°
    APS-C (1.5x): 26.7°
    Minimum Focus Distance from Image Plane 15.75" / 0.4 m
    Iris Blades 9
    Gear MOD & Pitch Focus: 0.8 MOD / 32 Pitch
    Iris: 0.8 MOD / 32 Pitch
    Front Diameter 95 mm
    Filter Thread 82 mm
    Focus Scales Imperial
    Focus Rotation 180°
    Iris Rotation 60°
    Electronic Communication Yes
    Lens Support Lens Support Foot with 1/4"-20 Mounting Thread
    Length 5.04" / 128 mm
    Weight 3 lb / 1355 g
    Package Weight 3.9 lb
    Box Dimensions (LxWxH) 8.8 x 6.9 x 6.7"
