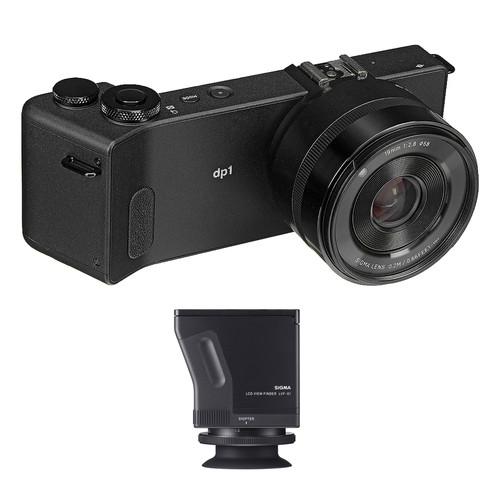

User Manual for Sigma dp1 Quattro Digital Camera and LVF-01 Viewfinder Kit Click to enlarge the picture
Contents of the user manual for the Sigma dp1 Quattro Digital Camera and
- Product category: Point & Shoot Cameras Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Point & Shoot Cameras
|
User manual for the Sigma dp1 Quattro Digital Camera and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|
Product description Things We Love: Sigma dp3 Quattro Read More This Sigma dp1 Quattro Digital Camera and LVF-01 Viewfinder Kit packages both the dp1 Quattro camera and the LVF-01 LCD Viewfinder. It packages the viewfinder with the wide-angle variant of Sigma's compact line to provide users with an intuitive eye-level shooting setup.
The Sigma dp1 Quattro Digital Camera combines the 29MP Foveon X3 Direct Image Sensor with the TRUE III image processing engine to create high quality images with an equivalent resolution of 39 megapixels due to the unique sensor design. This method uses layers of pixels to capture the color data of the red, green, and blue spectrums vertically, requiring no interpolation. This results in a sharper image with better color gradations.
With this technology is a 19mm lens that on an APS-C camera has a 35mm equivalent focal length of 28mm. It is relatively fast with a maximum aperture of f/2.8, making it useful in low light. Also, for composing and reviewing images, a 3.0" 920k-dot TFT LCD display is available on the back of the camera.
For low light shooting, the camera has an ISO sensitivity range of 100-6400 in 1/3 steps and it has P/S/A/M shooting modes for full control over your exposure. It even has RAW image capture at a max resolution of 5,424 x 3,616 for excellent editing capabilities. For focusing, there is contrast-detect autofocus or a manual focusing ring for your preference. Additionally, the camera saves your images to an SDXC, SDHC, or SD card. - dp1 Quattro Digital Camera The Sigma dp1 Quattro Digital Camera combines the 29MP Foveon X3 Direct Image Sensor with the TRUE III image processing engine to create high quality images with an equivalent resolution of 39 megapixels due to the unique sensor design. This method uses layers of pixels to capture the color data of the red, green, and blue spectrums vertically, requiring no interpolation. This results in a sharper image with better color gradations.
With this technology is a 19mm lens that on an APS-C camera has an 35mm equivalent focal length of 28mm. It is relatively fast with a maximum aperture of f/2.8, making it useful in low light. Also, for composing and reviewing images, a 3.0" 920k-dot TFT LCD display is available on the back of the camera.
For low light shooting, the camera has an ISO sensitivity range of 100-6400 in 1/3 steps and it has P/S/A/M shooting modes for full control over your exposure. It even has RAW image capture at a max resolution of 5,424 x 3,616 for excellent editing capabilities. For focusing, there is contrast-detect autofocus or a manual focusing ring for your preference. And, the camera saves your images to an SDXC, SDHC, or SD card. - 29MP Foveon X3 Quattro Direct CMOS Image Sensor & TRUE III Image Processing Engine
- The dp1 uses the APS-C-sized Foveon X3 CMOS image sensor which captures color information vertically as opposed to horizontally. This means that each pixel has extremely accurate color information, resulting in rich tones and smooth gradations. Also, since it captures color vertically, there is no need for color filters or a low-pass filter, further increasing image quality for resolution comparable to about 39MP from Bayer array image sensors.
This camera utilizes the latest generation of this technology, named Quattro due to the 1:1:4 ratio of the pixel layers, with 20MP on the top layer and 4.9MP on each of the bottom two. This simultaneously reduces file size and increases resolution, making the camera faster and lowers the power consumption. This speed increase is also due to the third generation Three-layer Responsive Ultimate Engine, or TRUE III image processing engine. The processor is optimized for handling the complex image data recorded by the sensor and produces high quality imagery. resolution, making the camera faster and lowers the power consumption. This speed increase is also due to the third generation Three-layer Responsive Ultimate Engine, or TRUE III image processing engine. The processor is optimized for handling the complex image data recorded by the sensor and produces high quality imagery. - 19mm f/2.8 Prime Lens
- Equipped with a 19mm f/2.8 prime lens, this camera provides a 35mm equivalent focal length of 28mm for wide-angle shooting. It also has a relatively fast aperture of f/2.8, resulting in quality images even in low-light conditions. Additionally, with a 9-blade diaphragm it will produce smooth out-of-focus areas at any aperture.
- 3.0" LCD Monitor
- The dp1 features a 3.0" TFT LCD display with 920,000 pixels for shooting and reviewing your images. This monitor is also where you can change settings for your shooting needs and preferences.
- RAW Image Capture
- Full 14-bit RAW images can be captured with data for every pixel included, meaning 5,424 x 3616 on the top layer, and 2,712 x 1,808 on the subsequent two pixel layers. You can also shoot with JPEG and produce images with resolutions as high as 7,680 x 3,296.
- Full Exposure Control
- Program, aperture priority, shutter speed priority, and full manual modes are included for complete control over the look of your photographs. This gives you access to the ISO settings from 100-6400 in 1/3 steps and a shutter speed from 1/2000 sec all the way to 30 seconds. Additionally, there is exposure compensation available from -3 to +3 EV.
- Auto and Manual Focusing
- Contrast-detect autofocus is available with 9-points Select Mode in addition to Free Move Mode and Face Detection AF. Also, the lens itself has a focusing ring for manual focusing.
- Color Modes
- The camera features 11 different color modes for a variety of effects, including Standard, Vivid, Neutral, Portrait, Landscape, Cinema, Sunset Red, Incandescent, Fluorescent, Color Temperature, Flash, and Custom.
UPC: 085126930585 - LVF-01 LCD Viewfinder for dp Quattro Cameras Dedicated to Sigma's series of dp Quattro digital cameras, the LVF-01 LCD Viewfinder is a 2.5x-magnification viewfinder for critical focusing applications. Designed to attach directly to the rear of the 3.0" LCD, this eye-level viewfinder utilizes coated optics for clear, crisp viewing and features an integrated diopter, as well as an eyepoint of 20mm, for comfortable viewing. Designed to mimic the handling of a DSLR, this finder also helps to produce more stable, shake-free handling for sharper imagery. UPC: 085126931209
In the Box Bundle Items dp1 Quattro Digital Camera yuyssddefxdaxqffyyrrfvttbetcyuddb - 2 x BP-51 Lithium-Ion Battery Pack
LVF-01 LCD Viewfinder for dp Quattro Cameras yuyssddefxdaxqffyyrrfvttbetcyuddb - Limited 1-Year North and South America Warranty
- Limited 3-Year USA Extended Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma dp1 Quattro Digital Camera and LVF-01 Viewfinder Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - dp1 Quattro Digital Camera
| | | Pixels | Actual: 33 Megapixel
Effective: 29 Megapixel | | Sensor | APS-C (23.5 x 15.7 mm) Foveon | | Bit Depth | 14-Bit | | File Formats | Still Images: JPEG, RAW | | Max Resolution | 5424 x 3616 | | | | Lens | 9 Elements in 8 Groups
Effective Focal Length: 19mm (35 mm Equivalent: 28mm)
Aperture: f/2.8 (W) to f/16 | | Filter Thread | 58mm | | Focus Range | Normal: 7.87" to Infinity / 20 cm to Infinity | | | | ISO Sensitivity | 100 to 6400 | | Shutter | 30 to 1/2000 Second | | Exposure Metering | Center-Weighted, Evaluative, Spot | | Exposure Modes | Modes: Aperture Priority, Manual, Program, Shutter Priority
Compensation: -3 EV to +3 EV (in 1/3 EV Steps) | | White Balance | Auto, Color Temperature, Custom, Daylight, Flash, Fluorescent, Incandescent, Overcast, Shade | | Self-Timer | 2, 10 Sec | | Interval Recording | Yes | | | | Built-In Flash | No | | External Flash Connection | Hot Shoe | | | | Memory Card Type | SDXC
SDHC
SD | | | | Screen | 3" LCD (920,000 Pixels) | | | | Battery | 1 x BP-51 Rechargeable Lithium-Ion Battery Pack | | AC Power Adapter | SAC-6 (Not Included) | | | | Dimensions (W x H x D) | 6.4 x 2.6 x 3.4" / 161.4 x 67.0 x 87.1 mm | | Weight | 14.99 oz / 425 g | | | | Box Dimensions (LxWxH) | 7.9 x 7.1 x 6.0" | - LVF-01 LCD Viewfinder for dp Quattro Cameras
| Magnification | 2.5x | | Diopter Adjustment | -2 to +1 | | Eyepoint | 20 mm | | Dimensions | 3.2 x 2.8 x 5.2" / 81.5 x 70.9 x 132.6 mm | | Weight | 9.2 oz / 260 g | | | | Box Dimensions (LxWxH) | 7.5 x 4.6 x 4.4" |
