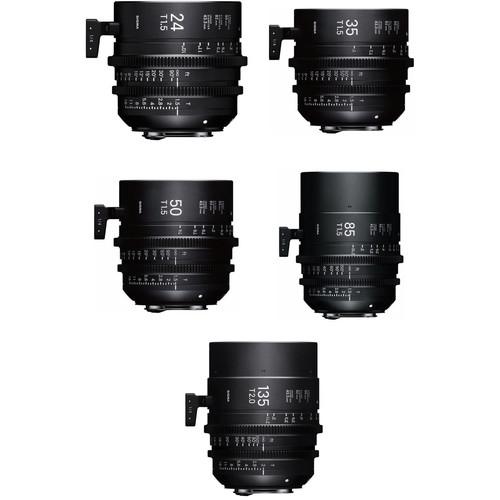

User Manual for Sigma FF High-Speed 24, 35, 50, 85 & 135mm Prime Lens Bundle Click to enlarge the picture
Contents of the user manual for the Sigma FF High-Speed 24, 35, 50,
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
|
User manual for the Sigma FF High-Speed 24, 35, 50, contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This five-lens B&H Kit of Sigma FF High-Speed Primes includes PL-mount 24, 35, 50, 85, and 135mm lenses, providing a wide focal range suitable for up to 8K video capture. Each lens in the bundle covers full-frame sensors, has an aperture range of T1.5 to T16 (T2 to T16 for the 135mm), and has a focus scale marked in feet.Lens features include cine-style focus, iris, and zoom gears, a common 95mm front diameter to accommodate quick lens changes when using accessories, and a 9-blade iris for smooth bokeh effects. - Sigma 24mm T1.5 FF High-Speed Prime (PL, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 24mm PL prime is a wider focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126401689 - Sigma 35mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 35mm PL prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select markings in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126340681 - Sigma 50mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 50mm PL mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126311681 - Sigma 85mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 85mm PL mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126321680 - Sigma 135mm T2 FF High-Speed Prime (PL, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 135mm PL mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 maximum aperture in a compact, lightweight form; it is also available in Canon and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126240684 In the Box - 24mm T1.5 FF High-Speed Prime (PL, Feet) cryzsttedcuxvwebu
- Lens Support Foot
- Front Lens Cap
- Limited 1-Year Warranty
- 35mm T1.5 FF High-Speed Prime (PL Mount, Feet)
- 50mm T1.5 FF High-Speed Prime (PL Mount, Feet)
- 85mm T1.5 FF High-Speed Prime (PL Mount, Feet)
- 135mm T2 FF High-Speed Prime (PL, Feet)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma FF High-Speed 24, 35, 50, 85 & 135mm Prime Lens Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Sigma 24mm T1.5 FF High-Speed Prime (PL, Feet)
| Focal Length | 24mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 73.7°
Super35: 54.3°
APS-C (1.5x): 52.6° | | Minimum Focus Distance from Image Plane | 9.84" / 0.25 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.43" / 87 mm | | Weight | 2.3 lb / 1025 g | | | | Box Dimensions (LxWxH) | 8.5 x 7.0 x 6.8" | - Sigma 35mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 35mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 54.4°
Super35: 38.7°
APS-C (1.5x): 37.4° | | Minimum Focus Distance from Image Plane | 11.81" / 0.3 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.43" / 87 mm | | Weight | 2.3 lb / 1045 g | | | | Box Dimensions (LxWxH) | 8.5 x 6.9 x 6.8" | - Sigma 50mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 50mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 39.6°
Super35: 27.6°
APS-C (1.5x): 26.7° | | Minimum Focus Distance from Image Plane | 15.75" / 0.4 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.70" / 94 mm | | Weight | 2.7 lb / 1210 g | | | | Box Dimensions (LxWxH) | 8.8 x 7.0 x 6.8" | - Sigma 85mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 85mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 23.9°
Super35: 16.5°
APS-C (1.5x): 15.9° | | Minimum Focus Distance from Image Plane | 33.46" / 0.85 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 86 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 4.68" / 118.9 mm | | Weight | 3 lb / 1345 g | | | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 6.7" | - Sigma 135mm T2 FF High-Speed Prime (PL, Feet)
| Focal Length | 135mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 15.2°
Super35: 10.4°
APS-C (1.5x): 10.0° | | Minimum Focus Distance from Image Plane | 2.87' / 0.875 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 4.21" / 106.9 mm | | Weight | 3.1 lb / 1425 g | | | | Box Dimensions (LxWxH) | 9.9 x 7.0 x 6.8" |
