User Manual for Sigma High Speed Prime Seven Lens Set Plus Case Click to enlarge the picture
Contents of the user manual for the Sigma High Speed Prime Seven Lens
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
 |
User manual for the Sigma High Speed Prime Seven Lens contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|

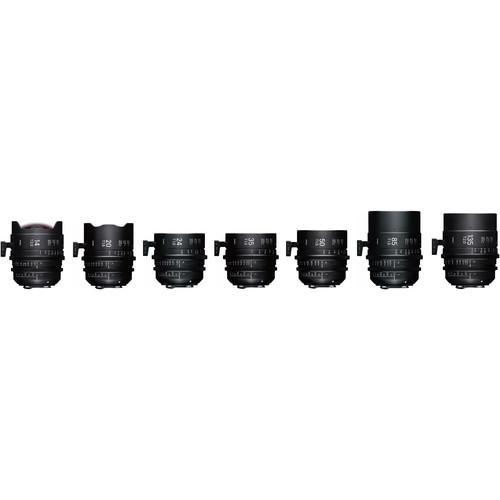

Product description Cinema Lens Care and Maintenance Read More The Sigma High Speed Prime Seven Lens Set Plus Case kit includes the 14mm T2, 20mm T1.5, 24mm T1.5, 35mm T1.5, 50mm T1.5, 85mm T1.5, 135mm T2.0, and a case with custom cut foam. All the lenses are in Sony E mount and marked in meters. Select markings on this lens use luminous paint, while the other markings are engraved for durability. Each lens in the set features the similar physical attributes, making for quick lens changes. The lenses support image capture up to 8K and feature a 9-blade iris for smooth, natural looking bokeh. - 14mm T2 FF High-Speed Prime (Sony E-Mount, Meters) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 14mm Sony E-Mount prime is the widest focal length of the series, offering full-frame sensor coverage, 6-8K resolution, and a T2 aperture in a relatively lightweight form; it is also available in Canon EF and PL mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Select markings are done in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a 1/4"-20 support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in meters
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T2 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

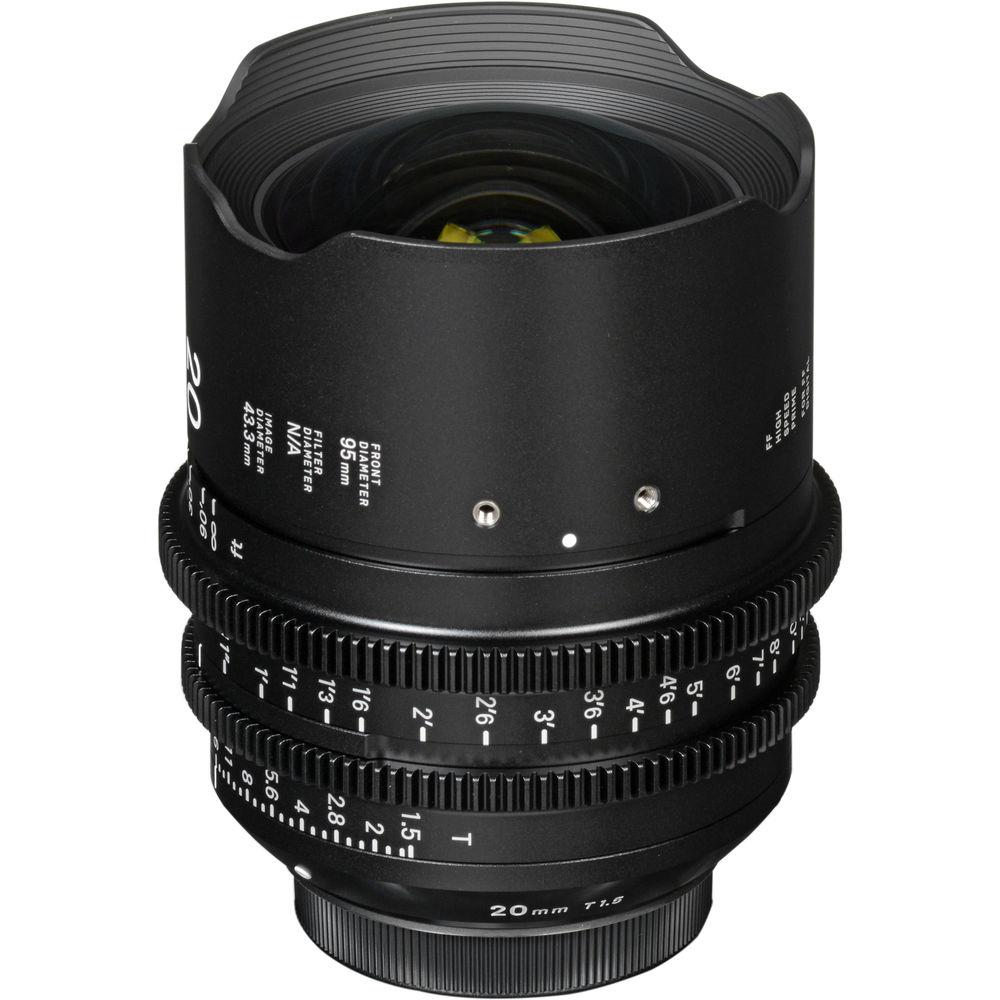

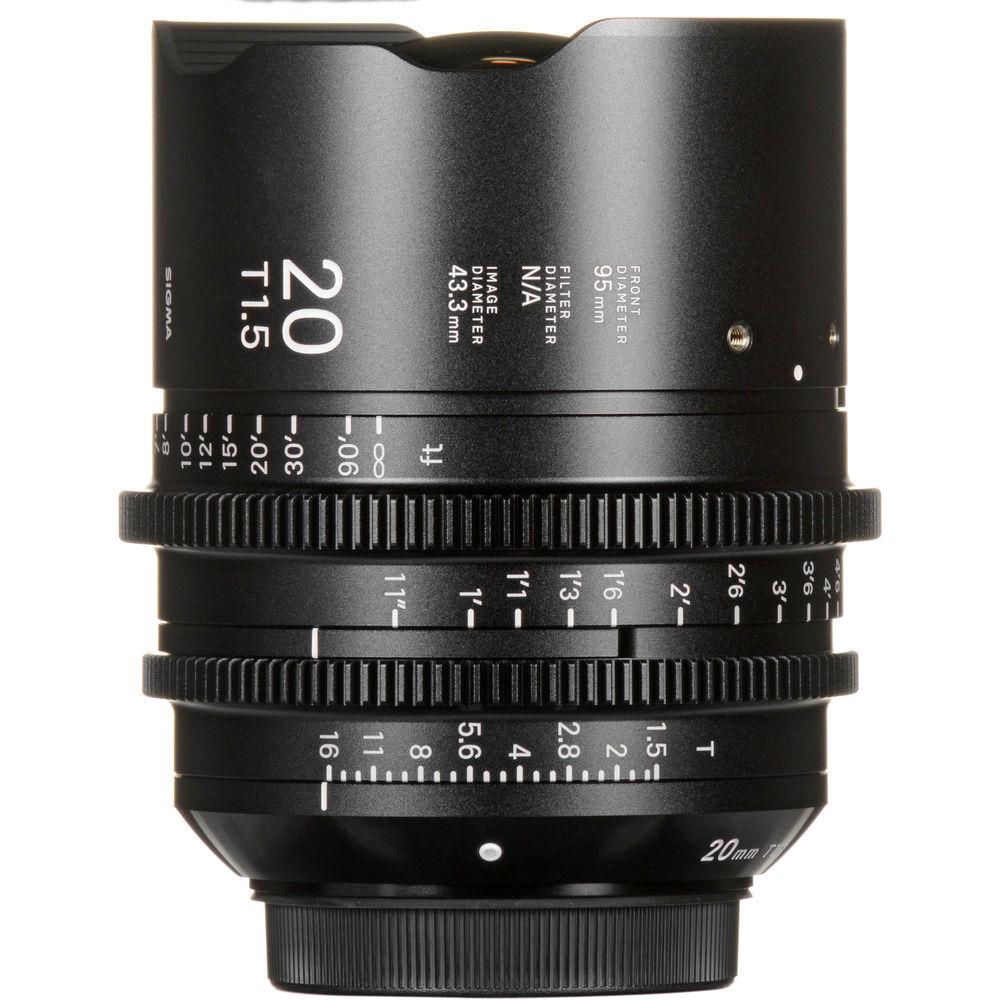

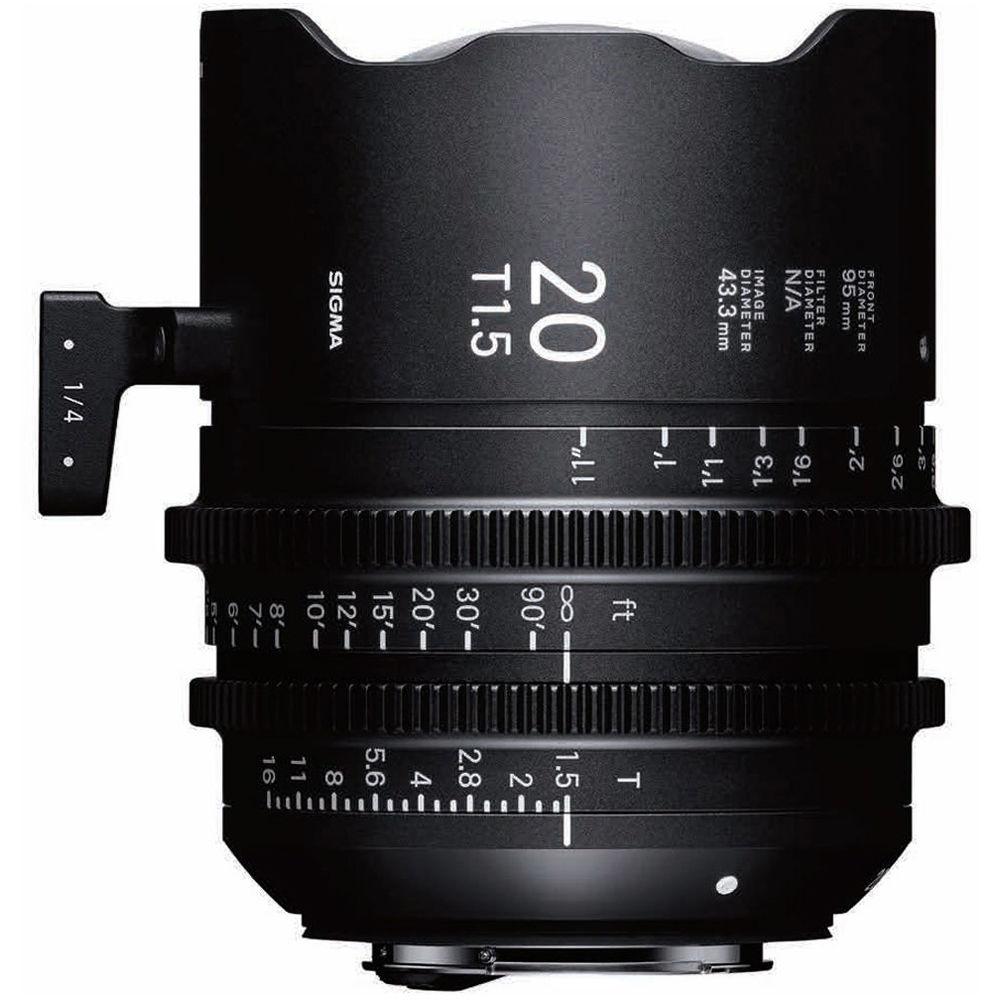

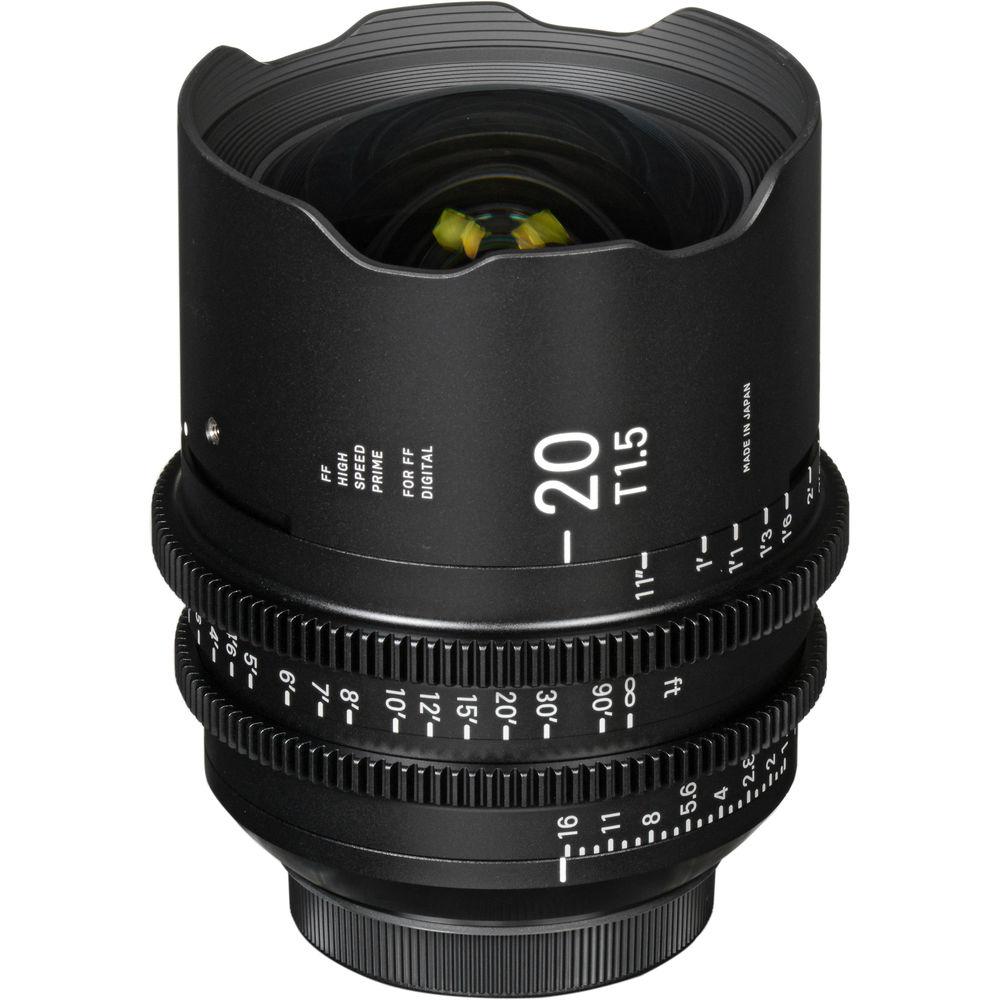

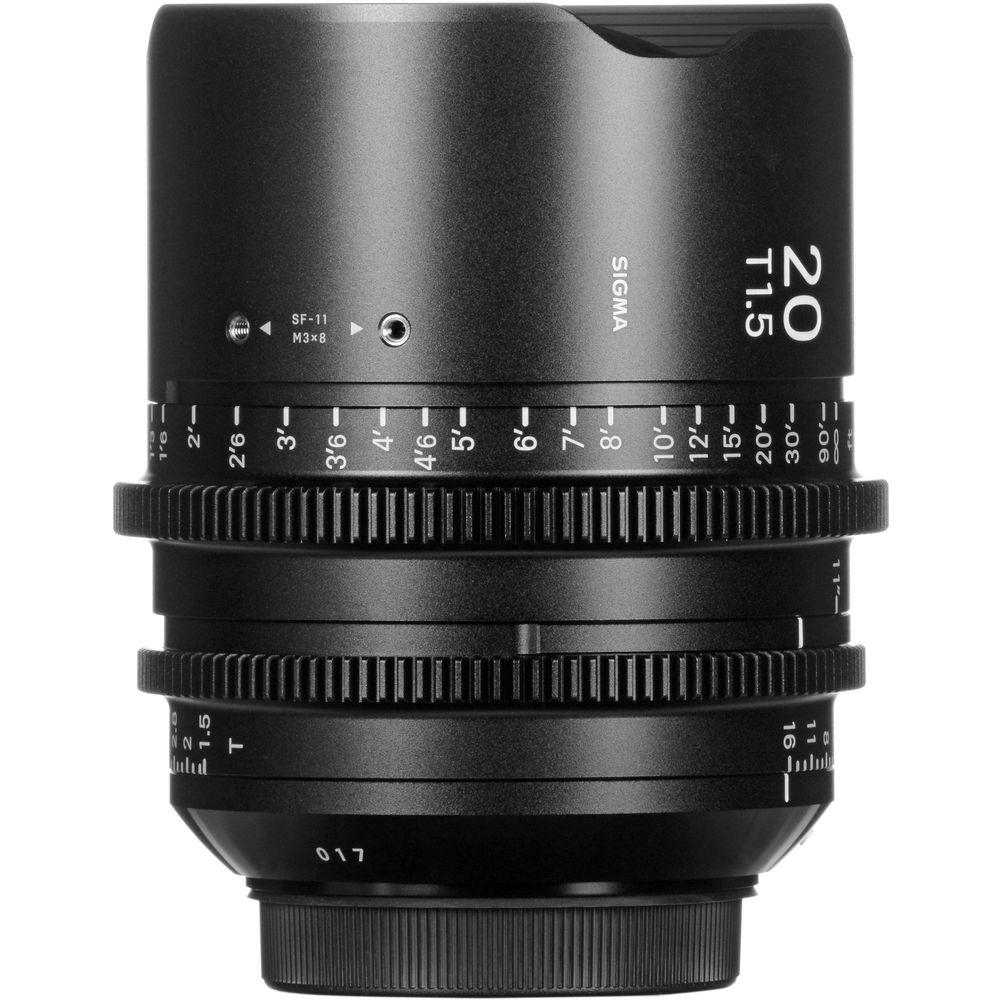

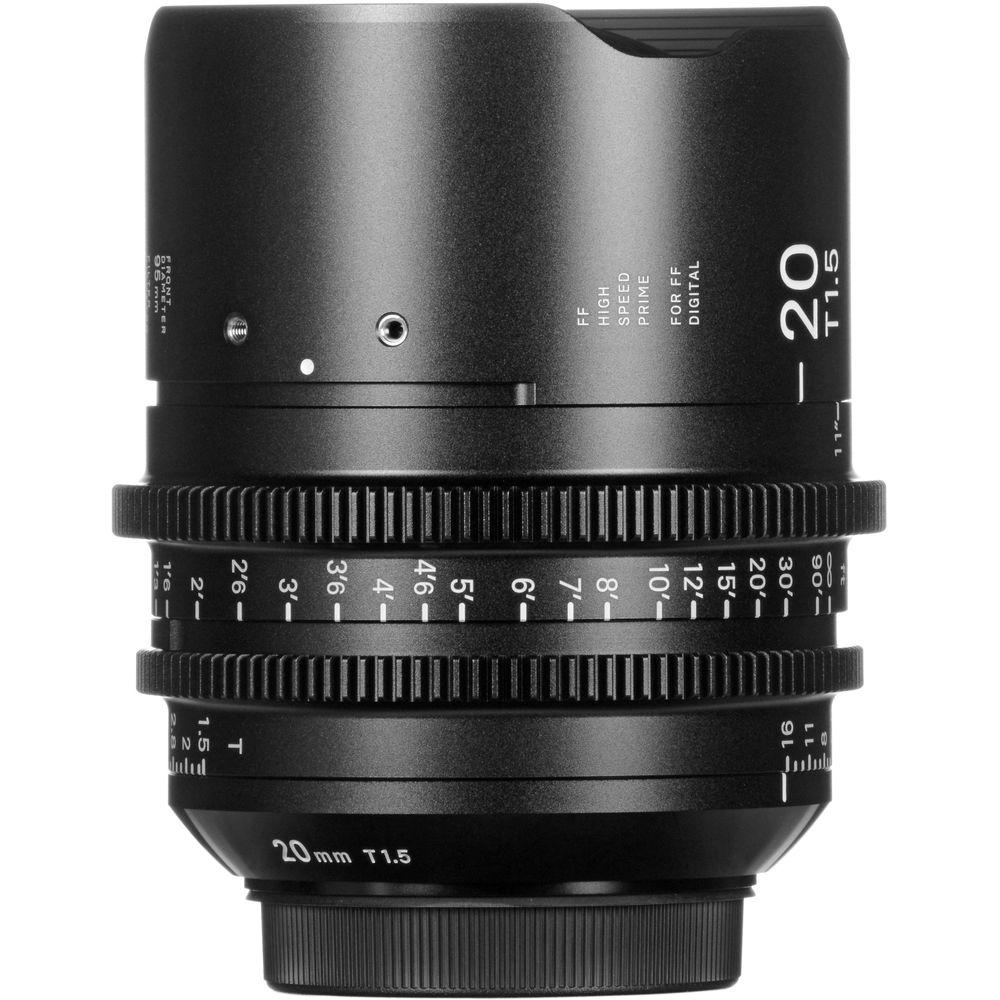

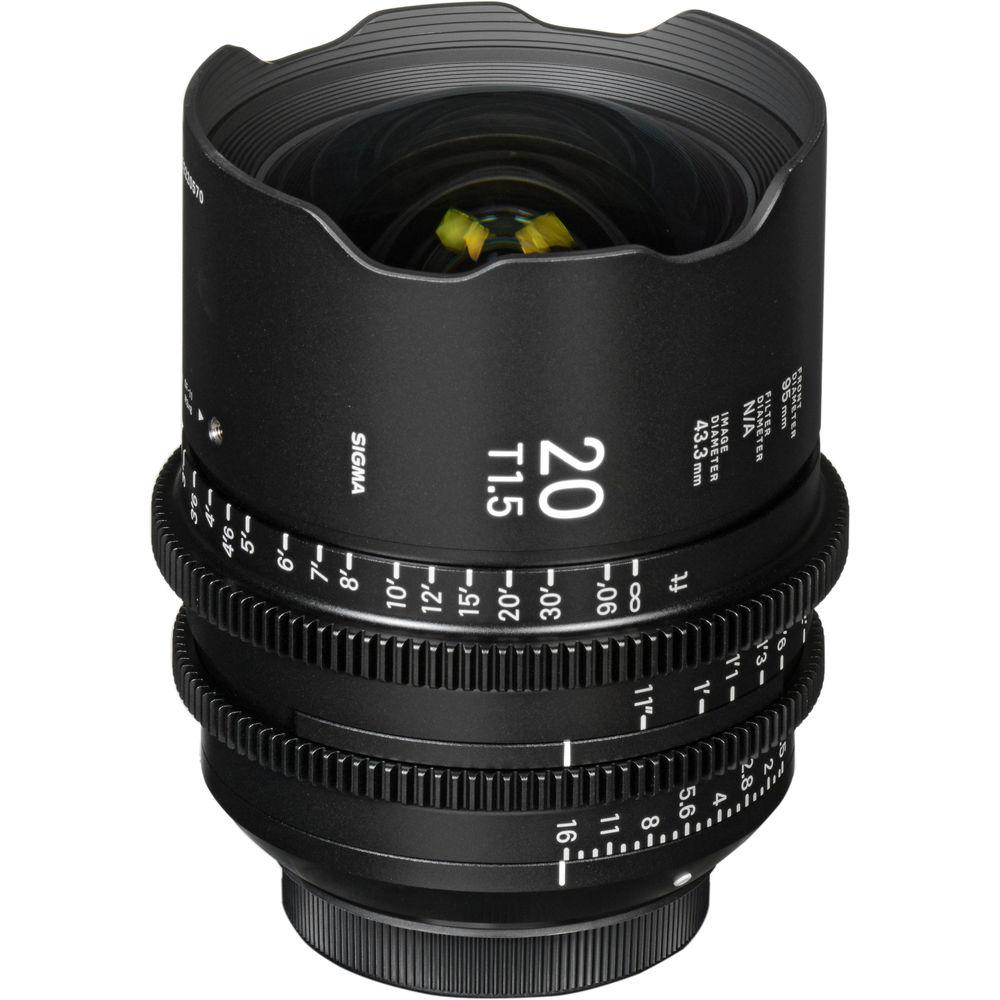

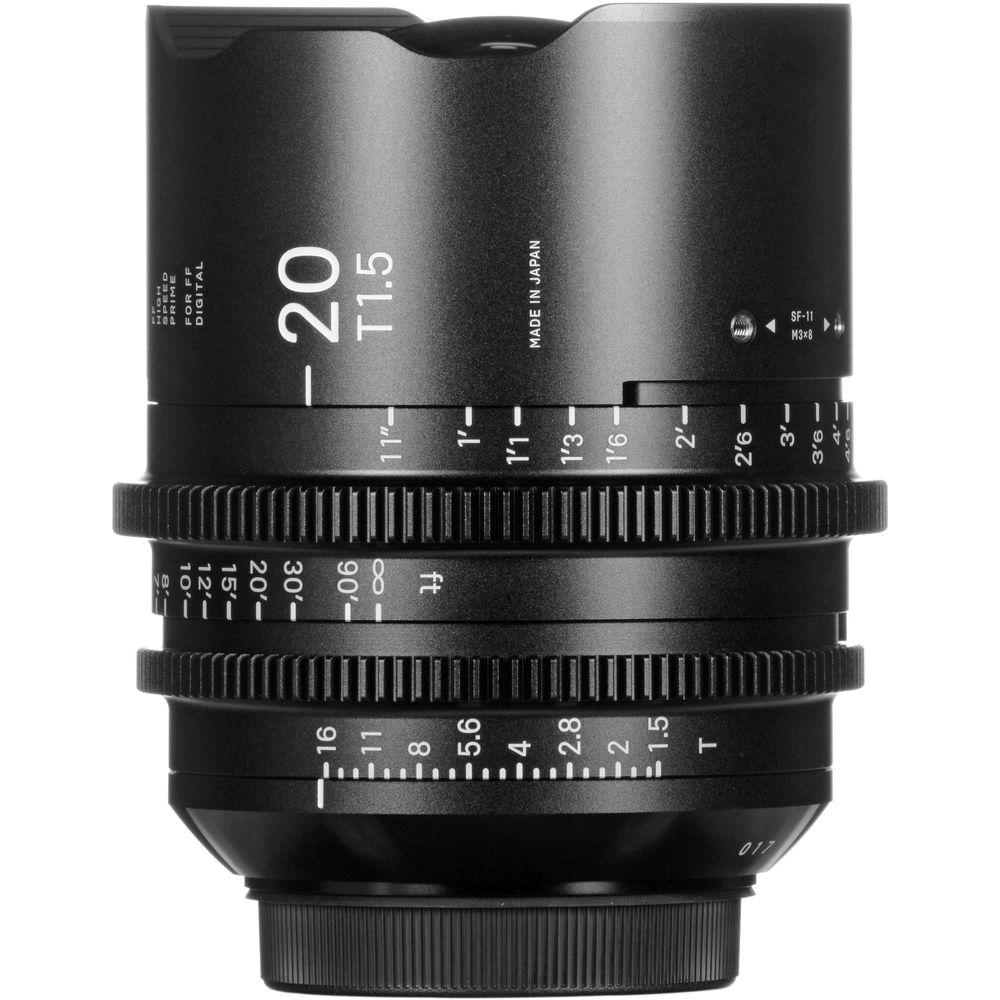

UPC: 085126934354 - 20mm T1.5 FF High-Speed Prime (Sony E, Meters) Sigma's FF High-Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 20mm Sony E mount prime is a wide focal length in the series, offering full frame sensor coverage, 6 to 8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors.
The 9-bladed iris produces pleasing out-of-focus bokeh effects, and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in meters with select markings in luminous paint for easy visibility in low light.
To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts). Features - Focus marks are in meters with select markings in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126934118 - 24mm T1.5 FF High-Speed Prime (E, Meters) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 24mm Sony E prime is a wider focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in meters with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in meters with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126934026 - 35mm T1.5 FF High-Speed Prime (E-Mount, Meters) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 35mm Sony E-Mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in meters with select markings in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in meters
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126933937 - 50mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 50mm Sony E-mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in meters with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in meters with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126933746 - 85mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 85mm Sony E-Mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and PL mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in meters with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in meters with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126933845 - Hard Case for Cine Lens Kits (14, 20, 24, 35, 50, 85 & 135mm)
In the Box Bundle Items 14mm T2 FF High-Speed Prime (Sony E-Mount, Meters) ufwfdywdwctavsbszasyvtw 20mm T1.5 FF High-Speed Prime (Sony E, Meters) ufwfdywdwctavsbszasyvtw 24mm T1.5 FF High-Speed Prime (E, Meters) ufwfdywdwctavsbszasyvtw 35mm T1.5 FF High-Speed Prime (E-Mount, Meters) 50mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters) 85mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters) Hard Case for Cine Lens Kits (14, 20, 24, 35, 50, 85 & 135mm)
Also Includes - 135mm T2.0 FF High Speed Prime Lens (Sony E Mount, Meters)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma High Speed Prime Seven Lens Set Plus Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

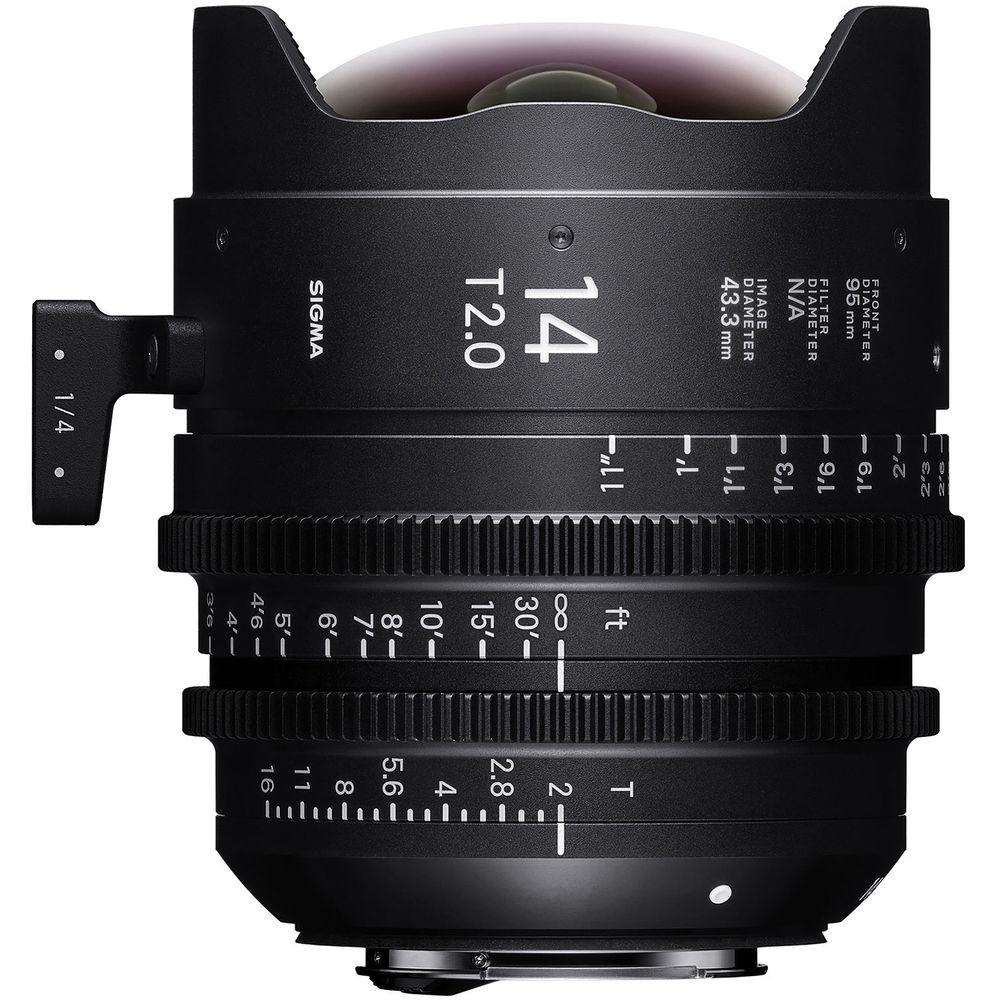

Technical parameters - 14mm T2 FF High-Speed Prime (Sony E-Mount, Meters)
| Focal Length | 14mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T2 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 104.3°
Super35: 82.6°
APS-C (1.5x): 80.5° | | Minimum Focus Distance from Image Plane | 10.63" / 0.27 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | None | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 5.73" / 145.5 mm | | Weight | 3.3 lb / 1485 g | - 20mm T1.5 FF High-Speed Prime (Sony E, Meters)
| Focal Length | 20mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 84°
Super35: 63.2°
APS-C (1.5x): 61.3° | | Minimum Focus Distance from Image Plane | 10.87" / 0.276 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | None | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 5.67" / 144 mm | | Weight | 3 lb / 1380 g | - 24mm T1.5 FF High-Speed Prime (E, Meters)
| Focal Length | 24mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 73.7°
Super35: 54.3°
APS-C (1.5x): 52.6° | | Minimum Focus Distance from Image Plane | 9.84" / 0.25 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 4.76" / 121 mm | | Weight | 2.6 lb / 1170 g | - 35mm T1.5 FF High-Speed Prime (E-Mount, Meters)
| Focal Length | 35mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 54.4°
Super35: 38.7°
APS-C (1.5x): 37.4° | | Minimum Focus Distance from Image Plane | 11.81" / 0.3 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 4.76" / 121 mm | | Weight | 2.6 lb / 1185 g | - 50mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters)
| Focal Length | 50mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Diagonal Angle of View | Full Frame: 39.8°
Super35: 27.6°
APS-C (1.5x): 26.7° | | Horizontal Angle of View | Full Frame: 39.6°
Super35: 27.6°
APS-C (1.5x): 26.7° | | Minimum Focus Distance from Image Plane | 15.75" / 0.4 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 5.04" / 128 mm | | Weight | 3 lb / 1355 g | - 85mm T1.5 FF High-Speed Prime (Sony E-Mount, Meters)
| Focal Length | 85mm | | Lens Mount | Sony E | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Diagonal Angle of View | Full Frame: 23.9°
Super35: 16.5°
APS-C (1.5x): 15.9° | | Horizontal Angle of View | Full Frame: 23.9°
Super35: 16.5°
APS-C (1.5x): 15.9° | | Minimum Focus Distance from Image Plane | 33.46" / 0.85 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 86 mm | | Focus Scales | Metric | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | Yes | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 6.02" / 152.9 mm | | Weight | 3.2 lb / 1470 g | - Hard Case for Cine Lens Kits (14, 20, 24, 35, 50, 85 & 135mm)
