Product description Sigma's SD1 Merrill DSLR is the company's SD1 DSLR, renamed to honor the great Richard "Dick" Merrill, the co-creator of Foveon X3 Direct Image Sensor technology. The most outstanding feature of the SD1 Merrill is this APS-C sized X3 CMOS sensor, which uses three layers of 4800 x 3200 pixels to produce a 46MP full color sensor. Using the True II image processing software, the SD1 Merrill delivers high-resolution images processed quickly with high definition and a smooth and subtle graduation of color. RAW file sizes range up to 45MB. These impressive features are housed in a lightweight weather-resistant solid magnesium-alloy body built to take the bumps and shocks of the real world. A pentaprism viewfinder and a high-resolution (460,000 dots) LCD monitor give you options for composing, focusing and reviewing your images. A panoply of features include shutter speeds up to 1/8000 sec., seven different color modes, continuous shooting at up to 6 fps, a built-in pop-up flash, and sensitivity up to 6400 ISO. The SD1 Merrill has a 1.5x crop factor (compared to 35 mm or full-frame cameras). Sigma SA mount lenses are compatible with the SD1 Merrill. - In Honor of the Late Richard "Dick" Merrill
- The SD1 Merrill is a renamed version of Sigma's SD1 DSLR. Mr. Merrill was the co-creator of Foveon X3 Direct Image Sensor technology. The Sigma SD1 Merrill keeps the best image quality of the Sigma SD1, which has a unique identity, but comes with a substantially revised price. Although some of the manufacturing methods have been enhanced, the performance and characteristics of the sensor itself have not changed

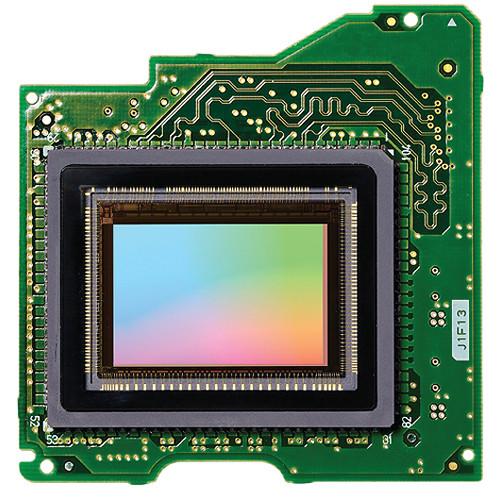

- 46-Megapixel 24 x 16mm APS-C X3 Full-Color Image Sensor
- The 46-megapixel (4800 x 3200 x 3 layers) 24 x 16mm APS-C X3 direct image sensor featured in the Sigma SD1 Merrill captures all primary RGB colors at each and every pixel location, ensuring the capture of full and complete color. Using three silicon-embedded layers of photo detectors, stacked vertically to take advantage of silicon's ability to absorb red, green and blue light at different respective depths, it efficiently reproduces color more accurately, and offers sharper resolution, pixel for pixel, than any conventional image sensor. Since color moiré is not generated, the use of a low-pass filter is not required, meaning light and color, generated by the 46 megapixel sensor is captured with a three-dimensional feel.
- Dual TRUE II Image Processing Engine
- The SD1 Merrill incorporates a dual "TRUE (Three-layer Responsive Ultimate Engine) II" image processing engine which improves the processing speed and overall quality of the final image. The unique image-processing algorithm provides high-resolution power and reproduces high definition images with richly graduated tones.
- CF Card
- The SD1 Merrill accepts the TYPE I CF card. This camera is compatible with the UDMA, enabling fast processing of large amounts of data.
It is not possible to use Microdrives and TYPE II CF cards - 11-Point Twin Cross Sensor
- The autofocus system features an 11-point twin cross sensor. The shifted twin cross type sensor improves AF accuracy.
- Magnesium Body
- The Sigma SD1 Merrill adopts a lightweight yet solid magnesium-alloy body designed to withstand rough use and shocks in harsh conditions.
- Weather-Resistant Design
- Buttons and connections benefit from O-ring sealing connections to prevent dust and water getting inside the camera body.

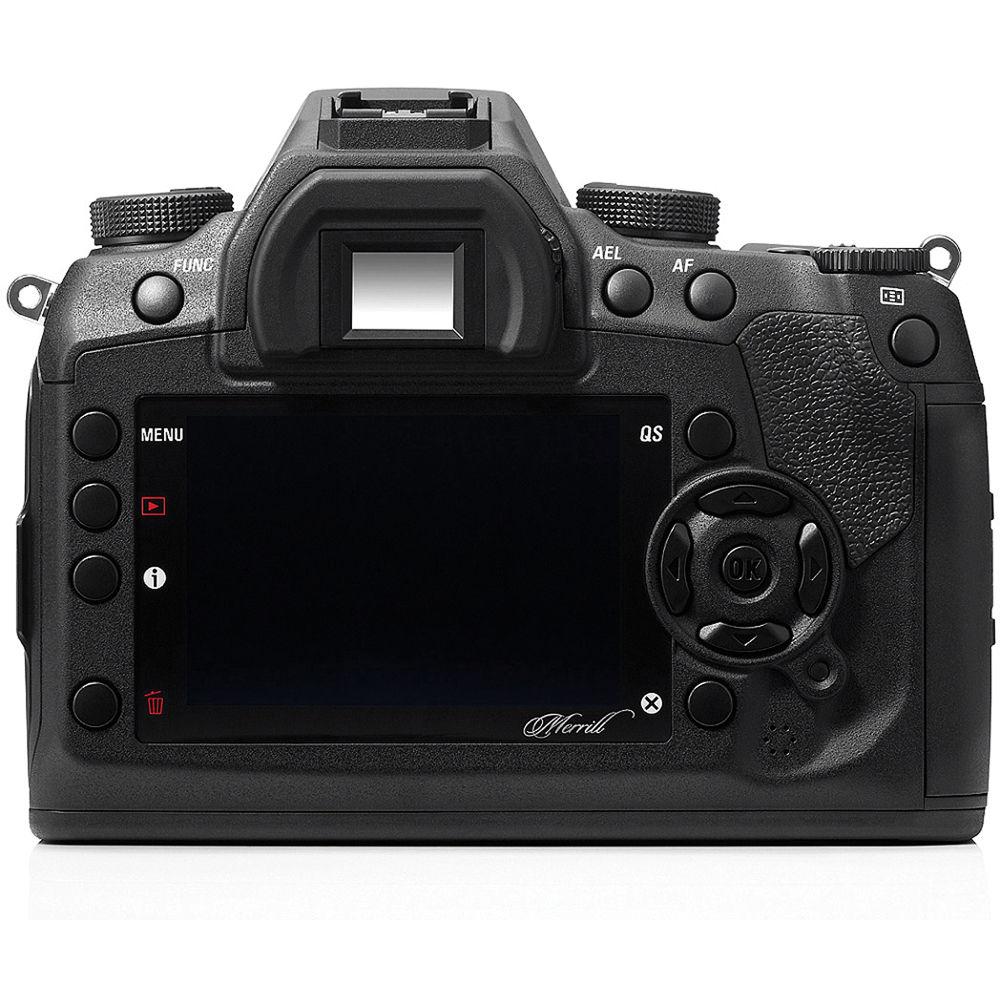

- 3.0" TFT Color LCD Monitor
- The SD1 Merrill camera features a 3.0" TFT color monitor. This 460,000 pixel resolution LCD monitor benefits from a wide viewing angle, making it easy to check focusing and composition.
- Dust Protector/IR Filter
- The installed dust protector guards the sensor from dust or other particles, and sits just behind the lens mount in front of the reflex mirror. Beyond a dust protector, this is also an infrared-blocking filter, and can be removed in order to increase the camera's sensitivity to IR light for creative, scientific, and astrophotography applications.
- Optional Lenses
- The SD1 Merrill can be used with over 40 Sigma lenses such as ultra-wide, ultra-telephoto, macro and fisheyes which adopt the latest technology such as the FLD ("F" Low Dispersion) glass elements, which have the performance equal to fluorite glass, SLD glass, Aspherical lenses, Sigma's own unique Optical Stabilizer function, Hyper Sonic Motor and Sigma's Super Multi Layer Coating. They meet the various and demanding requirements of all types of photographers.
UPC: 085126928766 In the Box Sigma SD1 Merrill DSLR Camera (Body Only) BP-21 Rechargeable Lithium-ion Battery BC-21 Battery Charger USB Cable Video Cable Neck Strap Eye Cap Body Cap Eyepiece Cap SIGMA Photo Pro Disc SD1 Instruction Manual Limited 1-Year Warranty Limited 3-Year U.S.A. Extended Warranty Extension Against Manufacturing and Workmanship Defects. Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma SD1 Merrill DSLR Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Sigma SD1 Merrill DSLR Camera can be downloaded in PDF format at the link stated below.
Technical parametersSigma SD1 Merrill Specs | | | Lens Mount | Sigma SA | | Camera Format | APS-C (1.5x Crop Factor) | | Pixels | 46 Megapixel | | Maximum Resolution | 4800 x 3200 | | Aspect Ratio | 4:3 | | Sensor Type | CMOS | | Sensor Size | 23.5 x 15.7 mm | | Image File Format | JPEG, RAW | | Bit Depth | 12-Bit | | Image Stabilization | None | | | | ISO Sensitivity | 100 to 6400 | | Shutter Speed | 1/8000 to 30 Seconds | | Metering Method | Center-Weighted Average, Multi-Zone, Spot | | Exposure Modes | Aperture Priority, Manual, Program, Shutter Priority | | Exposure Compensation | -3 to +3 EV (1/3 EV Steps) | | White Balance | Auto, Flash, Fluorescent, Incandescent, Manual, Overcast, Shade | | | | Focus Type | Auto and Manual Focus | | Focus Mode | Continuous-Servo AF (C), Manual Focus (M), Single-Servo AF (S) | | Autofocus Sensitivity | 0 to +18 EV | | | | Viewfinder Type | Optical (Pentaprism) | | Viewfinder Coverage | 98% | | Viewfinder Magnification | Approx. 0.95x | | Diopter Adjustment | -3 to +1.5 m | | Monitor Size | 3" | | Monitor Resolution | 460,000 Dot | | Monitor Type | LCD | | | | Built-in Flash | Yes | | Flash Modes | Flash On | | Maximum Sync Speed | 1/180 Second | | External Flash Connection | Hot Shoe | | | | Memory Card Slot | 1 x CompactFlash | | Connectivity | USB 2.0 | | Wireless | None | | GPS | None | | | | Battery | 1 x BP-21 Rechargeable Lithium-Ion Battery Pack | | Dimensions (W x H x D) | 5.7 x 4.4 x 3.1" / 14.5 x 11.2 x 7.9 cm | | Weight | 24.7 oz / 700.2 g (Body Only) | | | | Package Weight | 3.55 lb | | Box Dimensions (LxWxH) | 7.6 x 7.0 x 5.6" |
