User manual
Sigma T1.5 FF High-Speed 35, 50

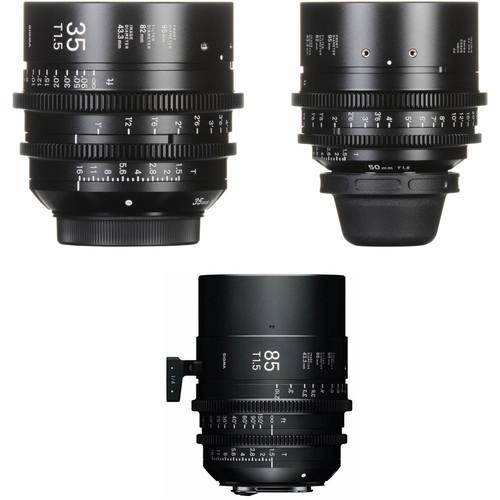

User Manual for Sigma T1.5 FF High-Speed 35, 50 & 85mm Pime Lens Bundle

• Product category: Digital Cine Lenses Sigma
• Brand: Sigma
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Sigma Digital Cine Lenses

Product description

• Sigma 35mm T1.5 FF High-Speed Prime (EF Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 35mm Canon EF prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in PL and Sony E-mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select markings in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).

  Features

  • Focus marks are in feet
  • High image performance covering full frame sensors; suitable for 8K capture
  • Fast T1.5 maximum aperture aids in shooting with low light levels
  • Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
  • Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
  UPC: 085126340667
• Sigma 50mm T1.5 FF High-Speed Prime (EF Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 50mm Canon EF prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in PL and Sony E-mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).

  Features

  • Focus marks are in feet with select marks in luminous paint
  • High image performance covering full frame sensors; suitable for 8K capture
  • Fast T1.5 maximum aperture aids in shooting with low light levels
  • Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
  • Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
  UPC: 085126311667
• Sigma 85mm T1.5 FF High-Speed Prime (EF Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 85mm Canon EF mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in PL and Sony E-mounts. Electronic contacts in the mount provide lens data communication between the lens and the camera. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).

  Features

  • Focus marks are in feet with select marks in luminous paint
  • High image performance covering full frame sensors; suitable for 8K capture
  • Fast T1.5 maximum aperture aids in shooting with low light levels
  • Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
  • Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
  UPC: 085126321666

• 35mm T1.5 FF High-Speed Prime (EF Mount, Feet) btcwwefevevbdt
• Lens Support Foot
• Front Lens Cap
• Limited 1-Year Warranty

• 50mm T1.5 FF High-Speed Prime (EF Mount, Feet)

• 85mm T1.5 FF High-Speed Prime (EF Mount, Feet)

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Sigma 35mm T1.5 FF High-Speed Prime (EF Mount, Feet)

  Focal Length	35mm
  Lens Mount	Canon EF
  Format	Full Frame
  Image Circle	43.3 mm
  Maximum T-Stop	T1.5
  Minimum T-Stop	T16
  Horizontal Angle of View	Full Frame: 54.4° Super35: 38.7° APS-C (1.5x): 37.4°
  Minimum Focus Distance from Image Plane	11.81" / 0.3 m
  Iris Blades	9
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Front Diameter	95 mm
  Filter Thread	82 mm
  Focus Scales	Imperial
  Focus Rotation	180°
  Iris Rotation	60°
  Electronic Communication	Yes
  Lens Support	Lens Support Foot with 1/4"-20 Mounting Thread
  Length	3.74" / 95 mm
  Weight	2.5 lb / 1125 g

  Box Dimensions (LxWxH)	8.5 x 6.9 x 6.7"

• Sigma 50mm T1.5 FF High-Speed Prime (EF Mount, Feet)

  Focal Length	50mm
  Lens Mount	Canon EF
  Format	Full Frame
  Image Circle	43.3 mm
  Maximum T-Stop	T1.5
  Minimum T-Stop	T16
  Horizontal Angle of View	Full Frame: 39.6° Super35: 27.6° APS-C (1.5x): 26.7°
  Minimum Focus Distance from Image Plane	15.75" / 0.4 m
  Iris Blades	9
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Front Diameter	95 mm
  Filter Thread	82 mm
  Focus Scales	Imperial
  Focus Rotation	180°
  Iris Rotation	60°
  Electronic Communication	Yes
  Lens Support	Lens Support Foot with 1/4"-20 Mounting Thread
  Length	4.02" / 102 mm
  Weight	2.9 lb / 1295 g

  Box Dimensions (LxWxH)	8.8 x 6.8 x 6.8"

• Sigma 85mm T1.5 FF High-Speed Prime (EF Mount, Feet)

  Focal Length	85mm
  Lens Mount	Canon EF
  Format	Full Frame
  Image Circle	43.3 mm
  Maximum T-Stop	T1.5
  Minimum T-Stop	T16
  Horizontal Angle of View	Full Frame: 23.9° Super35: 16.5° APS-C (1.5x): 15.9°
  Minimum Focus Distance from Image Plane	33.46" / 0.85 m
  Iris Blades	9
  Gear MOD & Pitch	Focus: 0.8 MOD / 32 Pitch Iris: 0.8 MOD / 32 Pitch
  Front Diameter	95 mm
  Filter Thread	86 mm
  Focus Scales	Imperial
  Focus Rotation	180°
  Iris Rotation	60°
  Electronic Communication	Yes
  Lens Support	Lens Support Foot with 1/4"-20 Mounting Thread
  Length	5.00" / 126.9 mm
  Weight	3.1 lb / 1425 g

  Box Dimensions (LxWxH)	10.2 x 6.9 x 6.7"
