User Manual for Sigma T1.5 FF High-Speed 5-Lens Kit with Case Click to enlarge the picture
Contents of the user manual for the Sigma T1.5 FF High-Speed 5-Lens Kit
- Product category: Digital Cine Lenses Sigma
- Brand: Sigma
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Sigma Digital Cine Lenses
 |
User manual for the Sigma T1.5 FF High-Speed 5-Lens Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Sigma product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Sigma user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Sigma product will considerably shorten its lifespan!
|
Product description Cinema Lens Care and Maintenance Read More This Sigma Kit of Five T1.5 FF High-Speed Prime Lenses assembles 20, 24, 35, 50, and 85mm focal lengths in a hard-shell case. Use this wide range of compact, T1.5 primes to capture high-resolution, 8K-suitable images with your PL-mounted full frame camera. The cine-oriented style of these primes feature clickless apertures, geared focus and iris rings, and dual focus scales marked in feet. Standardized color reproduction, common 95mm front diameters, and similar physical attributes across the line of lenses enable smooth switching between focal lengths. - 20mm T1.5 FF High-Speed Prime (PL, Feet) Sigma's FF High-Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 20mm PL mount prime is a wide focal length in the series, offering full frame sensor coverage, 6 to 8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors.
The 9-bladed iris produces pleasing out-of-focus bokeh effects, and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select markings in luminous paint for easy visibility in low light.
To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts). Features - Focus marks are in feet with select markings in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

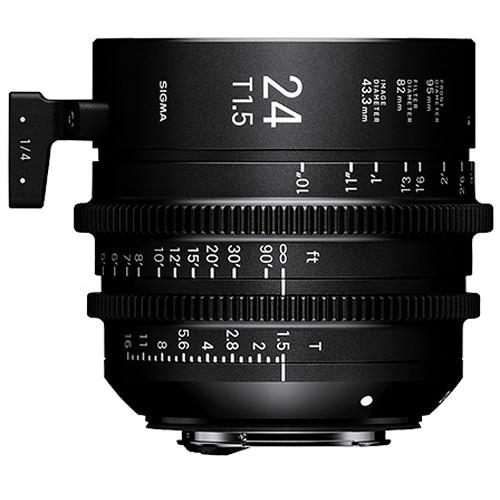

UPC: 085126412685 - 24mm T1.5 FF High-Speed Prime (PL, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 24mm PL prime is a wider focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126401689 - 35mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 35mm PL prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select markings in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

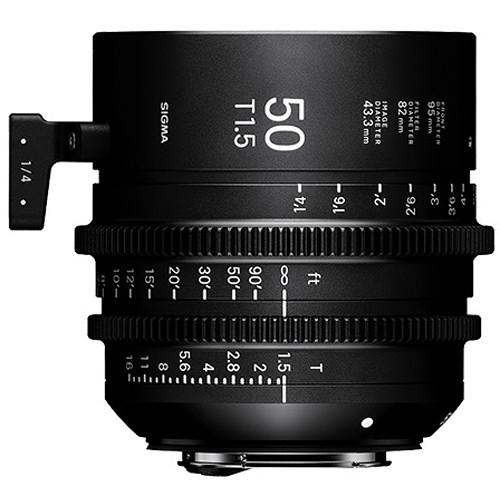

UPC: 085126340681 - 50mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 50mm PL mount prime is a mid-range focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)

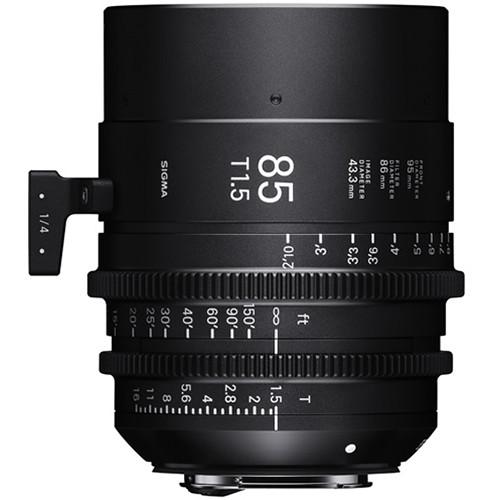

UPC: 085126311681 - 85mm T1.5 FF High-Speed Prime (PL Mount, Feet) Sigma's FF High Speed Prime Lenses combine the same high-quality optics and mechanics of their Global Vision still line in a cine-oriented design. This 85mm PL mount prime is a longer focal length in the series, offering full-frame sensor coverage, 6-8K resolution, and a T1.5 aperture in a compact, lightweight form; it is also available in Canon EF and Sony E-mounts. A common 95mm front diameter and similar physical attributes across the lens line make it easier and quicker to mount lens accessories such as matte boxes, follow focuses, and lens control motors. The 9-bladed iris produces pleasing out-of-focus bokeh effects and ghosting and flaring have been minimized. Color reproduction is standardized for easier color correction. Each lens in the range offers consistent lens gear positions and 180° of focus barrel rotation. The FF High-Speed Primes also feature a clickless iris with linear markings, dampeners on each gear ring for silent operation, industry-standard 0.8 module gear pitch, and engraved markings for durability. Focus marks are in feet with select marks in luminous paint for easy visibility in low light. To relieve stress on your camera's lens mount, a support foot is built into the dust- and water-resistant metal lens body. If you wish to fit your FF High-Speed Prime lens to a different camera, the Canon EF and Sony E mount versions can be converted from one to the other by an authorized Sigma service center (not available for PL mounts).
Features - Focus marks are in feet with select marks in luminous paint
- High image performance covering full frame sensors; suitable for 8K capture
- Fast T1.5 maximum aperture aids in shooting with low light levels
- Compact, dust- and water-resistant design with a common front diameter of 95mm across the line
- Canon EF and Sony E mounts may be swapped at an authorized Sigma service center (not available for PL mount versions)
UPC: 085126321680 - PMC-002 Hard Case for 5x FF High Speed Prime Cine Lenses Use the PMC-002 Hard Case for FF High Speed Primes from Sigma to safely transport up to five of the mid-range Sigma cine-style prime lenses. This hard case features a soft foam inlay designed specifically to cradle the 20, 24, 35, 50, and 85mm primes. Other case features include a folding top handle, and padlock inserts for added security. Note: This case is not designed to hold the 14mm or 135mm primes. UPC: 085126933494
In the Box Bundle Items 20mm T1.5 FF High-Speed Prime (PL, Feet) tqusqayzyfcdvxexdreduc 24mm T1.5 FF High-Speed Prime (PL, Feet) 35mm T1.5 FF High-Speed Prime (PL Mount, Feet) 50mm T1.5 FF High-Speed Prime (PL Mount, Feet) 85mm T1.5 FF High-Speed Prime (PL Mount, Feet) PMC-002 Hard Case for 5x FF High Speed Prime Cine Lenses Table of Contents
|
Upload User Manual
Have you got an user manual for the Sigma T1.5 FF High-Speed 5-Lens Kit with Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

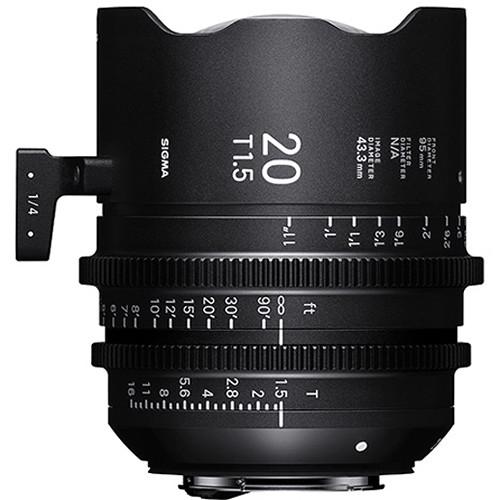

Technical parameters - 20mm T1.5 FF High-Speed Prime (PL, Feet)
| Focal Length | 20mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 84°
Super35: 63.2°
APS-C (1.5x): 61.3° | | Minimum Focus Distance from Image Plane | 10.87" / 0.276 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | None | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Tripod Mounting Thread | 1/4"-20 Female | | Length | 4.33" / 110 mm | | Weight | 2.7 lb / 1235 g | | | | Box Dimensions (LxWxH) | 9.6 x 6.8 x 6.8" | - 24mm T1.5 FF High-Speed Prime (PL, Feet)
| Focal Length | 24mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 73.7°
Super35: 54.3°
APS-C (1.5x): 52.6° | | Minimum Focus Distance from Image Plane | 9.84" / 0.25 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.43" / 87 mm | | Weight | 2.3 lb / 1025 g | | | | Box Dimensions (LxWxH) | 8.5 x 7.0 x 6.8" | - 35mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 35mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 54.4°
Super35: 38.7°
APS-C (1.5x): 37.4° | | Minimum Focus Distance from Image Plane | 11.81" / 0.3 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.43" / 87 mm | | Weight | 2.3 lb / 1045 g | | | | Box Dimensions (LxWxH) | 8.5 x 6.9 x 6.8" | - 50mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 50mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 39.6°
Super35: 27.6°
APS-C (1.5x): 26.7° | | Minimum Focus Distance from Image Plane | 15.75" / 0.4 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 82 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 3.70" / 94 mm | | Weight | 2.7 lb / 1210 g | | | | Box Dimensions (LxWxH) | 8.8 x 7.0 x 6.8" | - 85mm T1.5 FF High-Speed Prime (PL Mount, Feet)
| Focal Length | 85mm | | Lens Mount | ARRI PL | | Format | Full Frame | | Image Circle | 43.3 mm | | Maximum T-Stop | T1.5 | | Minimum T-Stop | T16 | | Horizontal Angle of View | Full Frame: 23.9°
Super35: 16.5°
APS-C (1.5x): 15.9° | | Minimum Focus Distance from Image Plane | 33.46" / 0.85 m | | Iris Blades | 9 | | Gear MOD & Pitch | Focus: 0.8 MOD / 32 Pitch
Iris: 0.8 MOD / 32 Pitch | | Front Diameter | 95 mm | | Filter Thread | 86 mm | | Focus Scales | Imperial | | Focus Rotation | 180° | | Iris Rotation | 60° | | Electronic Communication | No | | Lens Support | Lens Support Foot with 1/4"-20 Mounting Thread | | Length | 4.68" / 118.9 mm | | Weight | 3 lb / 1345 g | | | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 6.7" | - PMC-002 Hard Case for 5x FF High Speed Prime Cine Lenses
| Dimensions and Weight | Not specified by manufacturer | | | | Box Dimensions (LxWxH) | 28.8 x 22.3 x 14.8" |
