User Manual for SIIG 1 x 4 HDMI Distribution Amplifier with 3D & 4K Resolution Support Click to enlarge the picture
Contents of the user manual for the SIIG 1 x 4 HDMI Distribution
- Product category: Distribution Amplifiers (DA's) SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Distribution Amplifiers (DA's)
 |
User manual for the SIIG 1 x 4 HDMI Distribution contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

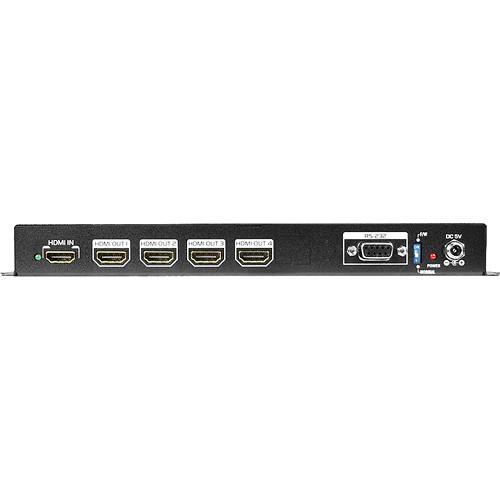

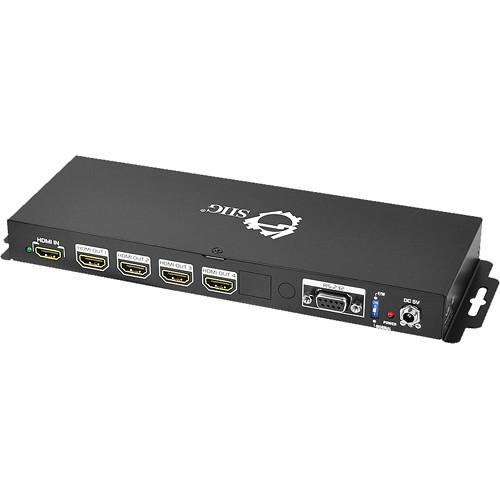

Product description The black 1 x 4 HDMI Distribution Amplifier with 3D & 4K Resolution Support from SIIG distributes HDMI signals from a single input to 4 identical HDMI outputs. It can distribute 4K, 3D, and HDMI Deep Color videos, and multiple digital audio formats such as Dolby Digital, DTS-HD, and Dolby TrueHD.This distribution amplifier also features an automatic EDID learning ability that allows it to maximize compatibility with the display units. This easy-to-install device is suitable for digital signage and broadcasting high-definition audio and videos, and requires no software installation. - Supports HDMI Deep Color and 3D video output, great for both consumer and commercial applications
- Supports premium video quality with full scale display resolutions up to 4Kx2K
- Supports multiple digital audio formats including Dolby Digital, DTS-HD and Dolby TrueHD
- Firmware updateable via RS-232 for expanding compatibility
- Automatic EDID learning for maximum compatibility and easy setup
- Metal housing with excellent heat dissipation for reliability, dependability, and longer operational lifespan
- Certifications/Standards: FCC, CE, RoHS/ HDCP and DVI 1.0 compliant
- Supports 1080p resolution
UPC: 662774017075 In the Box SIIG 1 x 4 HDMI Distribution Amplifier with 3D & 4K Resolution Support (Black) Power Adapter 5V/4A Screw Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG 1 x 4 HDMI Distribution Amplifier with 3D & 4K Resolution Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG CE-H21B11-S1 Specs | Chipset | Explore | | Frequency Range | Wide Frequency Range: 25 to 340 MHz | | Video Bandwidth | 10.2 Gb/s (single-link 340 MHz) | | Transmission Distance | Up to 49.2' (15 m)
Input: 16.4' (5 m) / Output: 32.0' (10.0 m) | | Input/Output | 1 x HDMI Type A female input
4 x HDMI Type A female output
1 x 9-pin, D-Sub female for firmware update | | Input TMDS Signal | 1.2 Vpp | | Input DDC Signal | 5 Vpp (TTL) | | Video Support | HDMI Deep Color, xvYCC, x.v.Color, PC resolutions up to 4K x 2K | | Audio Support | DTS-HD Master Audio, Dolby TrueHD, Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM | | Power Consumption | Maximum: 15 W | | Housing | Metal (for better RF shielding) | | Power Adapter | Input: 100 to 240 VAC, 50/60 Hz
Output: 5 VDC, 4 A | | Temperature | Operating: 32 to 140°F (0 to 60°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | ESD Protection | Air: 19 kV
Contact: 12 kV | | Dimensions (W x H x D) | 9.4 x 3.4 x 1.1" (23.9 x 8.6 x 2.7 cm) | | Weight | 1.3 lb (0.6 kg) | | | | Package Weight | 2.7 lb | | Box Dimensions (LxWxH) | 13.0 x 7.9 x 3.7" |
