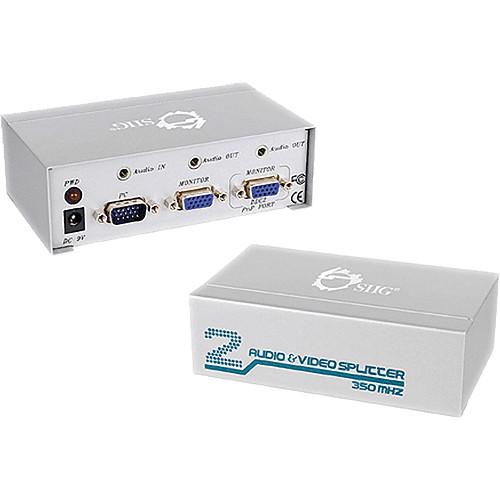

User Manual for SIIG 1x2 VGA & Audio Splitter Click to enlarge the picture
Contents of the user manual for the SIIG 1x2 VGA & Audio Splitter
- Product category: Distribution Amplifiers (DA's) SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Distribution Amplifiers (DA's)
|
User manual for the SIIG 1x2 VGA & Audio Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|
Product description The SIIG 1x2 VGA & Audio Splitter distributes one VGA signal to two VGA monitors, and also delivers stereo audio along with the video signal, maintaining signal strength in resolutions up to 2048 x 1536.
The splitter is compatible with all operating systems and supports VGA, SVGA, XGA, UXGA, and multi-sync monitors, and outputs analog stereo audio by means of 3.5mm jacks. Video bandwidth is 350 MHz, and a signal can be extended up to 164 feet. Additionally, the system is daisy-chainable to expand beyond 2 monitors.
The housing is metal and allows efficient heat dissipation for durability and long life. UPC: 662774013138 In the Box SIIG 1x2 VGA & Audio Splitter Power Adapter 4 x Rubber Pad User's Manual 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG 1x2 VGA & Audio Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG CE-VG0C11-S1 Specs | Monitor Support | Supports VGA, SVGA, XGA, UXGA, and multi-sync monitors | | Resolutions Supported | Up to 2048 x 1536 | | Video Bandwidth | 350 MHz | | Distance | Extends video signal up to 164 ft (50 m) | | Expansion | Daisy-chainable to expand beyond 2 monitors | | Connectors | Inputs:
(1) 15-pin DB15 VGA, male
(1) 3.5mm audio jack, female
Outputs:
(2) 15-pin DB15 VGA, female
(2) 3.5mm audio jack, female | | Operating Temperature | 32 - 104°F (0 - 40°C) | | Storage Temperature | 23 - 160°F (-5 - 70°C) | | Housing | Metal | | Color | Silver | | Power | Input: 100 - 240V, 50/60 Hz
Output: 9V, 300 mA | | Approvals | FCC Class B (DoC)
CE regulatory approved
RoHS compliant | | Dimensions | 5.14 x 2.98 x 1.67" (13 x 7.5 x 4.2 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.4 lb | | Box Dimensions (LxWxH) | 9.4 x 4.4 x 2.6" |
