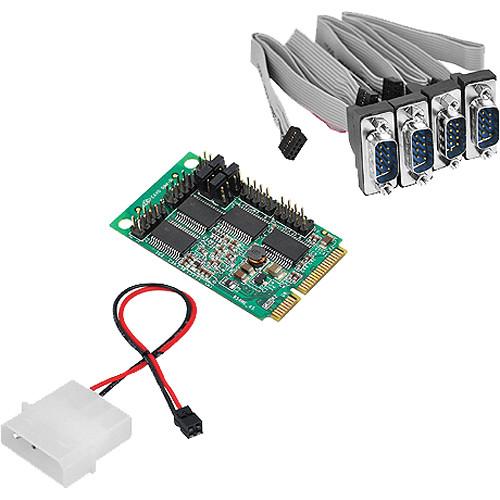

User Manual for SIIG 4-Port RS232 Serial Mini PCIe with Power Click to enlarge the picture
Contents of the user manual for the SIIG 4-Port RS232 Serial Mini PCIe
- Product category: Serial RS-422/RS-232 Cards SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Serial RS-422/RS-232 Cards
|
User manual for the SIIG 4-Port RS232 Serial Mini PCIe contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|
Product description The 4-Port RS232 Serial Mini PCIe with Power from SIIG provide four high speed 16950 UART (9-pin) RS232 serial ports that support data transfer rates up to 460 Kb/s, with deep 128 byte FIFO per transmitter and receiver. It can be installed in any mini PCIe slot to allow additional serial port device connections. - Adds four high-speed RS232 serial ports
- Works as a standard RS232 or with 5V output for devices that require power such as handheld scanners, table scanners, POS displays, etc.
- Data transfer rates up to 460 Kb/s
- Automated in-band software flow control, using programmable Xon/Xoff in both directions
- Automated out-of-band hardware flow control using Tx/Rx/RTS/CTS/DSR/DTR/DCD/RI/GND
UPC: 662774015873 In the Box SIIG 4-Port RS232 Serial Mini PCIe with Power 4 x DB9 Serial to Board Adapter Cables Power Cable Driver CD Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG 4-Port RS232 Serial Mini PCIe with Power in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JJ-E40111-S1 Specs | Interface | PCIe base specification, revision 1.1a | | Ports | 4 x 9-pin RS232 serial ports | | Data Transfer Rate | Up to 460 Kb/s | | Chipset | PLX OXPCIe954 | | FIFO | 128 byte deep FIFO per transmitter and receiver | | Certifications and Standards | FCC, CE, and RoHS | | Requirements | PCIe-enabled system with an available mini PCIe slot
Windows 8 (32/64-bit)/7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)/Server2003 and 2008 (32/64-bit)/Server 2008 R2/2000 | | Dimensions (W x H x D) | 1.97 x 1.18 x 0.16" (5.00 x 2.99 x 0.40 cm) | | Weight | 0.32 oz (9.07 g) |
