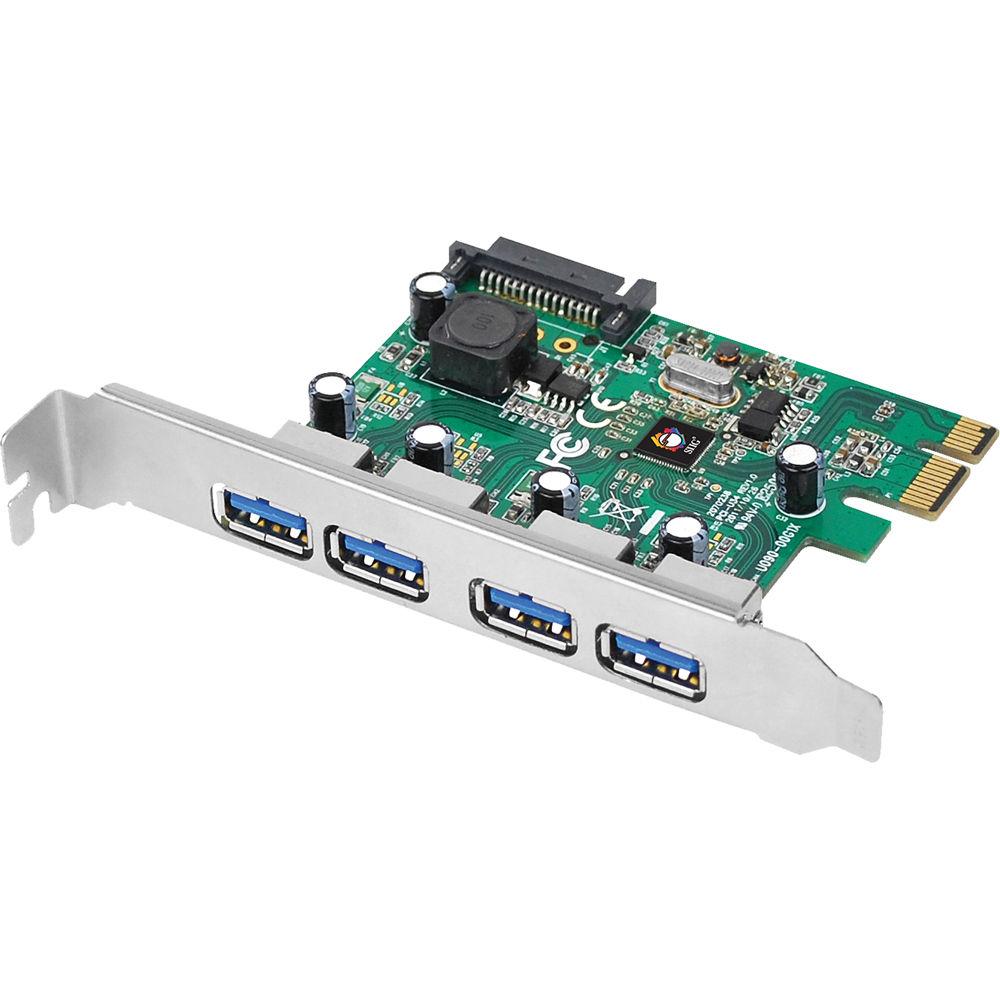

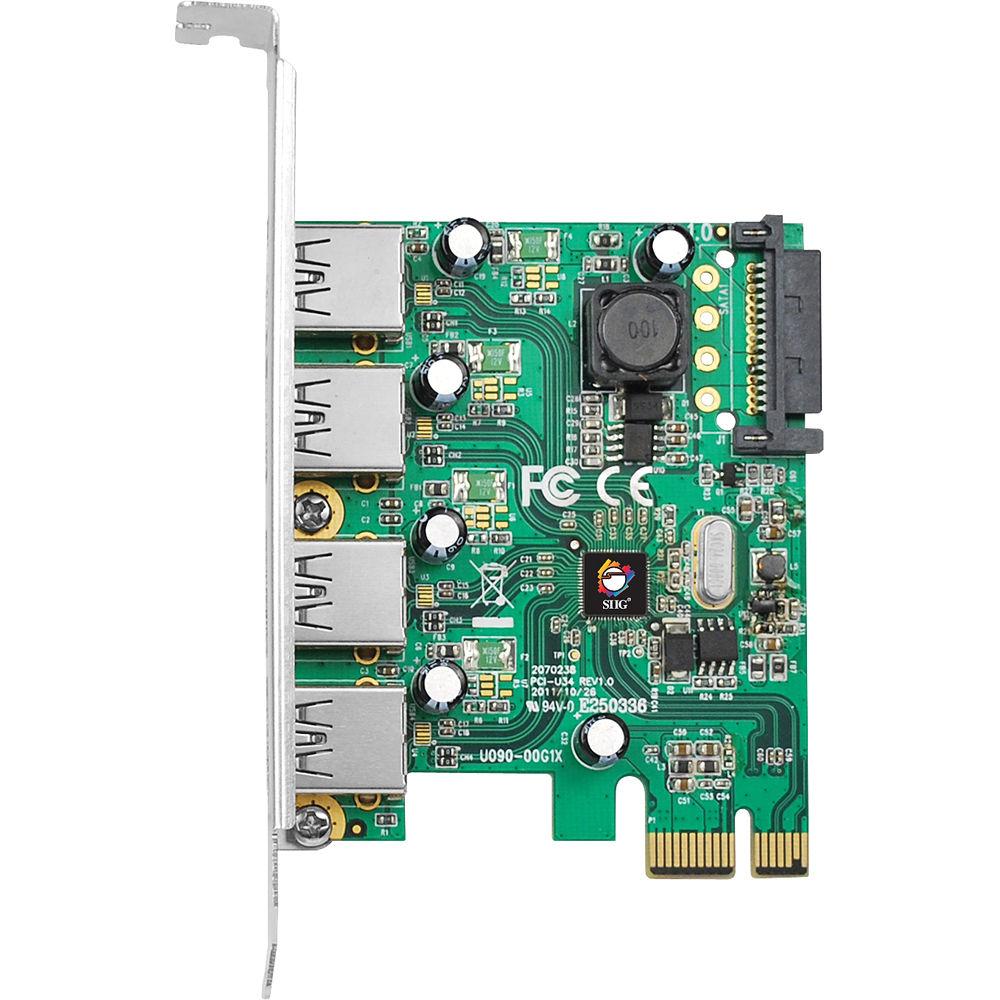

Product description The 4-Port USB 3.0 SuperSpeed PCIe Adapter Card from SIIG adds 4 external SuperSpeed USB 3.0 ports to your PCIe-enabled desktop computer. This USB 3.0 adapter features per port over-current protection to protect your connected device(s) and the adapter itself from unforeseen power surges. Its USB 3.0 interface delivers data transfer rates up to 5 Gb/s and allows you to work with devices such as external hard disks, high-resolution webcams, video surveillance cameras and multi-channel audio devices. It offers backwards compatibility with your USB 2.0 & 1.1 devices while allowing for simultaneous connection of multiple USB 3.0 / 2.0 / 1.1 devices. The USB 3.0 PCIe adapter delivers both power and performance, enabling you to meet all your daily computing needs. It is FCC and CE regulatory approved and RoHS compliant. It supports Windows 8 (32 / 64-bit) / 7 (32 / 64-bit) / Vista (32 / 64-bit) / XP (32 / 64-bit) / Server 2008 R2 / Server 2003 & 2008 (32 / 64-bit) - Adds 4 external SuperSpeed USB 3.0 ports to your PCIe-enabled desktop PC
- Works with high-bandwidth USB 3.0 devices, such as external hard disks, high-resolution webcams, video surveillance cameras, digital video cameras, multi-channel audio devices and more
- Delivers data transfer rates up to 5 Gb/s and is backwards compatible with USB 2.0 / 1.1 devices
- Supports per port over-current protection
- Powered by Renesas (NEC) chipset for maximum compatibility
UPC: 662774015484 In the Box SIIG 4-Port USB 3.0 SuperSpeed PCIe Adapter Card Driver CD Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG 4-Port USB 3.0 SuperSpeed PCIe Adapter Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JU-P40412-S1 Specs | Chip | Renesas µPD720201 | | Data Transfer Rate | Up to 5 Gb/s | | Connectors | 4 x 9-pin, Type A, USB 3.0, female, external
1 x 15-pin, SATA power connector | | Compliance | Backwards compatible with USB 2.0 / 1.1 devices
Universal Serial Bus 3.0 specification
PCIe Base specification, revision 2.0 | | Supports | Supports per port over-current protection | | Certifications | FCC, CE, RoHS | | Requirements | Desktop PC with an available PCIe slot
Windows 8 (32 / 64-bit) / 7 (32 / 64-bit) / Vista (32 / 64-bit) / XP (32 / 64-bit) / Server 2008 R2 / Server 2003 & 2008 (32 / 64-bit) | | Dimensions (WxHxD) | 2.76 x 0.79 x 4.72" (70.1 x 20 x 120 mm) | | Environmental | Temperature:
Operating: 32 to 120°F (0 to 49°C)
Storage: -4 to 140°F (-20 to 60°C)
Relative Humidity:
Operating: 20 to 80%
Storage: 10 to 90% | | Weight | 0.12 lb (0.05 kg) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 9.6 x 6.8 x 1.7" |
