Product description Multi-Monitors: Maximizing Multitasking Read More Share an HDTV or display, a USB keyboard and mouse, and a microphone between four USB/HDMI computers and devices using the 4x1 USB HDMI KVM Switch with 4Kx2K & PIP from SIIG. This switch provides an extra USB 2.0 port to connect an additional device, such as a printer, memory card reader, or a pen drive that can be accessed among the available computers. Depending on what your HDTV or display can support, this switch is also able to output high resolution video including 3840 x 2160 @ 30 Hz, Full HD 1920 x 1080p, and 1280 x 720p. Additionally, its video capabilities include Picture-in-Picture, which allows three sources to be viewed on a single screen.
The 4x1 USB HDMI KVM Switch is built from a metal housing that helps to reduce electromagnetic interference and provide heat dissipation to enable stable operation and a long life. It operates using a 100-240V power adapter and is compatible with Windows and Mac computers with an HDMI output, as well as HDMI enabled game consoles, Blu-ray and DVD players, and other HDMI devices. Device switching may be accomplished using a manual select button, keyboard hot keys, or the included IR remote control, which has an operating distance of up to 16.4'. Also included with this switch are two USB HDMI KVM cables with audio & mic, four rubber housing pads, and a power adapter. - Supports 720p HD, 1080p Full HD, and up to 3840 x 2160 @ 30 Hz video resolutions
- High-quality circuit design with an external power adapter provides smooth and reliable performance
- The PIP feature allows up to three sources to display simultaneously on a single screen
- A premium metal housing helps to effectively reduce electromagnetic interference while offering rapid heat dissipation for stable operation and long life
- A built-in USB port allows sharing of USB peripherals such as pen drives or printers

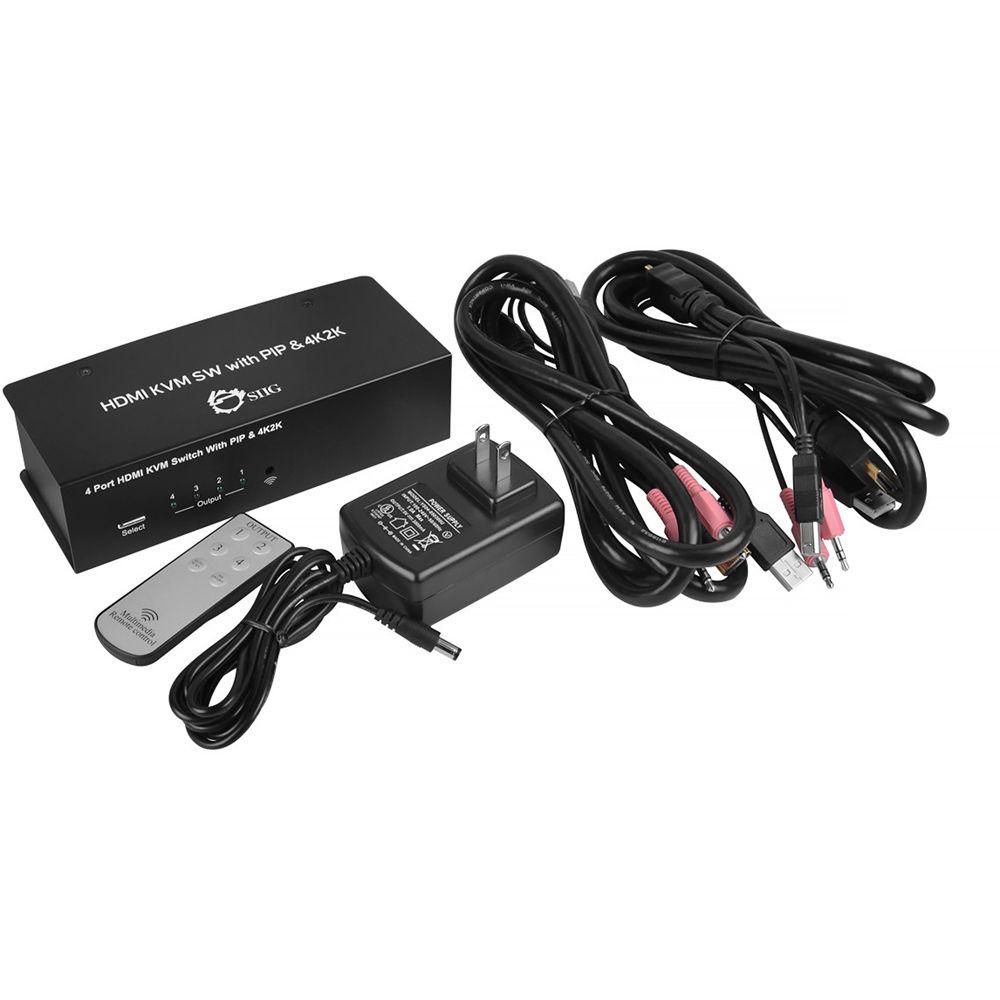

UPC: 662774023915 In the Box SIIG 4x1 USB HDMI KVM Switch with 4Kx2K & PIP 2 x USB HDMI KVM Cable with Audio & Mic 4 x Rubber Housing Pads Remote Control Power Adapter Limited 2-Year Warranty Manual PDF 349.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG 4x1 USB HDMI KVM Switch with 4Kx2K & PIP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG CE-KV0612-S1 Specs | Chipset | Silicon Image Sil9687 + EPF021A + GL850G | | Supported Resolution | 480p, 720p, 1080i, 1080p, 3840 x 2160 @ 30 Hz (PIP monitor up to 1080p only) | | HDMI Frequency | Up to 300 MHz (up to 3 Gb/s) | | USB | Compliant with USB 2.0 and USB 1.1 specifications | | Switching | Switches between four computers using manual select button, keyboard hot keys, or IR remote control | | Remote Control | Up to 16.4' / 5.0 m | | HDMI Distance | Up to 16.4' / 5.0 m | | Interfaces/Ports | 4 x 19-pin, Type-A, HDMI, Female, Input 4 x 4-pin, Type-B, USB 2.0, Female, Input 4 x 3.5 mm, Microphone jack, Output 1 x 19-Pin, HDMI, Female, Output 3 x 4-Pin, Type-A, USB 2.0, Female, Output 1 x 3.5 mm, Microphone jack, Input | | Power Adapter | Input: 100-240 V, 50-60 Hz
Output: DC 5 V / 3 A | | Environmental Conditions | Operating temperature: 32 to 140°F / 0 to 60°C
Storage temperature: -4 to 158°F / -20 to 70°C
Relative humidity: 10 to 90% non-condensing | | Certifications & Standards | FCC, CE, RoHS | | Requirements | Windows and Mac computers with an HDMI output

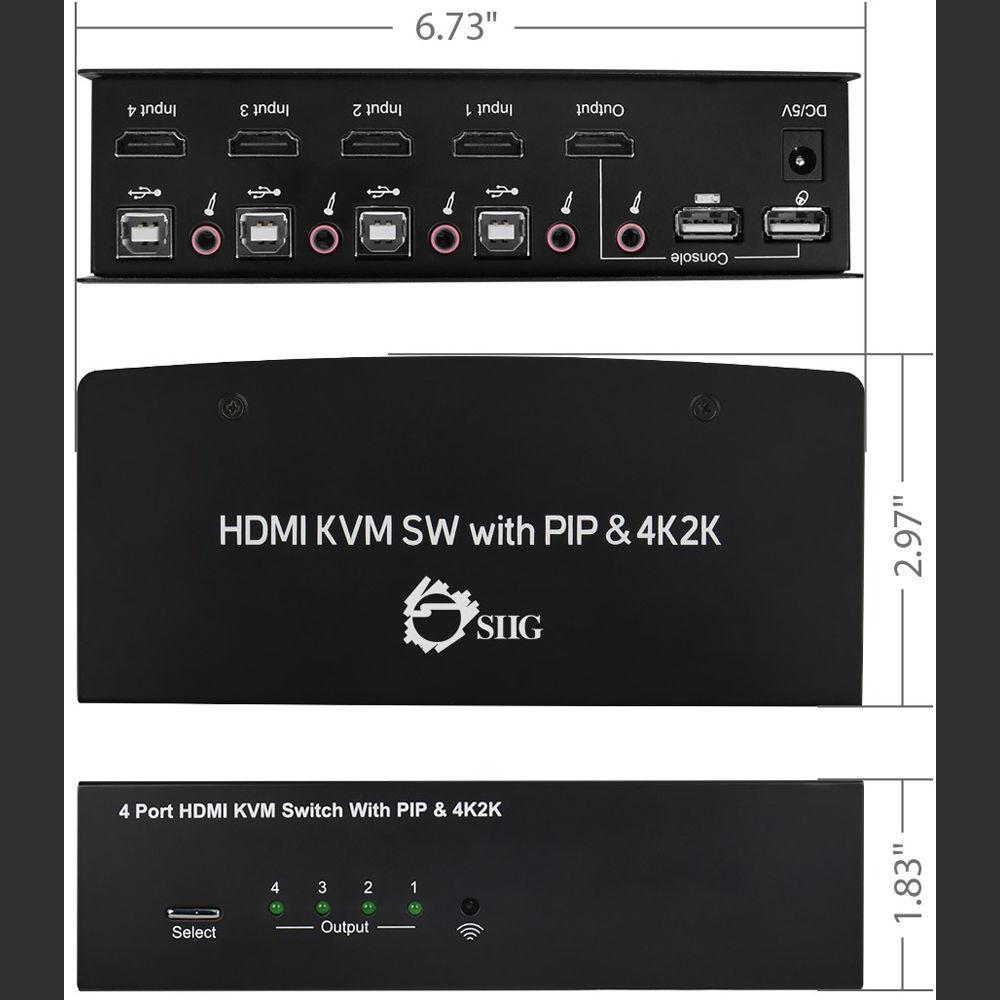

HDMI enabled game consoles, Blu-Ray, DVD players, and other HDMI devices | | Housing Material | Aluminum | | Color | Black | | Country of Origin | China | | Dimensions | 6.73 x 2.79 x 1.83" / 17.09 x 7.09 x 4.65 cm | | Weight | 0.79 lb / 0.36 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 11.1 x 7.5 x 2.9" |
