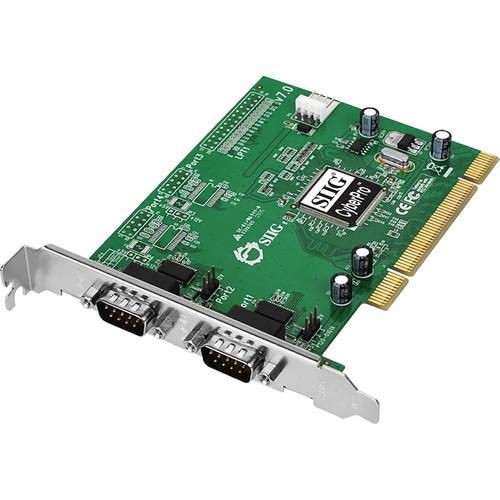

User Manual for SIIG CyberSerial Dual Serial Port PCI Adapter Click to enlarge the picture
Contents of the user manual for the SIIG CyberSerial Dual Serial Port PCI
- Product category: Serial RS-422/RS-232 Cards SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Serial RS-422/RS-232 Cards
|
User manual for the SIIG CyberSerial Dual Serial Port PCI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|
Product description The CyberSerial Dual Serial Port PCI Adapter from SIIG features dual RS232 ports allowing you to connect a variety of devices including handheld scanners, table scanners, POS displays and more directly to your PC. With data transfer rates up to 230Kbps you can transfer data quickly and efficiently. This card is compatible with Windows PCs equipped with a Pentium or equivalent processor running Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000 / NT 4.0 / ME / 98SE / 98 / and 95. - Uses SMT (Surface Mount Technology) type electrolytic capacitors and low ESR (Equivalent Series Resistance) aluminum electrolytic capacitors for improved noise suppression and higher levels of performance and reliability
- Uses SMT (Surface Mount Technology) type crystal for cleaner design than traditional DIP-type crystal and improved grounding, which reduces EMI emission & improves performance and reliability
- Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots
- Two high-speed 16550 UART serial ports (9-pin) support data rate up to 230 Kbps
- Will work as standard RS232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers with silk-screened settings on PCB
- Enhanced bracket design to prevent bending. Connected to PCB with washered screws for a more secure connection
UPC: 662774009025 In the Box SIIG CyberSerial Dual Serial Port PCI Adapter 2 x Jumpers Driver CD User's Manual Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG CyberSerial Dual Serial Port PCI Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JJ-P02012-S7 Specs | Chip | Oxford OXuPC1952 | | FIFO Buffer | Built-in 32-byte FIFO buffer | | Voltage | Supports 3.3V operation with 5V tolerance | | Ports | 2 x 9-pin DB9 RS232 DB9 Male Ports | | Interface | 32-bit PCI | | Form Factor | Full profile | | Environmental Conditions | Operating temperature: 32 to 131°F / 0 to 55°C
Storage temperature: -4 to 140°F / -20 to 60°C
Operating humidity: 10 to 90% RH (non-condensing)
Storage humidity: 5 to 95% RH (non-condensing) | | Certifications | FCC, CE, RoHS | | System Requirements | Pentium or equivalent computer with an available 32-/64-bit PCI or PCI-X slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000 / NT 4.0 / ME / 98SE / 98 / 95 | | Dimensions (HxWxD) | 4.72 x 4.96 x 0.51" / 12 x 12.6 x 1.3 cm | | Weight | 2.88 oz / 81.6 g | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 8.8 x 6.2 x 1.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 15 owners. Add your rating and experience with the product.
