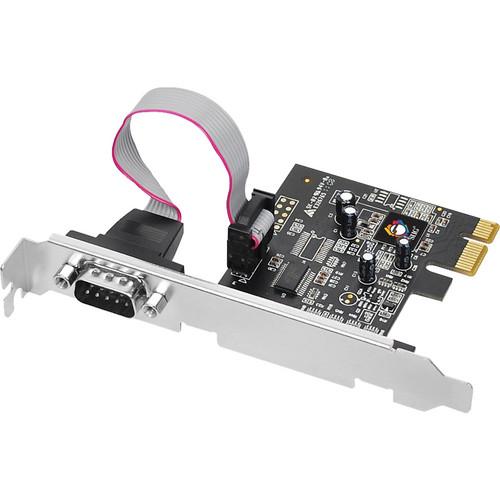

User Manual for SIIG Dual Profile 1-Port RS232 Serial PCIe with 16950 UART Adapter Click to enlarge the picture
Contents of the user manual for the SIIG Dual Profile 1-Port RS232 Serial
- Product category: Serial RS-422/RS-232 Cards SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Serial RS-422/RS-232 Cards
|
User manual for the SIIG Dual Profile 1-Port RS232 Serial contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|
Product description The Dual Profile 1-Port RS232 Serial PCIe with 16950 UART Adapter from SIIG is designed to add one 9-pin RS232 serial port to your PCIe-enabled desktop computer. This PCIe serial adapter features one high-speed 16950 UART serial port with 128-byte FIFO buffers to support data transfer rates up to 230 kb/s. Additionally, this dual profile serial adapter works in PCIe slots of different lane widths. With the included spare low-profile bracket, the adapter can be installed into either standard height or low-profile system chassis. It is a smart solution to add one RS232 serial port for additional serial port device connections. The Dual Profile 1-Port RS232 Serial PCIe with 16950 UART is fully compliant with PCIe Base Specification, Revision 1.1, FCC and CE approved and RoHS compliant. Furthermore, it is fully compatible with a wide variety of Windows operating systems. - Installs in any available PCIe slot
- One high-speed 16950 UART serial port (9-pin) with 128-byte FIFO buffers
- Installs in standard height or low-profile chassis with included brackets
UPC: 662774013992 In the Box SIIG Dual Profile 1-Port RS232 Serial PCIe with 16950 UART Adapter Spare Low-Profile Bracket Driver CD 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG Dual Profile 1-Port RS232 Serial PCIe with 16950 UART Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JJ-E01111-S1 Specs | Chipset | Oxford OXPCIe952 | | Compliance | With PCIe base specification,
Revision 1.1 | | Built-in | 128-byte FIFO buffers dramatically increase data transmit/receive speed under Windows multitasking environment | | Support | Data transfer rate up to 230 kb/s | | Interface Ports | 1, 9-Pin, DB9, serial, male, external | | Standards & Certifications | FCC, CE, RoHS | | Environmental Conditions | Operating temperature: 32 to 122°F (0 to 50°C)
Storage temperature: -4 to 140°F (-20 to 60°C)
Operating humidity: 20 to 80% RH
Storage humidity: 10 to 90% RH | | Requirements | Desktop PC with an available PCIe slot
Windows 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000 | | Dimensions (W x H x D) | 2.9 x 4.72 x 0.71" (7.3 x 11.9 x 1.8 cm) With standard height bracket installed. | | Weight | 2 oz (56.6 g) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.898 x 6.378 x 1.417" |
