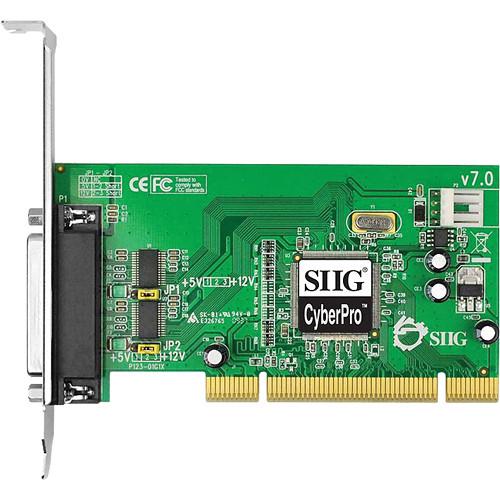

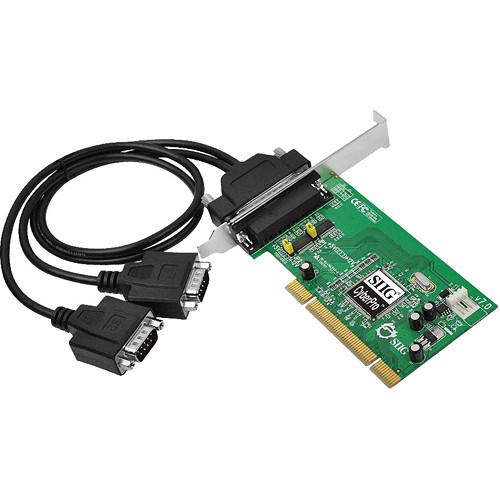

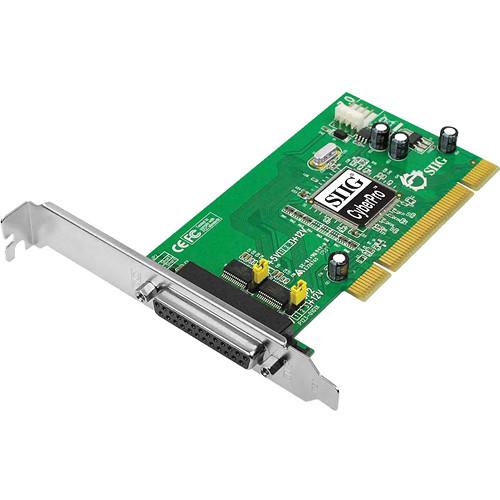

Product description The Dual Profile CyberSerial 2-Port RS-232 PCI Serial Adapter from SIIG adds two high-speed 16550 UART serial ports (9-pin) to your desktop computer. Each serial port can be configured as either standard 5V or 12V power output for connecting serial devices that require power, such as 56K V.90 external modems, ISDN terminal adapters, PDAs, digital cameras, label printers, and more. With a spare low profile bracket, this dual profile adapter card can be installed into standard height or low profile chassis systems, offering the utmost flexibility in system installations. The two RS-232 outputs are achieved via an included adapter cable. The card has one DB25 connector and a DB25 to dual RS-232 cable is also included. - Universal PCI card design that works in 32/64-bit, 3.3V/5V PCI, and PCI-X slots
- Provides two RS-232 16550 UART serial ports with 32-byte FIFO buffers
- Installs in standard height or low profile chassis with included brackets
- Can be configured for 5V or 12V power output

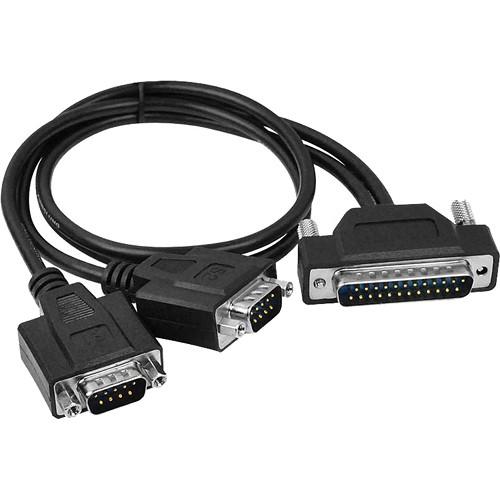

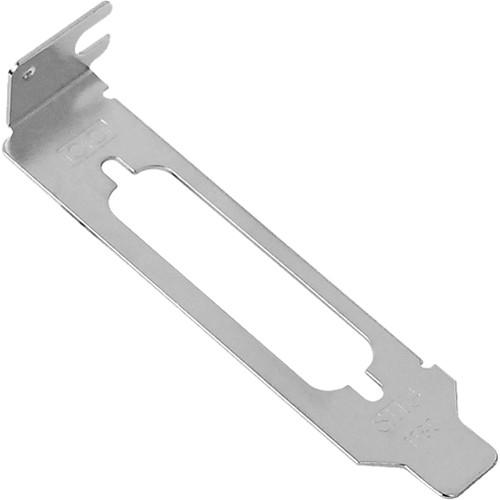

UPC: 662774009049 In the Box SIIG Dual Profile CyberSerial 2-Port RS-232 PCI Serial Adapter Spare Low-Profile Bracket DB25 to Dual RS-232 Cable 2 x Jumpers Driver CD Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG Dual Profile CyberSerial 2-Port RS-232 PCI Serial Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JJ-P20211-S7 Specs | Chipset | Oxford uPCI952 | | Standard | Conforms to PCI v2.2 universal card standard | | Compatibility | PCI-X and 64-bit | | Voltage | 3.3 V operation with 5 V tolerance | | FIFO Buffer | 32-byte FIFO buffers | | Current Protection | Per port 1.1 A over-current protection | | IRQ Sharing | IRQ sharing reduces IRQ conflicts | | Input Interface | PCI | | Output Interface | RS-232 | | Connectors | 1 x DB25, external | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Operating Humidity | 10 to 90% RH (non-condensing) | | Storage Humidity | 5 to 95% RH (non-condensing) | | Requirements | Desktop PC with an available 32/64-bit PCI or PCI-X slot
Windows 8 (32/64-bit)/7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)/Server 2003 and 2008 (32/64-bit)/Server 2008 R2/2000/ME/98SE/98/95 | | Certifications and Standards | FCC, CE, RoHS | | Dimensions (W x H x D) | 5.12 x 4.72 x 0.79" (13.00 x 11.98 x 2.00 cm) | | Weight | 0.13 lb (0.05 kg) |
