User Manual for SIIG PCIe 2.0 SATA 6 Gb s 3i 1 Hybrid Adapter with SSD Socket Click to enlarge the picture
Contents of the user manual for the SIIG PCIe 2.0 SATA 6 Gb
- Product category: Controller Cards SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Controller Cards
 |
User manual for the SIIG PCIe 2.0 SATA 6 Gb contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

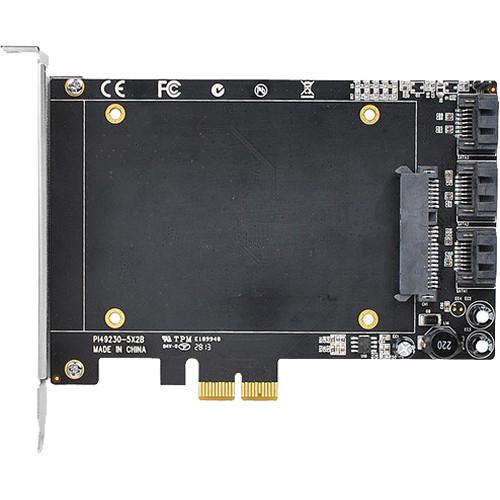

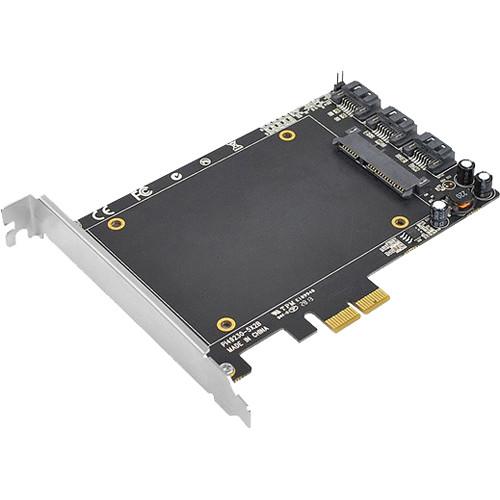

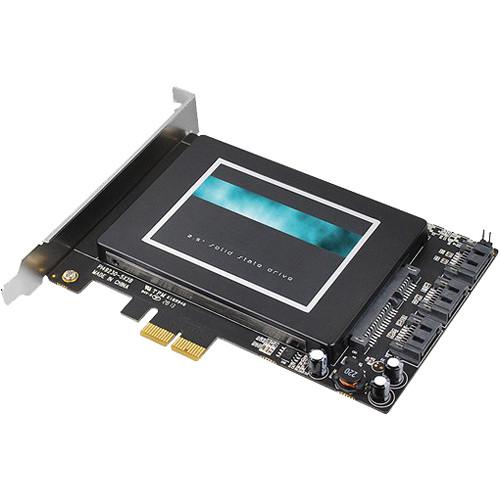

Product description The PCIe 2.0 SATA 6 Gb/s 3i+1 Hybrid Adapter with SSD Socket from SIIG adds three internal SATA 6 Gb/s channels and one SATA SSD socket to your PCIe-equipped system. It is embedded with the fully-automated HyperDuo technology to enable SSD performance at one-third of the cost to work efficiently with 6 Gb/s HDDs. This cost-effective hardware RAID (RAID 0, 1, and 10) SATA host controller enhances system performance with SSD acceleration to reduce system boot-up time, and allows data to be stored in high capacity HDD data storage. - Built-in socket for a 2.5" SATA SSD for saving space and superior drive performance
- Hybrid (HyperDuo) enables 80% of SSD performance at one-third the cost 1
Please Note: HyperDuo automatic storage tiering is only compatible with Windows XP, Vista, 7, and 8. This feature is not fully supported in the Server OSs. close - Hardware RAID (RAID 0, 1, and 10) to offload the host CPU for maximum performance
- Supports port multiplier FIS-based and Native Command Queuing (NCQ) 2
Please Note: Only one port multiplier is supported at one time. Supports up to four drives connected via port multiplier and three single drives for seven drives total. close - Supports TRIM to extend the life of SSDs for maximum durability
- HyperDuo mode supports Safe mode and Capacity mode
- 48-bit LBA mode with support up to 4TB hard disk capacity
- Works with 6 Gb/s SATA HDDs and backwards compatible with 3 Gb/s and 1.5 Gb/s HDDs

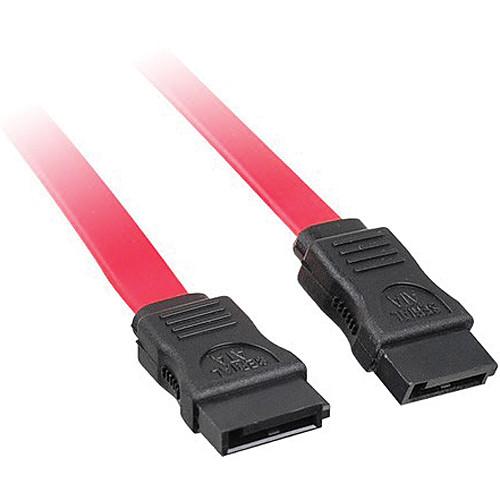

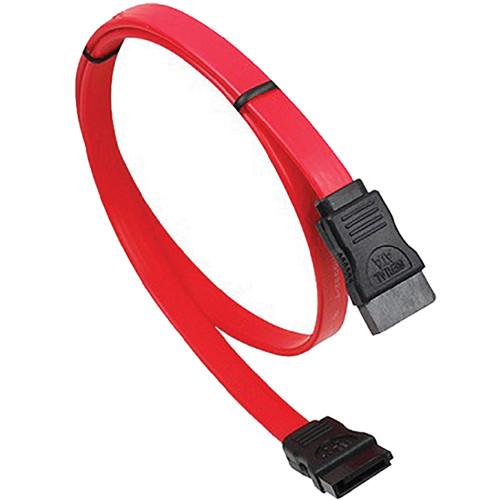

UPC: 662774019741 In the Box SIIG PCIe 2.0 SATA 6 Gb/s 3i+1 Hybrid Adapter with SSD Socket 2 x SATA Data Cables 4 x Screws Driver/Software CD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG PCIe 2.0 SATA 6 Gb s 3i 1 Hybrid Adapter with SSD Socket in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG SC-SA0T11-S1 Specs | Chipset | Marvell 88SE9230 | | Data Transfer Rate | 6 Gb/s | | RAID Level | RAID 0, 1, and 10 | | Input Interface | PCIe 2.0 x2 | | Output Interface | SATA III | | Connectors | 3 x 7-pin SATA, output
1 x SSD socket 15+7-pin SATA, output | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | +14 to +158°F (-10 to +70°C) | | Relative Humidity | 20 to 80% (non-condensing) | | SATA Data Cable Length | 19.5" (49.5 cm) | | Requirements | Desktop PC with an available x2, x4, x8, or x16 PCIe slot
Windows 8 (32/64-bit)/7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)/Server 2003 and 2008 (32/64-bit)/Server 2008 R2 | | Certifications and Compliance | FCC, CE, RoHS | | Dimensions (W x H x D) | 5.83 x 0.79 x 4.72" (14.80 x 2.00 x 11.98 cm) | | Weight | 2.71 oz (77.00 g) |
