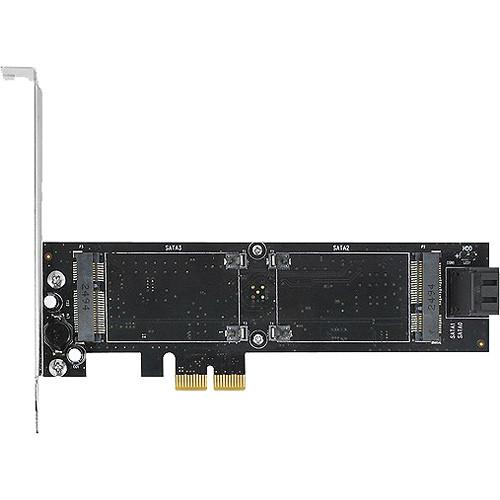

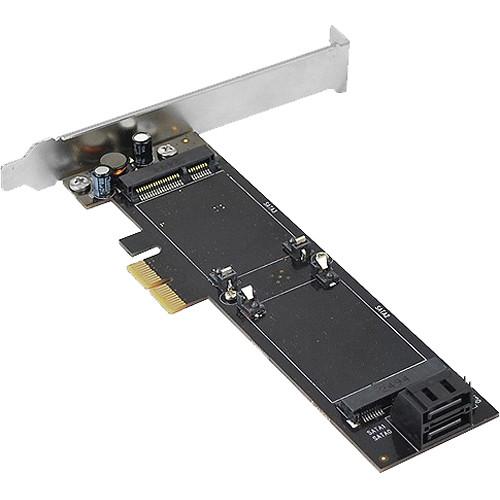

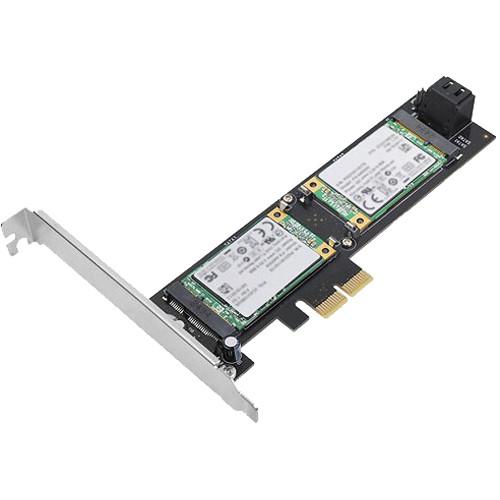

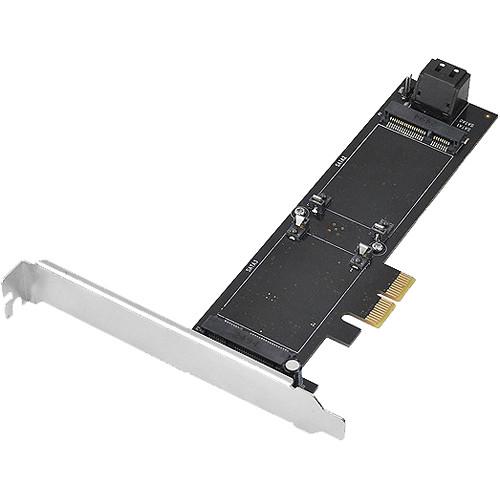

Product description The SATA III 6 Gb/s 2i+2 mSATA SSD Hybrid PCIe 2.0 Host Controller from SIIG is a high performance, cost-effective SATA host controller designed to enable SSD performance at one-third the cost. It is embedded with HyperDuo technology to work effectively with 6 Gb/s HDDs and SSDs. The controller enhances system performance by reducing system boot-up time, while allowing data to be stored on high capacity SATA HDDs. This hybrid PCIe controller comes with two built-in full size mSATA SSD drive sockets for saving space and two internal SATA ports for HDDs or SSDs connection. - Two built-in full size mSATA SSD drive sockets for saving space and superior drive performance
- Automated HyperDuo tiering technology, no need to monitor hot/cold data manually
- HyperDuo mode supports Safe mode and Capacity mode
- An economical way to enable SSD performance at one-third the cost
- Improves system performance to reduce boot-up time of system with demanding applications such as graphic editing tools, gaming, media player, and more
- Allows large data to be stored on high capacity HDDs for cost saving
- Supports port multiplier FIS-based and Native Command Queuing (NCQ) 1
Please Note: Only one port multiplier is supported at one time. Supports up to four drives connected via port multiplier and three single drives for seven drives in total. close - Hardware RAID (RAID 0, 1, and 10) to offload the host CPU for maximum performance
- Inbox drivers enable users to take advantage of OS commands like TRIM to extend the life of SSDs for maximum durability
- Installs in standard height or low profile chassis with included brackets
- Works with 6 Gb/s SATA HDDs and backwards compatible with 3 Gb/s and 1.5 Gb/s HDDs
- Supports 48-bit LBA and verified to work with up to 4TB drives

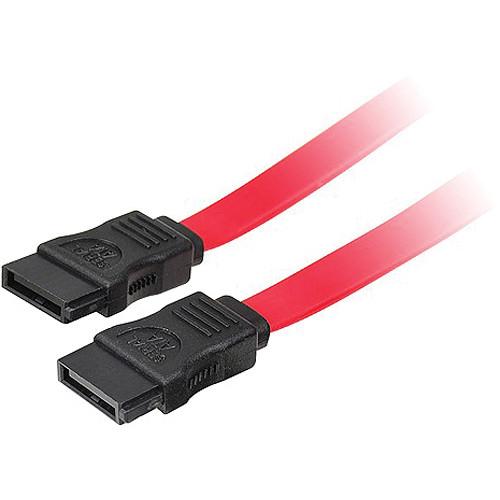

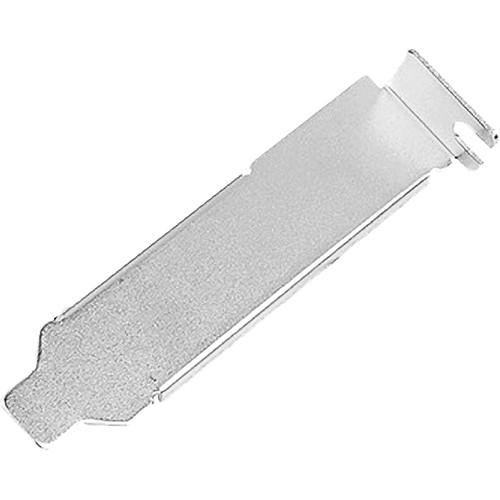

UPC: 662774020372 In the Box SIIG SATA III 6 Gb/s 2i+2 mSATA SSD Hybrid PCIe 2.0 Host Controller 2 x SATA Data Cables Spare Low Profile Bracket Driver CD Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG SATA III 6 Gb s 2i 2 mSATA SSD Hybrid PCIe 2.0 Host Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG SC-SA0U11-S1 Specs | Chipset | Marvell 88SE9230 | | Data Transfer Rate | 6 Gb/s | | RAID Level | RAID 0, 1, and 10 | | Interface | SATA III, PCIe 2.0 | | Bus Connector | PCIe 2.0 x2 | | Connectors | 2 x 7-pin SATA (female)
2 x 52-pin mini-SATA slots (female) | | Operating Temperature | 32 to 131°F (0 to 55°C) | | Storage Temperature | +14 to +158°F (-10 to +70°C) | | Relative Humidity | 20 to 80% (non-condensing) | | Requirements | Desktop PC with an available x2, x4, x8, or x16 PCIe slot
Windows 8 (32/64-bit)/7 (32/64-bit)/Vista (32/64-bit)/XP (32/64-bit)/Server 2003 and 2008 (32/64-bit)/Server 2008 R2/Server 2012 | | Certifications and Compliance | FCC, CE, RoHS | | Dimensions (W x H x D) | 6.54 x 4.72 x 0.79" (16.61 x 11.98 x 2.00 cm) | | Weight | 1.7 oz (50.0 g) |
