User Manual for SIIG USB 2.0 4-Port Extender Click to enlarge the picture
Contents of the user manual for the SIIG USB 2.0 4-Port Extender
- Product category: USB Extenders SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG USB Extenders
 |
User manual for the SIIG USB 2.0 4-Port Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

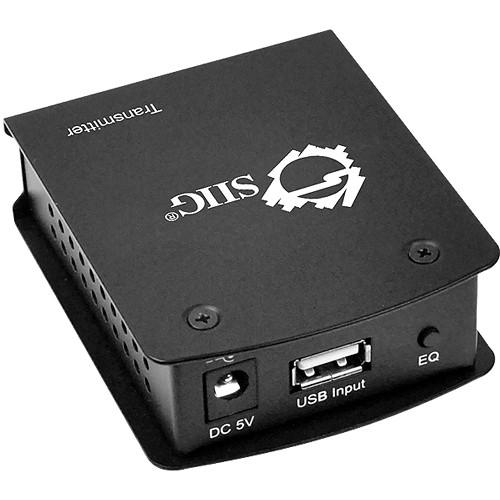

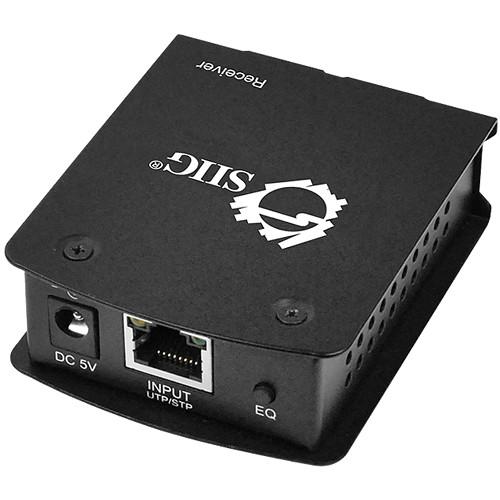

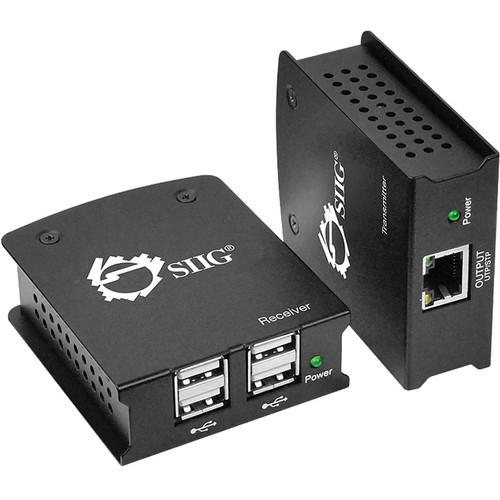

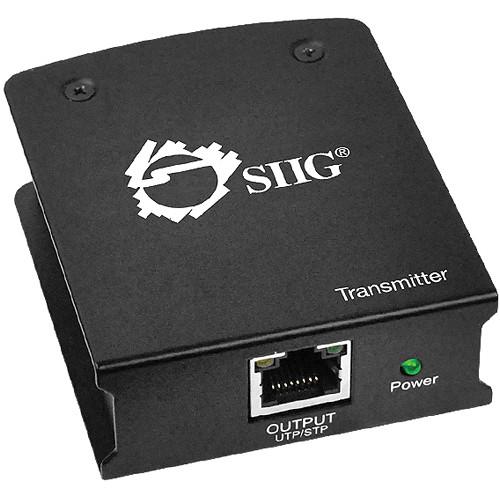

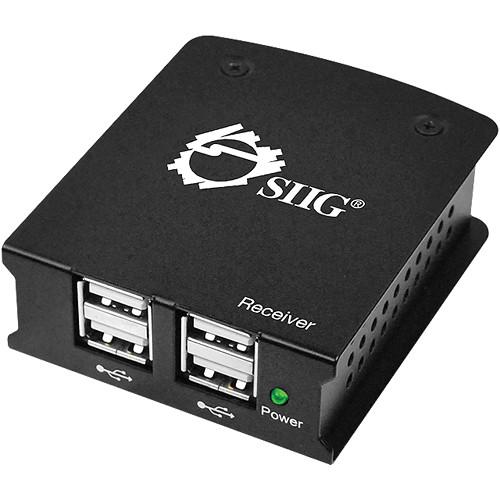

Product description The black USB 2.0 4-Port Extender from SIIG enables you to extend the connection distance between the host system and the USB devices up to 260’ (80m) over a CAT6 cable, thereby resolving the problem of standard USB cable distance limitation. It consists of a transmitter and receiver unit. The extender allows connecting up to 4 USB devices remotely from your desktop or notebook system. It supports high-speed USB data transfer rates up to 480 Mb/s, hot-swapping, and plug-and-play functionality, and is easy to setup with no driver installation required. This extender is a versatile solution to connect a broad range of remote peripherals such as video cameras, security surveillance equipment, keyboards, printers, and many more. - Extend USB distance up to 260' (80m) via a CAT6 cable
- Connects up to 4 USB devices
- Supports high-speed USB 2.0 and is backwards compatible with USB 1.1 devices
- USB 2.0 data transfer rate up to 480 Mb/s
- No driver installation required
- Supports plug-and-play and hot-swap
- Metal housing for better RF shielding
- Integrated equalizer and EQ button to adjust signal quality over long cable runs
- Certifications / Standards: FCC, CE, RoHS
UPC: 662774019260 In the Box SIIG USB 2.0 4-Port Extender (Black) Transmitter Unit Receiver Unit Power Adapter USB 2.0 Type A Male to Type A Male Cable 8 x Housing Rubber Pad Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG USB 2.0 4-Port Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JU-EX0111-S1 Specs | Housing | Transmitter & Receiver: Metal | | Chipset | LT8311 | | Power Adapter | Input: 100 to 240 VAC, 50/60 Hz
Output: 5 VDC, 2 A | | Temperature | Operating: 32-113°F (0-45°C)
Storage: -4-140°F (-20-60°C) | | Relative Humidity | 0 to 90% RH (non-condensing) | | Connectors | Transmitter
Input: 1 x 4-pin, USB Type-A, female
Output: 1 x 8P8C with 2 LED indicators, RJ45, female
Receiver
Input: 1 x 8P8C with 2 LED indicators, RJ45, female
Output: 4 x 4-pin, USB Type-A, female | | System Requirements | PC or Mac system with an available USB port
Windows 8 ready | | Dimensions (W x H x D) | Transmitter/Receiver: 2.52 x 3.03 x 1.00" (64.00 x 76.96 x 25.40 mm) | | Weight | Transmitter/Receiver: 0.25 lb (0.11 kg) | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 10.4 x 6.9 x 3.2" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 62 owners. Add your rating and experience with the product.
