User Manual for SIIG USB 3.1 USB Type-C Dual 4K Docking Station with Power Delivery Click to enlarge the picture
Contents of the user manual for the SIIG USB 3.1 USB Type-C Dual
- Product category: Docking Stations & Port Replicators SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Docking Stations & Port Replicators
 |
User manual for the SIIG USB 3.1 USB Type-C Dual contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|
Product description Provided by third party: Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer. Industry Recognized Display Technology from DisplayLink - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort. Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor. Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound. USB-C PD Charging - Supports up to 60W power output to charge your laptop. Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology. Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously. Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port. Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively. Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status. OS Compatibility - Supports various Windows and Mac computers. Note: The adapter does not work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
- Key Features
-
- Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer

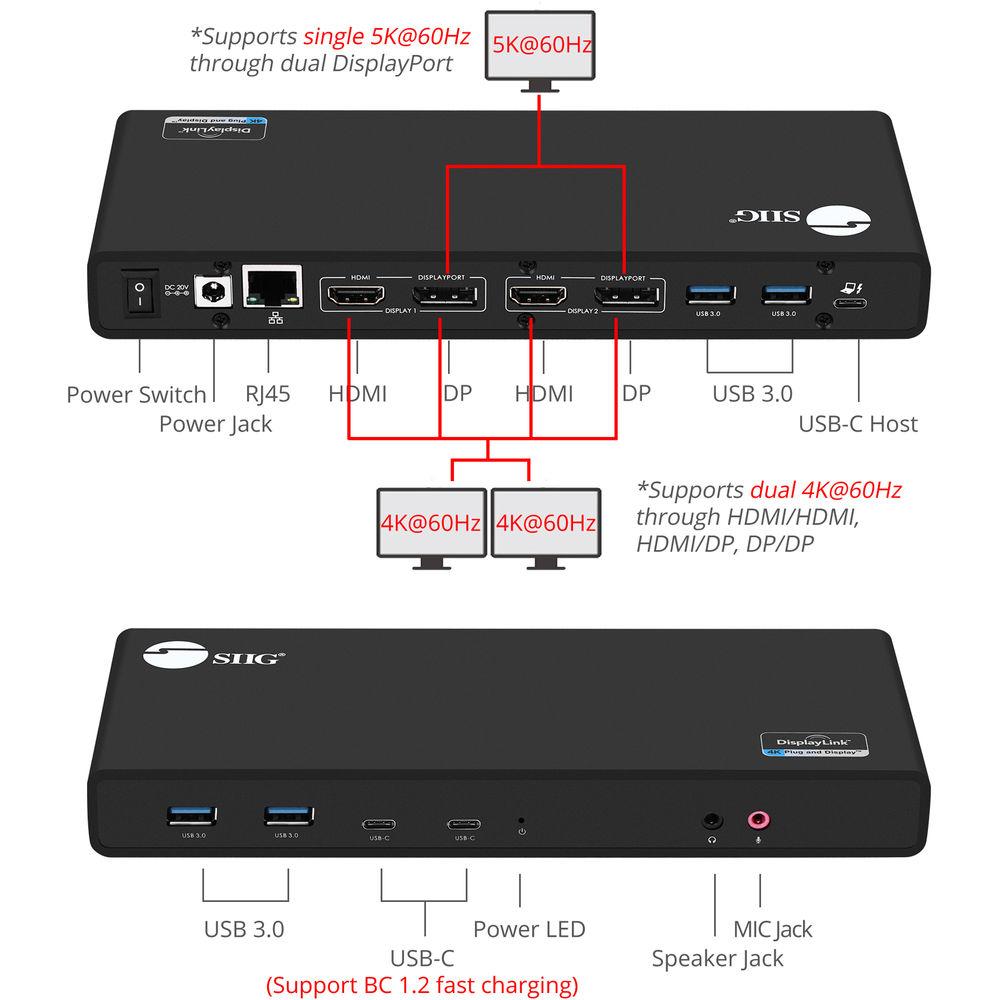

- Industry Recognized Display Technology from DisplayLink - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
- Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor

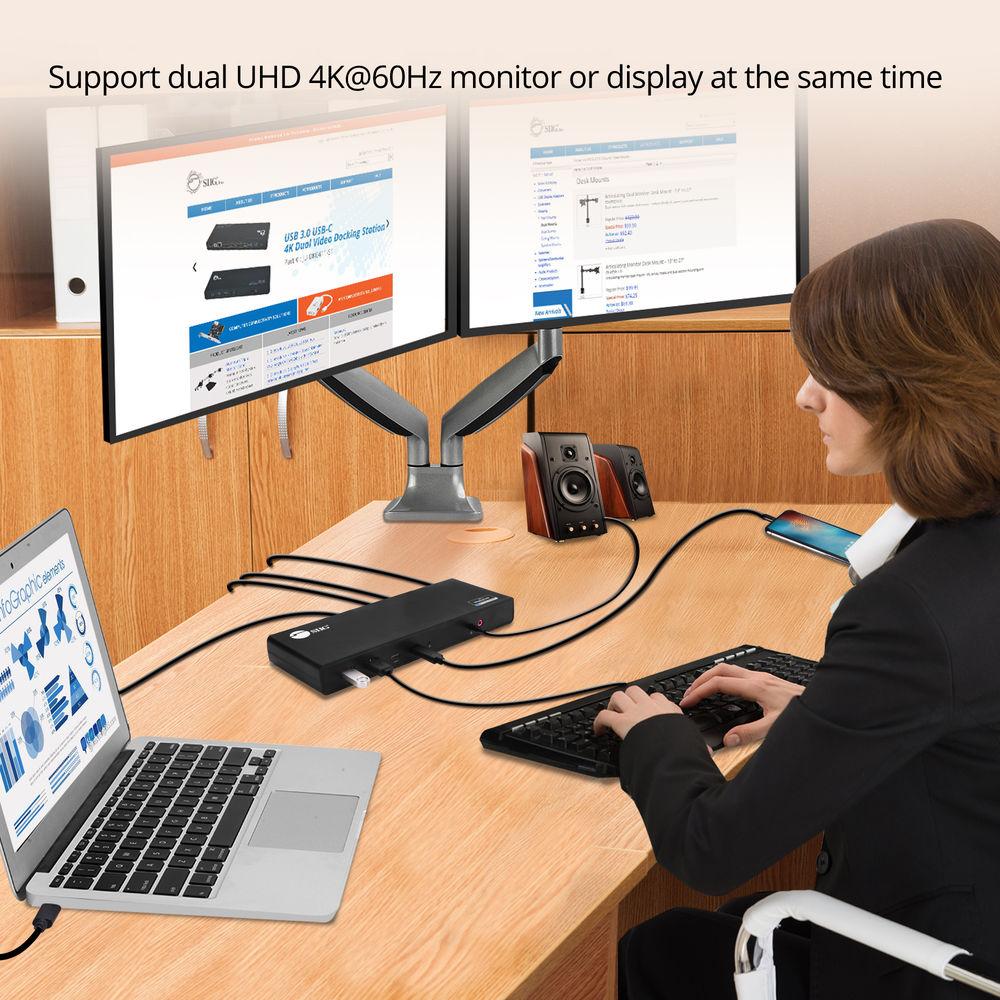

- Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound

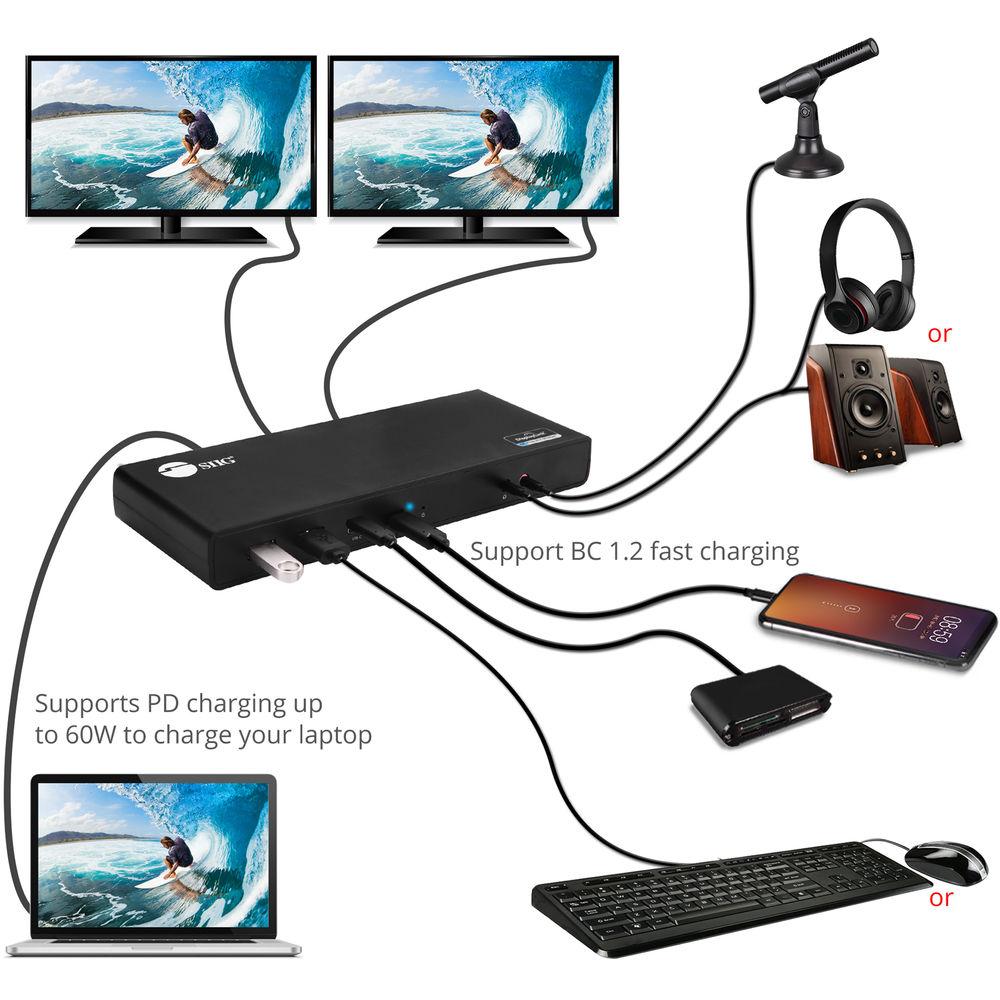

- USB-C PD Charging - Supports up to 60W power output to charge your laptop
- Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
- Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
- Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
- Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
- OS Compatibility - Supports various Windows and Mac* computers
- Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier

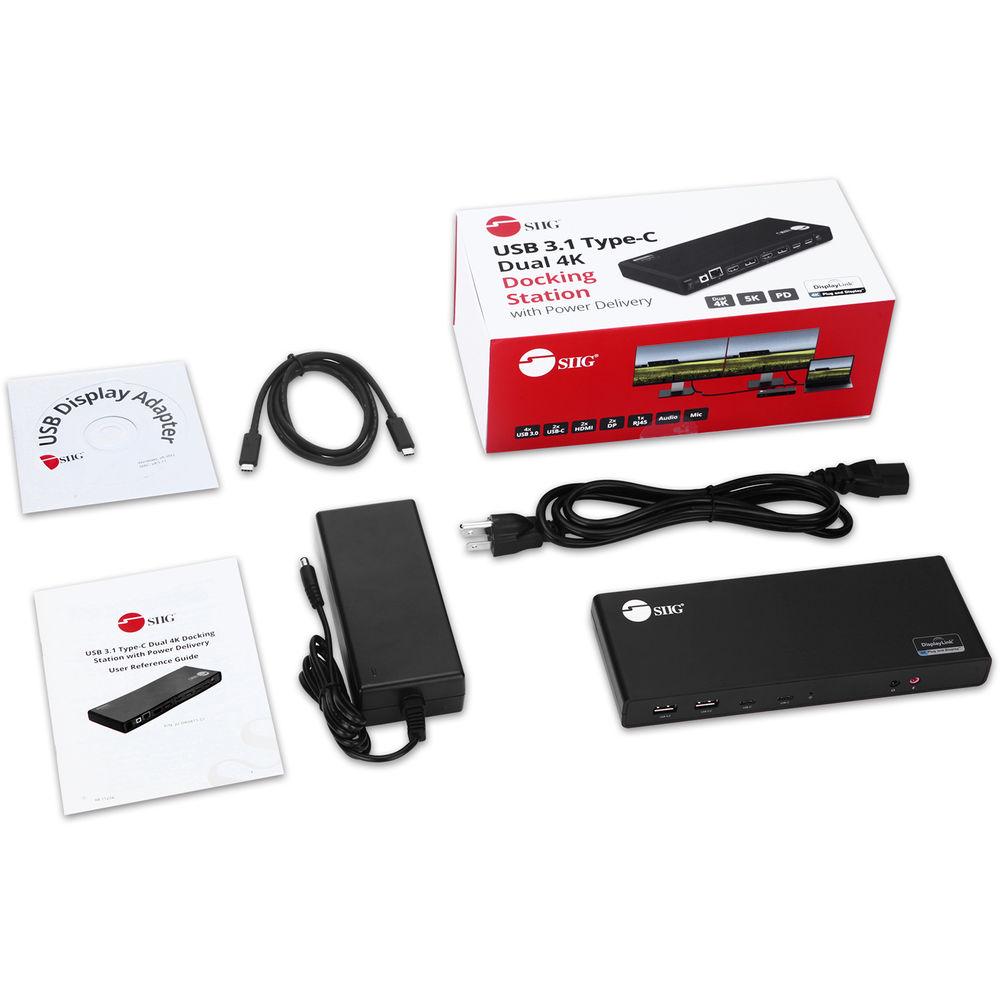

UPC: 662774041254 In the Box SIIG USB 3.1 USB Type-C Dual 4K Docking Station with Power Delivery (60W) USB 3.1 Type-C Dual 4K Docking Station with Power Delivery Power Adapter (DC 20V/5A) USB-C (M) to USB-C (M) cable Driver CD User Reference Guide Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG USB 3.1 USB Type-C Dual 4K Docking Station with Power Delivery in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JU-DK0811-S1 Specs | | | Product Type | Docking station | | Width | 3.1 in | | Depth | 8.8 in | | Height | 1 in | | Weight | 12.31 oz | | Enclosure Color | Black | | | | Data Link Protocol | Gigabit Ethernet | | | | Interfaces | 4 x USB-C - 24 pin USB-C
4 x USB 3.1 Gen 1 - 9 pin USB Type A
2 x display / video - DisplayPort output - 20 pin DisplayPort
1 x network - 10Base-T/100Base-TX/1000Base-TX - RJ-45
2 x audio / video - HDMI output - 19 pin HDMI Type A
1 x audio - mini-phone stereo 3.5 mm
1 x microphone - mini-phone 3.5 mm | | | | Cables Included | 1 x USB-C cable - external | | Features | 60W power delivery | | Compliant Standards | RoHS | | | | Power Device | Power adapter | | Voltage Required | AC 100/240 V / DC 20 V (50 - 60 Hz) | | | | OS Required | Microsoft Windows 7 / 8 / 8.1 / 10 (32/64 bits), Apple MacOS X 10.7 - 10.13.3 | | | | Service & Support | Limited warranty - 2 years | | | | Min Operating Temperature | 32
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 94 owners. Add your rating and experience with the product.
