User Manual for SIIG USB over IP 1-Port Click to enlarge the picture
Contents of the user manual for the SIIG USB over IP 1-Port
- Product category: Network Interface Cards & Adapters SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Network Interface Cards & Adapters
|
User manual for the SIIG USB over IP 1-Port contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

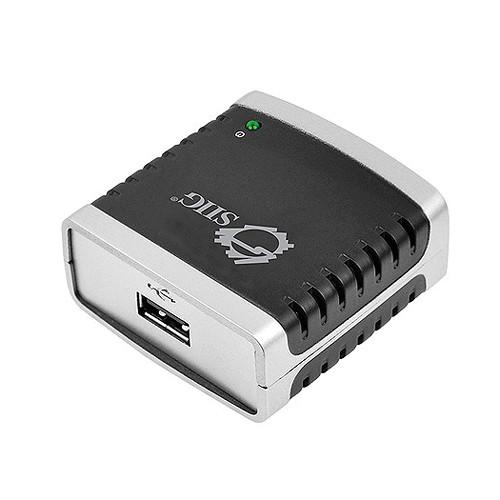

Product description The black & silver USB over IP 1-Port from SIIG allows you to share a USB device such as an external hard disk, a multifunction printer, a card reader, a webcam, and more, within a network. It can connect up to four devices with a USB hub (sold separately) for multiple device sharing. This versatile device eliminates the hassle of USB cable length limitation. You can simply connect the port to a wireless router to access and share your USB device(s) wirelessly. It is a cost-saving tool to minimize duplication of peripherals for home and office use. - Share a USB 2.0 device across all the systems within your IP network (does not support across multiple subnet networks)
- Connect up to 4 devices using an additional USB hub
- Wirelessly share your USB device(s) through your wireless router
- Works with USB printers, scanners, storage drives, card readers, cameras, and more
- Supports LPR, DHCP, UPnP protocols
UPC: 662774017884 In the Box SIIG USB over IP 1-Port (Black & Silver) 100 to 240V Power Adapter 3.3' RJ-45 Network Cable Software CD Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG USB over IP 1-Port in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG ID-DS0611-S1 Specs | Chipset | Elite Silicon E2868M4 | | Connectors | Input: 1 x RJ-45 8P8C with 2 x LED indicators
Output: 1x USB 2.0 type A female (4-pin) | | Compliance | USB 2.0 specification
Backwards compatible with USB 1.1 | | Standards | IEEE 802.3, 802.3u, 10/100 Base Ethernet | | Network Protocol | TCP/IP | | Support | HTTP server, LPR, DHCP, Auto-MDIX | | Cable (Included) | 1 x 3.3' (1 m) RJ-45 network cable
Color: Black | | Power Adapter (Included) | Input: 100 to 240 V, 0.5 A
Output: 5 V/2 A
Power Plug:
Outer Diameter: 0.1" (3.5 mm)
Inner Diameter: 0.05" (1.3 mm)
Length: 0.4" (9.5 mm) | | Requirements | Desktop or notebook computer within a network
Windows 8 (32/64-bit)
Windows 7 (32/64-bit)
Windows Vista (32/64-bit)
Windows XP (32/64-bit)
Windows Server 2008 & 2003 (32/64-bit)
Windows Server 2008 R2 | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | 14 to 140°F (-10 to 60°C) | | Relative Humidity | < 85% (non condensing) | | Certifications | FCC, CE, RoHS | | Housing | Plastic | | Dimensions (W x H x D) | 2.05 x 2.09 x 0.94" (52.07 x 53.08 x 23.88 mm) | | Weight | 0.09 lb (0.04 kg) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 8.268 x 5.591 x 2.126" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 23 owners. Add your rating and experience with the product.
