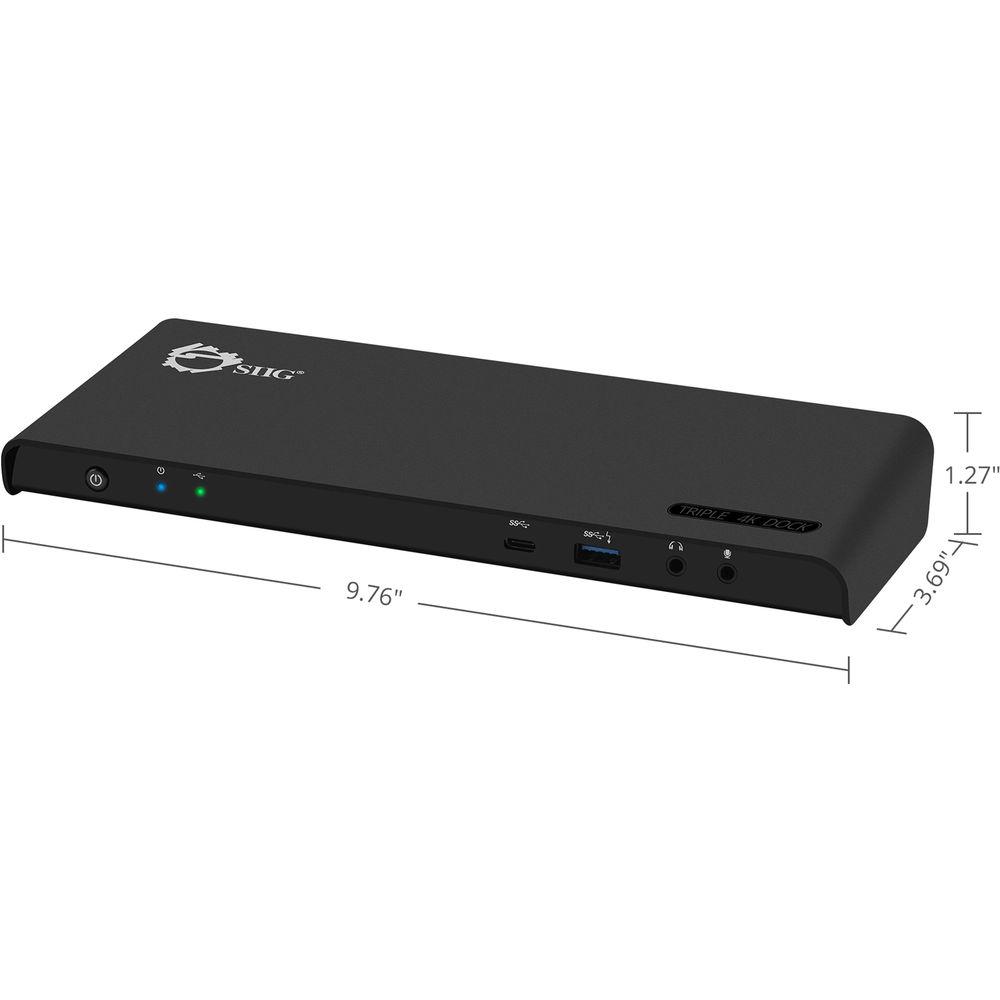

User Manual for SIIG USB Type-C Triple 4K Display Docking Station with PD Charging

Click to enlarge the picture
SIIG USB Type-C Triple 4K Display Docking Station with PD Charging Contents of the user manual for the SIIG USB Type-C Triple 4K Display
  • Product category: Docking Stations & Port Replicators SIIG
  • Brand: SIIG
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for SIIG Docking Stations & Port Replicators

SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging SIIG USB Type-C Triple 4K Display Docking Station with PD Charging
User manual for the SIIG USB Type-C Triple 4K Display contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any SIIG product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!



Product description

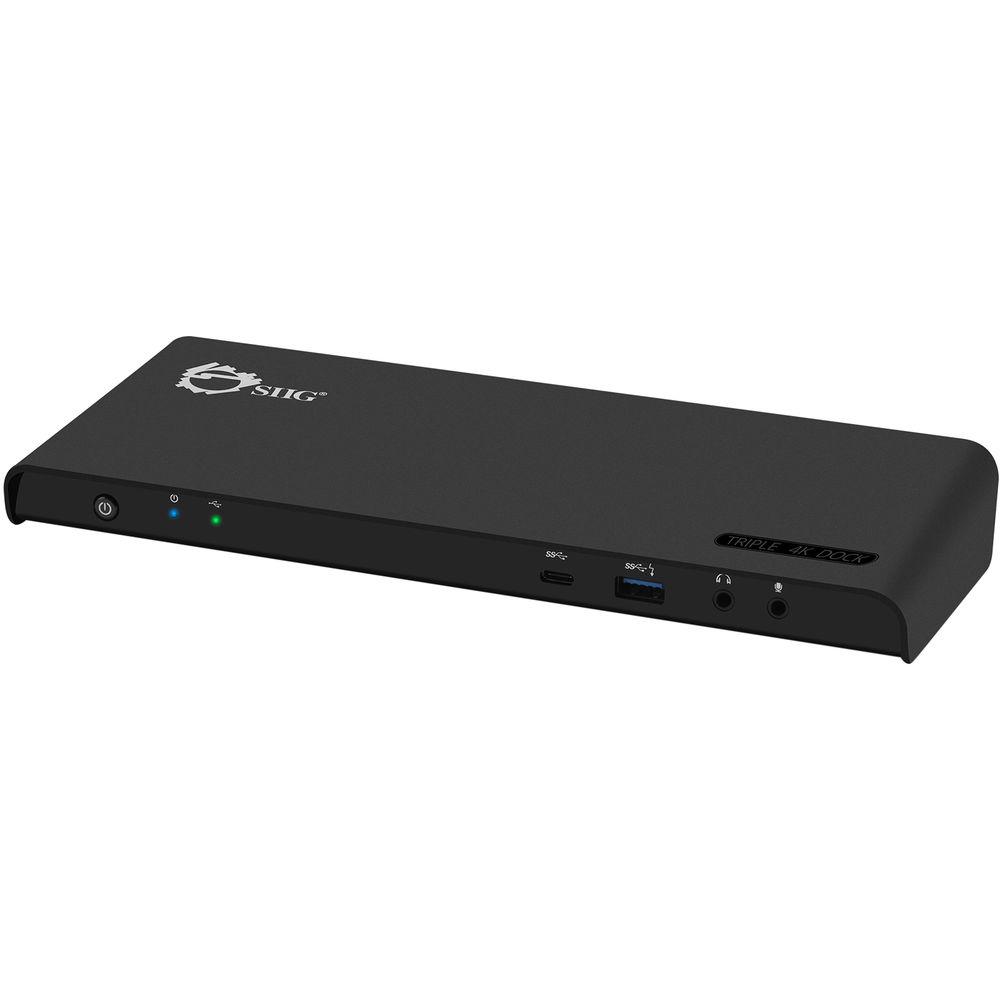

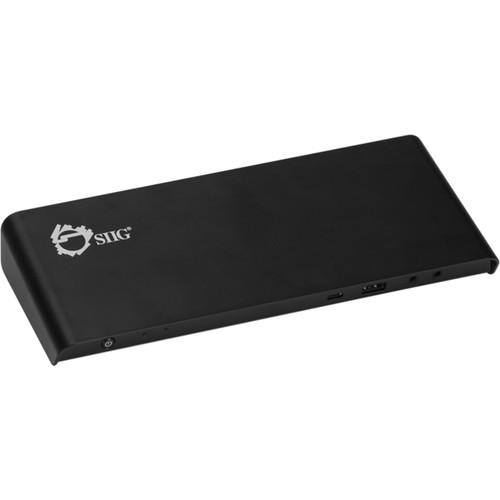

Expand your computer's viewing and connectivity capabilities with the USB Type-C Triple 4K Display Docking Station from SIIG. This docking station is designed to provide up to 60W to your system via Power Delivery technology over USB Type-C, which allows you to get work done while charging your battery. Furthermore, this dock is Thunderbolt 3 compatible and has a plethora of ports to support your productivity, including a single USB 3.0 Type-C port and three USB 3.0 Type-A ports.

In terms of visuals, the USB Type-C Triple 4K Display Docking Station can support triple display setups via its single HDMI port and Thunderbolt 3/DisplayPort equipped USB Type-C output. The maximum resolution this dock can support is 4K at 30 Hz. Moreover, this dock can access wireless networks with its integrated Gigabit Ethernet port. Other features of this dock includes a durable ABS plastic construction, a compact and portable design, and compliance with Mac and Windows operating systems.
    A Plethora of Ports
  • This dock has a wide variety of ports for your USB Type-C enabled computer. It includes one USB Type-C port for charging and syncing, one HDMI port, one Gigabit Ethernet jack, three USB 3.0 Type-A ports, and two flash memory card slots.
    USB and Flash Memory
  • This dock allows you to connect multiple USB peripherals simultaneously with its SuperSpeed USB 3.0 Type-A ports, which support a data transfer rate up to 5 Gb/s. Two shared flash memory card slots support various SD and microSD flash memory cards with up to a 2TB capacity. 1
    Please Note:
    Note: Only one memory card slot can be used at any one time. close

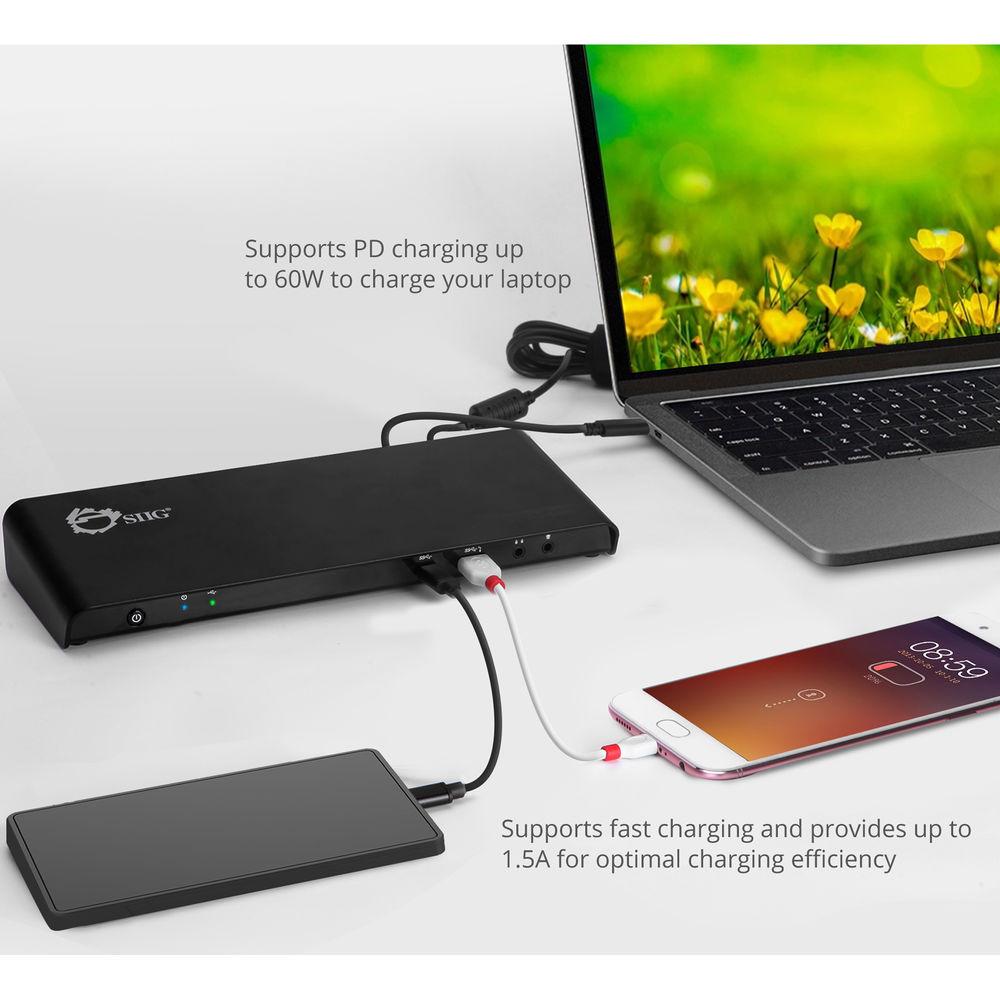

    Power Delivery
  • Advanced charge and sync USB Type-C port supports Power Delivery protocol and enables charging from a PD compatible power adapter to a computer and connects with many USB devices for fast data communication.

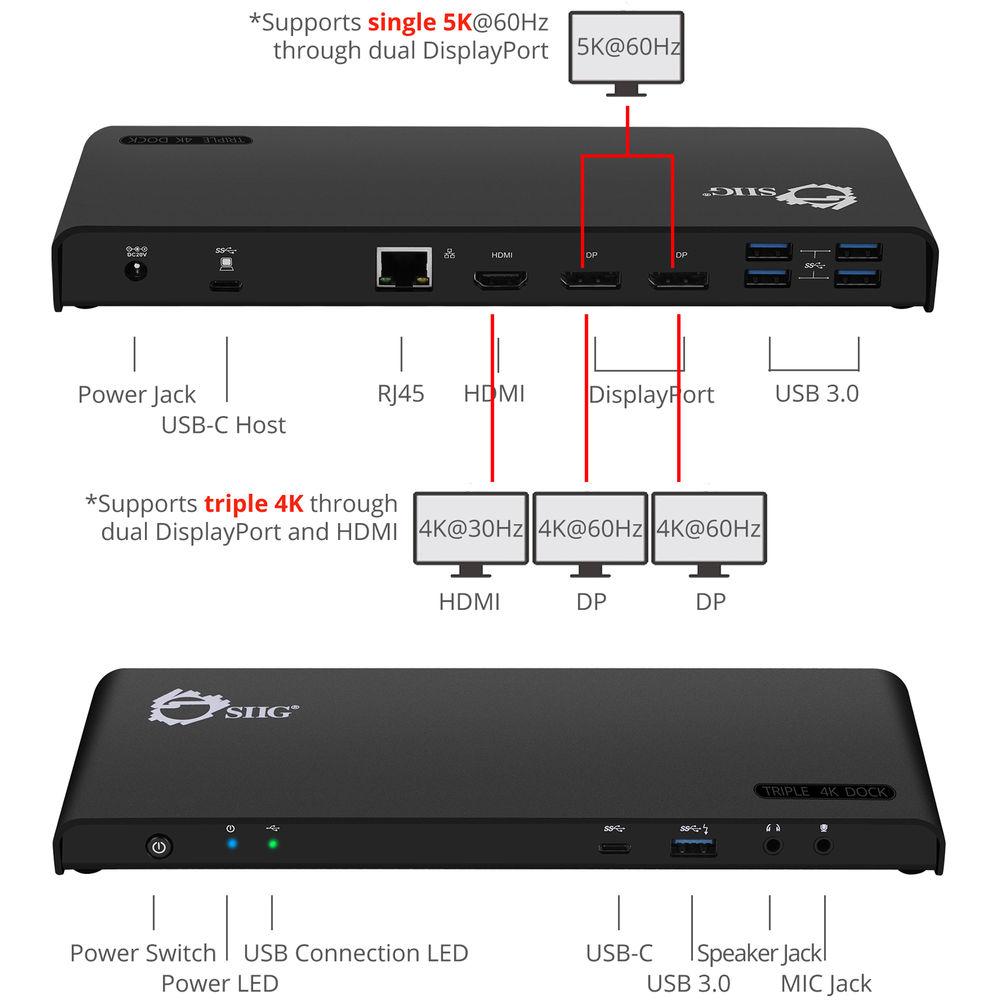

    Display Connectivity
  • Simply connect your HDMI monitor or TV to the dock's available HDMI port or DisplayPort over USB Type-C which streams audio and video signals up to 4K UHD resolution.
    DC Power
  • The built-in DC power jack provides an option to connect to an external power source as needed (power adapter is not included).
    Plug-and-Play
  • No driver installation or power adapter required.
    Compact Design
  • This dock is built to be easy to carry when you're on the go and takes up minimal space when you're settled.
    System Compatibility
  • This dock is compatible with Mac or Windows computers that are equipped with DisplayPort Alternate mode for audio/video signals and USB Power Delivery system charging technology over USB Type-C.

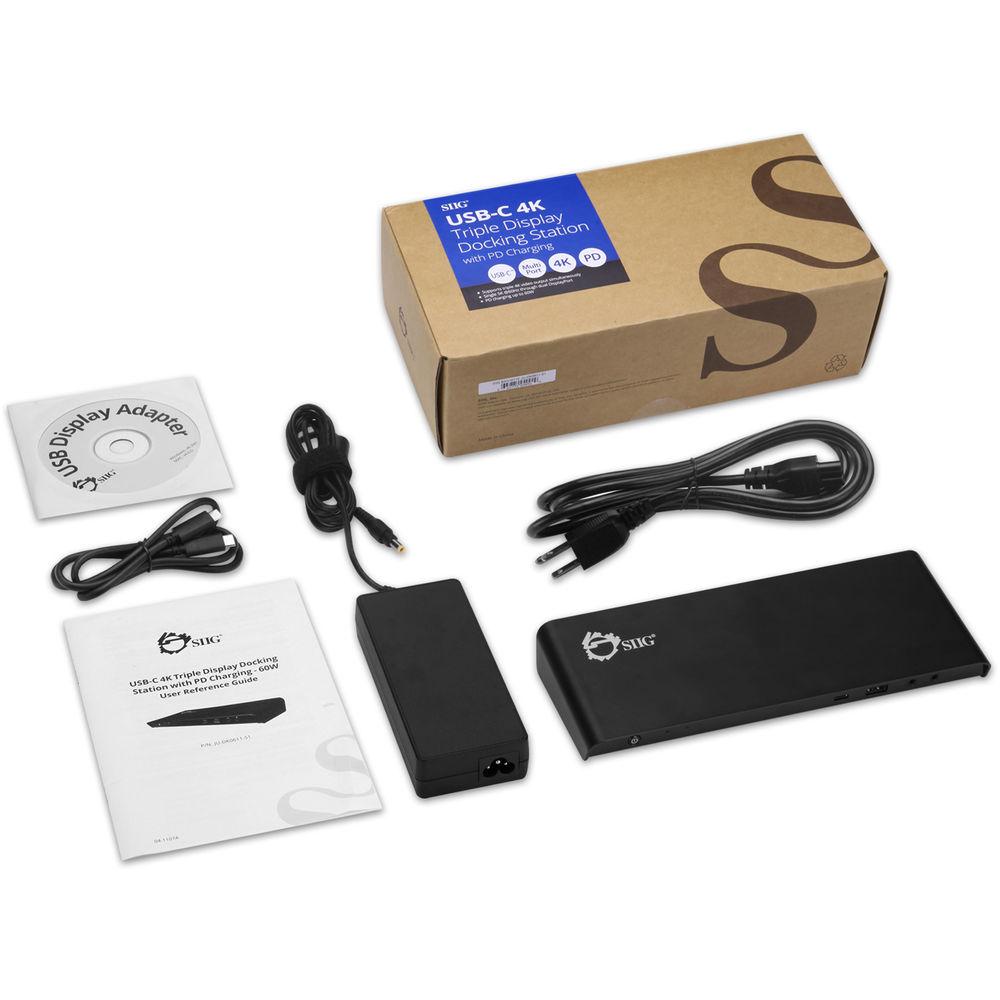

UPC: 662774040929 In the Box SIIG USB Type-C Triple 4K Display Docking Station with PD Charging (60W)
  • Limited 2-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the SIIG USB Type-C Triple 4K Display Docking Station with PD Charging in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    SIIG JU-DK0611-S1 Specs

    USB 3 x USB 3.1 Gen 1 Type-A
    1 x USB 3.1 Gen 1 Type-C
    Thunderbolt 1 x Thunderbolt 3 (60 W)
    Ethernet 1 x RJ45 (10/100/1000 Mbps)
    FireWire None
    Display 1 x DisplayPort 1.2 (Female)
    1 x HDMI 1.4 (Female)
    Audio None
    Memory Card Slots 1 x SD (Unspecified Type)
    1 x microSD (Unspecified Type)
    System Connection 1 x USB 3.1 Gen 1 Type-C Male
    Connection Type Integrated Cable
    Chipset PS176
    Realtek RTL8153
    Number of Displays Supported 3
    Maximum Resolution Supported 3840 x 2160 at 30 Hz
    Data Transfer Rate 40 Gb/s Thunderbolt 3
    UASP Support No
    Power Source Bus Powered
    DC Input Power 5 VDC at 2 A
    Certifications CE, FCC, RoHS, as per Manufacturer
    Operating Temperature 32 to 104°F / 0 to 40°C (Recommended)
    Operating Humidity 0 to 85% (Recommended)
    Storage Temperature -4 to 140°F / -20 to 60°C
    Cable Length 4.7" / 119.38 mm
    Enclosure Material ABS
    Lock Slot No
    Dimensions 4.5 x 2.2 x 0.8" / 114.3 x 55.88 x 20.32 mm
    Weight 0.2 lb / 91 g
