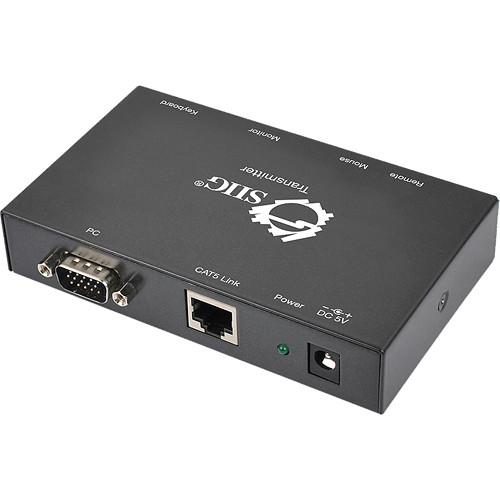

User Manual for SIIG USB VGA KVM Console over CAT5 Extender Click to enlarge the picture
Contents of the user manual for the SIIG USB VGA KVM Console over
- Product category: KVM Extenders SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG KVM Extenders
 |
User manual for the SIIG USB VGA KVM Console over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

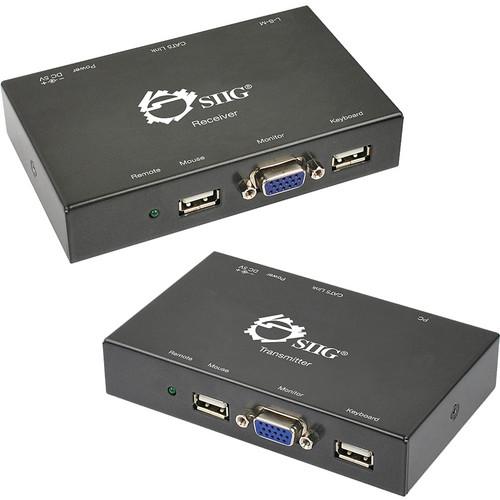

Product description The USB VGA KVM Console Extender from SIIG allows you to locally or remotely control a computer over a CAT5 or CAT6 cable. With a range of up to 500’ (152m), this extender consists of a transmitter and a receiver unit, and can be connected to a KVM console (keyboard and mouse via USB; monitor via VGA) at one end and a computer at the other. It is suitable for use in server rooms, laboratories, control rooms, and in environments that require computers to be accessed remotely or monitored from a more comfortable location. - Allows you to control a server or computer remotely over a CAT5/6 UTP cable
- Local outputs for USB keyboard and mouse and a VGA display
- Supports high-resolution video up to 1920 x 1080
- Transmission range of up to 500' (152m)
- Supports VGA, SVGA, and MultiSync monitors
- Local monitor support for DDC, DDC2, and DDC2B
- Metal housing for better RF shielding
- No software installation required
UPC: 662774019680 In the Box SIIG USB VGA KVM Console over CAT5 Extender Transmitter Unit Receiver Unit 2 x Power Adapter VGA to USB Type A Cable 4 x Rubber Pad Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG USB VGA KVM Console over CAT5 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG CE-KV0511-S1 Specs | Resolutions Supported | Up to 1920 x 1080 | | Transmission Distance | Up to 500' (150 m) | | Switches | Adjusting;

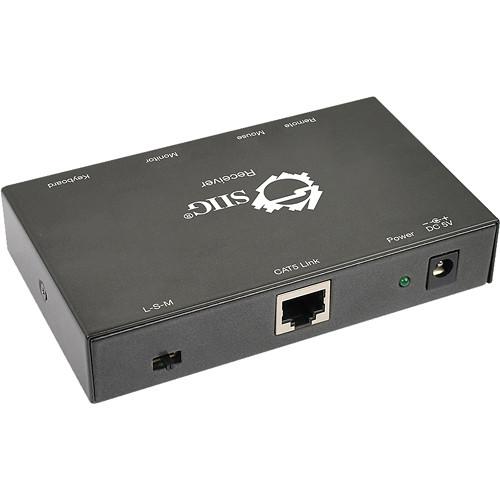

S: Under 164' (50 m), up to 1920 x 1080
M: 164 to 328' (50 to 100 m), up to 1280 x 1024
L: 328 to 492' (100 to 150 m), up to 1024 x 768 | | Video Bandwidth | 150 MHz | | Horizontal Frequency | 30 to 100 kHz | | Vertical Frequency | 43 to 120 Hz | | Housing | Metal | | | | Transmitter | 1 x 15-pin D-Sub VGA, male, input

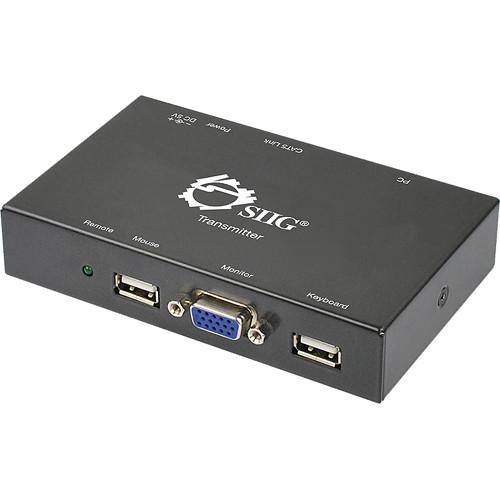

1x 15-pin D-Sub VGA, female, output
1 x 8-pin, RJ-45, output

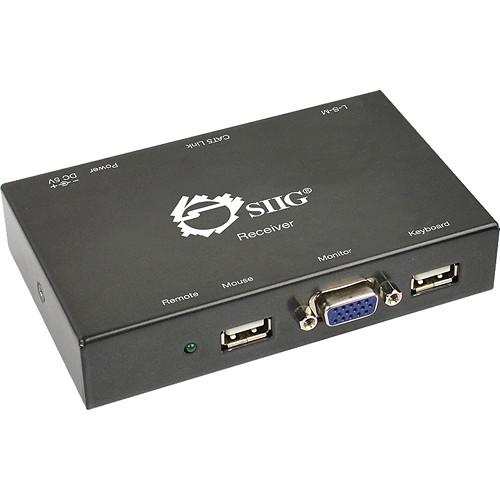

2 x 4-pin USB Type A, female | | Receiver | 1 x 8-pin, RJ-45, input
1 x 15-pin D-Sub VGA, female, output

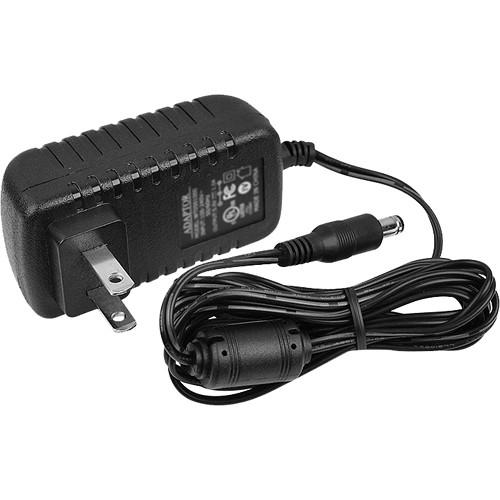

2 x 4-pin USB Type A, female | | Power Adapter | Round plug (L x ID x OD): 0.39 x 0.09 x 0.21" (10.00 x 2.50 x 5.50 mm)
Input: 100 to 240 VAC, 50/60 Hz
Output: 5 VDC, 1A | | Temperature | Operating: 32 to 113°F (0 to 56°C)
Storage: -4 to 140°F (-20 to 60°C) | | Relative Humidity | <80% (non-condensing) | | Certifications & Standards | FCC, CE, RoHS | | Dimensions (W x H x D) | Transmitter: 4.7 x 2.8 x 0.9" (119.3 x 71.1 x 22.8 mm)
Receiver: 4.7 x 2.8 x 0.9" (119.3 x 71.1 x 22.8 mm) | | Weight | Transmitter & Receiver: 0.60 lb (0.27 kg) | | | | Package Weight | 2.25 lb | | Box Dimensions (LxWxH) | 10.4 x 6.9 x 3.1" |
