User Manual for SIIG Wireless-N USB Wi-Fi Adapter Click to enlarge the picture
Contents of the user manual for the SIIG Wireless-N USB Wi-Fi Adapter
- Product category: Wireless Adapters & Cards SIIG
- Brand: SIIG
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SIIG Wireless Adapters & Cards
 |
User manual for the SIIG Wireless-N USB Wi-Fi Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SIIG product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SIIG user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SIIG product will considerably shorten its lifespan!
|

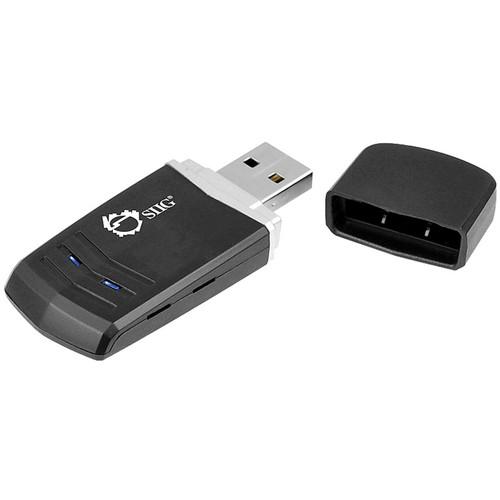

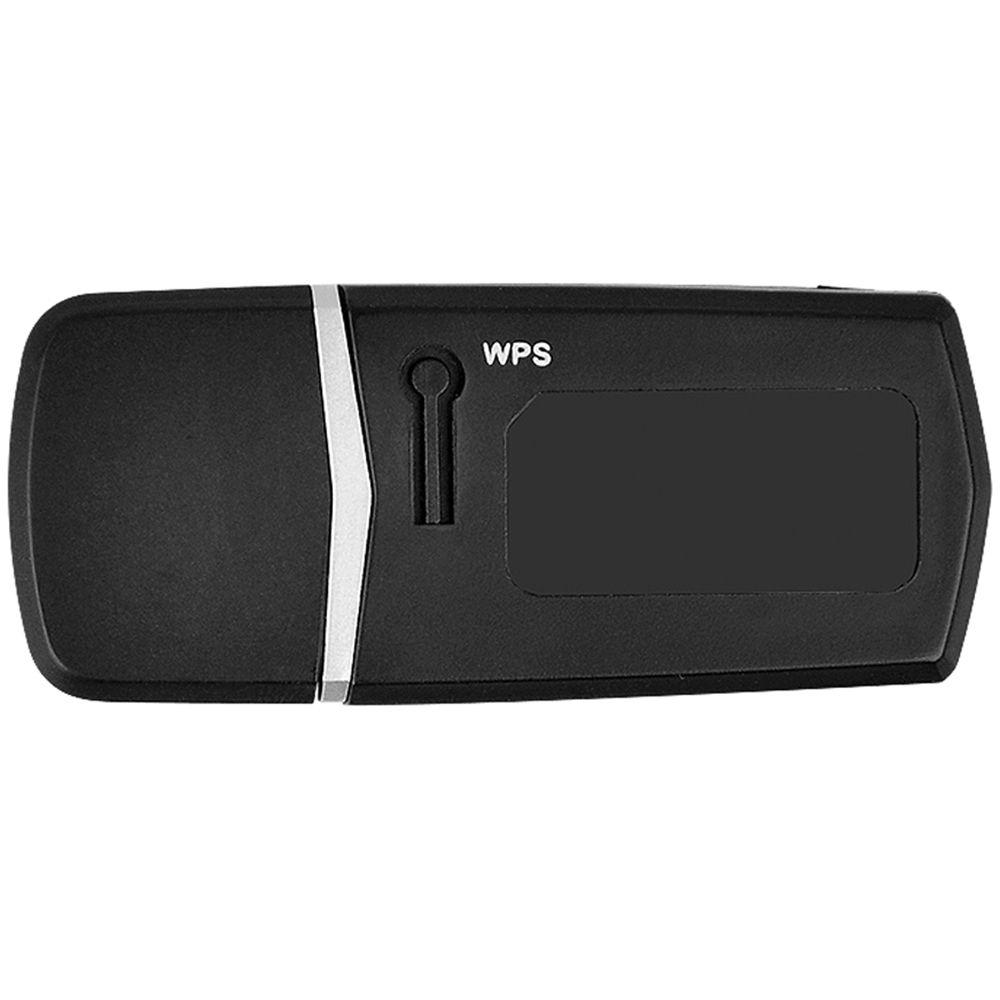

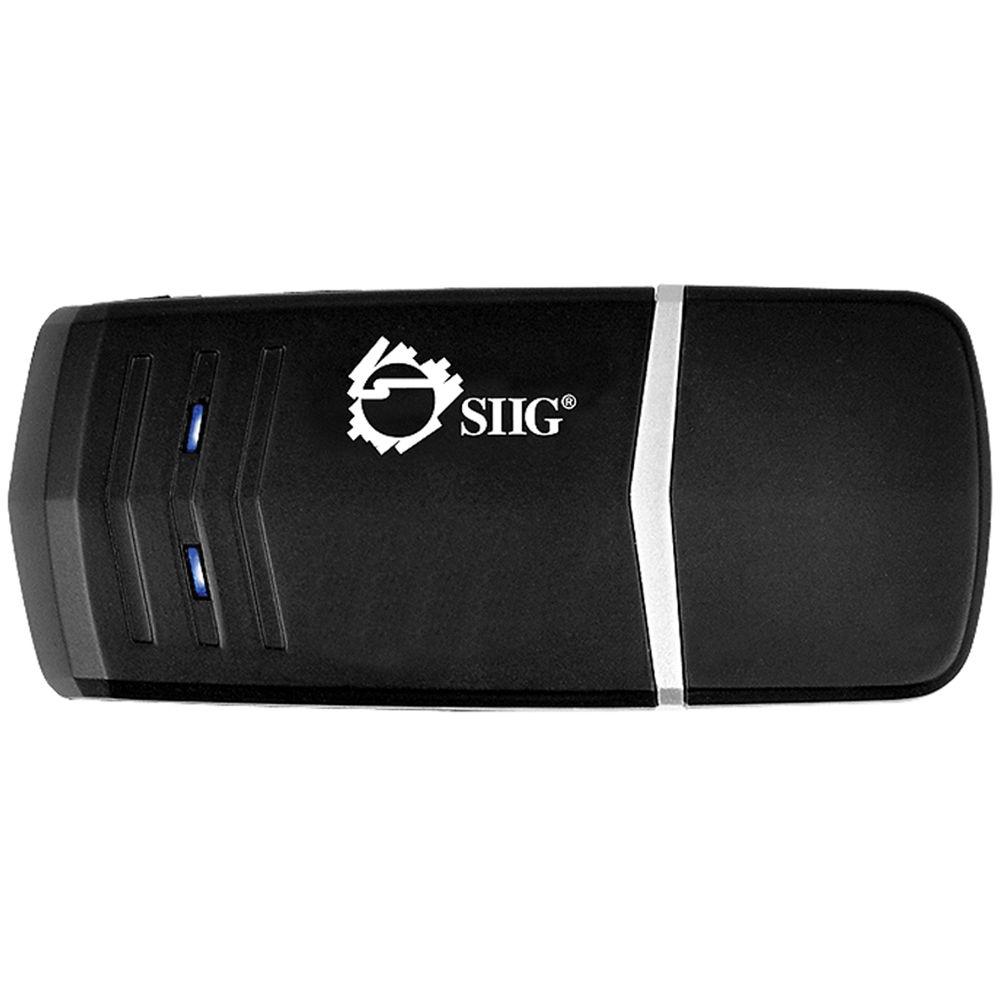

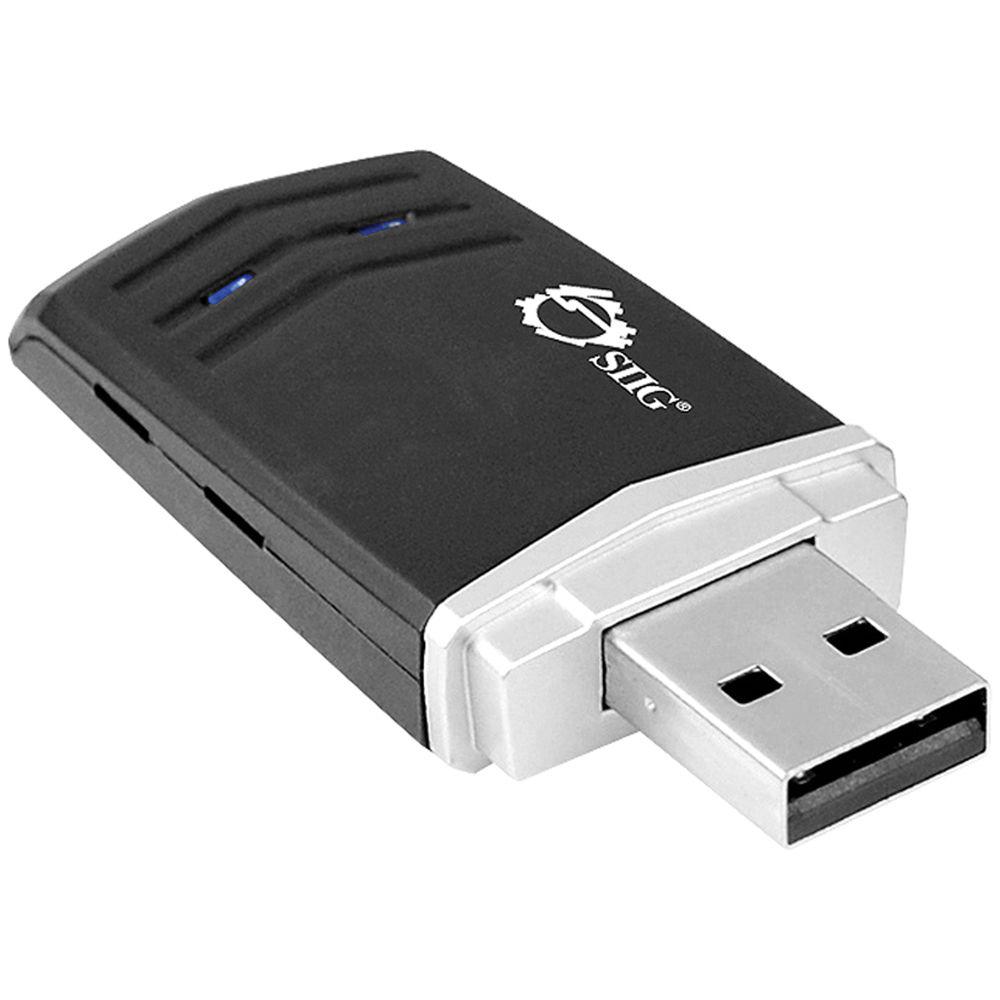

Product description The black Wireless-N USB Wi-Fi Adapter from SIIG enables you to connect a desktop or notebook computer to a Wireless-N network via a USB port. This adapter delivers data transmission rate for Internet access, online gaming, music or movie downloading, and more. Additionally, it provides greater operating distance coverage than a Wireless-G network connection throughout your home or office, minimizing hard-to-reach areas. This compact and portable adapter is a simple and easy solution to upgrade your computer's networking capability to Wireless-N technology and allows you to instantly utilize high-speed Internet access. - MIMO technology improves data throughput and range
- Supports 2.4 GHz WLAN networks and complies with the IEEE 802.11n/g/b standard
- Operating distance is up to 300' (91m) indoor and 900' (274m) in open space
- Supports WLAN security with WPA, WEP (128/64), and WPS
- Supports Ad Hoc and infrastructure modes
- Provides up to 150 Mb/s (download and upload) data transmission rate
UPC: 662774017860 In the Box SIIG Wireless-N USB Wi-Fi Adapter (Black) Driver CD Limited 2-Years Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SIIG Wireless-N USB Wi-Fi Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSIIG JU-WR0212-S1 Specs | Chipset | Ralink RTL8188CUS | | Interface | USB 2.0 Type A (backwards compatible with USB 1.1) | | Frequency Band | 2.4 GHz ISM (Industrial Scientific Medical) band | | RF Frequency Range | 2.412 to 2.484 GHz | | Radio | Radio Channel: 1 to 14 channels (Universal Domain Selection) | | RF Output Power | 13 to 17 dBm (typical) | | Standards | IEEE 802.11n (draft), 802.11g, 802.11b | | Modulation | 11n: BPSK, QPSK, 16QAM, 64QAM with OFDM
11g: BPSK, QPSK, 16QAM, 64QAM, OFDM
11b: DQPSK, DBPSK, DSSS, CCK | | Security | 64/128-bit WEP encryption
WPA/WPA2, WPA-PSK/WPA2-PSK encryptions, TKIP/AES
Enhanced WEP and WPA wireless security
Wi-Fi Protected Setup (WPS) | | Data Rate | 802.11n: up to 150 Mb/s down-link and up-link
802.11g: 54/48/36/24/18/12/9/6 Mb/s auto fallback
802.11b: 11/5.5/2/1 Mb/s auto fallback | | Media Access Protocol | CSMA/CA with ACK | | LED Indicator | Link/active (blue) | | Housing | Plastic | | Requirements | Laptop or desktop computer with an available USB port
Windows 8 (32-/64-bit)/7(32-/64-bit)/Vista (32-/64-bit)/XP (32-/64-bit) / Server 2003 and 2008 (32-/64-bit)/Server 2008 R2
Mac OS X 10.4 or later | | Operating Temperature | 32 to 104˚F (0 to 40˚C) | | Storage Temperature | -4 to 140˚F (-20˚ to 40˚C) | | Relative Humidity | 10 to 90% RH (non-condensing) | | Certifications | FCC, CE, and RoHS | | Dimensions (W x H x D) | 2.36 x 0.98 x 0.39" (59.36 x 24.89 x 9.90 mm) | | Weight | 0.03 lb (0.01 kg) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 8.5 x 4.96 x 0.98" |
