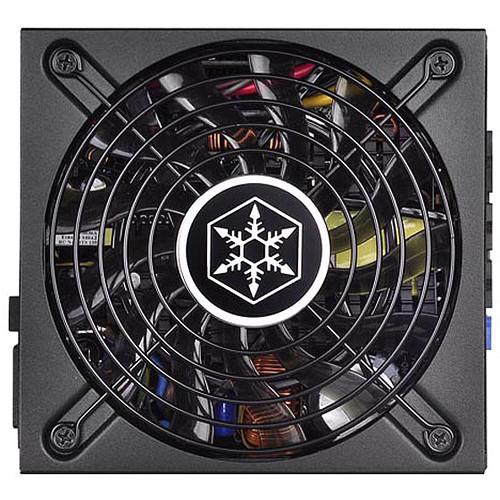

User Manual for SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply Click to enlarge the picture
Contents of the user manual for the SilverStone 500W 80 Plus Gold Modular
- Product category: Power Supplies SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Power Supplies
 |
User manual for the SilverStone 500W 80 Plus Gold Modular contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

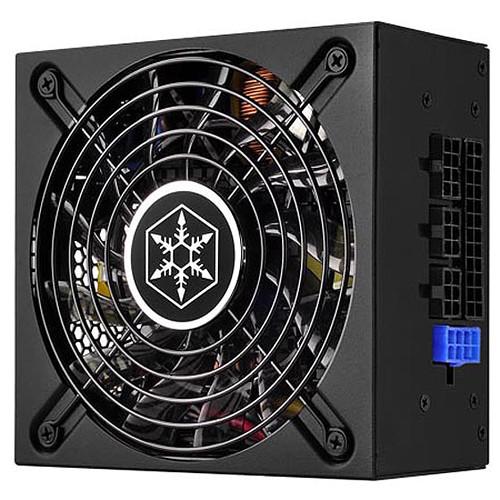

Product description The 500W 80 Plus Gold Modular SFX-L Power Supply from SilverStone features an 87~90% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density per liter is 484W, and its 120mm fan helps to provide cooling with its intelligent semi-fanless operation. It uses flat, modular cables. Other features include a single +12V rail with 40A, support for SFX-L and ATX form factors, active PFC, and support for dual PCIe 8/6pin connectors.
This power supply has a noise level of 0-36 dBA. It supports select NVIDIA and AMD GPUs as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 130mm. Included is an SFX to ATX mounting bracket. - Silent running 120mm fan with intelligent semi-fanless operation
- Supports both the SFX-L and ATX form factors via an included bracket
- High efficiency with 80 Plus Gold certification
- All cables made with flexible flat arrays
- 500W continuous power output at 104°F / 40°C operating temperature rated for 24/7 operation
- Single +12V rail with 40A
- Strict ±3% voltage regulation and low ripple & noise

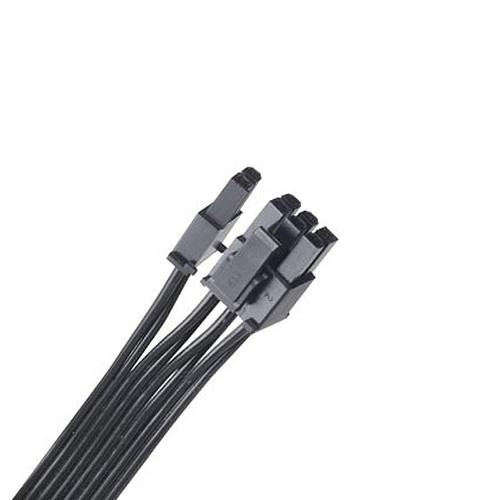

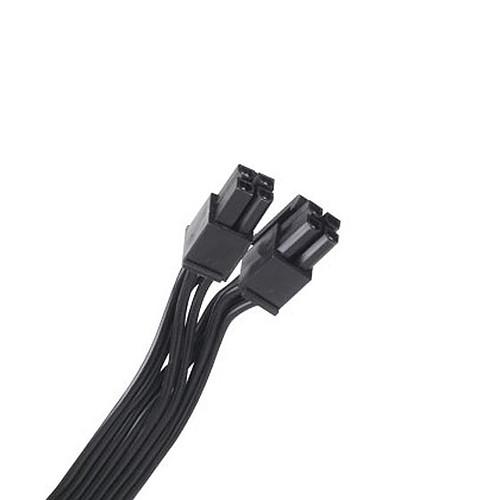

- Supports dual PCI-E 8/6pin connectors
GPU Support - NVIDIA
- GTX980
GTX780
GTX660 - AMD
- R9 290
R7 270X
HD7970 UPC: 844761010683 In the Box SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply SFX to ATX Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone 500W 80 Plus Gold Modular SFX-L Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

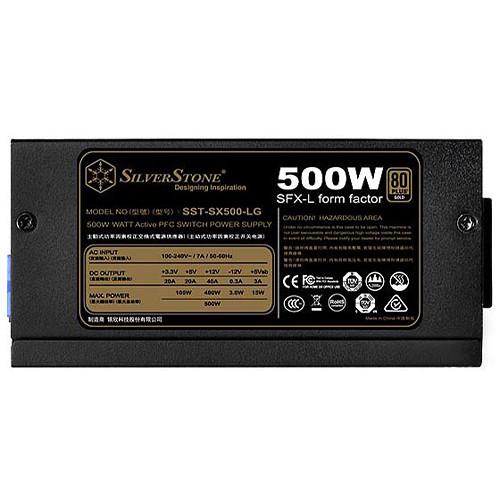

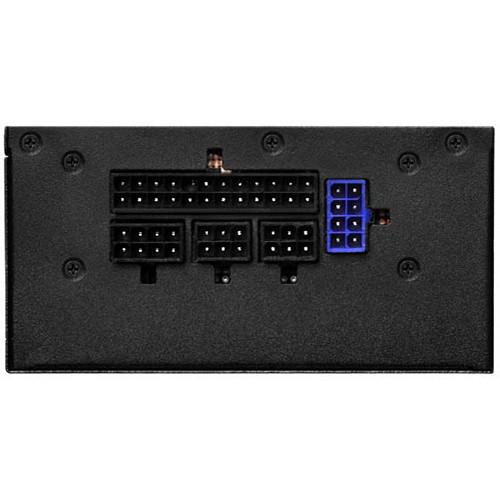

Technical parametersSilverStone SX500-LG Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
3 x 15-Pin SATA
2 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 15.7" / 400 mm
21.7" / 550 mm | | SATA Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
23.6" / 600 mm | | Peripheral Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
27.6" / 700 mm | | Floppy Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
27.6" / 700 mm | | ATX Connector Distance | 11.8" / 300 mm | | EPS Connector Distances | 15.7" / 400 mm | | | | Total Wattage | 500 W | | Combined Power for +12 V | 480 W | | Max Load for +12 V | 40 A | | Combined Power for +3.3/+5 V | 105 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 20 A | | Max Load for +5 Vsb | 3 A | | Max Load for -12 V | 0.3 A | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
