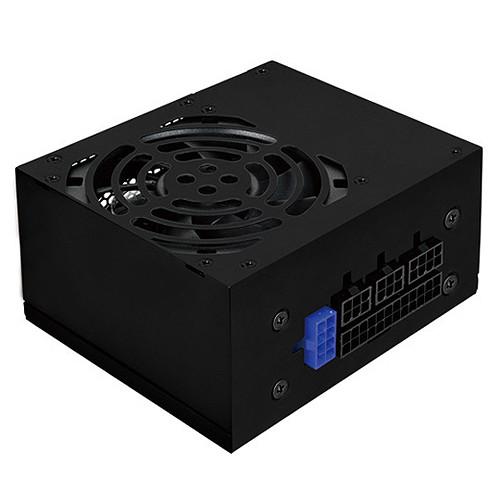

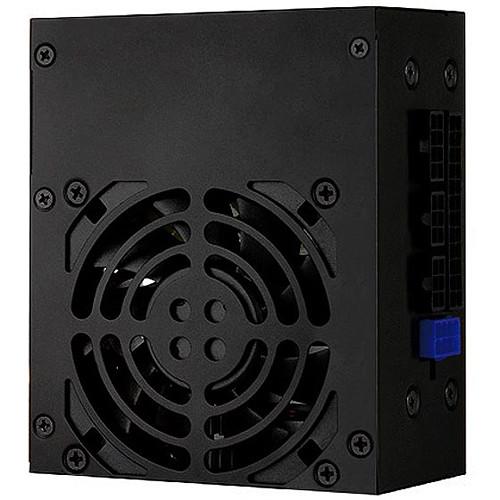

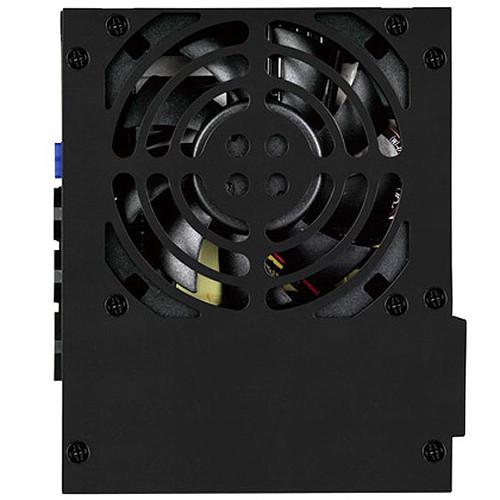

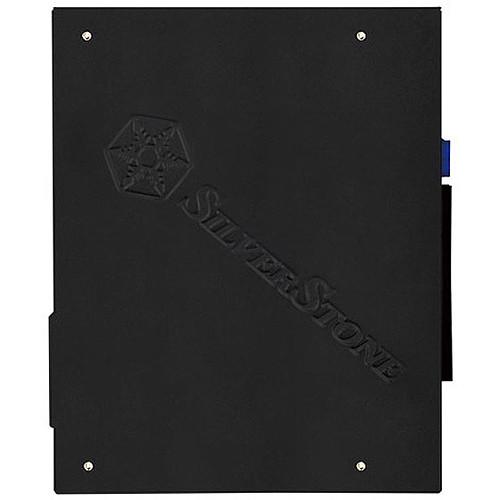

Product description The 600W 80 Plus Gold Modular SFX Power Supply from SilverStone features a 600W power output and 87~90% efficiency at 20~100% loading. It is able to provide 24/7 continuous power output with an operating temperature of 104°F / 40°C. Its power density is 756W per liter, and its 80mm fan helps to provide cooling with intelligent rpm control that provides cool performance and quiet operation with a minimum noise level of 18 dBA. The fanless mode is operational until the PSU's internal temperature reaches 113°F / 45°C. This power supply uses modular cables, and other features include a single +12V rail with 50A, support for SFX and ATX form factors, active PFC, and support for dual PCIe 8/6pin connectors.
The 600W 80 Plus Gold Modular SFX Power Supply has a noise level of 0-40 dBA. It supports select NVIDIA and AMD GPUs, as well as ATX12V v2.4. This power supply is able to fit into systems with a depth of up to 100mm. Included is an SFX to ATX mounting bracket. - Intelligent semi-fanless operation
- Supports standard SFX form factors and the ATX form factor via included bracket
- High efficiency with 80 Plus Gold certification

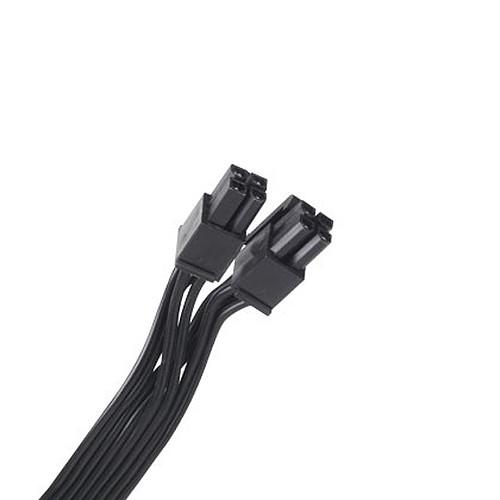

- All cables made with flexible, flat arrays
- 600W continuous power output at 104°F / 40°C operating temperature rated for 24/7 operation
- Single +12V rail with 50A
- Strict ±3% voltage regulation and low ripple & noise
- Supports dual PCI-E 8/6pin connectors
GPU Support - NVIDIA
- GTX 980
GTX TITAN
GTX 780
GTX 690
2 x GTX 660Ti - AMD
- R9 290X
2 x R9 260X
HD7990
2 x HD7850 UPC: 844761011581 In the Box SilverStone 600W 80 Plus Gold Modular SFX Power Supply SFX to ATX Mounting Bracket Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone 600W 80 Plus Gold Modular SFX Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

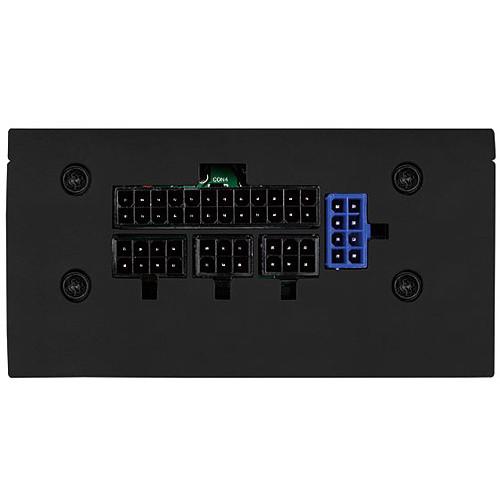

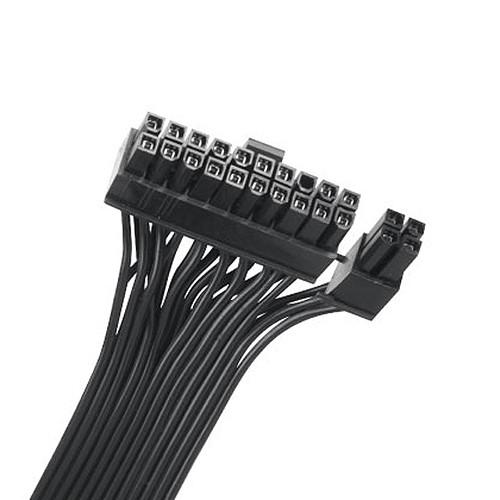

Technical parametersSilverStone SX600-G Specs | | | Total Connectors | 1 x 20+4-Pin Motherboard
1 x 4+4-Pin EPS
2 x 6+2-Pin PCIe
4 x 15-Pin SATA
2 x 4-Pin Peripheral / Molex
1 x 4-Pin Floppy | | PCIe Connector Distances | 15.7" / 400 mm
21.7" / 550 mm | | SATA Connector Distances | 11.8" / 300 mm
19.7" / 500 mm
23.6" / 600 mm | | Peripheral Connector Distances | 11.8" / 300 mm
19.7" / 500 mm | | Floppy Connector Distances | 11.8" / 300 mm
19.7" / 500 mm

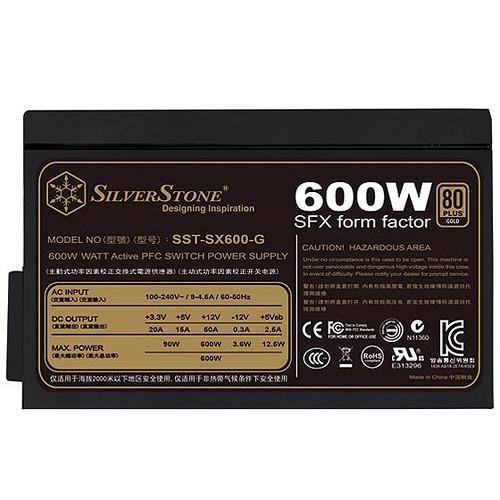

27.6" / 700 mm | | ATX Connector Distance | 11.8" / 300 mm | | EPS Connector Distances | 15.7" / 400 mm | | | | Total Wattage | 600 W | | Combined Power for +12 V | 600 W | | Max Load for +12 V | 50 A | | Combined Power for +3.3/+5 V | 90 W | | Max Load for +3.3 V | 20 A | | Max Load for +5 V | 15 A | | Max Load for +5 Vsb | 2.5 A | | Max Load for -12 V | 0.3 A | | AC Input Power | 90 to 264 VAC, 50 / 60 Hz | | Voltage Regulation | +3.3 V:
