User Manual for SilverStone FT03 Fortress Mini-Tower Case Click to enlarge the picture
Contents of the user manual for the SilverStone FT03 Fortress Mini-Tower Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone FT03 Fortress Mini-Tower Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

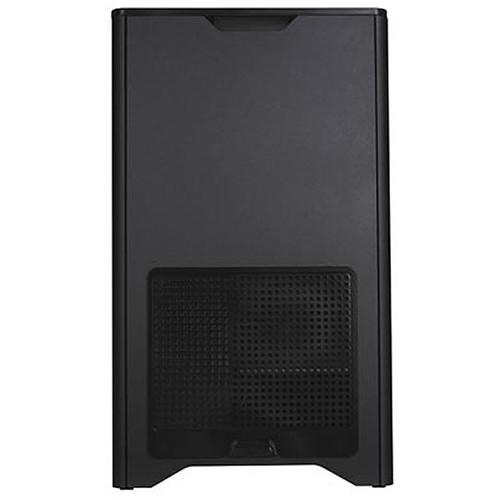

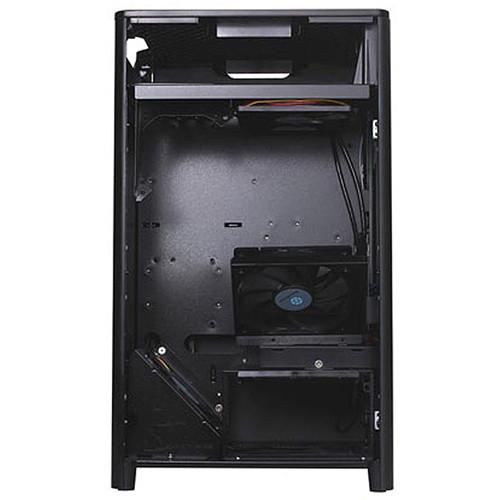

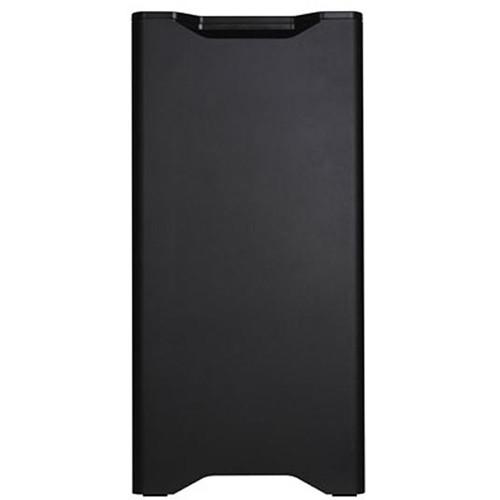

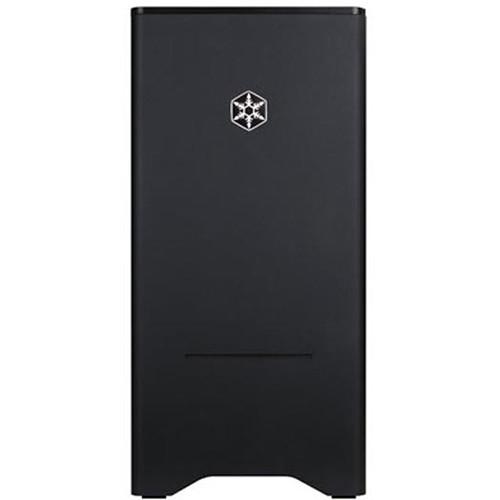

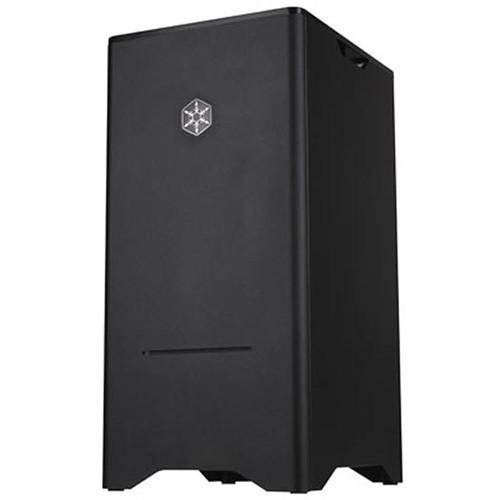

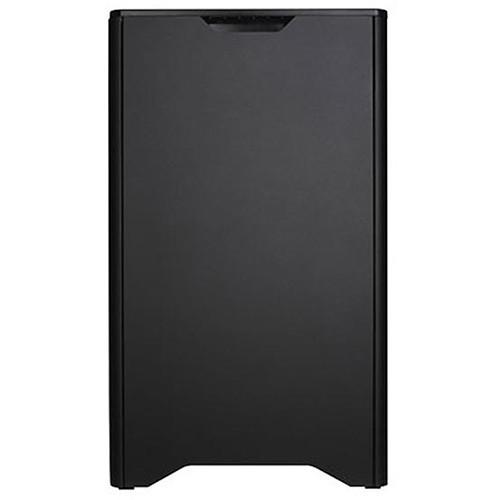

Product description The black SilverStone FT03 Fortress Mini-Tower Case lets you mount the motherboard at a 90° angle for more efficient cooling of your components. Since hot air rises, the three included 120mm fans quickly direct the hot air upwards. It is compatible with micro-ATX, mini-DTX, and mini-ITX motherboards as well as PS2 ATX power supplies. For drive support, it can house a slim optical drive, one 2.5" drive, and up to three 3.5" drives. In addition to the drive support, it has four expansion slots so you can install multiple graphics cards up to 13.8" long. Furthermore, a top cover hides your ports to provide this case with a sleek design.

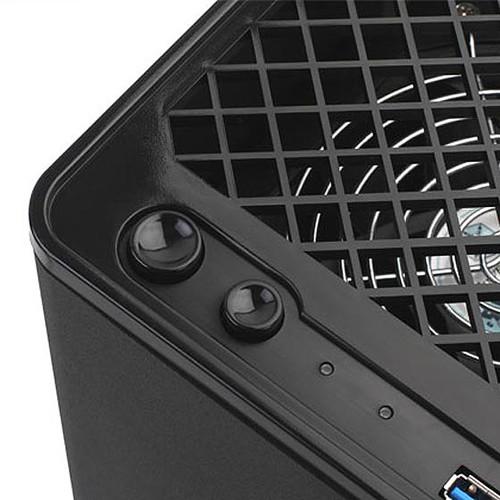

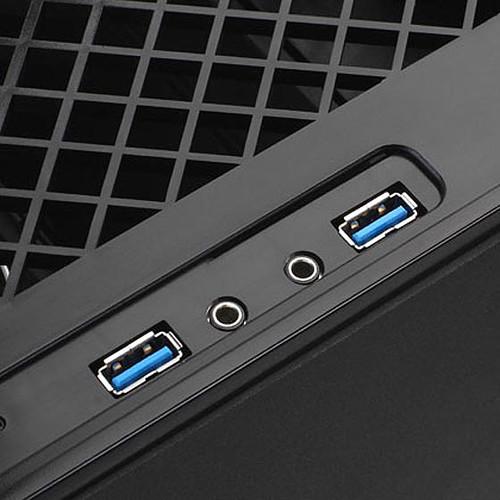

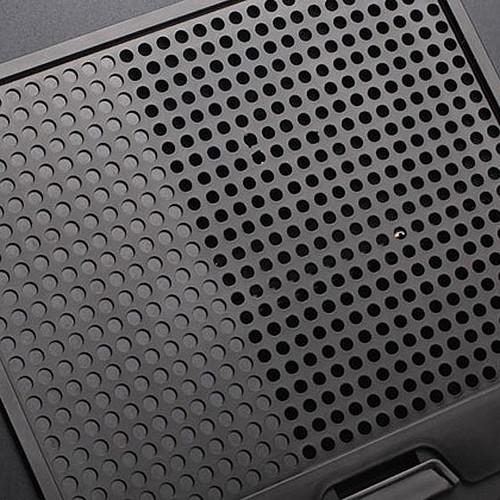

The top of this case offers two USB 3.0 ports along with a headphone jack and a microphone jack. Additionally, you can quickly remove a 3.5" drive from the top by utilizing its hot-swapping features. To help prevent dust from entering inside the case, two removable air filters are included. SilverStone has also designed this case with cable routing pathways and wire ties to better manage your cables and help improve airflow. - Stack effect layout with 90° motherboard mounting
- Supports graphics cards up to 13.8" long
- Supports full-tower CPU coolers
- Includes hot-swap bay for quick data storage needs

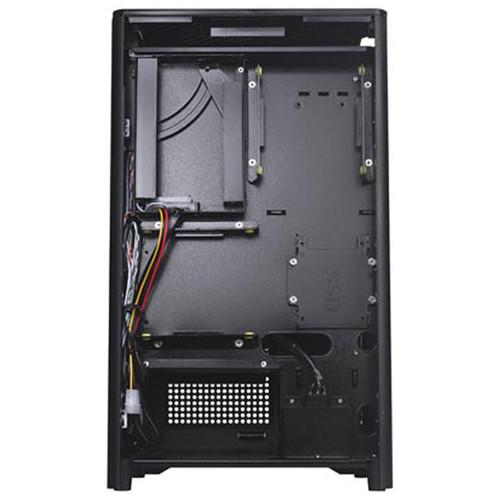

- Backside hard drive mounting with passive quiet cooling
UPC: 844761007584 In the Box SilverStone FT03 Fortress Mini-Tower Case Screw Kit Wire Tie Kit 2.5" Drive Bracket 2 x Ziplock Bags Fan Cable USB Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone FT03 Fortress Mini-Tower Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone FT03B Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 3 x 3.5"
1 x 2.5" | | Expansion Slots | 4 x Full Height | | Maximum GPU Length | 13.8" / 35.1 cm | | CPU Cooler Height | 6.6" / 16.7 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Top) | 1 x 80 mm
Or
1 x 92 mm
| | Fan Mounting (Bottom) | 2 x 80 mm
| | Fans Included (Top) | 1 x 120 mm (1200 rpm) | | Fans Included (Bottom) | 2 x 120 mm (1200 rpm) | | Noise Level | 22 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Cable Management Space | None | | Dimensions (W x H x D) | 9.3 x 19.2 x 11.2" / 235.0 x 487.0 x 284.0 mm | | Weight | 14.8 lb / 6.7 kg | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 24.0 x 15.0 x 13.0" |
