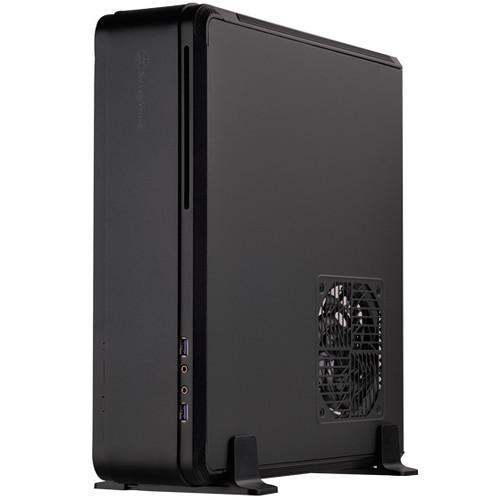

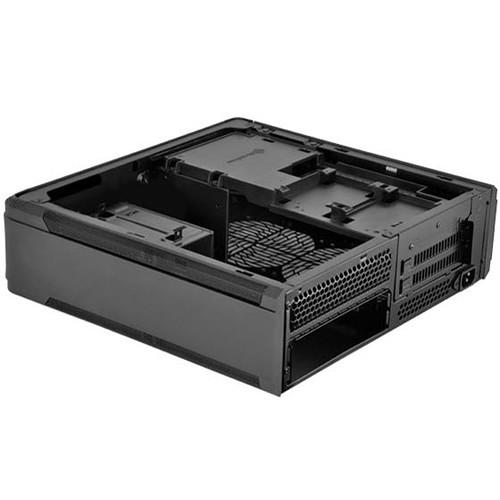

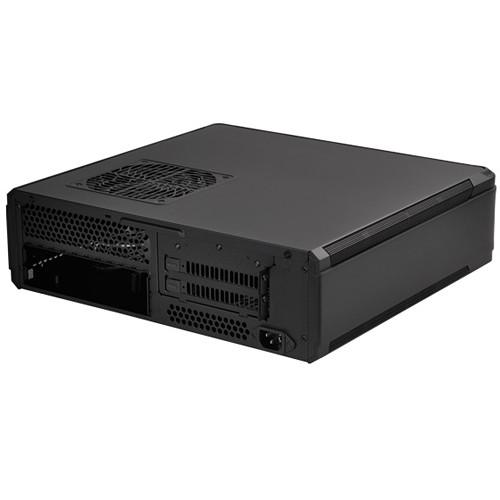

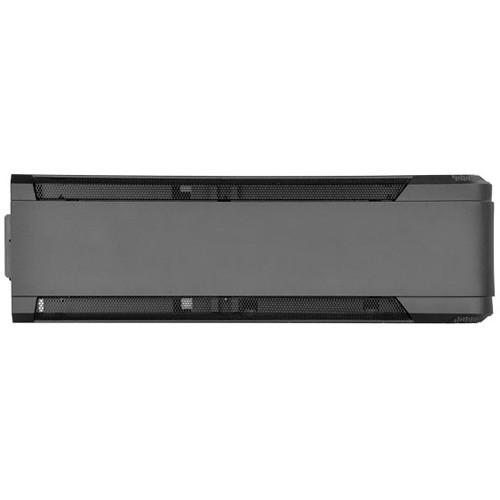

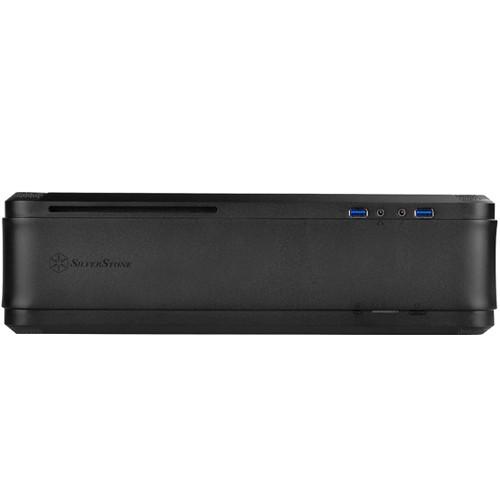

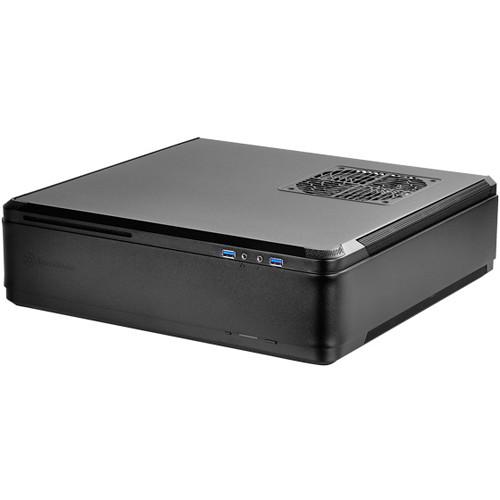

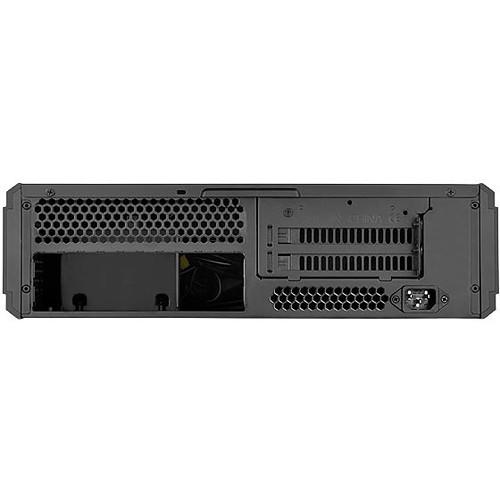

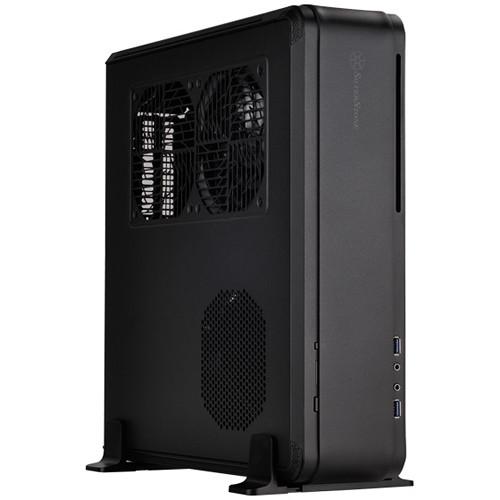

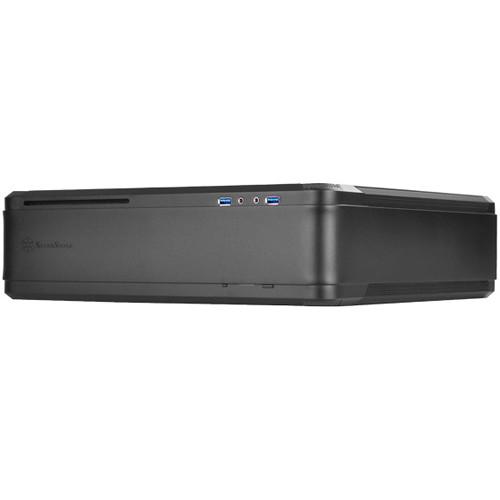

Product description The black FTZ01 Slim HTPC Case from SilverStone is designed to house your high-end components in a small-sized chassis. It supports graphics cards up to 13" long and comes with a PCIe riser card, which adapts your graphics card to run parallel with your motherboard, allowing you to have a case that is only 4" tall. For drive support, it can house a slim optical drive, one 3.5" drive, and up to three 2.5" drives. It is fully compatible with mini-DTX and mini-ITX motherboards as well as SFX power supplies. SilverStone provides two quiet 120mm fans and multiple air filters to cool the system and keep the inside clean. The case also comes with two USB 3.0 ports and two audio jacks in the front. - Supports graphics card up to 13"
- Mini-ITX motherboard and SFX power supply compatible
- Positive air pressure design
- Quiet fans provide cooling
- Air filters prevent dust from entering inside

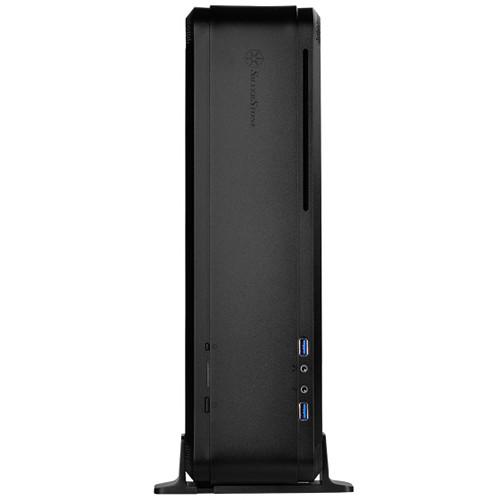

- Horizontal or vertical orientation
UPC: 844761011901 In the Box SilverStone FTZ01 Slim HTPC Case Bottom Stand Foot Rubber Foot VGA Card Bracket (Top) VGA Card Bracket (Bottom) VGA Card Bracket Foam Pad Screw Kit Zipper Bag Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone FTZ01 Slim HTPC Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone FTZ01B Specs | | | Motherboard Support | Mini-ITX, Mini-DTX | | External Drive Bays | 1 x Slim Optical Drive | | Internal Drive Bays | 3 x 3.5"
1 x 2.5" | | Maximum GPU Length | 13" / 33 cm | | CPU Cooler Height | 3.3" / 8.5 cm | | Supported PSU Size | SFX | | | | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Top) | 1 x 120 mm (1500 rpm) | | Fans Included (Bottom) | 1 x 120 mm (1500 rpm) | | Noise Level | 18 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 14.8 x 4.2 x 13.8" / 376.0 x 107.0 x 351.0 mm | | Weight | 10.1 lb / 4.6 kg | | | | Package Weight | 12.75 lb | | Box Dimensions (LxWxH) | 17.3 x 16.8 x 7.0" |
