User Manual for SilverStone GD05 Grandia HTPC Case Click to enlarge the picture
Contents of the user manual for the SilverStone GD05 Grandia HTPC Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone GD05 Grandia HTPC Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

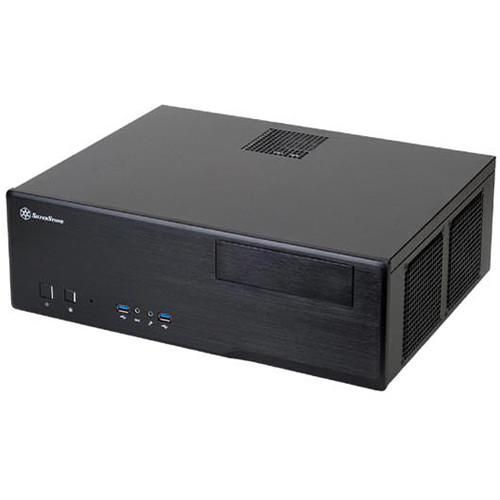

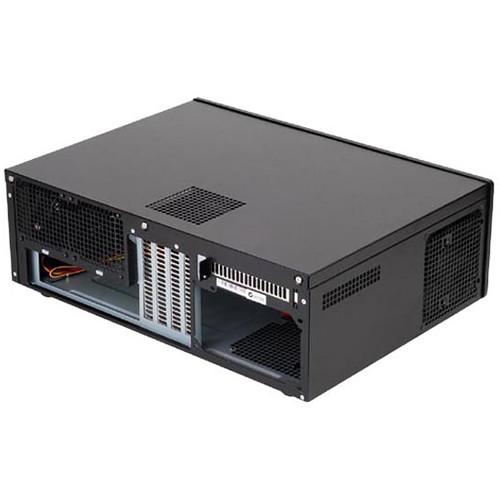

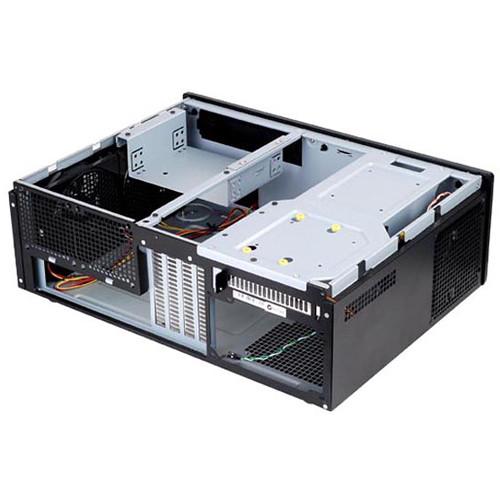

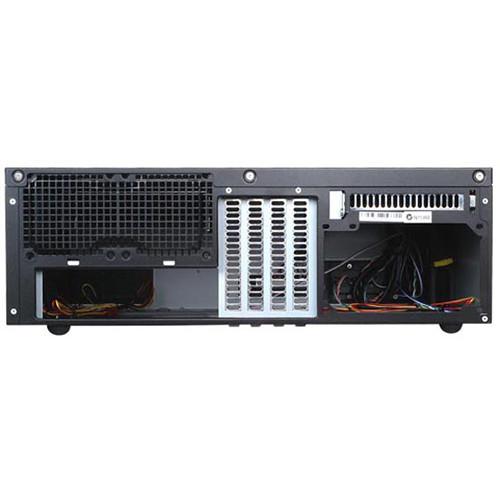

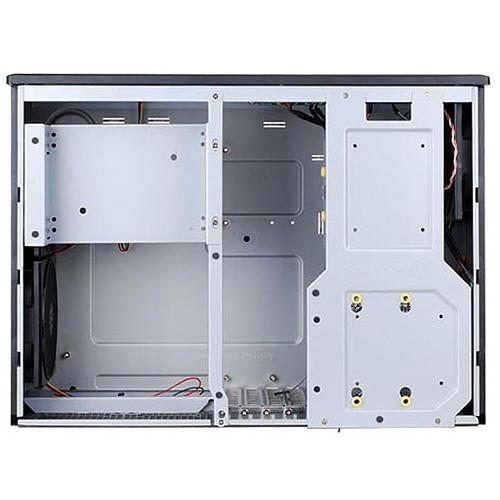

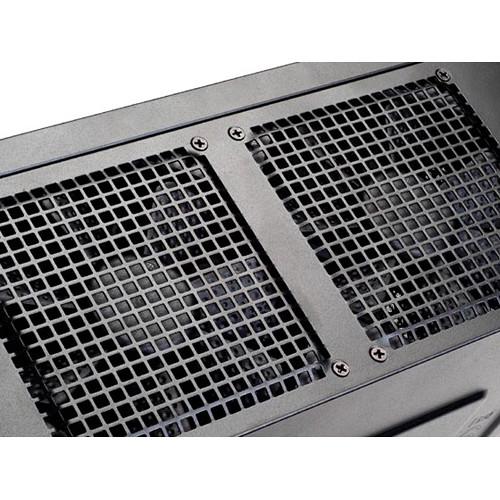

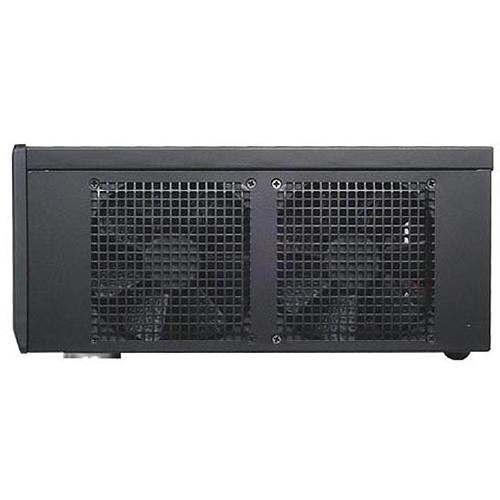

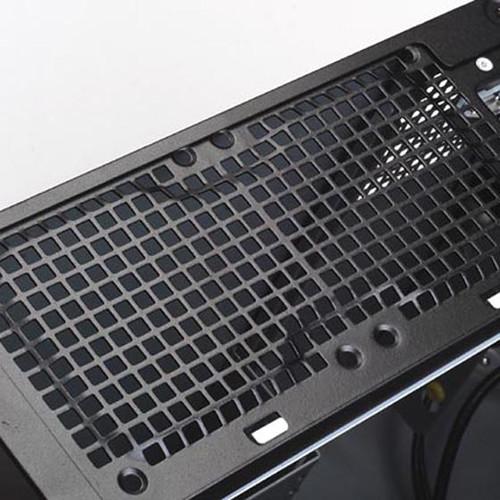

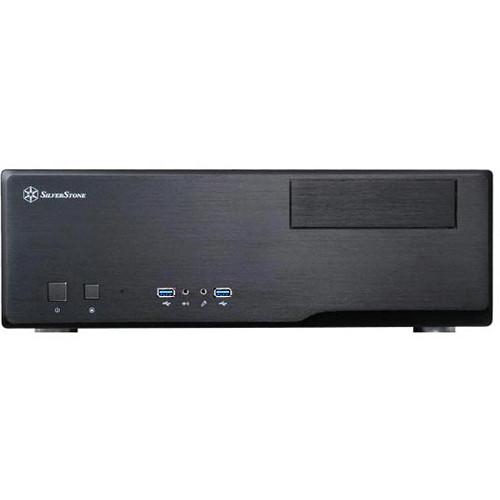

Product description The black GD05 Grandia HTPC Case from SilverStone lets you build a system that can fit in your home theater cabinet. It supports micro-ATX, mini-DTX, and mini-ITX motherboards as well as graphics cards up to 11" long. You can install a single 5.25" optical drive along with up to three storage drives inside the case. It has a drive cage that can hold one 2.5" drive and one 3.5" drive as well as a third drive in the size of 3.5" or 2.5". Cooling is accomplished with the three included 120mm fans, which work with removable filters that surround the case for positive pressure to work effectively and quietly. Furthermore, SilverStone has built the chassis with space for cable management to keep your cables organized. - Three silent 120mm fans included
- Positive air pressure design provides dust-prevention along with cooling and quiet
- Designed to fit inside your home theater cabinet with a 12.8" depth
- Cable routing for easy installation
- Power supplies up to 7.1" are supported
- Supports graphics card up to 11"
- Supports 3.5" hard drives and SSDs
UPC: 844761008802 In the Box SilverStone GD05 Grandia HTPC Case Metal Spacer Kit Screw Kit Fan Cable Cable Tie Kit PSU Rubber Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone GD05 Grandia HTPC Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone GD05B-USB3.0 Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 2 x 3.5"
1 x 2.5" | | Expansion Slots | 5 x Full Height | | Maximum GPU Length | 11" / 27.9 cm | | CPU Cooler Height | 4.7" / 12 cm | | Supported PSU Size | ATX | | Maximum PSU Length | 7.1" / 18 cm | | | | Fan Mounting (Rear) | 2 x 80 mm

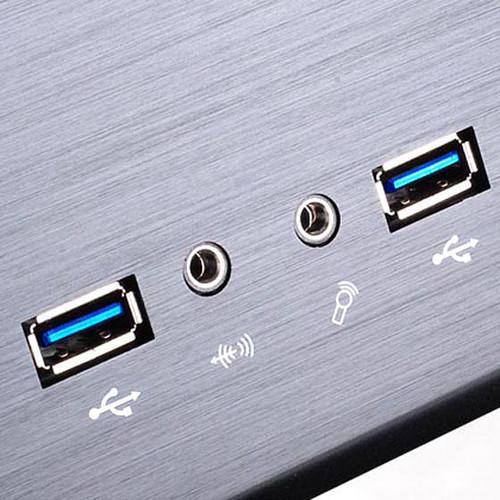

| | Fans Included (Side) | 3 x 120 mm (1200 rpm) | | Noise Level | 20 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 17.3 x 5.9 x 12.8" / 440.0 x 151.0 x 325.0 mm | | Weight | 10.4 lb / 4.7 kg | | | | Package Weight | 14.75 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 9.8" |
