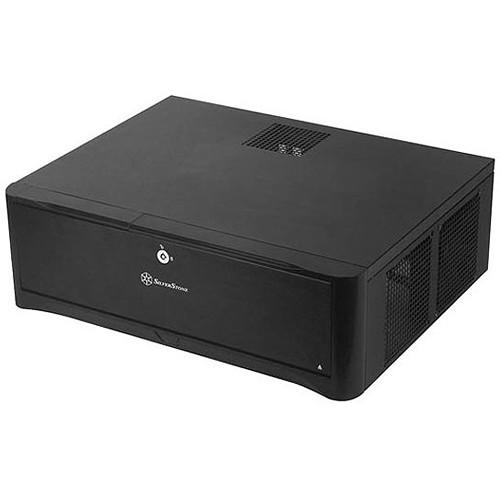

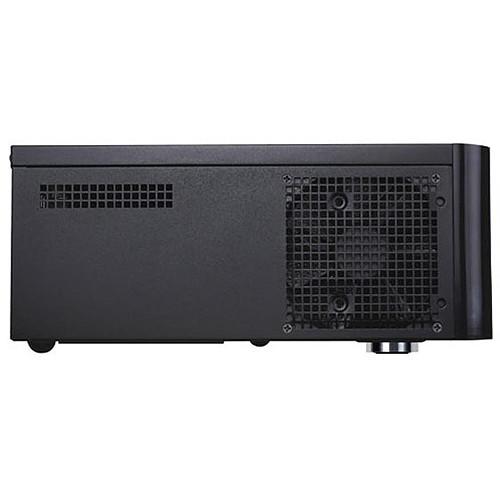

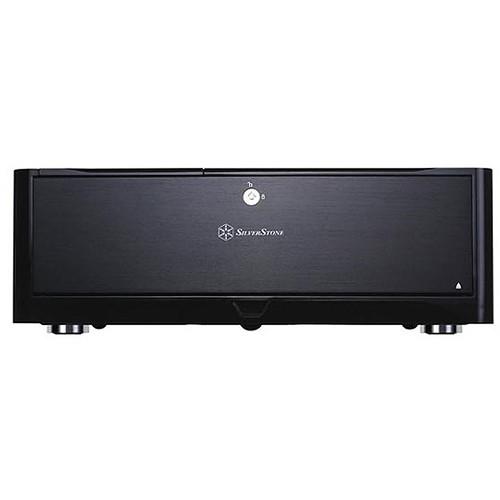

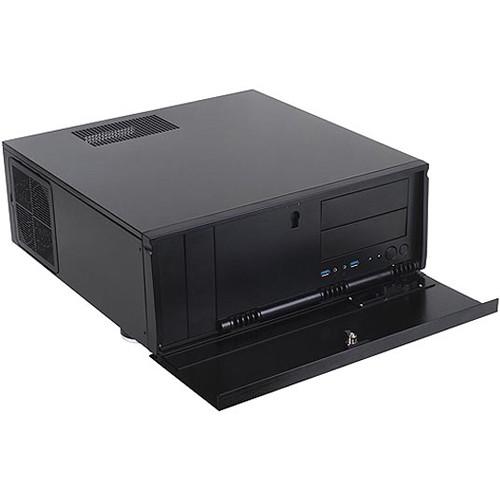

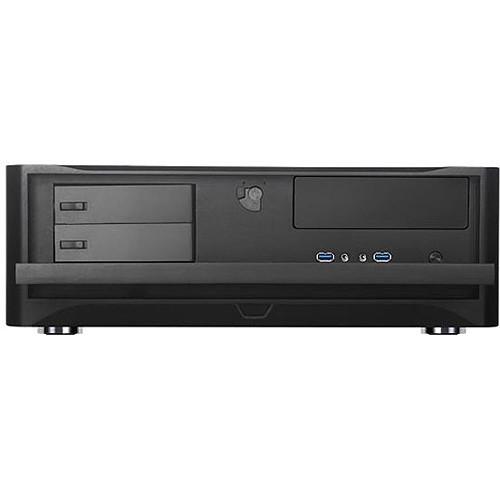

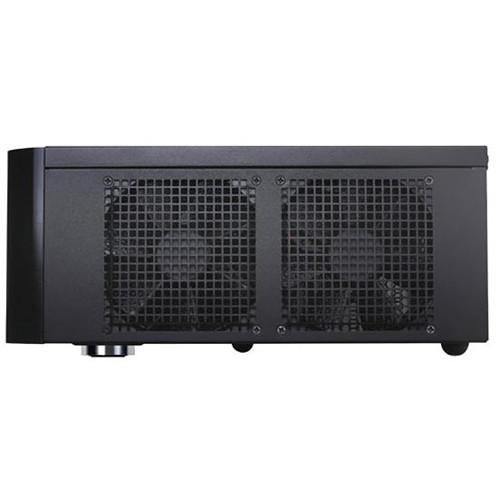

Product description The black GD06 Grandia HTPC Case from SilverStone lets you build a system that can fit in your home theater cabinet. It supports micro-ATX, mini-DTX, and mini-ITX motherboards as well as graphics cards up to 11" long. For storage, the case can support one 2.5" drive, three 3.5" drives, and one other drive that is either 2.5 or 3.5". The front panel of the case features two hot-swappable drive bays, an optical drive bay, two USB 3.0 ports, and two audio jacks. Moreover, it offers a lockable front door that helps secure your drives. Aside from these features, three included 120mm fans provide cooling efficiency. To ensure silent cooling ability over time, removable filters surround the case for positive pressure to work effectively and quietly. Furthermore, SilverStone has built the chassis with space for cable management to keep your cables organized. - Three silent 120mm fans included

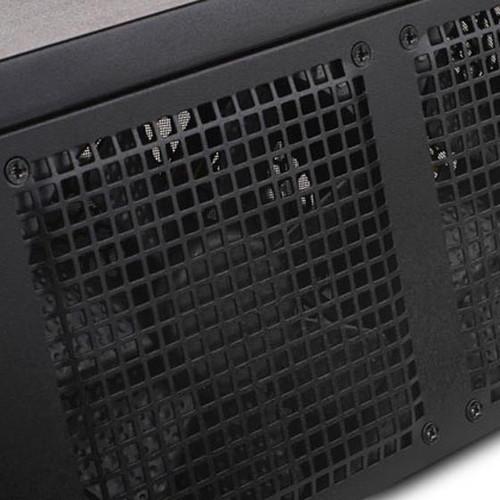

- Positive air pressure design provides dust prevention along with quiet cooling
- Designed to fit inside a home theater cabinet with a 13.4" depth

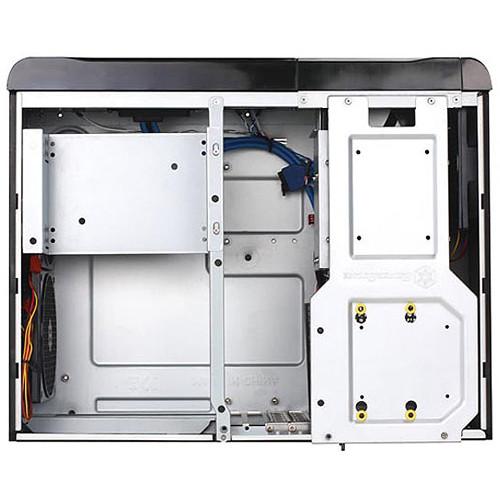

- Cable routing for easy installation
- Supports up to four 3.5" hard drives and one 2.5" HDD/SDD or three 3.5" and two 2.5" drives.
- Supports graphics card up to 11"

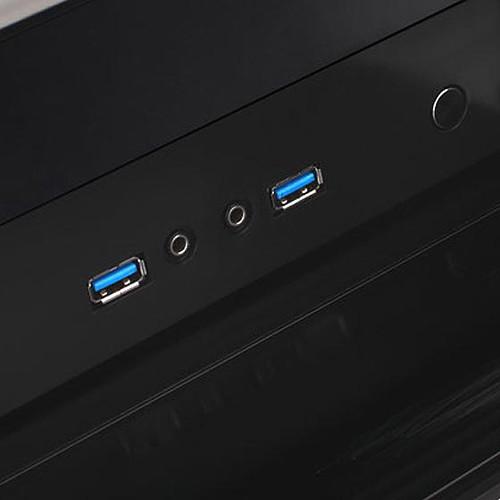

- Features two USB 3.0 port
UPC: 844761007645 In the Box SilverStone GD06 Grandia HTPC Case Metal Spacer Kit Screw Kit Fan Cable Cable Tie Kit PSU Rubber Kit Key USB Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone GD06 Grandia HTPC Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone GD06B Specs | | | Motherboard Support | Micro-ATX, Mini-ITX, Mini-DTX | | External Drive Bays | 1 x 5.25" | | Internal Drive Bays | 4 x 3.5"
1 x 2.5" | | Maximum GPU Length | 11" / 27.9 cm | | CPU Cooler Height | 4.7" / 12 cm | | Maximum PSU Length | 5.9" / 15 cm | | | | Fan Mounting (Rear) | 2 x 80 mm
| | Fans Included (Side) | 3 x 120 mm (1200 rpm) | | Noise Level | 20 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel, Plastic | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 17.3 x 5.9 x 13.4" / 440.0 x 150.0 x 340.0 mm | | Weight | 12.3 lb / 5.6 kg | | | | Package Weight | 16.7 lb | | Box Dimensions (LxWxH) | 21.0 x 16.0 x 10.0" |
