User Manual for SilverStone GD08 Grandia HTPC Case Click to enlarge the picture
Contents of the user manual for the SilverStone GD08 Grandia HTPC Case
- Product category: Desktop Computer Cases SilverStone
- Brand: SilverStone
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SilverStone Desktop Computer Cases
 |
User manual for the SilverStone GD08 Grandia HTPC Case contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SilverStone product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SilverStone user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SilverStone product will considerably shorten its lifespan!
|

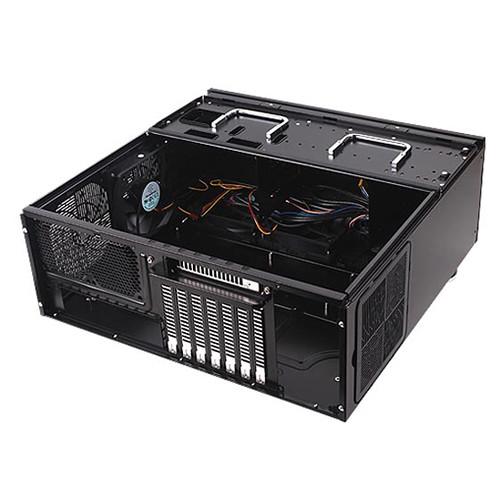

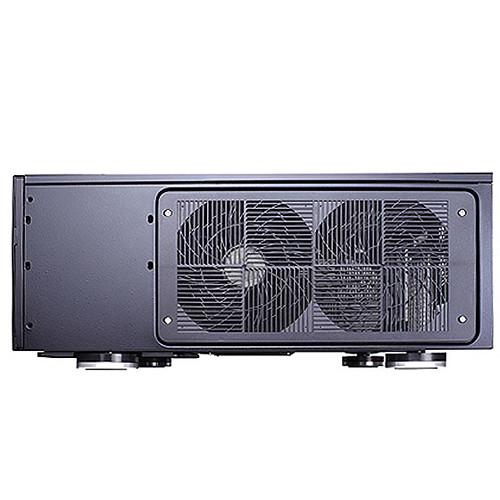

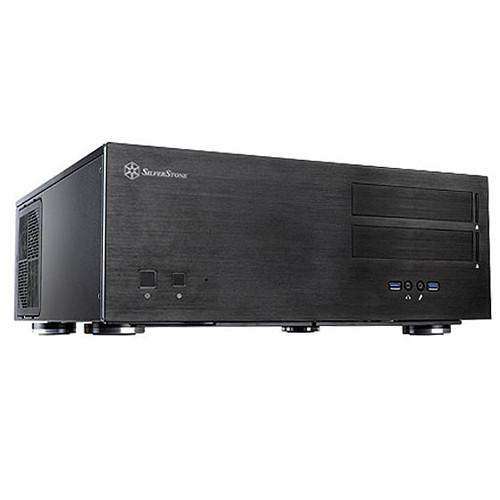

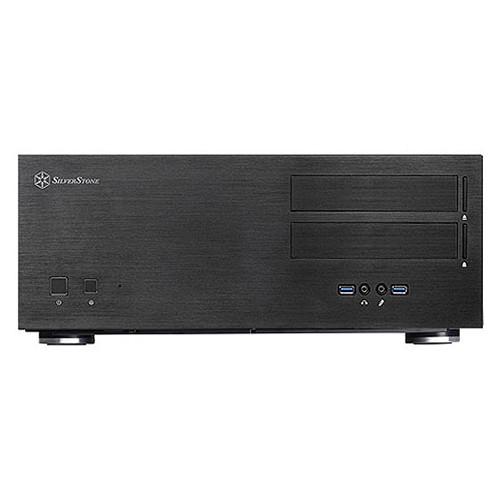

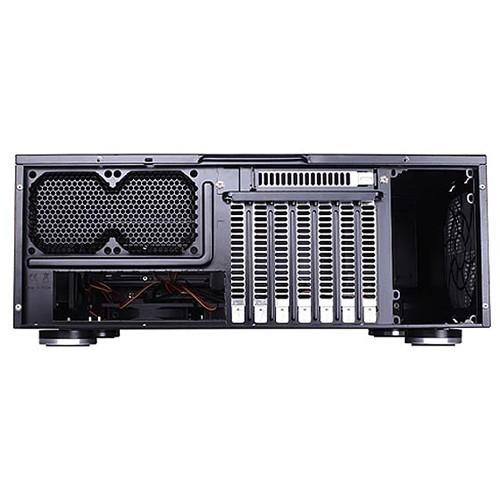

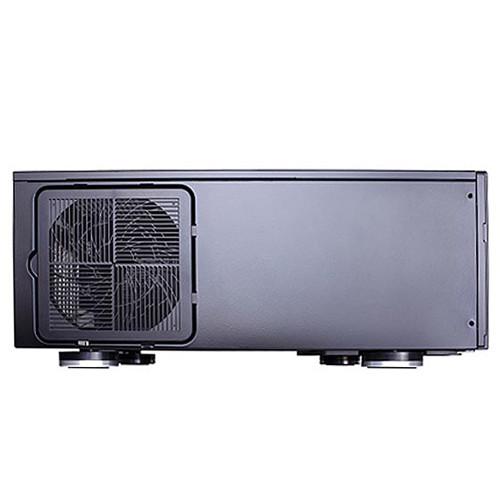

Product description The black SilverStone GD08 Grandia HTPC Case lets you build a server-class system that stows neatly and operates quietly in a home theater environment. Designed to utilize all available spaces fully, it fits up to SSI-EEB Extended ATX motherboards, two 5.25" optical drives, eight 3.5" hard drives, and two 2.5" hard drives or SSDs. This case supports graphics cards up to 13.6" long and comes with 7 expansion slots as well as an extra expansion slot for short expansion cards, fan controllers, or extra motherboard I/O panels. For cooling your components, three 120mm fan are included to create a positive air pressure, and up to three additional optional fans can be installed. To help ensure silent cooling ability over time, removable filters surround the case to keep dust out, so the fans do not have to spin as fast. In addition, it houses standard ATX power supplies and offers two USB 3.0 and two audio ports. - Positive air pressure design provides dust-prevention along with quiet cooling
- Supports graphics card up to 13.6"
- Extended-ATX-motherboard compatible
- Quick-access filters prevent dust buildup
- Aluminum front panel with premium styling
- LED indicator with adjustable brightness
- Large storage capacity with twelve drive bays
UPC: 844761008888 In the Box SilverStone GD08 Grandia HTPC Case Screw Kit USB Cable Cable Tie Kit 3.5" Hard Drive Bracket Kit Rubber Spacer Kit Limited 1-Year Warranty User Manual PDF 5.4mbbeffavtxvzutcxuavwyfbfssaxzwzdxc Table of Contents
|
Upload User Manual
Have you got an user manual for the SilverStone GD08 Grandia HTPC Case in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSilverStone GD08B Specs | | | Motherboard Support | SSI-EEB, SSI-CEB, E-ATX, ATX, Micro-ATX | | External Drive Bays | 2 x 5.25" | | Internal Drive Bays | 8 x 3.5"
2 x 2.5" | | Expansion Slots | 7 x Full Height + 1 | | Maximum GPU Length | 13.6" / 34.5 cm | | CPU Cooler Height | 5.4" / 13.8 cm | | Maximum PSU Length | 8.7" / 22 cm | | | | Fan Mounting (Rear) | 2 x 80 mm
| | Fan Mounting (Side) | 1 x 120 mm
| | Fan Mounting (Bottom) | 1 x 120 mm
| | Fans Included (Side) | 1 x 120 mm (900 rpm) | | Fans Included (Bottom) | 2 x 120 mm (900 rpm) | | Noise Level | 18 dBA | | Fan Controller Included | No | | | | Connections | 2 x USB Type-A (USB 3.0) | | Audio Connections | 1 x 3.5 mm Input
1 x 3.5 mm Output | | Display Connections | None | | | | Windowed Panel | No | | Material | Aluminum, Steel | | Security | Kensington Lock Slot | | Cable Management Space | None | | Dimensions (W x H x D) | 17.3 x 6.9 x 16.7" / 440.0 x 175.0 x 425.0 mm | | Weight | 15.4 lb / 7.0 kg | | | | Package Weight | 20.2 lb | | Box Dimensions (LxWxH) | 20.8 x 20.8 x 10.6" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
